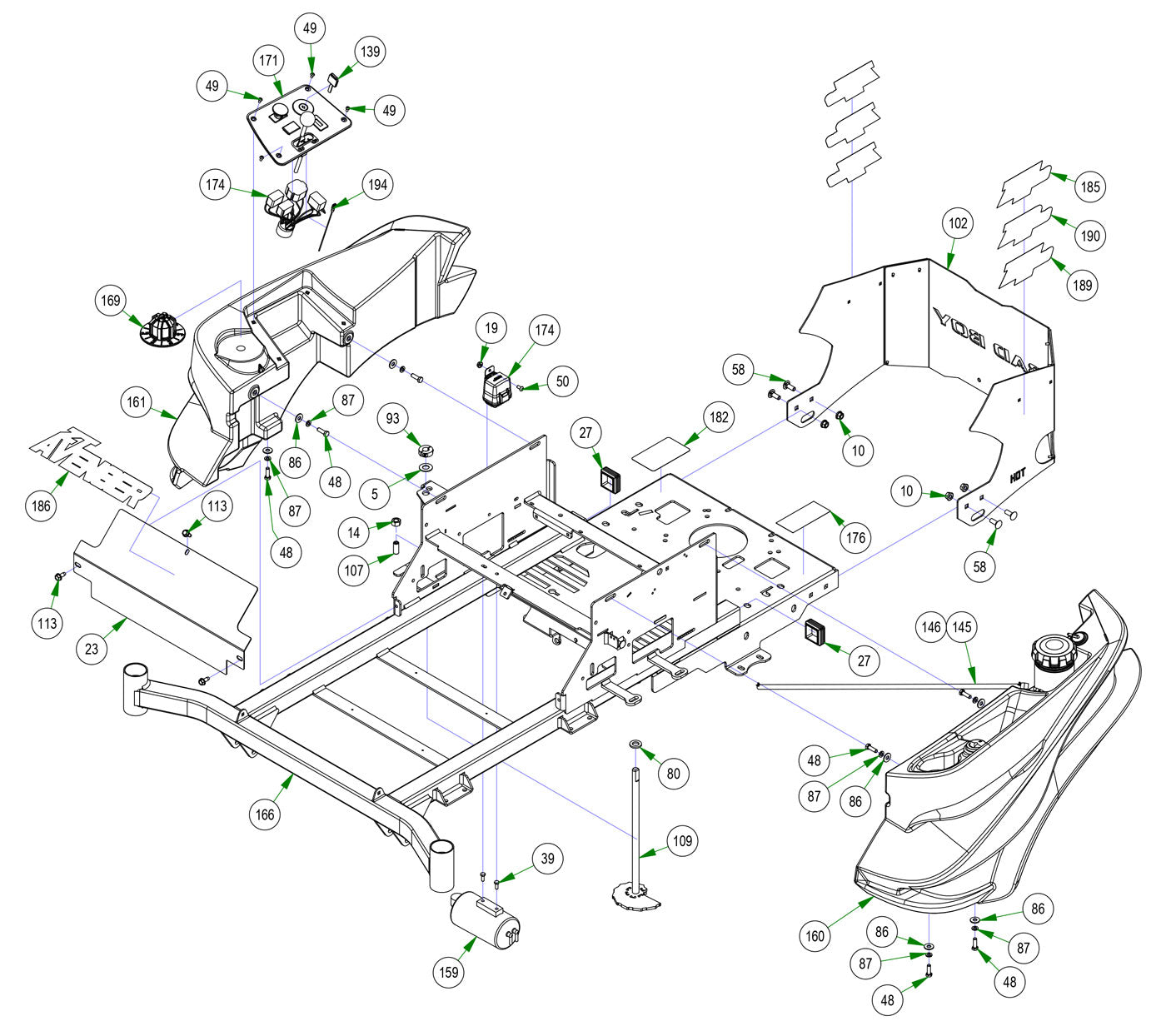

Fuel Tank & Rear Cover
Parts Index
- 5 .630 ID x 1.130 OD x .062 THK F/W Nylon Black (Qty 1)
- 10 3/8 Nylock Flange Nut (Qty 4)
- 14 1/2-13 Hex Nuts Zinc (Qty 1)
- 19 1/4-20 Hex Flange Nuts Zinc w/ (Qty 1)
- 23 OBSOLETE USE 014-3320-23 (Qty 1)
- 27 Frame Plug 2x2 (Qty 2)
- 39 M6-1.0 X 16MM HEX BOLT CL 8 (Qty 2)
- 48 5/16-18 X 1 GR 5 Hex Bolt Zinc (Qty 7)
- 49 10-32 X 3/8 BS C/S 18-8 SS with Patch (Qty 4)
- 50 1/4-20 X 1/2 BS C/S 18-8 SS (Qty 1)
- 58 3/8 x 1 Carriage Bolt (Qty 4)
- 80 .630 ID X 1.122 OD X .142 THK (Qty 1)
- 86 5/16 USS Flat Washer Zinc (Qty 7)
- 87 5/16 Lock washer Zinc (Qty 7)
- 93 Split Collar (Qty 1)
- 102 2022 ZT Avenger Rear Plate Assembly (Qty 1)
- 107 Deck Height Cam Plunger (Qty 1)
- 109 2017 ZT Deck Height Bar Assy. (Qty 1)
- 113 5/16 x 3/4 Hex Washer Type F (Qty 3)
- 139 Ignition Key (Qty 1)
- 145 15" Fuel Line (Qty 1)
- 145.1 1/4 Fuel Line Hose PRICED/FOOT (Qty 1)
- 145.2 1/4 Fuel Line Clamp (Qty 2)
- 146 2014 ZT Fuel Line Assembly-37" (Qty 1)
- 159 ZT/Mav EPA Cannister Assy (Qty 1)
- 160 2016 Maverick/ZT/Avenger Left Fuel Tank (Qty 1)
- 160.1 3.5" Tethered Fuel Cap (Qty 1)
- 160.2 Fuel Line Pickup Tube for ZT (Qty 1)
- 160.3 Fuel Gauge w/ Grommet (Qty 1)
- 160.4 Rollover Valve and Grommet New (Qty 1)
- 160.5 Grommet for ZT Elite Fuel Line (Qty 1)
- 161 2016 Maverick/ZT/Avenger Right Side Console (Qty 1)
- 169 Deck Height Dial (Qty 1)
- 171 ZT/MAV Control Panel Assy (Qty 1)
- 174 2019 MZ/ZT/Maverick/Compact Outlaw Wiring Harness (Qty 1)
- 182 Pump Belt Route Decal-Pump Pla (Qty 1)
- 185 725CC ZT decal (Qty 1)
- 186 "ZT Avenger" Cooler cover decal (Qty 1)
- 190 ZT Avenger 726cc backplate decal (Qty 1)
- 194 2017 MZ/ZT/MAV/HD/Revolt Tach Wire Assy (Qty 1)
-
5#013-0080-00
.630 ID x 1.130 OD x .062 THK F/W Nylon Black
Qty Used: 1Regular price $1.39 USDRegular priceUnit price per
-
10#013-5202-00
3/8 Nylock Flange Nut
Qty Used: 4Regular price $1.49 USDRegular priceUnit price per
-
14#013-7018-00
1/2-13 Hex Nuts Zinc
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
19#013-9001-00
1/4-20 Hex Flange Nuts Zinc w/
Qty Used: 1Regular price $0.69 USDRegular priceUnit price per
-
23#014-3417-21
OBSOLETE USE 014-3320-23
Qty Used: 1Regular price $69.99 USDRegular priceUnit price per
-
27#014-9000-00
Frame Plug 2x2
Qty Used: 2Regular price $2.48 USDRegular priceUnit price per
-
39#018-0024-00
M6-1.0 X 16MM HEX BOLT CL 8
Qty Used: 2Regular price $2.69 USDRegular priceUnit price per
-
48#018-2007-00
5/16-18 X 1 GR 5 Hex Bolt Zinc
Qty Used: 7Regular price $0.00 USDRegular priceUnit price per
-
49#018-2010-00
10-32 X 3/8 BS C/S 18-8 SS
Qty Used: 4Regular price $0.79 USDRegular priceUnit price per
-
50#018-2012-00
1/4-20 X 1/2 BS C/S 18-8 SS
Qty Used: 1Regular price $0.69 USDRegular priceUnit price per
-
58#018-5044-00
3/8 x 1 Carriage Bolt
Qty Used: 4Regular price $0.69 USDRegular priceUnit price per
-
80#019-6017-00
.630 ID X 1.122 OD X .142 THK
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
86#019-8044-00
5/16 USS Flat Washer Zinc
Qty Used: 7Regular price $0.79 USDRegular priceUnit price per
-
87#019-8051-00
5/16 Lock washer Zinc
Qty Used: 7Regular price $0.79 USDRegular priceUnit price per
-
93#025-0002-00
Split Collar
Qty Used: 1Regular price $10.20 USDRegular priceUnit price per
-
102#026-0224-00
2022 ZT Avenger Rear Plate Assembly
Qty Used: 1Regular price $142.99 USDRegular priceUnit price per
-
107#028-0008-00
Deck Height Cam Plunger
Qty Used: 1Regular price $29.13 USDRegular priceUnit price per
-
109#028-0070-17
2017 ZT Deck Height Bar Assy.
Qty Used: 1Regular price $27.72 USDRegular priceUnit price per
-
113#030-7042-00
5/16 x 3/4 Hex Washer Type F
Qty Used: 3Regular price $0.89 USDRegular priceUnit price per
-
139#042-9000-00
Ignition Key
Qty Used: 1Regular price $3.69 USDRegular priceUnit price per
-
145#051-0001-00
15" Fuel Line
Qty Used: 1Regular price $37.88 USDRegular priceUnit price per
-
145.1#051-8067-00
1/4 Fuel Line Hose PRICED/FOOT
Qty Used: 1Regular price $5.83 USDRegular priceUnit price per
-
145.2#072-8069-00
1/4 Fuel Line Clamp
Qty Used: 2Regular price $0.88 USDRegular priceUnit price per
-
146#051-2014-00
2014 ZT Fuel Line Assembly-37"
Qty Used: 1Regular price $37.88 USDRegular priceUnit price per
-
159#067-0020-01
ZT/Mav EPA Cannister Assy
Qty Used: 1Regular price $53.01 USDRegular priceUnit price per
-
160#067-2060-50
2016 Maverick/ZT/Avenger Left Fuel Tank
Qty Used: 1Regular price $279.99 USDRegular priceUnit price per
-
160.1#066-8083-00
3.5" Tethered Fuel Cap
Qty Used: 1Regular price $19.84 USDRegular priceUnit price per
-
160.2#067-0011-00
Fuel Line Pickup Tube for ZT
Qty Used: 1Regular price $21.88 USDRegular priceUnit price per
-
160.3#067-4090-00
Fuel Gauge w/ Grommet
Qty Used: 1Regular price $42.99 USDRegular priceUnit price per
-
160.4#067-6070-00
Rollover Valve and Grommet New
Qty Used: 1Regular price $22.99 USDRegular priceUnit price per
-
160.5#067-6080-00
Grommet for ZT Elite Fuel Line
Qty Used: 1Regular price $7.28 USDRegular priceUnit price per
-
161#067-2070-50
2017 ZT Right Side Console
Qty Used: 1Regular price $218.93 USDRegular priceUnit price per
-
169#077-9000-00
Deck Height Dial
Qty Used: 1Regular price $19.99 USDRegular priceUnit price per
-
171#079-3460-19
ZT/MAV Control Panel Assy
Qty Used: 1Regular price $144.63 USDRegular priceUnit price per
-
174#086-3050-19
2019 MZ/ZT/Maverick/Compact Outlaw Wiring Harness
Qty Used: 1Regular price $363.44 USDRegular priceUnit price per
-
182#091-3017-00
Pump Belt Route Decal-Pump Pla
Qty Used: 1Regular price $4.47 USDRegular priceUnit price per
-
185#091-4060-00
725CC ZT decal
Qty Used: 1Regular price $7.95 USDRegular priceUnit price per
-
186#091-4061-00
"ZT Avenger" Cooler cover decal
Qty Used: 1Regular price $12.99 USDRegular priceUnit price per
-
190#091-4078-00
ZT Avenger 726cc backplate decal
Qty Used: 1Regular price $4.99 USDRegular priceUnit price per
-
194#216-1000-17
2017 MZ/ZT/MAV Tach Wire Assy
Qty Used: 1Regular price $6.62 USDRegular priceUnit price per
