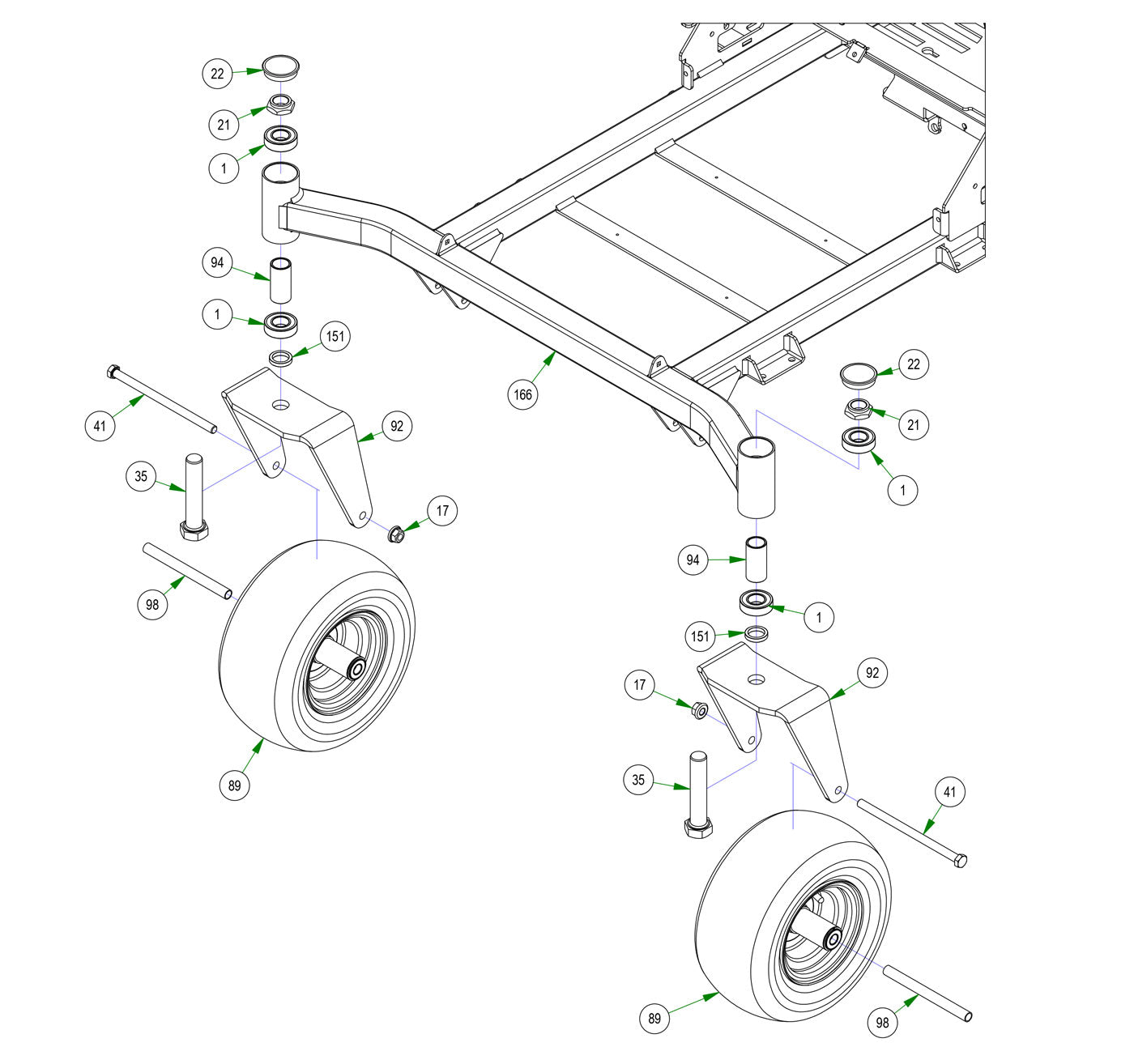

Front Fork

Parts Index
- 1 Caster Bearing (Qty 4)
- 17 1/2-13 Nylon Insert Flange Nut (Qty 2)
- 21 1" Nylock Nut 1/2 Nut - Fine (Qty 2)
- 22 Bearing Retainer Cap (Qty 2)
- 35 1-14 X 5 BOLT GR 8 ZC YELLOW (Qty 2)
- 41 1/2-13x8 1/2 Gr5 Hex Bolt (Qty 2)
- 89 12x6x6 Front Tire & Black Wheel Assembly (Qty 2)
- 92 ZT, AVENG Front fork (Qty 2)
- 94 MZ/ZT/Mav/ R Series Front Bearing Spacer (Qty 2)
- 98 Front Wheel Spanner-All Models (Qty 2)
- 151 Spacer ( Front Fork and Suspension ) (Qty 2)
