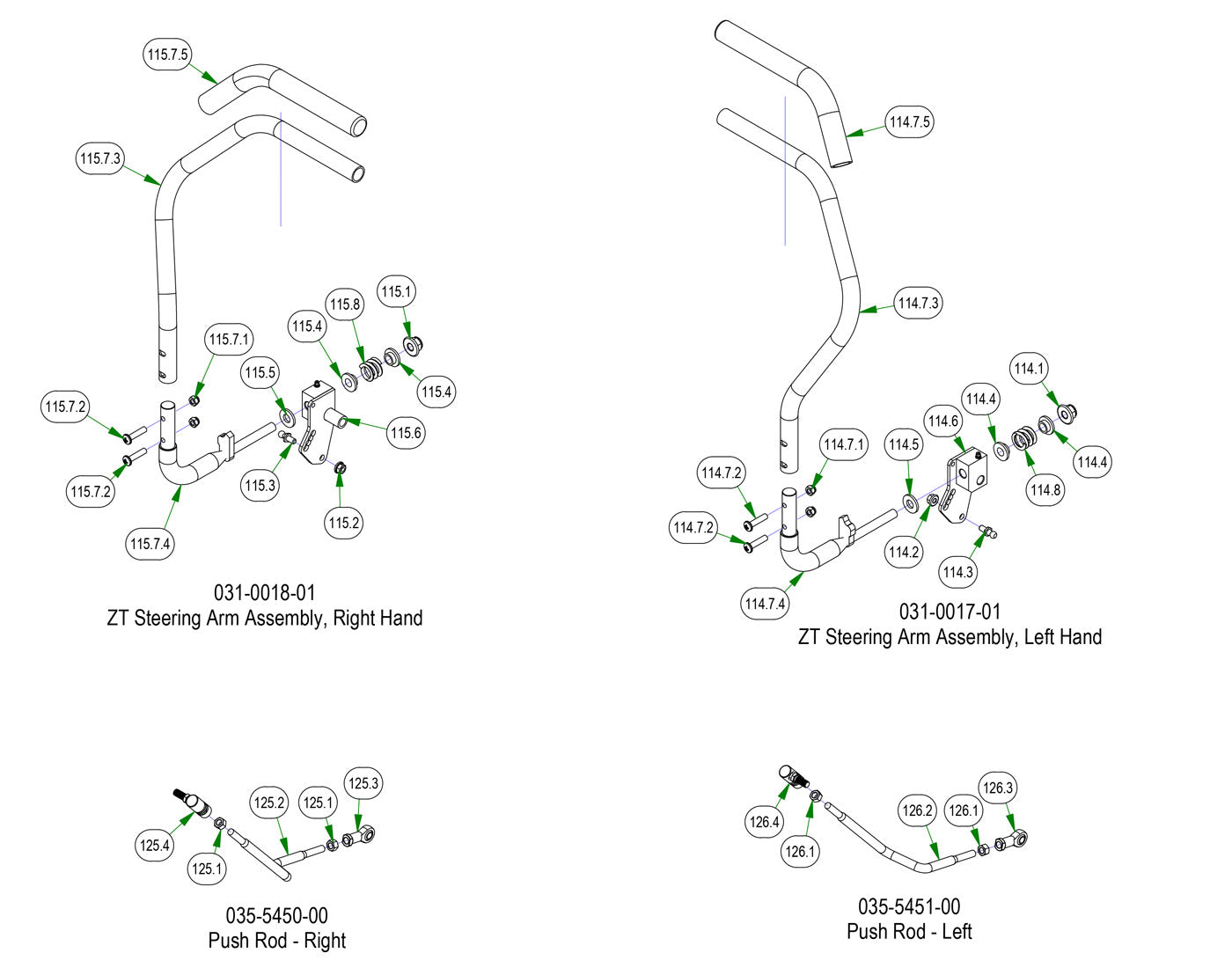

Drive Arm Sub Assemblies

Parts Index
- 83 1/4 USS Flat Washer Zinc (Qty 4)
- 91 2017 ZT Black Assembly 22x11-10 (Qty 2)
- 114 2017 ZT LH Arm Assembly (Qty 1)
- 114.1 1/2-13 Nylon Insert Flange Nut (Qty 1)
- 114.2 5/16-18 Hex Flange Nuts Zinc w (Qty 1)
- 114.3 10mm Damper Ball Stud- (Qty 1)
- 114.4 .515 ID Plastic Shoulder Washer (Qty 2)
- 114.5 .505 ID X 1 OD X .128 THK Washer (Qty 1)
- 114.6 Drive Lever Housing LH (Qty 1)
- 114.7 Orange ZT Steering Arm Left- (Qty 1)
- 114.7.1 5/16-18 Nylon Insert Locknut Z (Qty 2)
- 114.7.2 5/16-18 x 1 3/8" Button Head Torx Drive Bolt (Qty 2)
- 114.7.3 Steering Arm Left - 5" Tubing (Qty 1)
- 114.7.4 Steering Arm Elbow- Left (Qty 1)
- 114.7.5 Black Steering Grip (Qty 1)
- 114.8 Drive Lever Housing Spring (Qty 1)
- 115 2017 ZT RH Arm Assembly (Qty 1)
- 115.1 1/2-13 Nylon Insert Flange Nut (Qty 1)
- 115.2 5/16-18 Hex Flange Nuts Zinc w (Qty 1)
- 115.3 10mm Damper Ball Stud- (Qty 1)
- 115.4 .515 ID Plastic Shoulder Washer (Qty 2)
- 115.5 .505 ID X 1 OD X .128 THK Washer (Qty 1)
- 115.6 Drive Lever Housing RH (Qty 1)
- 115.7 Orange ZT Steering Arm-Right (Qty 1)
- 115.7.1 5/16-18 Nylon Insert Locknut Z (Qty 2)
- 115.7.2 5/16-18 x 1 3/8" Button Head Torx Drive Bolt (Qty 2)
- 115.7.3 Steering Arm Right - 5" Tubing (Qty 1)
- 115.7.4 Steering Arm Elbow - Right (Qty 1)
- 115.7.5 Black Steering Grip (Qty 1)
- 115.8 Drive Lever Housing Spring (Qty 1)
- 125 Push Rod RH (Assembly) (Qty 1)
- 125.1 3/8-24 Hex Nut Zinc (Qty 2)
- 125.3 Spherical Rod End (Qty 1)
- 125.4 Quick Release Ball Joint (Qty 1)
- 126 Push Rod LH (Assembly) (Qty 1)
- 126.1 3/8-24 Hex Nut Zinc (Qty 2)
- 126.3 Spherical Rod End (Qty 1)
- 126.4 Quick Release Ball Joint (Qty 1)
