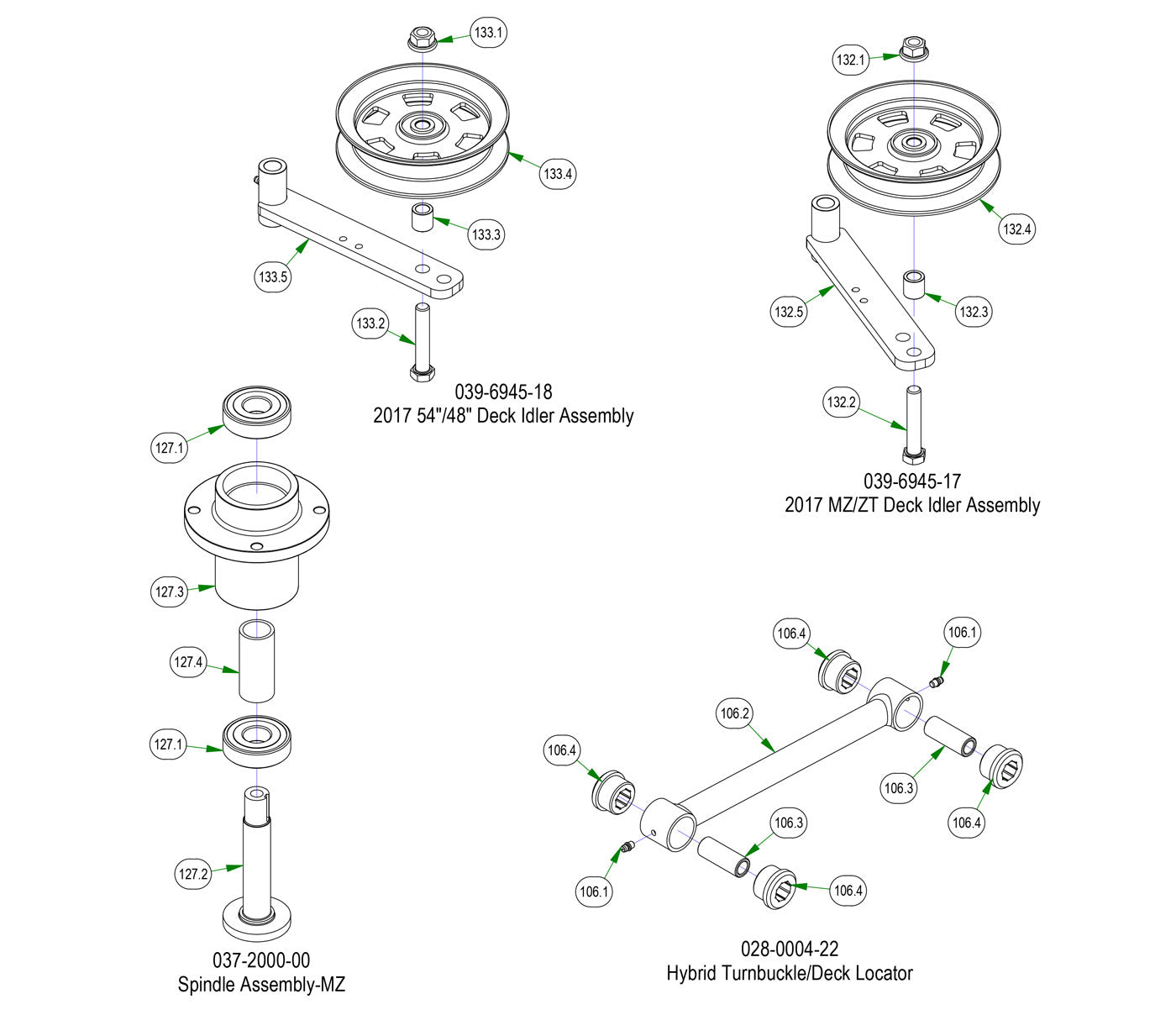

Deck Sub Assemblies

Parts Index
- 83 1/4 USS Flat Washer Zinc (Qty 4)
- 91 2017 ZT Black Assembly 22x11-10 (Qty 2)
- 106 Hybrid Turnbuckle (Qty 2)
- 106.1 1/4-28 Threaded Grease Fitting (Qty 2)
- 106.3 2018 Maverick Topllink Bushing Sleeve (Qty 2)
- 106.4 2018 Maverick Topllink Bushing (Qty 4)
- 127 Spindle Assembly-Magnum Models (Qty 3)
- 127.1 MZ Spindle Bearing (Qty 2)
- 127.2 mz spindle shaft (Qty 1)
- 127.3 MZ Spindle Housing (Qty 1)
- 127.4 MZ Spindle Spacer-Component (Qty 1)
- 132 2017 MZ/ZT Deck Idler Assembly (Qty 1)
- 132.1 1/2-13 Nylon Insert Flange Nut (Qty 1)
- 132.2 1/2-13 X 2-3/4 GR 5 Bolt Zinc (Qty 1)
- 132.3 Spacer 3/4ODx1/2IDx0.75 (Qty 1)
- 132.4 2017 5" Split Idler Pulley-Tensioner Only (Qty 1)
- 132.5 Idler Bracket (Qty 1)
- 133 2017 54"/48" Deck Idler Assembly (Qty 1)
- 133.1 1/2-13 Nylon Insert Flange Nut (Qty 1)
- 133.2 1/2-13 X 2-3/4 GR 5 Bolt Zinc (Qty 1)
- 133.3 Spacer 3/4ODx1/2IDx0.75 (Qty 1)
- 133.4 2017 5" Split Idler Pulley-Tensioner Only (Qty 1)
- 133.5 Idler Bracket (Qty 1)
