Briggs 25HP Cxi

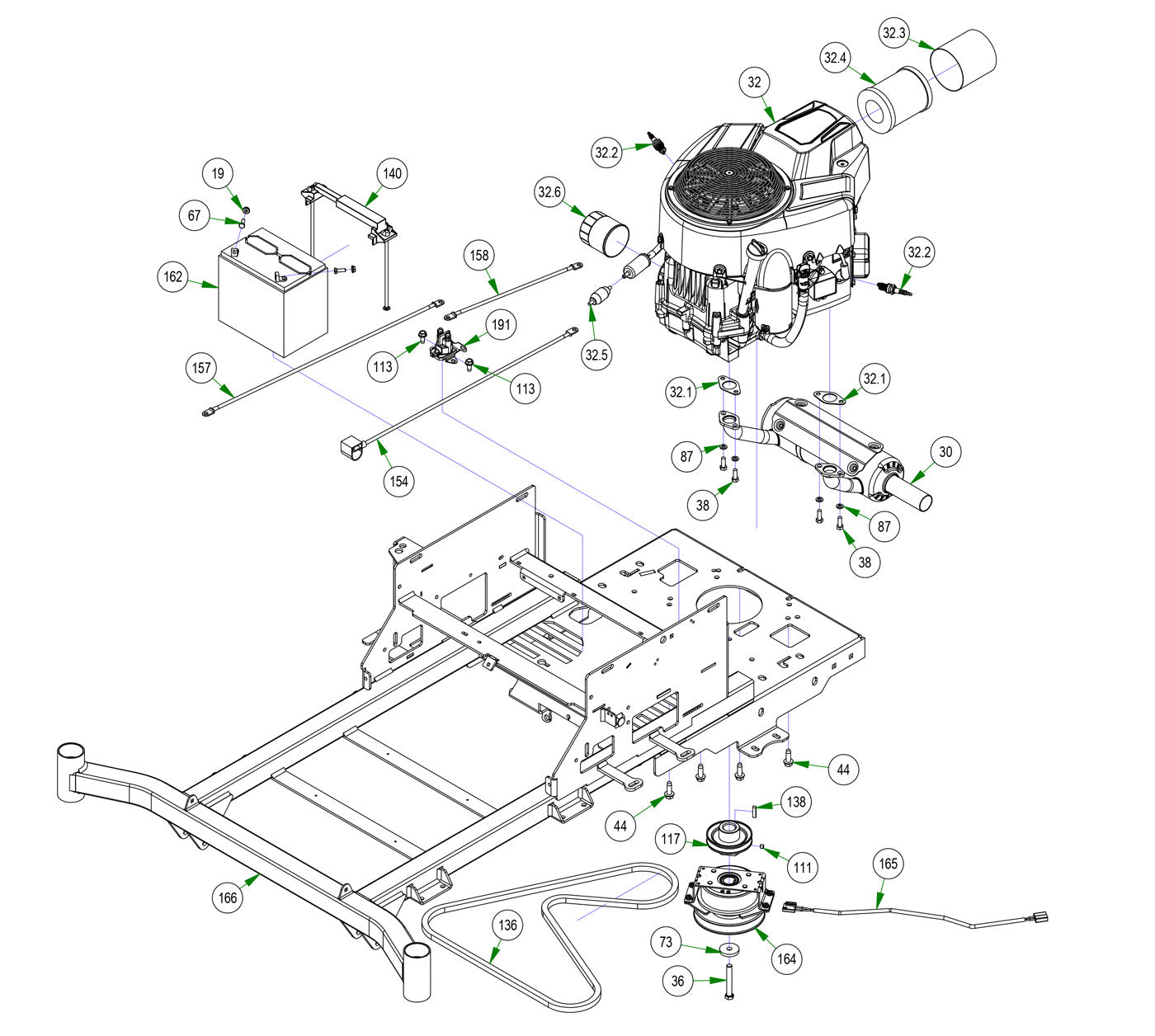

Parts Index
- 19 1/4-20 Hex Flange Nuts Zinc w/ (Qty 2)
- 30 810cc Vanguard Exhaust (Qty 1)
- 32.1 Exhaust Gasket for 015-0077-00 (Qty 2)
- 32.2 Spark Plug-Kohler/Briggs (Qty 2)
- 32.3 Pre-Cleaner for Vanguard CXI Engine (Qty 1)
- 32.4 OBSOLETE USE 063-3003-00 (Qty 1)
- 32.5 Universal Inline Fuel Filter (Qty 1)
- 32.6 Briggs Oil Filter (Qty 1)
- 36 7/16-20x3” Hex Bolt GR 8 W/ Patch (Qty 1)
- 38 Torx Bolt-Exhaust-23hp Vanguard (Qty 4)
- 44 3/8 x 1 1/8 Engine Mounting Bolt (Qty 4)
- 67 1/4-20 X 3/4 GR 5 Hex Bolts (Qty 2)
- 73 7/16 x 1-5/8 OD x 1/4 Thick Custom AISI 1018 CF ZC (Qty 1)
- 87 5/16 Lock washer Zinc (Qty 4)
- 111 5/16-24 x 1/4 Set Screw (Qty 1)
- 113 5/16 x 3/4 Hex Washer Type F (Qty 2)
- 117 3 3/4 Motor Pulley-2009 MZ (Qty 1)
- 136 Pump Belt for ZT, MZ, Avenger (Qty 1)
- 138 1/4 x 1 Square Key (Qty 1)
- 140 Battery Hold Down (Plastic) (Qty 1)
- 154 24 inch Black Cable - MZ/ZT (Qty 1)
- 157 24 Red Battery Cable (Qty 1)
- 158 14" Red Battery Cable (Qty 1)
- 162 Battery - All models except Renegade and Revolt (Qty 1)
- 164 Clutch For 1" Shaft (Qty 1)
- 165 Clutch Pigtail (Qty 1)
- 191 Solenoid (752-1251-210HP) (Qty 1)
-
19#013-9001-00
1/4-20 Hex Flange Nuts Zinc w/
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
30#015-0057-00
2017 Compact Outlaw Exhaust 810 Vanguard
Qty Used: 1Regular price $169.99 USDRegular priceUnit price per
-
32.1#015-0077-01
Exhaust Gasket for 015-0077-00
Qty Used: 2Regular price $6.62 USDRegular priceUnit price per
-
32.2#015-8000-00
Spark Plug-Kohler/Briggs
Qty Used: 2Regular price $9.99 USDRegular priceUnit price per
-
32.3#063-1000-00
Pre-Cleaner for Vanguard CXI Engine
Qty Used: 1Regular price $11.99 USDRegular priceUnit price per
-
32.4#063-1005-00
OBSOLETE USE 063-3003-00
Qty Used: 1Regular price $30.45 USDRegular priceUnit price per
-
32.5#063-6000-00
Universal Inline Fuel Filter
Qty Used: 1Regular price $13.26 USDRegular priceUnit price per
-
32.6#063-8018-00
Briggs Oil Filter
Qty Used: 1Regular price $19.99 USDRegular priceUnit price per
-
36#018-0007-21
7/16-20x3” Hex Bolt GR 8 W/ Patch
Qty Used: 1Regular price $2.99 USDRegular priceUnit price per
-
38#018-0017-00
Torx Bolt-Exhaust-23hp Vanguard
Qty Used: 4Regular price $5.29 USDRegular priceUnit price per
-
44#018-1075-00
3/8 x 1 1/8 Engine Mounting Bolt
Qty Used: 4Regular price $1.39 USDRegular priceUnit price per
-
67#018-8052-00
1/4-20 X 3/4 GR 5 Hex Bolts
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
73#019-0010-00
7/16 x 1-5/8 OD x 1/4 Thick Custom AISI 1018 CF ZC
Qty Used: 1Regular price $5.39 USDRegular priceUnit price per
-
87#019-8051-00
5/16 Lock washer Zinc
Qty Used: 4Regular price $0.79 USDRegular priceUnit price per
-
111#030-0050-00
5/16-24 x 1/4 Set Screw
Qty Used: 1Regular price $1.59 USDRegular priceUnit price per
-
113#030-7042-00
5/16 x 3/4 Hex Washer Type F
Qty Used: 2Regular price $0.89 USDRegular priceUnit price per
-
117#033-2010-00
3 3/4 Motor Pulley-2009 MZ
Qty Used: 1Regular price $29.18 USDRegular priceUnit price per
-
136#041-6400-00
Pump Belt for ZT, MZ, Avenger
Qty Used: 1Regular price $54.99 USDRegular priceUnit price per
-
138#042-6030-00
1/4 x 1 Square Key
Qty Used: 1Regular price $4.37 USDRegular priceUnit price per
-
140#043-8929-00
Battery Hold Down (Plastic)
Qty Used: 1Regular price $16.35 USDRegular priceUnit price per
-
154#064-0030-00
24 inch Black Cable - MZ/ZT
Qty Used: 1Regular price $17.50 USDRegular priceUnit price per
-
157#064-5300-00
24 Red Battery Cable
Qty Used: 1Regular price $20.42 USDRegular priceUnit price per
-
158#064-5301-00
14\" Red Battery Cable
Qty Used: 1Regular price $16.04 USDRegular priceUnit price per
-
162#068-8049-00
Battery - All models except Diesel and Revolt
Qty Used: 1Regular price $64.99 USDRegular priceUnit price per
-
164#070-0055-00
Clutch For 1\" Shaft
Qty Used: 1Regular price $279.99 USDRegular priceUnit price per
-
165#070-2000-00
Clutch Pigtail
Qty Used: 1Regular price $19.85 USDRegular priceUnit price per
-
191#108-0001-00
Solenoid (752-1251-210HP)
Qty Used: 1Regular price $27.49 USDRegular priceUnit price per
