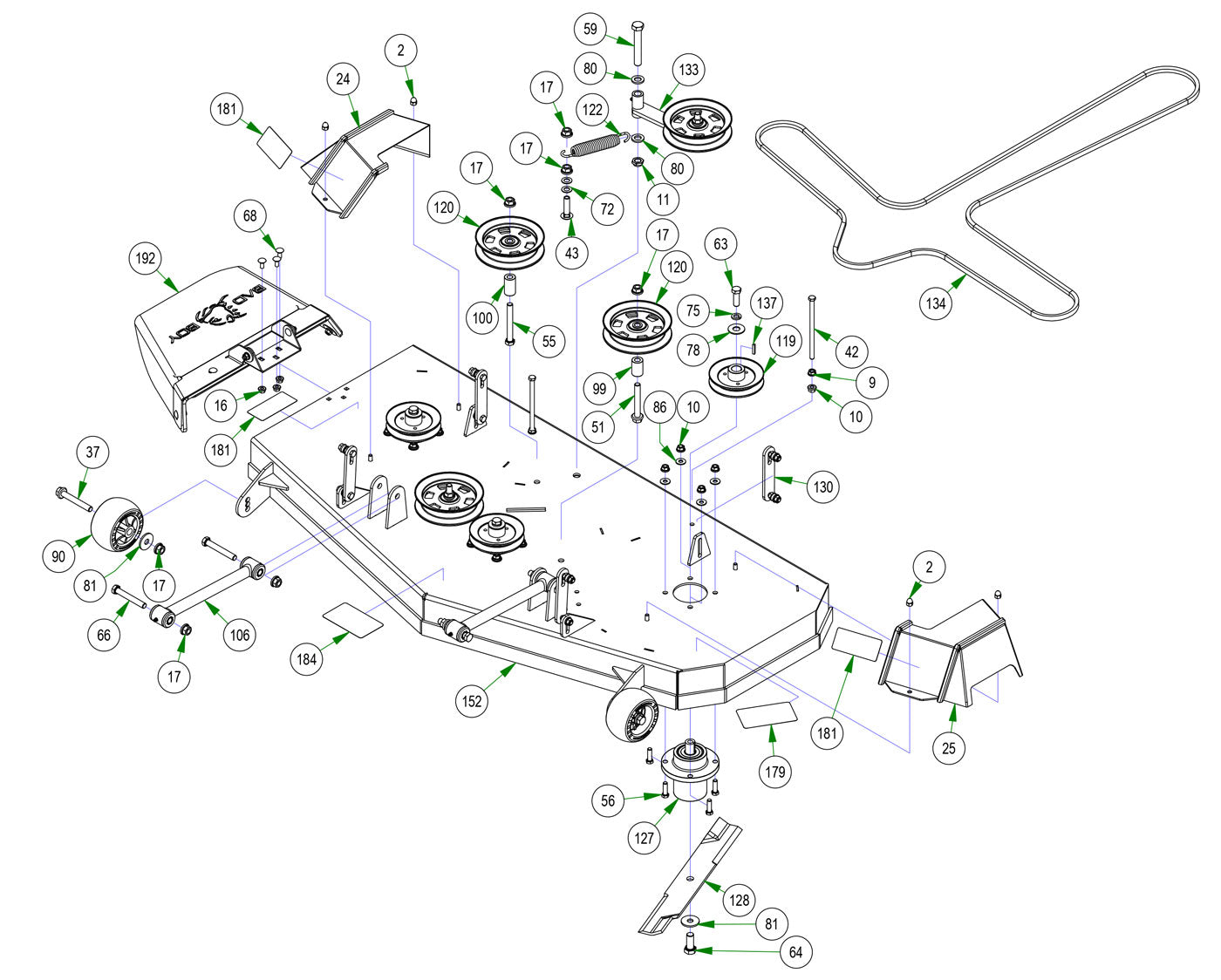

54" Deck
Parts Index
- 2 Acorn Nut-Pulley Cover (Qty 4)
- 9 3/8-16 Hex Flange Nuts Zinc w/ (Qty 2)
- 10 3/8 Nylock Flange Nut (Qty 14)
- 16 5/16-18 Nylon Flange Nut (Qty 3)
- 17 1/2-13 Nylon Insert Flange Nut (Qty 11)
- 24 RH Pulley Cover 54"/60" (Qty 1)
- 25 LH Pulley Cover 54"/60" (Qty 1)
- 37 Deck Wheel Bolt (Qty 2)
- 42 3/8-16 x 6.5 Hex Head GR.5 (Qty 2)
- 43 1/2 x 2 Carriage Bolt (Qty 1)
- 51 1/2 x 3 1/2 Flange Bolt - Gr 8 (Qty 2)
- 55 1/2-13 X 4 GR 8 Hex Bolt Yellow (Qty 1)
- 56 3/8-16 X 1-1/4 GR 5 Hex Bolt (Qty 12)
- 59 5/8-11 X 4 GR 8 Hex Bolts Zinc (Qty 1)
- 63 1/2-20 X 1-1/2 GR 5 Bolts Zinc (Qty 3)
- 64 5/8-18 X 1-1/2 GR 8 Hex Bolts (Qty 3)
- 66 1/2-13 X 3-1/2 GR 5 Hex Bolts (Qty 4)
- 68 5/16-18 X 3/4 Carriage ASTM B307 (~Gr 5) (Qty 3)
- 72 .517 Square Hole Round Washer (Qty 2)
- 75 1/2 Lockwasher Zinc (Qty 3)
- 78 5/8 Flat Washer (Qty 3)
- 80 .630 ID X 1.122 OD X .142 THK (Qty 2)
- 81 1/2 Belleville Washer #K2000-G (Qty 5)
- 86 5/16 USS Flat Washer Zinc (Qty 12)
- 90 Deck Wheel (Qty 2)
- 99 .502 ID X 1.000 0D X 1.500 (Qty 2)
- 100 .502 ID X 1.00 OD X 1.750 (Qty 1)
- 106 Hybrid Turnbuckle (Qty 2)
- 119 2014 54" MZ Deck Pulley (Qty 3)
- 120 5 3/4 Idler Pulley-Capitol (Qty 3)
- 122 2015 Deck Idler Spring (Qty 1)
- 127 Spindle Assembly-Magnum Models (Qty 3)
- 128 54" Blade for Avenger/ZT/Mav/Outlaw/Revolt (Qty 3)
- 130 MZ/ZT Deck Hanger Assembly (Qty 4)
- 133 2017 54"/48" Deck Idler Assembly (Qty 1)
- 134 54" 2017&Up MZ/ Magnum/ZT/Mav/20 Avenger Deck Belt (Qty 1)
- 137 3/16 X 1 Square Machine Key (Qty 3)
- 152 54" Magnum/Avenger Deck (Qty 1)
- 179 2018 54" Deck Decal (Qty 1)
- 181 Danger Decal-Spindle/Discharge (Qty 3)
- 184 Deck Belt Route Decal (Qty 1)
- 192 MZ Discharge Chute Assembly (Qty 1)
- 11 5/8-11 Nylon Insert Jam Locknu (Qty 1)
-
2#013-0004-00
Acorn Nut-Pulley Cover
Qty Used: 4Regular price $2.99 USDRegular priceUnit price per
-
9#013-5201-00
3/8-16 Hex Flange Nuts Zinc w/
Qty Used: 2Regular price $1.49 USDRegular priceUnit price per
-
10#013-5202-00
3/8 Nylock Flange Nut
Qty Used: 14Regular price $1.49 USDRegular priceUnit price per
-
16#013-8049-00
5/16-18 Nylon Flange Nut
Qty Used: 3Regular price $0.79 USDRegular priceUnit price per
-
17#013-8050-00
1/2-13 Nylon Insert Flange Nut
Qty Used: 11Regular price $1.39 USDRegular priceUnit price per
-
24#014-5020-00
2021 Maverick 54"/60" RH Pulley Cover
Qty Used: 1Regular price $26.53 USDRegular priceUnit price per
-
25#014-5021-00
2021 Maverick 54"/60" LH Pulley Cover
Qty Used: 1Regular price $26.53 USDRegular priceUnit price per
-
37#018-0010-00
Deck Wheel Bolt - 2011 Outlaw
Qty Used: 2Regular price $5.89 USDRegular priceUnit price per
-
42#018-0073-00
3/8-16 x 6.5 Hex Head GR.5
Qty Used: 2Regular price $2.99 USDRegular priceUnit price per
-
43#018-1050-00
1/2 x 2 Carriage Bolt
Qty Used: 1Regular price $1.39 USDRegular priceUnit price per
-
51#018-2018-00
1/2 x 3 1/2 Flange Bolt - Gr 8
Qty Used: 2Regular price $3.29 USDRegular priceUnit price per
-
55#018-5019-00
1/2-13 X 4 GR 8 Hex Bolt Yellow
Qty Used: 1Regular price $3.99 USDRegular priceUnit price per
-
56#018-5040-00
3/8-16 X 1-1/4 GR 5 Hex Bolt
Qty Used: 12Regular price $0.79 USDRegular priceUnit price per
-
59#018-5311-00
5/8-11 X 4 GR 8 Hex Bolts Zinc
Qty Used: 1Regular price $3.69 USDRegular priceUnit price per
-
63#018-6019-00
1/2-20 X 1-1/2 GR 5 Bolts Zinc
Qty Used: 3Regular price $1.19 USDRegular priceUnit price per
-
64#018-6020-00
5/8-18 X 1-1/2 GR 8 Hex Bolts
Qty Used: 3Regular price $2.49 USDRegular priceUnit price per
-
66#018-6054-00
1/2-13 X 3-1/2 GR 5 Hex Bolts
Qty Used: 4Regular price $1.99 USDRegular priceUnit price per
-
68#018-8062-00
5/16-18 X 3/4 Carriage ASTM B307 (~Gr 5)
Qty Used: 3Regular price $0.69 USDRegular priceUnit price per
-
72#019-0007-00
.517 Square Hole Round Washer
Qty Used: 2Regular price $1.09 USDRegular priceUnit price per
-
75#019-5007-00
1/2 Lockwasher Zinc
Qty Used: 3Regular price $0.00 USDRegular priceUnit price per
-
78#019-5038-00
5/8 Flat Washer
Qty Used: 3Regular price $1.49 USDRegular priceUnit price per
-
80#019-6017-00
.630 ID X 1.122 OD X .142 THK
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
81#019-6020-00
1/2 Belleville Washer #K2000-G
Qty Used: 5Regular price $4.69 USDRegular priceUnit price per
-
86#019-8044-00
5/16 USS Flat Washer Zinc
Qty Used: 12Regular price $0.79 USDRegular priceUnit price per
-
90#022-1000-00
Deck Wheel
Qty Used: 2Regular price $15.99 USDRegular priceUnit price per
-
99#025-5338-00
.502 ID X 1.000 0D X 1.500
Qty Used: 2Regular price $3.29 USDRegular priceUnit price per
-
100#025-5339-00
.502 ID X 1.00 OD X 1.750
Qty Used: 1Regular price $4.87 USDRegular priceUnit price per
-
106#028-0004-22
Hybrid Turnbuckle/Deck Locator
Qty Used: 2Regular price $43.78 USDRegular priceUnit price per
-
119#033-4890-00
2014 54" MZ Deck Pulley
Qty Used: 3Regular price $29.13 USDRegular priceUnit price per
-
120#033-7201-25
5 3/4 Idler Pulley-Capitol
Qty Used: 3Regular price $33.16 USDRegular priceUnit price per
-
122#034-2020-00
2015 Deck Idler Spring
Qty Used: 1Regular price $15.99 USDRegular priceUnit price per
-
127#037-2000-00
Spindle Assembly-Magnum Models
Qty Used: 3Regular price $204.33 USDRegular priceUnit price per
-
128#038-0001-00
54\" Blade for Avenger/ZT/Mav/Outlaw/Revolt
Qty Used: 3Regular price $21.16 USDRegular priceUnit price per
-
130#039-2127-17
MZ/ZT Deck Hanger Assembly
Qty Used: 4Regular price $14.58 USDRegular priceUnit price per
-
133#039-6945-18
2017 54"/48" Deck Idler Assembly
Qty Used: 1Regular price $66.33 USDRegular priceUnit price per
-
134#041-1560-00
54" 2017&Up MZ/ Magnum/ZT/Mav/20 Avenger Deck Belt
Qty Used: 1Regular price $82.99 USDRegular priceUnit price per
-
137#042-0010-00
3/16 X 1 Square Machine Key
Qty Used: 3Regular price $4.37 USDRegular priceUnit price per
-
152#060-2417-00
54" Magnum/Avenger Deck
Qty Used: 1Regular price $1,021.72 USDRegular priceUnit price per
-
179#091-0904-18
2018 54" Deck Decal
Qty Used: 1Regular price $5.83 USDRegular priceUnit price per
-
181#091-3012-00
Danger Decal-Spindle/Discharge
Qty Used: 3Regular price $2.91 USDRegular priceUnit price per
-
184#091-3309-00
Deck Belt Route Decal
Qty Used: 1Regular price $5.83 USDRegular priceUnit price per
-
192#210-6015-98
MZ Discharge Chute Assembly
Qty Used: 1Regular price $145.95 USDRegular priceUnit price per
-
11#013-5301-00
5/8-11 Nylon Insert Jam Locknu
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
