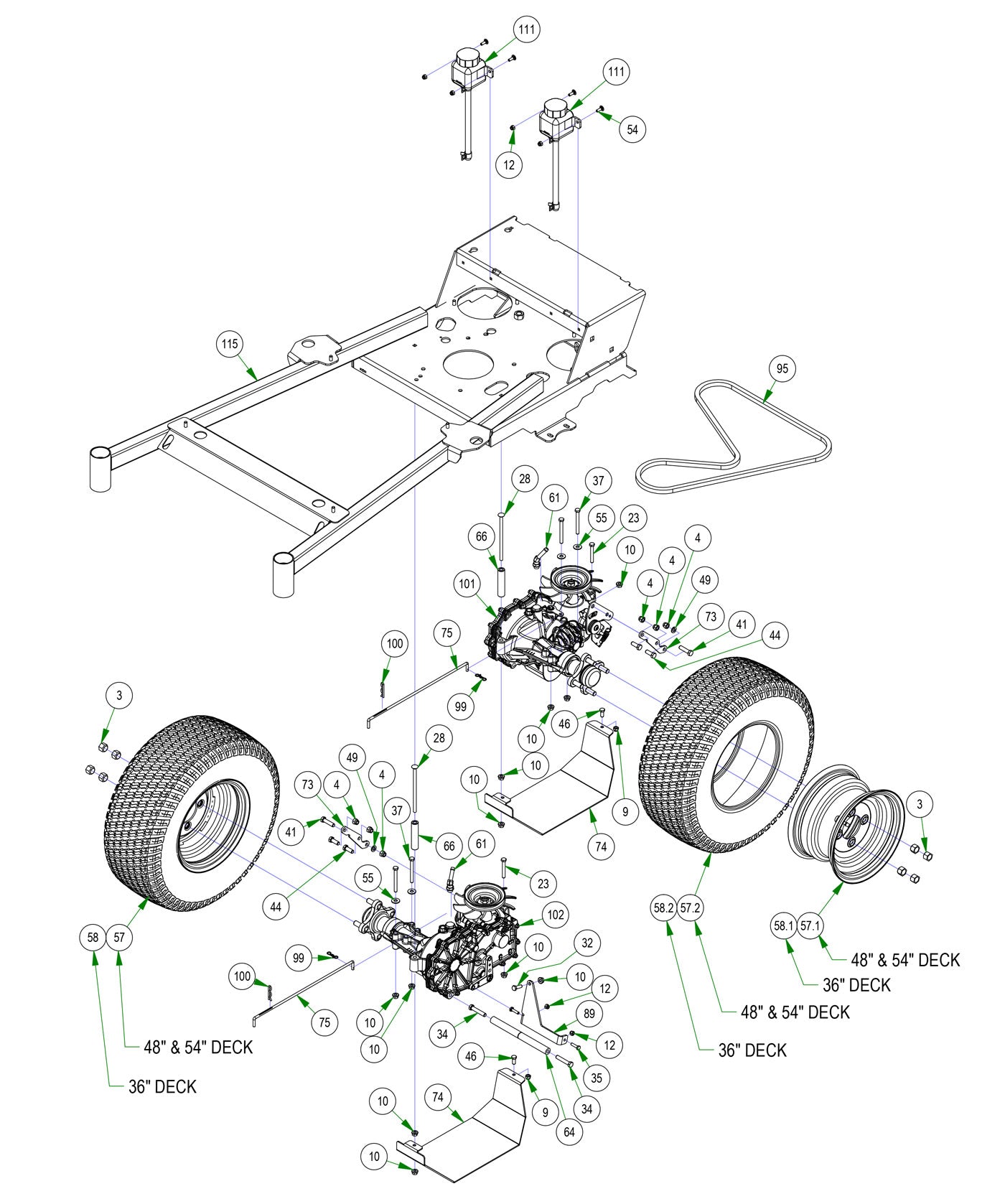

Transaxle
Parts Index
- 3 Acorn Lug Nut (Qty 8)
- 4 3/8-16 Nylon Insert Locknut Zi (Qty 6)
- 9 5/16-18 Nylon Insert Locknut Z (Qty 2)
- 10 5/16-18 Nylon Flange Nut (Qty 11)
- 12 1/4-20 Nylon Insert Locknut Zi (Qty 6)
- 23 5/16-18 x 2.25" Hex Bolt Gr 5 (Qty 2)
- 28 5/16x6 Carriage Bolt-Grade 5 (Qty 2)
- 32 5/16-18 X 1 GR 5 Hex Bolt Zinc (Qty 1)
- 34 3/8-16 X 2 GR 5 Hex Bolts Zinc (Qty 2)
- 35 1/4-20 X 1 GR 5 Hex Bolts Zinc (Qty 2)
- 37 5/16-18 X 3 GR 5 Hex Bolt Zinc (Qty 4)
- 41 3/8 x 1 1/2 Bolt (Qty 2)
- 44 3/8-16 X 1 GR 5 Hex Bolts Zinc (Qty 4)
- 46 5/16-18 X 3/4 GR 5 Hex Bolts Z (Qty 2)
- 46 5/16-18 X 3/4 GR 5 Hex Bolts Z (Qty 2)
- 49 3/8 Lockwasher Zinc (Qty 2)
- 54 1/4 x 3/4 Carriage Bolt (Qty 4)
- 55 5/16 USS Flat Washer Zinc (Qty 4)
- 57 21 x 8.5 - 10 turf assembly Black Wheel (Qty 2)
- 57.2 Tire for 022-2500-22 (Qty 1)
- 58 21x7-10 Assy-36" Walk Behind Black Wheel (Qty 2)
- 61 ZT Fitting, 3/8 x 3/8 45 Degree (Qty 2)
- 64 2017 Transaxle Spacer Walk Behind (Qty 1)
- 66 2017 Transaxle Spacer (Qty 2)
- 73 2020 Walk Behind Hydro Plate Extension--Orange (Qty 2)
- 74 2020 Walk Behind Trans Skid Plate--Orange (Qty 2)
- 75 2020 Walk-Behind Neutral Rod (Qty 2)
- 95 2020 Walk Behind Pump Belt (Qty 1)
- 99 Bow Pin (Qty 2)
- 100 Neutral Rod Clip (Qty 2)
- 101 Walk Behind Transaxle Left 3100 (Qty 1)
- 102 Walk Behind Transaxle Right 3100 (Qty 1)
- 111 Walk Behind Hydro Tank Assembly (Qty 2)
-
3#013-3000-00
Acorn Lug Nut
Qty Used: 8Regular price $2.99 USDRegular priceUnit price per
-
4#013-5041-00
3/8-16 Nylon Insert Locknut Zi
Qty Used: 6Regular price $0.69 USDRegular priceUnit price per
-
9#013-8047-00
5/16-18 Nylon Insert Locknut Z
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
10#013-8049-00
5/16-18 Nylon Flange Nut
Qty Used: 11Regular price $0.79 USDRegular priceUnit price per
-
12#013-8073-00
1/4-20 Nylon Insert Locknut Zi
Qty Used: 6Regular price $0.69 USDRegular priceUnit price per
-
23#018-0023-00
5/16-18 x 2.25" Hex Bolt Gr 5
Qty Used: 2Regular price $0.61 USDRegular priceUnit price per
-
28#018-0056-00
5/16x6 Carriage Bolt-Grade 5
Qty Used: 2Regular price $2.69 USDRegular priceUnit price per
-
32#018-2007-00
5/16-18 X 1 GR 5 Hex Bolt Zinc
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
34#018-3000-00
3/8-16 X 2 GR 5 Hex Bolts Zinc
Qty Used: 2Regular price $0.89 USDRegular priceUnit price per
-
35#018-4007-00
1/4-20 X 1 GR 5 Hex Bolts Zinc
Qty Used: 2Regular price $0.89 USDRegular priceUnit price per
-
37#018-4701-00
5/16-18 X 3 GR 5 Hex Bolt Zinc
Qty Used: 4Regular price $0.69 USDRegular priceUnit price per
-
41#018-6012-00
3/8 x 1 1/2 Bolt
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
44#018-6049-00
3/8-16 X 1 GR 5 Hex Bolts Zinc
Qty Used: 4Regular price $0.69 USDRegular priceUnit price per
-
4646#018-8063-00
5/16-18 X 3/4 GR 5 Hex Bolts Z
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
49#019-5037-00
3/8 Lockwasher Zinc
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
54#019-8040-00
1/4 x 3/4 Carriage Bolt
Qty Used: 4Regular price $1.49 USDRegular priceUnit price per
-
55#019-8044-00
5/16 USS Flat Washer Zinc
Qty Used: 4Regular price $0.79 USDRegular priceUnit price per
-
57#022-2500-22
21 x 8.5 - 10 turf assembly Black Wheel
Qty Used: 2Regular price $119.99 USDRegular priceUnit price per
-

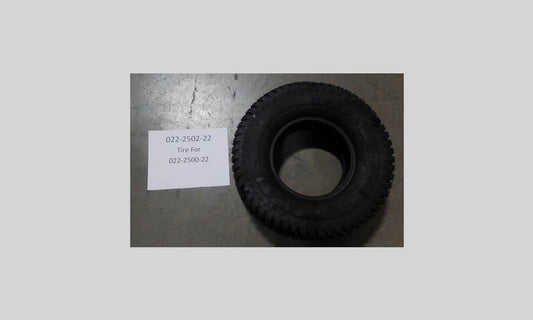

57.2#022-2502-22
Tire for 022-2500-22
Qty Used: 1Regular price $79.99 USDRegular priceUnit price per
-
58#022-8019-22
21x7-10 Assy-36" Walk Behind Black Wheel
Qty Used: 2Regular price $141.90 USDRegular priceUnit price per
-
61#024-1200-00
ZT Fitting, 3/8 x 3/8 45 Degree
Qty Used: 2Regular price $18.63 USDRegular priceUnit price per
-
64#025-0018-00
2017 Transaxle Spacer Walk Behind
Qty Used: 1Regular price $9.89 USDRegular priceUnit price per
-
66#025-0070-00
2017 Transaxle Spacer
Qty Used: 2Regular price $5.83 USDRegular priceUnit price per
-
73#026-0173-00
2020 Walk Behind Hydro Plate Extension--Orange
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
74#026-3441-00
2020 Walk Behind Trans Skid Plate--Orange
Qty Used: 2Regular price $49.99 USDRegular priceUnit price per
-
75#028-0072-00
2020 Walk-Behind Neutral Rod
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
95#041-8053-00
2020 Walk Behind Pump Belt
Qty Used: 1Regular price $54.99 USDRegular priceUnit price per
-
-
100#044-2008-00
Neutral Rod Clip
Qty Used: 2Regular price $1.31 USDRegular priceUnit price per
-
101#050-0003-01
Walk Behind Transaxle Left 3100
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
102#050-0004-01
Walk Behind Transaxle Right
Qty Used: 1Regular price $507.49 USDRegular priceUnit price per
-
111#067-8090-04
Walk Behind Hydro Tank Assembly
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
