Podium Sub Assemblies

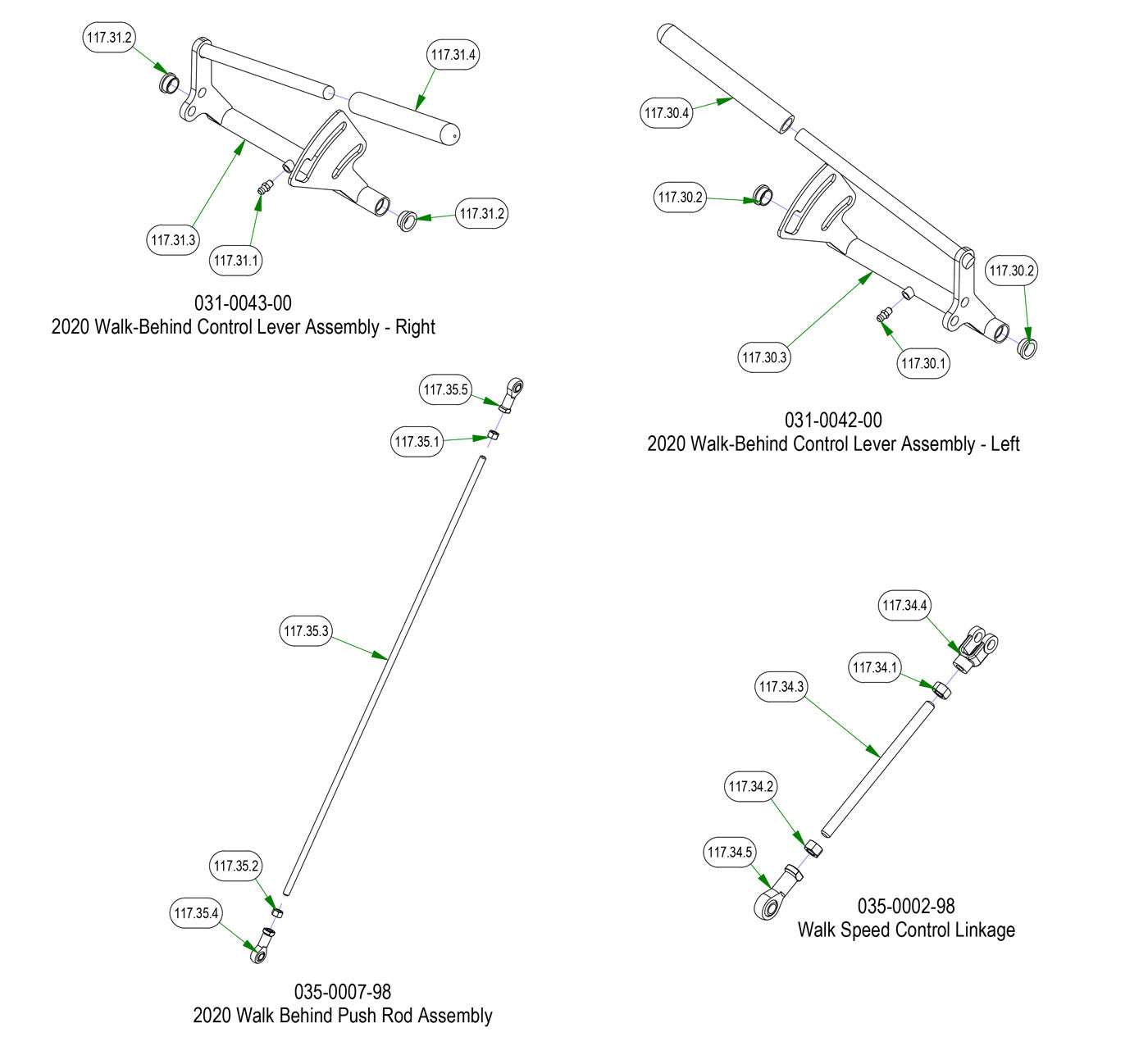

Parts Index
- 117.30 2020 Walk-Behind Control Lever Assy-Left (Qty 1)
- 117.30.1 1/4 Drive-in Grease Fitting (Qty 1)
- 117.30.2 Drive Arm Actuator Bushing (Qty 2)
- 117.30.3 2020 Walk-Behind Control Lever Weldment-Left--Blac (Qty 1)
- 117.30.4 2019 Revolt Cushioned hand Grip (Qty 1)
- 117.31 2020 Walk-Behind Control Lever Assy-Right (Qty 1)
- 117.31.1 1/4 Drive-in Grease Fitting (Qty 1)
- 117.31.2 Drive Arm Actuator Bushing (Qty 2)
- 117.31.3 2020 Walk-Behind Control Lever Weldment-Right--Bla (Qty 1)
- 117.31.4 2019 Revolt Cushioned hand Grip (Qty 1)
- 117.34 2017 Walk Behind Speed Control Rod Assembly (Qty 1)
- 117.34.2 3/8-24 Hex Nut Zinc (Qty 1)
- 117.34.3 2017 Walk Behind Speed Control Rod (Qty 1)
- 117.34.4 2017 Walk Behind Left Hand Yoke Speed Control (Qty 1)
- 117.34.5 Spherical Rod End (Qty 1)
- 117.35.2 3/8-24 Hex Nut Zinc (Qty 1)
- 117.35.3 2020 Walk-Behind Push Rod (Rod Only) (Qty 1)
- 117.35.4 Spherical Rod End (Qty 1)
- 117.35 2020 Walk-Behind Push Rod Assembly (Qty 2)
-

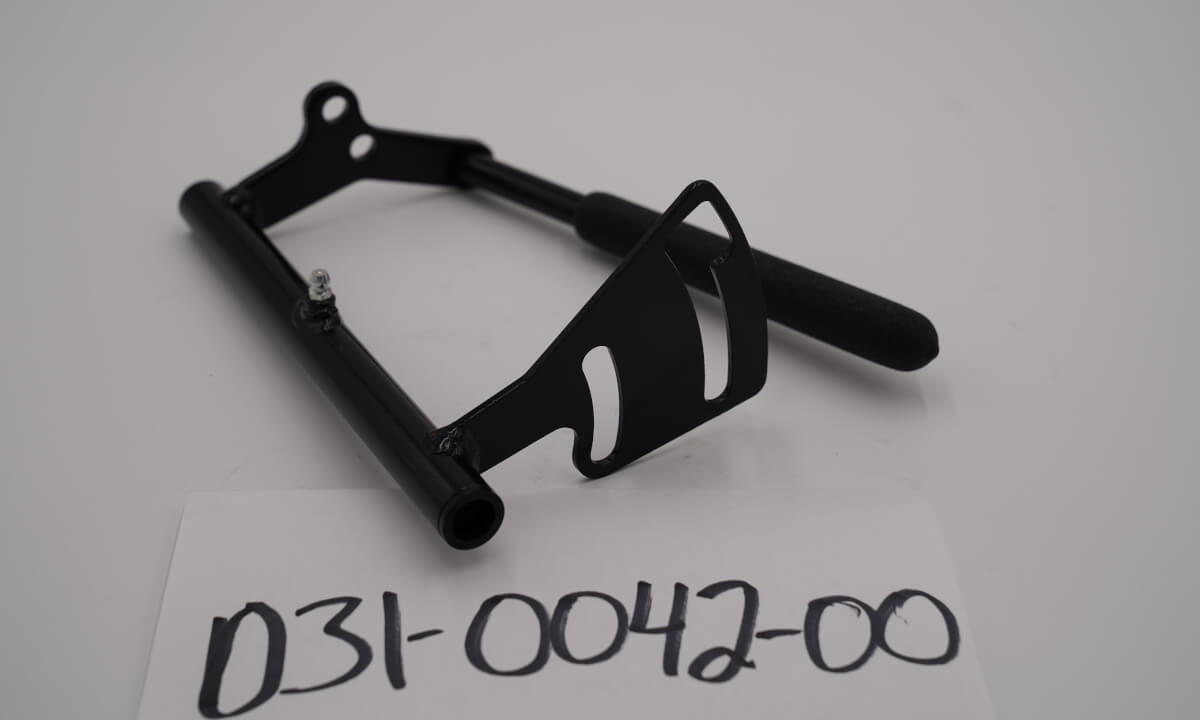

117.30#031-0042-00
2020 Walk-Behind Control Lever Assy-Left
Qty Used: 1Regular price $39.79 USDRegular priceUnit price per
-
117.30.1117.31.1#024-6034-00
1/4 Drive-in Grease Fitting
Qty Used: 1Regular price $0.66 USDRegular priceUnit price per
-
117.30.2117.31.2#031-0032-00
Drive Arm Actuator Bushing
Qty Used: 2Regular price $6.62 USDRegular priceUnit price per
-
117.30.3#031-0042-01
2020 Walk-Behind Control Lever Weldment-Left--Blac
Qty Used: 1Regular price $29.99 USDRegular priceUnit price per
-
117.30.4117.31.4#069-2014-00
2019 Revolt Cushioned hand Grip
Qty Used: 1Regular price $7.28 USDRegular priceUnit price per
-

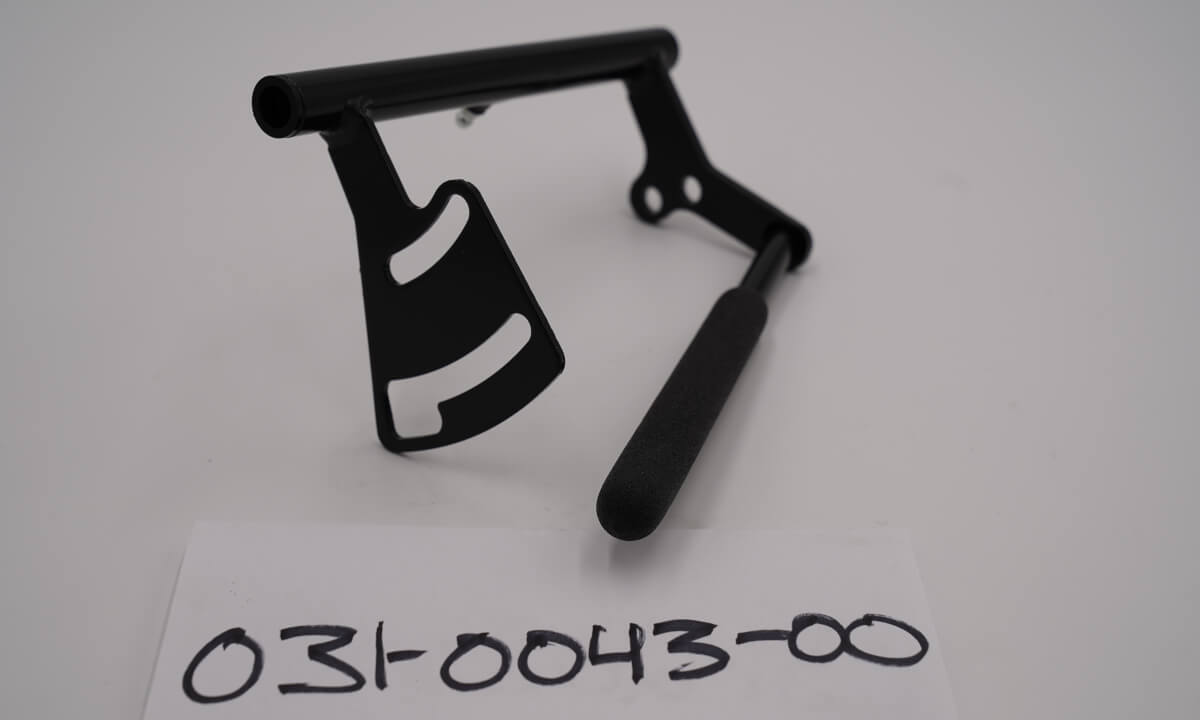

117.31#031-0043-00
2020 Walk-Behind Control Lever Assy-Right
Qty Used: 1Regular price $39.79 USDRegular priceUnit price per
-
117.31.3#031-0043-01
2020 Walk-Behind Control Lever Weldment-Right--Bla
Qty Used: 1Regular price $29.99 USDRegular priceUnit price per
-
No sequence found for SKU:
2017 Walk Behind Speed Control Rod Assembly
Regular price $0.00 USDRegular priceUnit price per
-
117.34.2117.35.2#013-6051-00
3/8-24 Hex Nut Zinc
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
No sequence found for SKU:
2017 Walk Behind Speed Control Rod
Regular price $0.00 USDRegular priceUnit price per
-
No sequence found for SKU:
2017 Walk Behind Left Hand Yoke Speed Control
Regular price $0.00 USDRegular priceUnit price per
-
117.34.5117.35.4#048-3000-00
Spherical Rod End-Outlaw Only
Qty Used: 1Regular price $13.26 USDRegular priceUnit price per
-
117.35.3#035-0007-00
2020 Walk-Behind Push Rod (Rod Only)
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
117.35#035-0007-98
2020 Walk-Behind Push Rod Assembly
Qty Used: 2Regular price $39.99 USDRegular priceUnit price per
