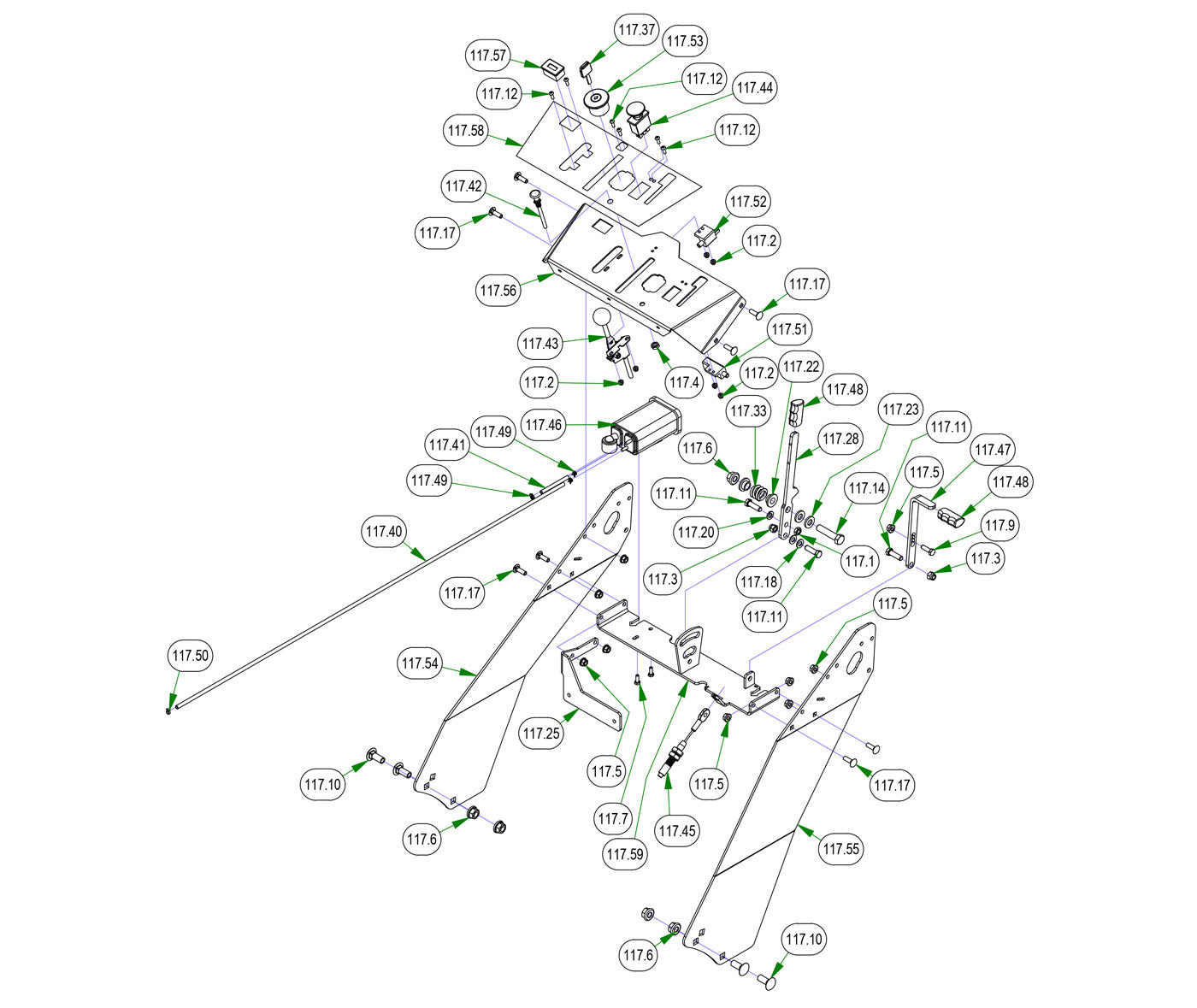

Podium Control Panel
Parts Index
- 117.1 3/8-16 Centerlock Half Nut (Qty 1)
- 117.2 10-24 Nylon Insert Locknut Zin (Qty 6)
- 117.3 3/8-16 Nylon Insert Locknut Zi (Qty 2)
- 117.4 3/8-24 Hex Nut Zinc (Qty 1)
- 117.5 5/16-18 Nylon Flange Nut (Qty 9)
- 117.6 1/2-13 Nylon Insert Flange Nut (Qty 5)
- 117.7 M6-1.0 X 16MM HEX BOLT CL 8 (Qty 2)
- 117.9 5/16-18 X 1 GR 5 Hex Bolt Zinc (Qty 1)
- 117.10 1/2 x 1 1/4 Carriage Bolt (Qty 4)
- 117.11 3/8-16 X 1-1/4 GR 5 Hex Bolt (Qty 3)
- 117.12 10-24 X 5/8 BS C/S 18-8 SS (Qty 6)
- 117.14 1/2-13 X 2-1/4 GR 5 Hex Bolts (Qty 1)
- 117.17 5/16-18 X 1 Carriage Bolt Zinc (Qty 8)
- 117.18 .390x.750x.062 Nylon Washer (Qty 4)
- 117.20 3/8 Lockwasher Zinc (Qty 1)
- 117.22 .515 ID Plastic Shoulder Washer (Qty 2)
- 117.23 .505 ID X 1 OD X .128 THK Washer (Qty 2)
- 117.28 Walk Behind Speed Control Lever--Black (Qty 1)
- 117.33 Drive Lever Housing Spring (Qty 1)
- 117.37 Ignition Key (Qty 1)
- 117.40 44" x 3/16" black hose (Qty 1)
- 117.41 Clear 3/16" Magnum Air Line (Qty 1)
- 117.42 Choke - All MZ/ZT/Mav/Rebel/Rogue (Qty 1)
- 117.43 ZT/Mav/MZ/Comp Outlaw Throttle-53" (Qty 1)
- 117.44 PTO Engager-Switch for Blades (Qty 1)
- 117.45 Brake Cable Walk Behind/Revolt (Qty 1)
- 117.46 Carbon Canister for Magnum/MZ (Qty 1)
- 117.47 Walk Behind Brake Handle--Black (Qty 1)
- 117.48 Rubber Brake Grip-cZT/ZT 2013 (Qty 2)
- 117.49 5.5 mm Vinyl Hose Clamp (Qty 3)
- 117.50 3/16" Vinyl Hose Clamp (Qty 1)
- 117.51 2017? Walk Behind-Safety Switch Brake (Qty 1)
- 117.52 2017? Walk Behind-Safety Switch (Qty 1)
- 117.53 Ignition Switch (Qty 1)
- 117.57 Tachometer-N310-0100-1018 (Qty 1)
- 117.58 2020 Walkbehind Contol Panel Decal (Qty 1)
- 117.59 2020 Walk Behind Cross Support--Orange (Qty 1)
