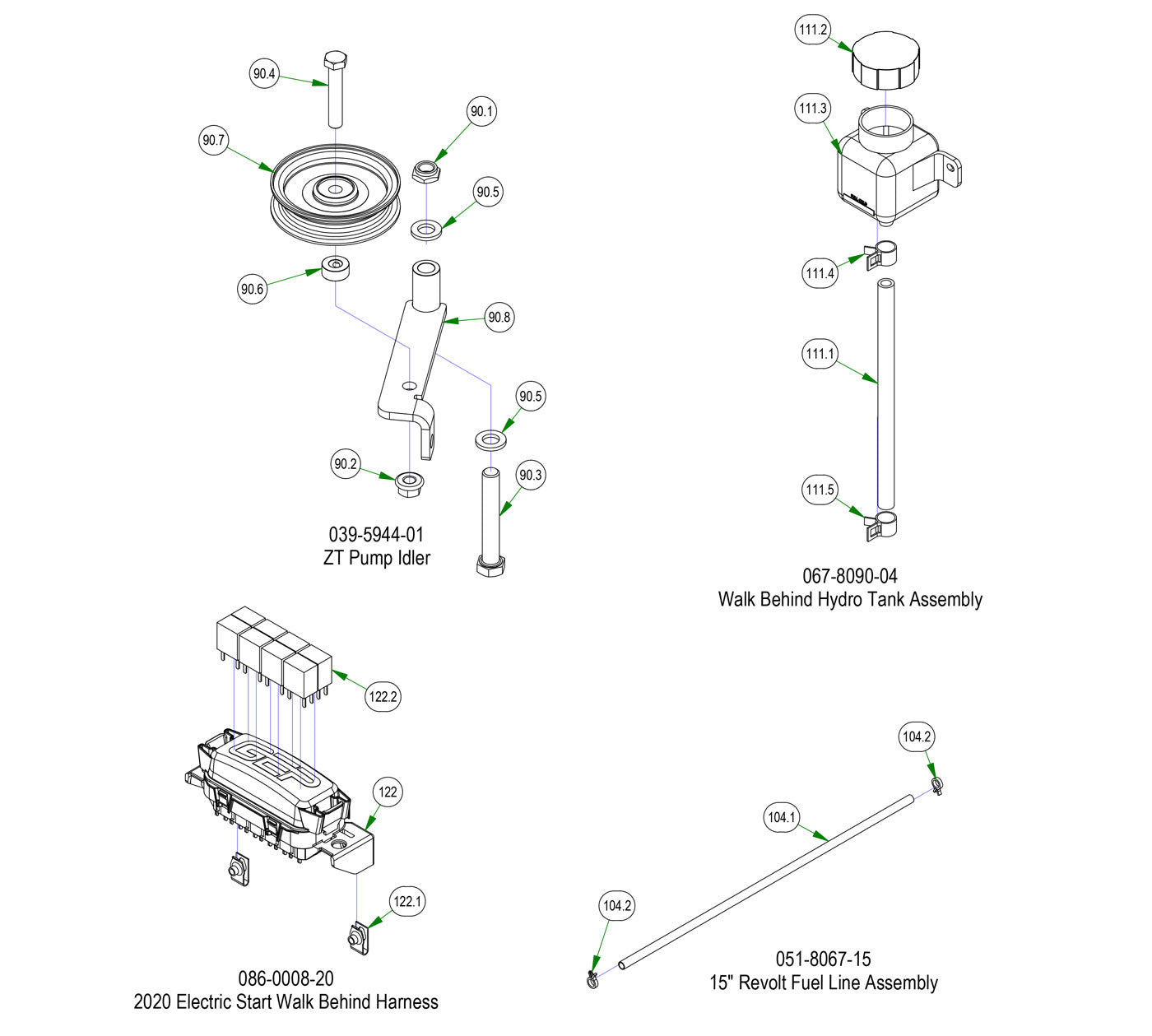

Frame Sub Assemblies
Parts Index
- 90 Pump Idler Bracket Assembly-ZT, MZ, Aven, Raider (Qty 1)
- 90.1 5/8-11 Nylon Insert Jam Locknu (Qty 1)
- 90.2 1/2-13 Nylon Insert Flange Nut (Qty 1)
- 90.3 5/8-11 X 4 GR 8 Hex Bolts Zinc (Qty 1)
- 90.4 1/2-13 X 2-3/4 GR 5 Bolt Zinc (Qty 1)
- 90.5 .630 ID X 1.122 OD X .142 THK (Qty 2)
- 90.6 1/2 Set Collar w/set collar (Qty 1)
- 90.7 4 3/4 Idler Pulley - ABFI-76 (Qty 1)
- 90.8 Idler Bracket (Qty 1)
- 104 15" Revolt Fuel Line Assembly (Qty 1)
- 104.1 1/4 Fuel Line Hose PRICED/FOOT (Qty 1)
- 104.2 1/4 Fuel Line Clamp (Qty 2)
- 111 71328-Expansion Tank CZT/ZT (Qty 2)
- 111.1 3/8 Clear Hose PRICED PER FOOT (Qty 1)
- 111.2 ZT Hydraulic Tank Cap (Qty 1)
- 111.3 71328-Expansion Tank CZT/ZT (Qty 1)
- 111.4 3/8 Hose Clamp - CTB-16-STFS (Qty 1)
- 111.5 1/2 Hose Clamp (Qty 1)
- 122.1 1/4-20 Cage Nut (Qty 2)
- 122.2 2019 Relay Terminal (Qty 8)
-
90#039-5944-01
Pump Idler Bracket Assembly-ZT/MZ/Compact Outlaw
Qty Used: 1Regular price $58.37 USDRegular priceUnit price per
-
90.1#013-5301-00
5/8-11 Nylon Insert Jam Locknu
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
90.2#013-8050-00
1/2-13 Nylon Insert Flange Nut
Qty Used: 1Regular price $1.39 USDRegular priceUnit price per
-
90.3#018-5311-00
5/8-11 X 4 GR 8 Hex Bolts Zinc
Qty Used: 1Regular price $3.69 USDRegular priceUnit price per
-
90.4#018-6036-00
1/2-13 X 2-3/4 GR 5 Bolt Zinc
Qty Used: 1Regular price $1.59 USDRegular priceUnit price per
-
90.5#019-6017-00
.630 ID X 1.122 OD X .142 THK
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
90.6#025-7036-00
1/2 Set Collar w/set collar
Qty Used: 1Regular price $4.18 USDRegular priceUnit price per
-
90.7#033-6001-00
4 3/4 Idler Pulley - ABFI-76
Qty Used: 1Regular price $29.18 USDRegular priceUnit price per
-
90.8#039-5944-00
Idler Bracket
Qty Used: 1Regular price $39.79 USDRegular priceUnit price per
-
No sequence found for SKU:
15\" Revolt Fuel Line Assembly
Regular price $0.00 USDRegular priceUnit price per
-
104.1#051-8067-00
1/4 Fuel Line Hose PRICED/FOOT
Qty Used: 1Regular price $5.83 USDRegular priceUnit price per
-
104.2#072-8069-00
1/4 Fuel Line Clamp
Qty Used: 2Regular price $0.88 USDRegular priceUnit price per
-
111111.3#067-8090-00
71328-Expansion Tank CZT/ZT
Qty Used: 1Regular price $29.18 USDRegular priceUnit price per
-
111.1#051-8063-00
3/8 Clear Hose PRICED PER FOOT
Qty Used: 1Regular price $2.64 USDRegular priceUnit price per
-
111.2#066-5050-00
ZT Hydraulic Tank Cap
Qty Used: 1Regular price $14.58 USDRegular priceUnit price per
-
111.4#072-8065-00
3/8 Hose Clamp - CTB-16-STFS
Qty Used: 1Regular price $0.88 USDRegular priceUnit price per
-
111.5#072-8066-00
1/2 Hose Clamp
Qty Used: 1Regular price $0.88 USDRegular priceUnit price per
-

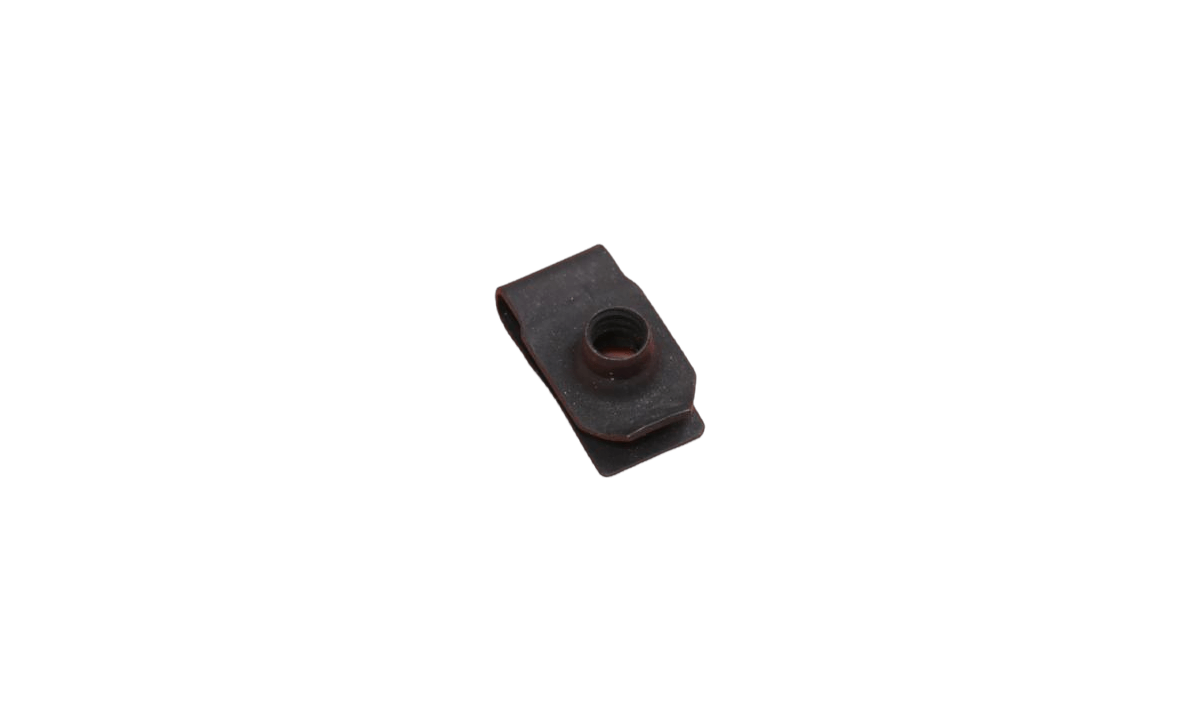

122.1#013-0054-00
1/4-20 Cage Nut
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
122.2#086-1202-19
2019 Relay Terminal
Qty Used: 8Regular price $23.34 USDRegular priceUnit price per
