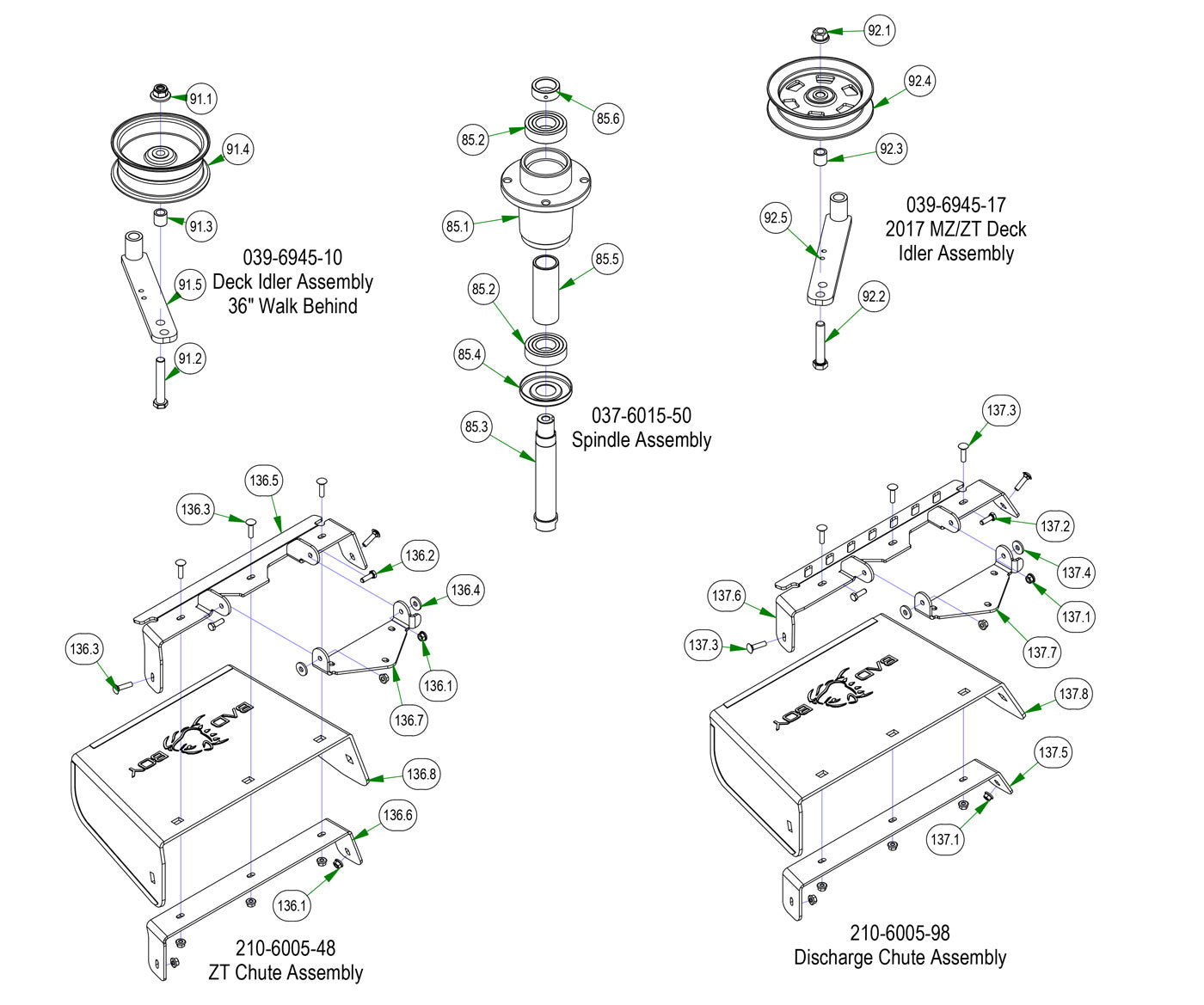

Deck Sub-Assemblies
Parts Index
- 85 Spindle-Aluminum (Qty 3)
- 85.1 Aluminum Spindle Housing-2010 (Qty 1)
- 85.2 OBSOLETE USE 037-6029-00 (Qty 2)
- 85.3 Short Spindle Shaft for Locking Collar- No Grooved (Qty 1)
- 85.4 Dust Cover for 037-8000-00 - (Qty 1)
- 85.5 Tube Spacer for Spindle Shaft (Qty 1)
- 85.6 Collar Spacer - Top of Spindle (Qty 1)
- 91 36" Walkbehind Deck Idler Assembly (Qty 1)
- 91.1 1/2-13 Nylon Insert Flange Nut (Qty 1)
- 91.2 1/2-13 X 3 GR 5 Hex Bolts Zinc (Qty 1)
- 91.3 Spacer 3/4ODx1/2IDx0.75 (Qty 1)
- 91.4 Double Bearing Flat Idler (Qty 1)
- 91.5 Idler Bracket (Qty 1)
- 92 2017 MZ/ZT Deck Idler Assembly (Qty 1)
- 92.1 1/2-13 Nylon Insert Flange Nut (Qty 1)
- 92.2 1/2-13 X 2-3/4 GR 5 Bolt Zinc (Qty 1)
- 92.3 Spacer 3/4ODx1/2IDx0.75 (Qty 1)
- 92.4 2017 5" Split Idler Pulley-Tensioner Only (Qty 1)
- 92.5 Idler Bracket (Qty 1)
- 136 2013 48" ZT/Chute Assembly (Qty 1)
- 136.1 5/16-18 Nylon Flange Nut (Qty 7)
- 136.2 5/16-18 X 1 GR 5 Hex Bolt Zinc (Qty 2)
- 136.3 5/16-18 X 1-1/4 Carriage Bolt (Qty 5)
- 136.4 .360 ID Plastic Washer (Qty 2)
- 136.5 48/52 Discharge Top Bracket (Qty 1)
- 136.6 48/52 Discharge Lower Bracket (Qty 1)
- 136.7 Discharge Chute Hanger-Deck (Qty 1)
- 136.8 Discharge Chute (Rubber Component) (Qty 1)
- 137 2017 54"/60" ZT/Mav Chute Assembly (Qty 1)
- 137.1 5/16-18 Nylon Flange Nut (Qty 7)
- 137.2 5/16-18 X 1 GR 5 Hex Bolt Zinc (Qty 2)
- 137.3 5/16-18 X 1-1/4 Carriage Bolt (Qty 5)
- 137.4 .360 ID Plastic Washer (Qty 2)
- 137.5 60 Discharge Lower Bracket (Qty 1)
- 137.6 60 Discharge Chute Upper (Qty 1)
- 137.7 Discharge Chute Hanger-Deck (Qty 1)
- 137.8 Discharge Chute (Rubber Component) (Qty 1)
-
85#037-6015-50
Spindle-Aluminum
Qty Used: 3Regular price $199.99 USDRegular priceUnit price per
-

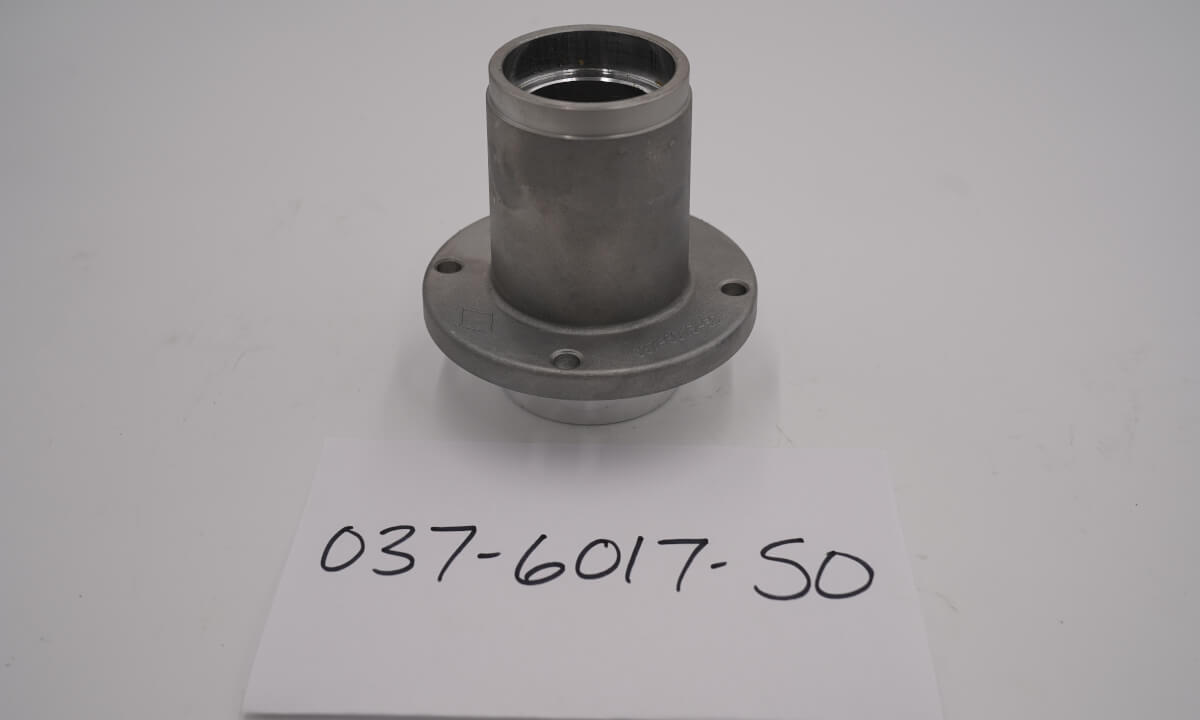

85.1#037-6017-50
Aluminum Spindle Housing-2010
Qty Used: 1Regular price $119.36 USDRegular priceUnit price per
-

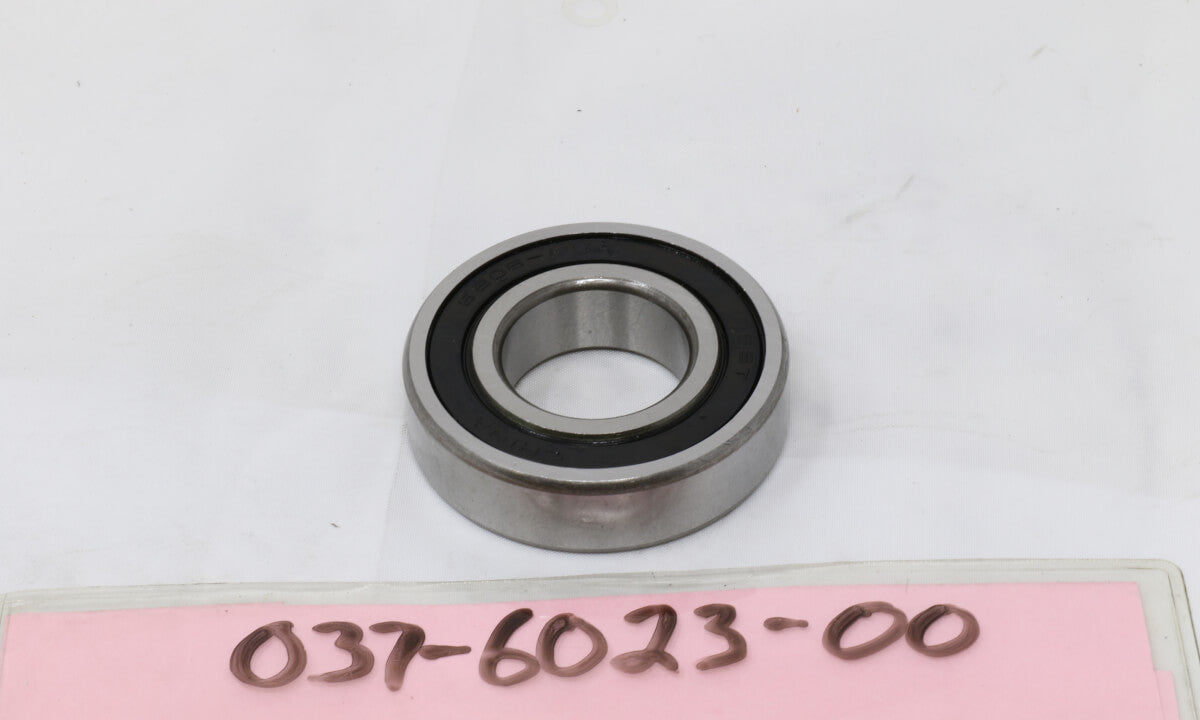

85.2#037-6023-00
OBSOLETE USE 037-6029-00
Qty Used: 2Regular price $39.79 USDRegular priceUnit price per
-

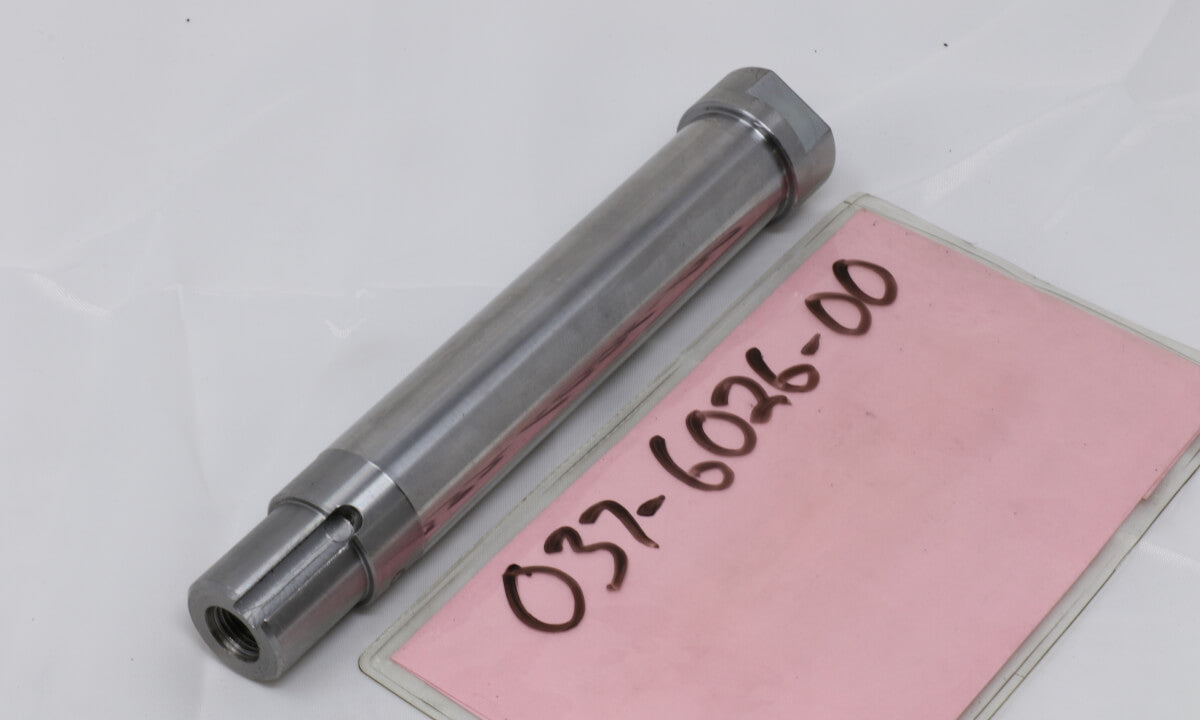

85.3#037-6026-00
Short Spindle Shaft w/Locking Collar- No Grooved
Qty Used: 1Regular price $78.29 USDRegular priceUnit price per
-

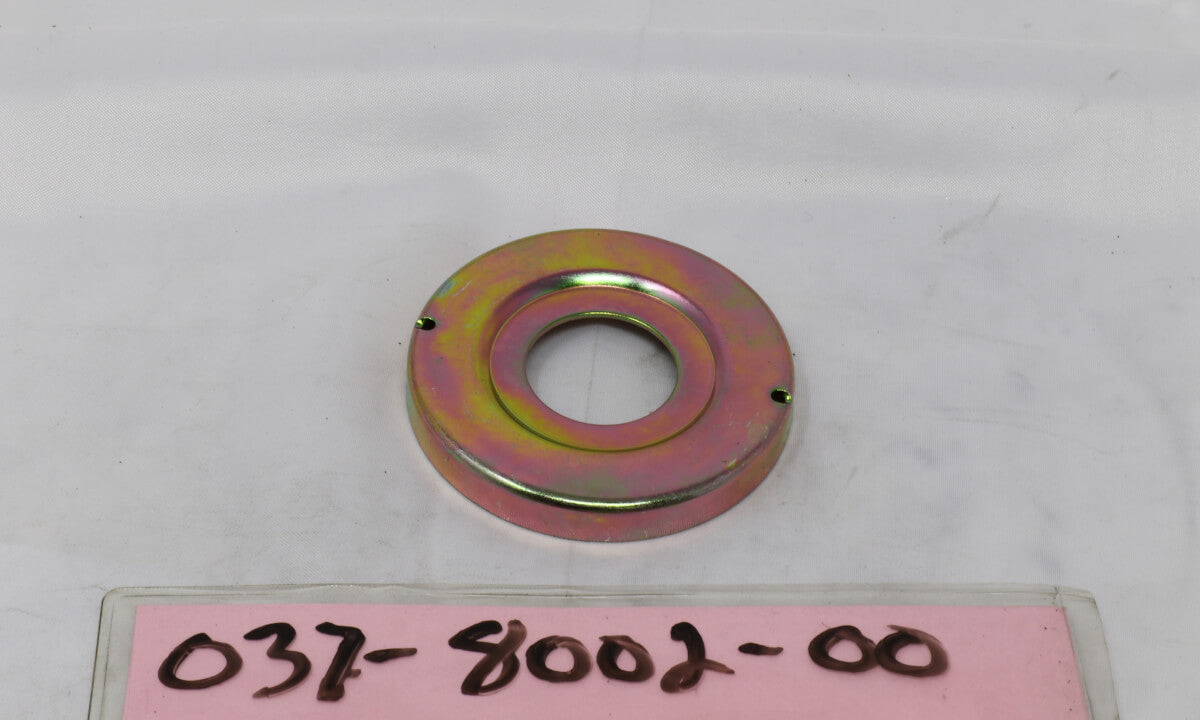

85.4#037-8002-00
Dust Cover for 037-8000-00
Qty Used: 1Regular price $10.99 USDRegular priceUnit price per
-

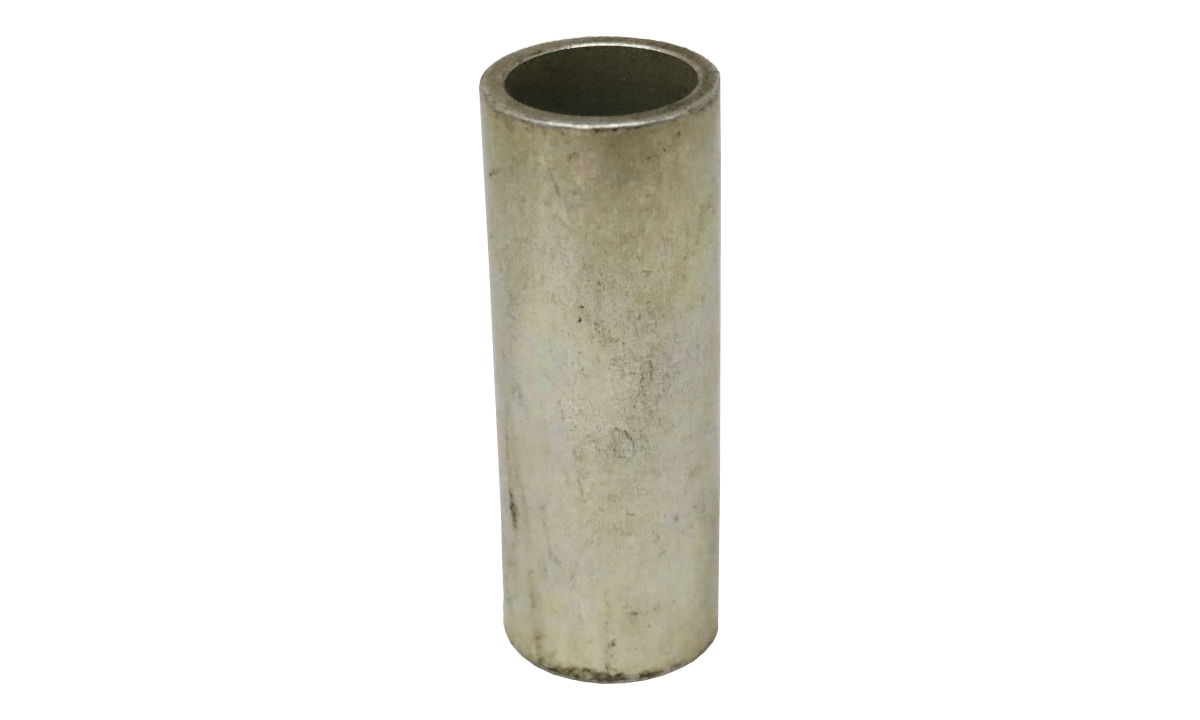

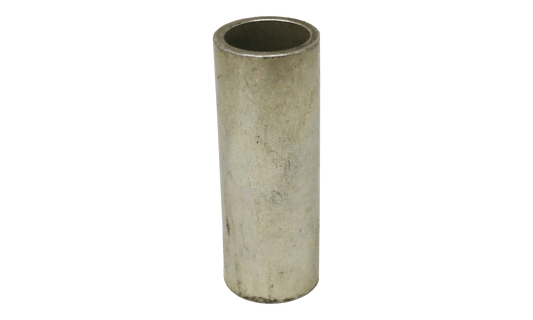

85.5#037-8050-00
Tube Spacer for Spindle Shaft
Qty Used: 1Regular price $7.90 USDRegular priceUnit price per
-

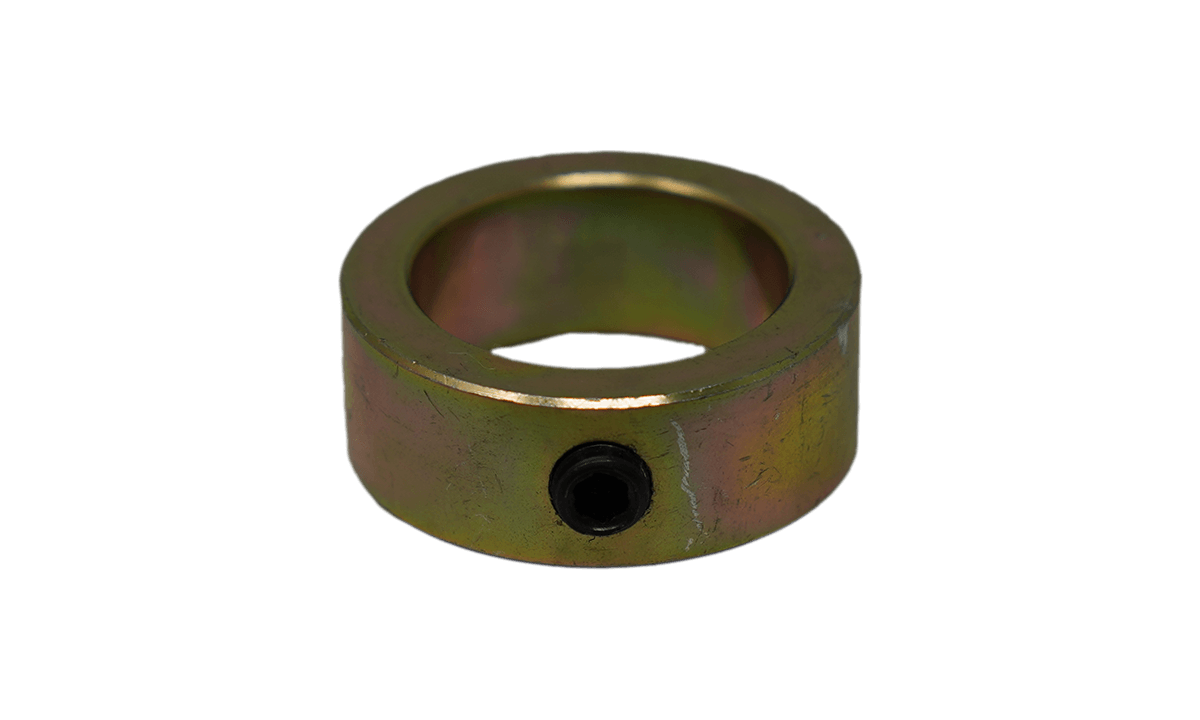

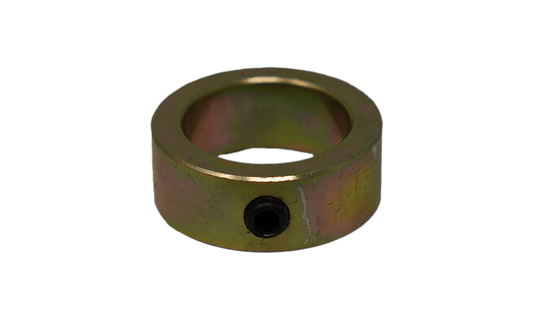

85.6#037-9050-00
Collar Spacer - Top of Spindle
Qty Used: 1Regular price $6.62 USDRegular priceUnit price per
-
91#039-6945-10
36" Walkbehind Deck Idler Assembly
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
91.192.1#013-8050-00
1/2-13 Nylon Insert Flange Nut
Qty Used: 1Regular price $1.39 USDRegular priceUnit price per
-
91.2#018-7016-00
1/2-13 X 3 GR 5 Hex Bolts Zinc
Qty Used: 1Regular price $1.49 USDRegular priceUnit price per
-
91.392.3#025-5203-00
Spacer 3/4ODx1/2IDx0.75
Qty Used: 1Regular price $2.99 USDRegular priceUnit price per
-
91.4#033-5000-00
Double Bearing Flat Idler
Qty Used: 1Regular price $53.06 USDRegular priceUnit price per
-
91.592.5#039-6945-00
Idler Bracket
Qty Used: 1Regular price $37.88 USDRegular priceUnit price per
-
92#039-6945-17
2017 MZ/ZT Deck Idler Assembly
Qty Used: 1Regular price $66.33 USDRegular priceUnit price per
-
92.2#018-6036-00
1/2-13 X 2-3/4 GR 5 Bolt Zinc
Qty Used: 1Regular price $1.59 USDRegular priceUnit price per
-
92.4#033-8050-00
2017 5" Split Idler Pulley-Tensioner Only
Qty Used: 1Regular price $33.16 USDRegular priceUnit price per
-
136#210-6005-48
2013 48" ZT/Chute Assembly
Qty Used: 1Regular price $169.99 USDRegular priceUnit price per
-
136.1137.1#013-8049-00
5/16-18 Nylon Flange Nut
Qty Used: 7Regular price $0.79 USDRegular priceUnit price per
-
136.2137.2#018-2007-00
5/16-18 X 1 GR 5 Hex Bolt Zinc
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
136.3137.3#018-4703-00
5/16-18 X 1-1/4 Carriage Bolt
Qty Used: 5Regular price $0.69 USDRegular priceUnit price per
-
136.4137.4#019-6042-00
.360 ID Plastic Washer
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
136.5#039-4870-00
48/52 Discharge Top Bracket
Qty Used: 1Regular price $39.74 USDRegular priceUnit price per
-
136.6#039-4871-00
48/52 Discharge Lower Bracket
Qty Used: 1Regular price $30.51 USDRegular priceUnit price per
-
136.7137.7#206-6017-00
Discharge Chute Hanger-Deck
Qty Used: 1Regular price $36.48 USDRegular priceUnit price per
-
136.8137.8#210-6005-00
Discharge Chute (Rubber Component)
Qty Used: 1Regular price $55.99 USDRegular priceUnit price per
-
137#210-6005-98
2017 54"/60" ZT/Mav Chute Assembly
Qty Used: 1Regular price $149.99 USDRegular priceUnit price per
-
137.5#039-4863-00
60 Discharge Lower Bracket
Qty Used: 1Regular price $30.51 USDRegular priceUnit price per
-
137.6#039-4864-00
60 Discharge Chute Upper
Qty Used: 1Regular price $39.74 USDRegular priceUnit price per
