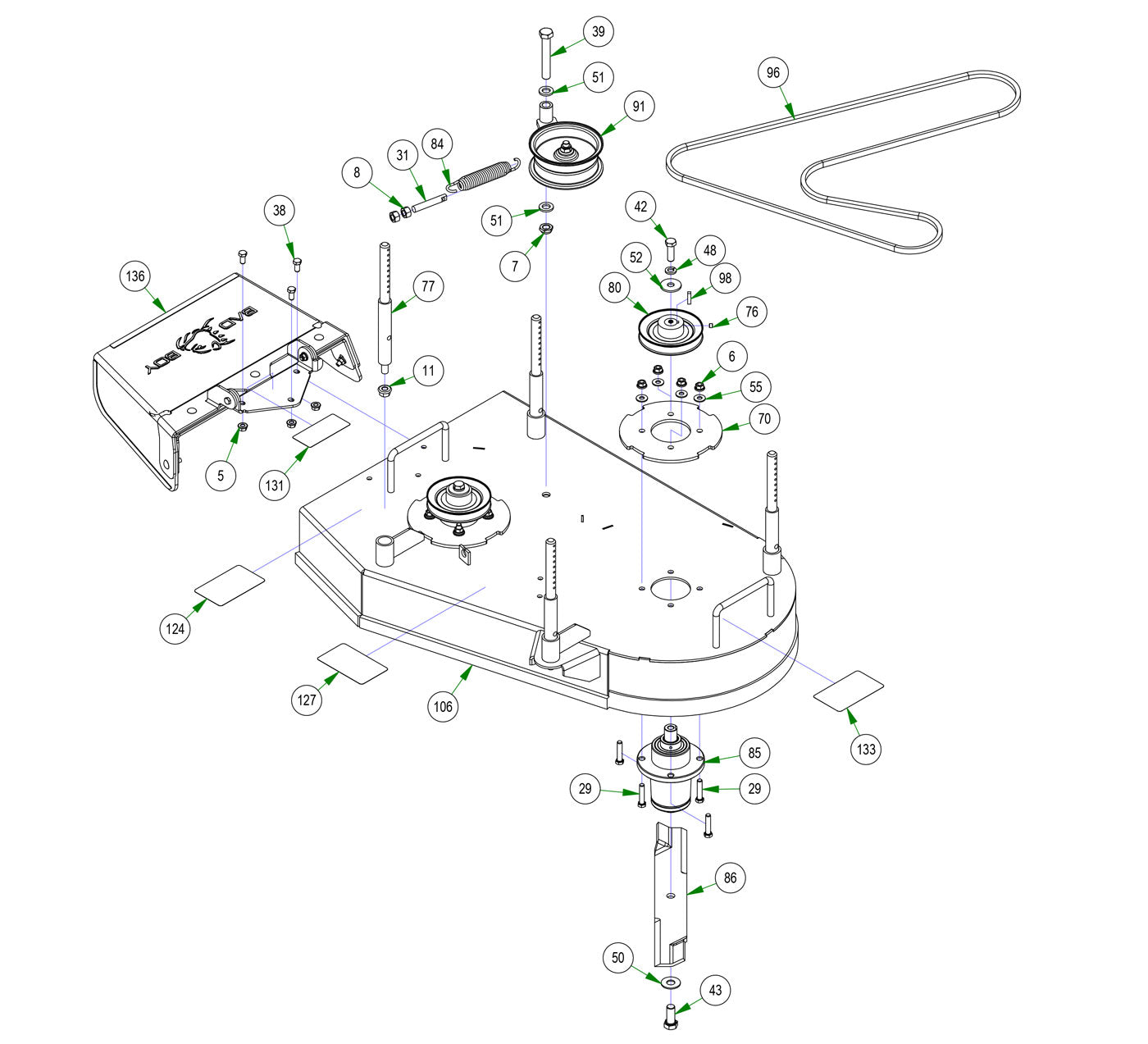

36" Deck Assembly
Parts Index
- 5 3/8-16 Hex Flange Nuts Zinc w/ (Qty 3)
- 6 3/8 Nylock Flange Nut (Qty 8)
- 7 5/8-11 Nylon Insert Jam Locknu (Qty 1)
- 8 1/2-13 Hex Nuts Zinc (Qty 2)
- 11 1/2-13 Nylon Insert Flange Nut (Qty 4)
- 29 3/8-16 x 1-3/4 Hex C/S (GR 5) ZC (Qty 8)
- 31 All Thread (Qty 1)
- 38 3/8-16 X 3/4 GR 5 Hex Bolts (Qty 3)
- 39 5/8-11 X 4 GR 8 Hex Bolts Zinc (Qty 1)
- 42 1/2-20 X 1-1/2 GR 5 Bolts Zinc (Qty 2)
- 43 5/8-18 X 1-1/2 GR 8 Hex Bolts (Qty 2)
- 48 1/2 Lockwasher Zinc (Qty 2)
- 50 5/8 Flat Washer (Qty 2)
- 51 .630 ID X 1.122 OD X .142 THK (Qty 2)
- 52 1/2 Belleville Washer #K2000-G (Qty 2)
- 55 5/16 USS Flat Washer Zinc (Qty 8)
- 70 Deck Spindle Support Plate 60"--Orange (Qty 2)
- 76 5/16-24 x 1/4 Set Screw (Qty 2)
- 77 2017 Walk Behind Deck Hanger (Qty 4)
- 80 5" Spindle Deck Pulley - DB-80 (Qty 2)
- 84 2015 Deck Idler Spring (Qty 1)
- 85 Spindle-Aluminum (Qty 2)
- 86 54" Blade for Avenger/ZT/Mav/Outlaw/Revolt (Qty 2)
- 91 36" Walkbehind Deck Idler Assembly (Qty 1)
- 96 2020 36" Revolt / 2020 36" Walk Behind Deck Belt (Qty 1)
- 98 1/4 x 1 Square Key (Qty 2)
- 106 36" Walker Deck Weldment (Qty 1)
- 124 36" Deck Height Adjustment Decal (Qty 1)
- 127 2017 Walk Behind 36" Deck Belt Route (Qty 1)
- 131 Danger Decal-Spindle/Discharge (Qty 1)
- 133 2018 36" Deck Decal (Qty 1)
- 136 2013 48" ZT/Chute Assembly (Qty 1)
-
5#013-5201-00
3/8-16 Hex Flange Nuts Zinc w/
Qty Used: 3Regular price $1.49 USDRegular priceUnit price per
-
6#013-5202-00
3/8 Nylock Flange Nut
Qty Used: 8Regular price $1.49 USDRegular priceUnit price per
-
7#013-5301-00
5/8-11 Nylon Insert Jam Locknu
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
8#013-7018-00
1/2-13 Hex Nuts Zinc
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
11#013-8050-00
1/2-13 Nylon Insert Flange Nut
Qty Used: 4Regular price $1.39 USDRegular priceUnit price per
-
29#018-0075-00
3/8-16 x 1-3/4 Hex C/S (GR 5) ZC
Qty Used: 8Regular price $2.99 USDRegular priceUnit price per
-
31#018-2004-50
All Thread
Qty Used: 1Regular price $12.09 USDRegular priceUnit price per
-
38#018-5250-00
3/8-16 X 3/4 GR 5 Hex Bolts
Qty Used: 3Regular price $0.69 USDRegular priceUnit price per
-
39#018-5311-00
5/8-11 X 4 GR 8 Hex Bolts Zinc
Qty Used: 1Regular price $3.69 USDRegular priceUnit price per
-
42#018-6019-00
1/2-20 X 1-1/2 GR 5 Bolts Zinc
Qty Used: 2Regular price $1.19 USDRegular priceUnit price per
-
43#018-6020-00
5/8-18 X 1-1/2 GR 8 Hex Bolts
Qty Used: 2Regular price $2.49 USDRegular priceUnit price per
-
48#019-5007-00
1/2 Lockwasher Zinc
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
50#019-5038-00
5/8 Flat Washer
Qty Used: 2Regular price $1.49 USDRegular priceUnit price per
-
51#019-6017-00
.630 ID X 1.122 OD X .142 THK
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
52#019-6020-00
1/2 Belleville Washer #K2000-G
Qty Used: 2Regular price $4.69 USDRegular priceUnit price per
-
55#019-8044-00
5/16 USS Flat Washer Zinc
Qty Used: 8Regular price $0.79 USDRegular priceUnit price per
-
70#026-0025-00
Deck Spindle Support Plate 60\"--Orange
Qty Used: 2Regular price $13.26 USDRegular priceUnit price per
-
76#030-0050-00
5/16-24 x 1/4 Set Screw
Qty Used: 2Regular price $1.59 USDRegular priceUnit price per
-
77#031-0023-00
2017 Walk Behind Deck Hanger
Qty Used: 4Regular price $43.95 USDRegular priceUnit price per
-
80#033-6003-00
5" Spindle Deck Pulley - DB-80
Qty Used: 2Regular price $39.79 USDRegular priceUnit price per
-
84#034-2020-00
2015 Deck Idler Spring
Qty Used: 1Regular price $15.99 USDRegular priceUnit price per
-
85#037-6015-50
Spindle-Aluminum
Qty Used: 2Regular price $199.99 USDRegular priceUnit price per
-
86#038-0001-00
54\" Blade for Avenger/ZT/Mav/Outlaw/Revolt
Qty Used: 2Regular price $21.16 USDRegular priceUnit price per
-
91#039-6945-10
36" Walkbehind Deck Idler Assembly
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
96#041-8054-00
2020 36" Revolt / 2020 36" Walk Behind Deck Belt
Qty Used: 1Regular price $74.99 USDRegular priceUnit price per
-
98#042-6030-00
1/4 x 1 Square Key
Qty Used: 2Regular price $4.37 USDRegular priceUnit price per
-
106#060-3600-00
36\" Walker Deck Weldment
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
124#091-0023-00
36" Deck Height Adjustment Decal
Qty Used: 1Regular price $18.99 USDRegular priceUnit price per
-
127#091-0418-00
2017 Walk Behind 36" Deck Belt Route
Qty Used: 1Regular price $3.97 USDRegular priceUnit price per
-
131#091-3012-00
Danger Decal-Spindle/Discharge
Qty Used: 1Regular price $2.91 USDRegular priceUnit price per
-
133#091-3601-18
2018 36" Deck Decal
Qty Used: 1Regular price $7.99 USDRegular priceUnit price per
-
136#210-6005-48
2013 48" ZT/Chute Assembly
Qty Used: 1Regular price $169.99 USDRegular priceUnit price per
