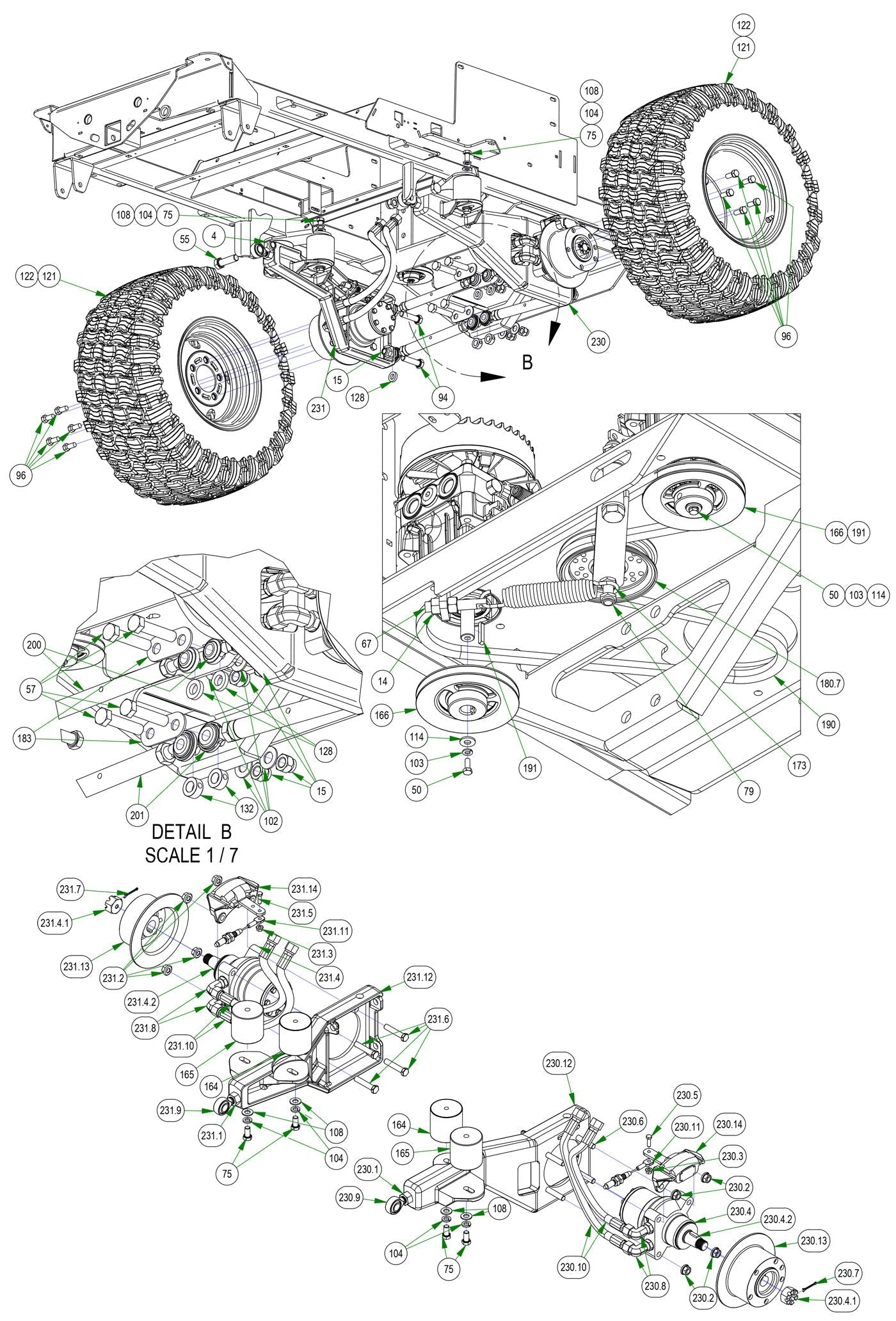

Rear Suspension
Parts Index
- 4 3/4" Course Thread Nylon Lock Nut (Qty 2)
- 14 1/2-13 Hex Nuts Zinc (Qty 2)
- 15 5/8-11 Nylon Insert Locknut Zi (Qty 8)
- 50 M6-1.0 X 16MM HEX BOLT CL 8 (Qty 2)
- 55 3/4 x 2 1/2 Course Thread Bolt (Qty 2)
- 57 5/8-11 x 2 3/4 Hex Head Bolt GR 5 (Qty 4)
- 67 All Thread (Qty 1)
- 75 1/2 x 1 Bolt (Qty 8)
- 79 1/2-13 Nylon Insert Jam Locknut (Qty 1)
- 94 5/8-11 X 2-1/2 GR 5 Hex Bolts (Qty 4)
- 96 1/2-20 Wheel Bolt -3/4" 60 Degree Seat 1" Threads (Qty 10)
- 102 5/8" Flat Washer SAE Spec Grade 8 (Qty 4)
- 103 1/4 Lockwasher Zinc (Qty 2)
- 104 1/2 Lockwasher Zinc (Qty 8)
- 108 1/2 SAE Flat Washer GR 8 (Qty 8)
- 114 1/4 USS Flat Washer Zinc (Qty 2)
- 121 2019 Assy-26x12-12 Reaper Turf 2019-10.5" Rim (Qty 2)
- 122 2019 54" Tire Assy-26x12-12 Reaper Turf-8.5" Rim (Qty 2)
- 128 Spacer 1.125 OD x .625 ID x .250 Length (Qty 4)
- 132 5/8 Set Collar W/One Set Screw (Qty 2)
- 164 Isolator (Blue Dot) (Qty 2)
- 165 Isolator (Green Dot) (Qty 2)
- 166 Cast Pump Pulley - 17mm Assembly (Qty 2)
- 173 2015 Deck Idler Spring (Qty 1)
- 180.7 2019 Rogue Pump Idler Assembly (Qty 1)
- 183 2019 Suspension Gusset--Plated (Qty 2)
- 190 2019 & up Rogue Pump Belt 68" (Qty 1)
- 191 OBSOLETE USE 042-5013-00 (Qty 2)
- 200 2019 Rear Radius Rod W/ Greasable Hiem (Qty 2)
- 201 Supension linkage (3/4 body | 5/8 Hole) (Qty 2)
- 223 2021 LH Rogue Hydro Tank Line Assy (Qty 1)
- 224 2021 RH Rogue Hydro Tank Line Assy (Qty 1)
- 230.1 3/4"-16 Fine Full Nut (Qty 1)
- 230.2 1/2-13 Gr 8 Centerlock Flange Nut (Qty 4)
- 230.3 5/16-18 Nylon Flange Nut (Qty 1)
- 230.4 18ci Parker Wheel Motor - Left (Qty 1)
- 230.4.1 OBSOLETE USE 013-7055-00 (Qty 1)
- 230.4.2 Woodruff Key-Wheel Motor (Qty 1)
- 230.5 5/16-18 X 1 GR 5 Hex Bolt Zinc (Qty 1)
- 230.6 1/2-13 x 2.75 Gr.8 Hex Head Bolt (Qty 4)
- 230.7 1/8 X 1 1/2 Cotter Pins Zinc (Qty 1)
- 230.8 2019 Rogue/Renegade Wheel Motor 90* Fitting (Qty 2)
- 230.9 Heim 3/4" RH (Qty 1)
- 230.10 2019 Rogue Hydro-Hose 20"-10 (Qty 2)
- 230.11 2019 Short Brake Cable-Suspension Models (Qty 1)
- 230.12 2019 Left Trailing Arm (Qty 1)
- 230.13 Brake Disc (96-37486) (Qty 1)
- 230.14 Brake Caliper with Bracket LH (Qty 1)
- 231.1 3/4"-16 Fine Full Nut (Qty 1)
- 231.2 3/4"-16 Fine Full Nut (Qty 4)
- 231.3 5/16-18 Nylon Flange Nut (Qty 1)
- 231.4 18ci Parker Wheel Motor-Right (Qty 1)
- 231.4.1 OBSOLETE USE 013-7055-00 (Qty 1)
- 231.4.2 Woodruff Key-Wheel Motor (Qty 1)
- 231.5 5/16-18 X 1 GR 5 Hex Bolt Zinc (Qty 1)
- 231.6 1/2-13 x 2.75 Gr.8 Hex Head Bolt (Qty 4)
- 231.7 1/8 X 1 1/2 Cotter Pins Zinc (Qty 1)
- 231.8 2019 Rogue/Renegade Wheel Motor 90* Fitting (Qty 2)
- 231.9 Heim 3/4" RH (Qty 1)
- 231.10 2019 Rogue Hydro-Hose 20"-10 (Qty 2)
- 231.11 2019 Long Brake Cable-Renegade, Rogue (Qty 1)
- 231.12 2019 Right Trailing Arm (Qty 1)
- 231.13 Brake Disc (96-37486) (Qty 1)
- 231.14 Brake Caliper with Bracket RH (Qty 1)
- 234 2021 Vertical (Rogue) Frame (Qty 1)
-
231.12#070-0002-00
2019 Right Trailing Arm
Qty Used: 1Regular price $219.99 USDRegular priceUnit price per
-
231.14#092-7000-00
Brake Caliper RH
Qty Used: 1Regular price $92.82 USDRegular priceUnit price per
-
234#070-5375-00
2021 Vertical (Rogue) Frame
Qty Used: 1Regular price $899.99 USDRegular priceUnit price per
-

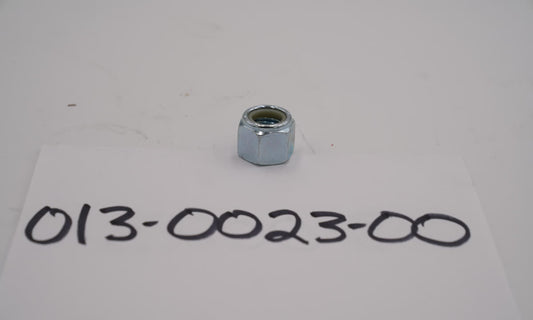

4#013-0023-00
3/4" Course Thread Nylon Lock Nut
Qty Used: 2Regular price $6.69 USDRegular priceUnit price per
-
14#013-7018-00
1/2-13 Hex Nuts Zinc
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
15#013-7021-00
5/8-11 Nylon Insert Locknut Zi
Qty Used: 8Regular price $1.19 USDRegular priceUnit price per
-
50#018-0024-00

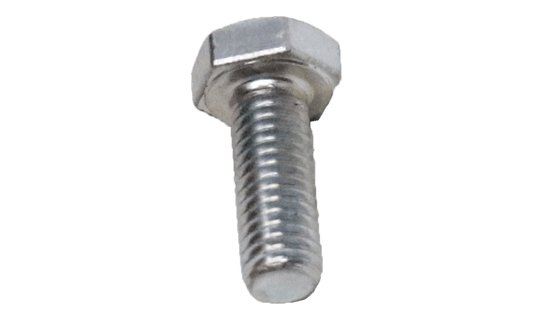

M6-1.0 X 16MM HEX BOLT CL 8
Qty Used: 2Regular price $2.69 USDRegular priceUnit price per
-

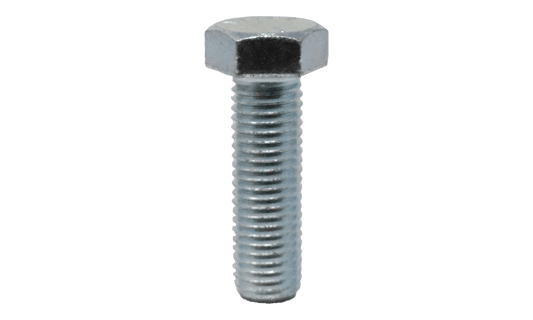

55#018-0045-00
3/4 x 2 1/2 Course Thread Bolt
Qty Used: 2Regular price $2.69 USDRegular priceUnit price per
-

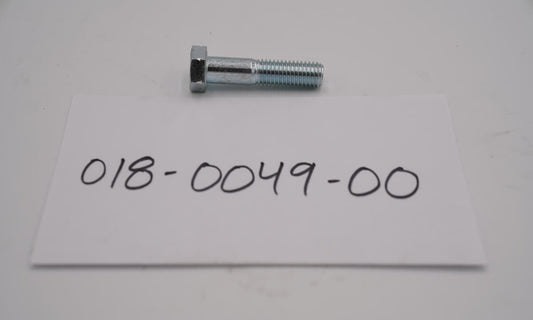

57#018-0049-00
5/8-11 x 2 3/4 Hex Head Bolt GR 5
Qty Used: 4Regular price $3.99 USDRegular priceUnit price per
-
67#018-2004-50
All Thread
Qty Used: 1Regular price $12.09 USDRegular priceUnit price per
-
75#018-2030-00
1/2 x 1 Bolt
Qty Used: 8Regular price $2.69 USDRegular priceUnit price per
-
79#018-4010-00
1/2-13 Nylon Insert Jam Locknut
Qty Used: 1Regular price $1.59 USDRegular priceUnit price per
-
94#018-6059-00
5/8-11 X 2-1/2 GR 5 Hex Bolts
Qty Used: 4Regular price $2.29 USDRegular priceUnit price per
-
96#018-7033-00
1/2-20 Wheel Bolt -3/4" 60 Degree Seat 1" Threads
Qty Used: 10Regular price $1.99 USDRegular priceUnit price per
-
102#019-0009-00

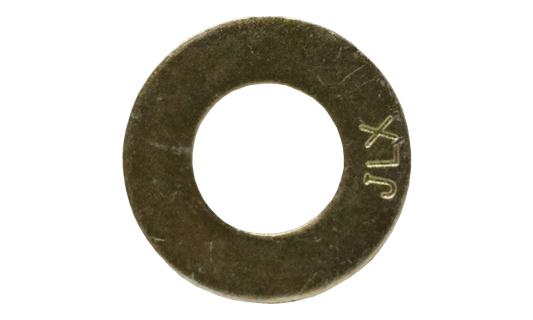

5/8" Flat Washer SAE Spec Grade 8
Qty Used: 4Regular price $2.69 USDRegular priceUnit price per
-
103#019-4008-00
1/4 Lockwasher Zinc
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
104#019-5007-00
1/2 Lockwasher Zinc
Qty Used: 8Regular price $0.00 USDRegular priceUnit price per
-
108#019-5702-00
1/2 SAE Flat Washer GR 8
Qty Used: 8Regular price $0.75 USDRegular priceUnit price per
-
114#019-7040-00
1/4 USS Flat Washer Zinc
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
121#022-4090-00
2019 Assy-26x12-12 Reaper Turf 2019-10.5" Rim
Qty Used: 2Regular price $209.99 USDRegular priceUnit price per
-
122#022-4091-00
2019 54" Tire Assy-26x12-12 Reaper Turf-8.5" Rim
Qty Used: 2Regular price $349.99 USDRegular priceUnit price per
-
128#025-0071-00
Spacer 1.125 OD x .625 ID x .250 Length
Qty Used: 4Regular price $13.26 USDRegular priceUnit price per
-
132#025-7020-00
5/8 Set Collar W/One Set Screw
Qty Used: 2Regular price $3.97 USDRegular priceUnit price per
-
164#032-8999-00
Isolator (Blue Dot)
Qty Used: 2Regular price $60.02 USDRegular priceUnit price per
-
165#032-9000-00
Isolator (Green Dot)
Qty Used: 2Regular price $66.33 USDRegular priceUnit price per
-
166#033-5011-00
Cast Pump Pulley - 17mm Assembly
Qty Used: 2Regular price $33.16 USDRegular priceUnit price per
-
173#034-2020-00
2015 Deck Idler Spring
Qty Used: 1Regular price $15.99 USDRegular priceUnit price per
-
180.7#039-0031-19

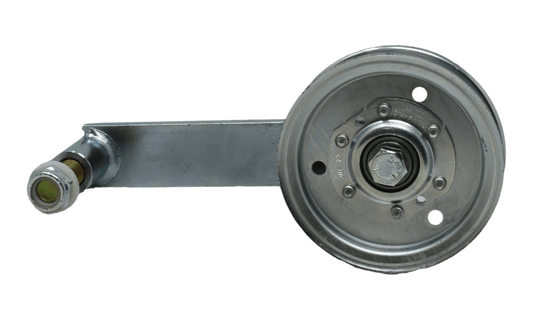

2019 Rogue Pump Idler Assembly
Qty Used: 1Regular price $66.33 USDRegular priceUnit price per
-
183#039-2145-00
2019 Suspension Gusset--Plated
Qty Used: 2Regular price $13.26 USDRegular priceUnit price per
-
190#041-8051-00
2019 & up Rogue Pump Belt 68"
Qty Used: 1Regular price $74.99 USDRegular priceUnit price per
-

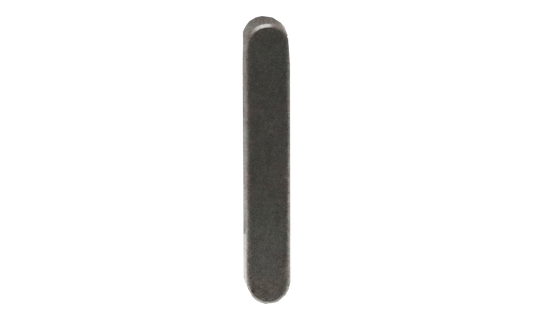

191#042-5012-00
OBSOLETE USE 042-5013-00
Qty Used: 2Regular price $2.92 USDRegular priceUnit price per
-

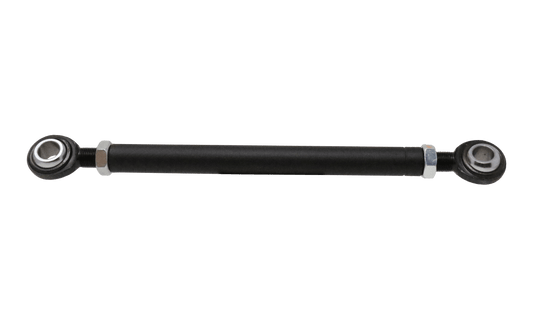

200#048-6061-00
2019 Rear Radius Rod W/ Greasable Hiem
Qty Used: 2Regular price $53.06 USDRegular priceUnit price per
-
201#048-6064-00
Supension linkage (3/4 body | 5/8 Hole)
Qty Used: 2Regular price $72.97 USDRegular priceUnit price per
-
223#067-8053-21
2021 LH Rogue Hydro Tank Line Assy
Qty Used: 1Regular price $599.99 USDRegular priceUnit price per
-
224#067-8054-21
2021 RH Rogue Hydro Tank Line Assy
Qty Used: 1Regular price $599.99 USDRegular priceUnit price per
-

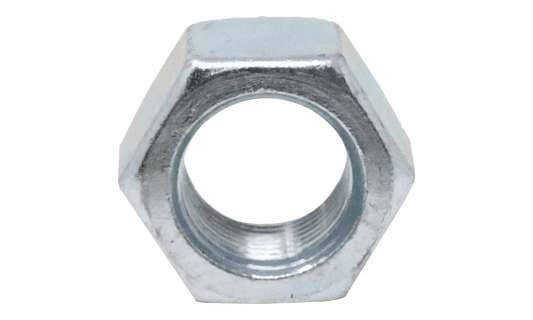

230.1231.1231.2#013-0022-00
3/4"-16 Fine Full Nut
Qty Used: 4Regular price $6.69 USDRegular priceUnit price per
-
230.2#013-6040-00

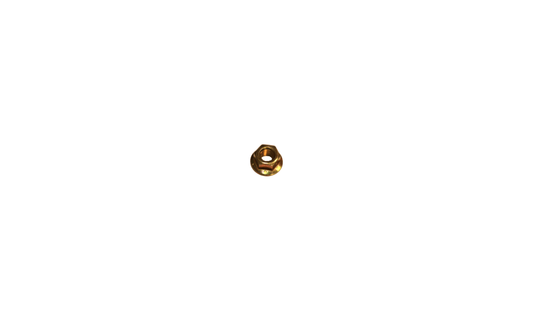

1/2-13 Gr 8 Centerlock Flange Nut
Qty Used: 4Regular price $0.99 USDRegular priceUnit price per
-
230.3231.3#013-8049-00
5/16-18 Nylon Flange Nut
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
230.4#015-4601-00
18ci Parker Wheel Motor - Left
Qty Used: 1Regular price $599.00 USDRegular priceUnit price per
-
230.4.1231.4.1#013-7050-00
OBSOLETE USE 013-7055-00
Qty Used: 1Regular price $10.95 USDRegular priceUnit price per
-
230.4.2231.4.2#042-7041-00
Woodruff Key-Wheel Motor
Qty Used: 1Regular price $13.26 USDRegular priceUnit price per
-
230.5231.5#018-2007-00
5/16-18 X 1 GR 5 Hex Bolt Zinc
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-

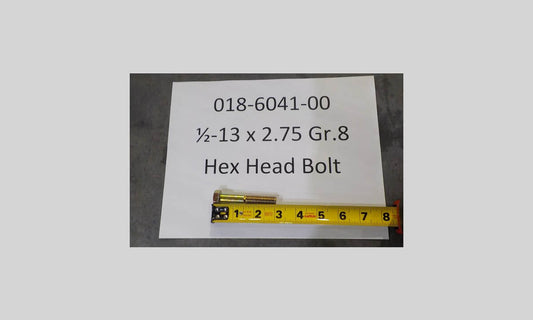

230.6231.6#018-6041-00
1/2-13 x 2.75 Gr.8 Hex Head Bolt
Qty Used: 4Regular price $2.69 USDRegular priceUnit price per
-
230.7231.7#020-7022-00
1/8 X 1 1/2 Cotter Pins Zinc
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
230.8231.8#024-2065-00

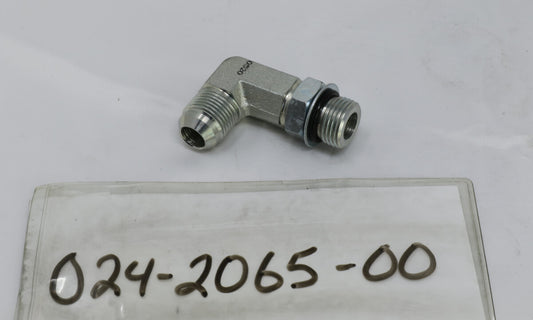

2019 Rogue/Renegade Wheel Motor 90* Fitting
Qty Used: 2Regular price $17.45 USDRegular priceUnit price per
-
230.9231.9#048-7001-00
Heim 3/4" RH
Qty Used: 1Regular price $26.53 USDRegular priceUnit price per
-
230.10231.10#051-6006-00

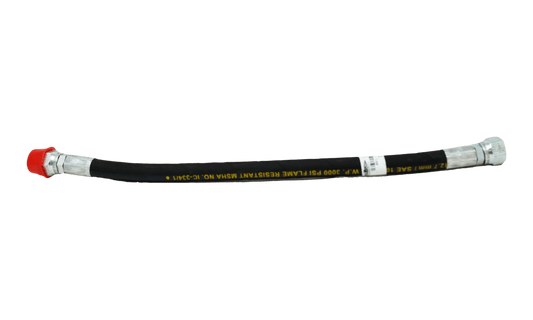

2019 Rogue Hydro-Hose 20"-10
Qty Used: 2Regular price $43.78 USDRegular priceUnit price per
-
230.11#064-8054-00

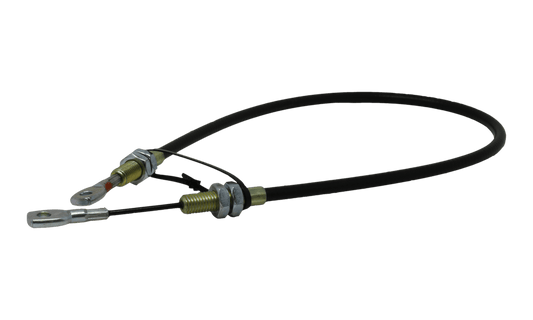

2019 Short Brake Cable-Suspension Models
Qty Used: 1Regular price $48.10 USDRegular priceUnit price per
-
230.12#070-0001-00
2019 Left Trailing Arm
Qty Used: 1Regular price $291.91 USDRegular priceUnit price per
-
230.13231.13#092-5201-00
Brake Disc (96-37486)
Qty Used: 1Regular price $119.36 USDRegular priceUnit price per
-
230.14#092-7001-00
Brake Caliper with Bracket LH
Qty Used: 1Regular price $92.82 USDRegular priceUnit price per
-
231.4#015-4600-00
18ci Parker Wheel Motor-Right
Qty Used: 1Regular price $599.00 USDRegular priceUnit price per
-

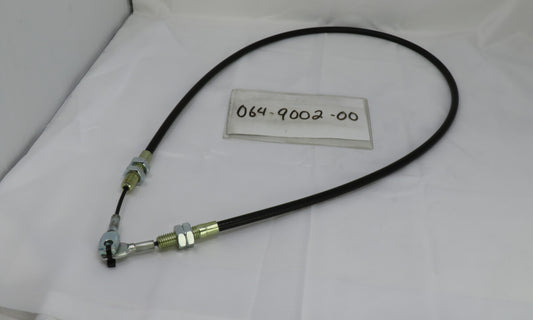

231.11#064-9002-00
2019 Long Brake Cable-Renegade, Rogue
Qty Used: 1Regular price $48.10 USDRegular priceUnit price per
