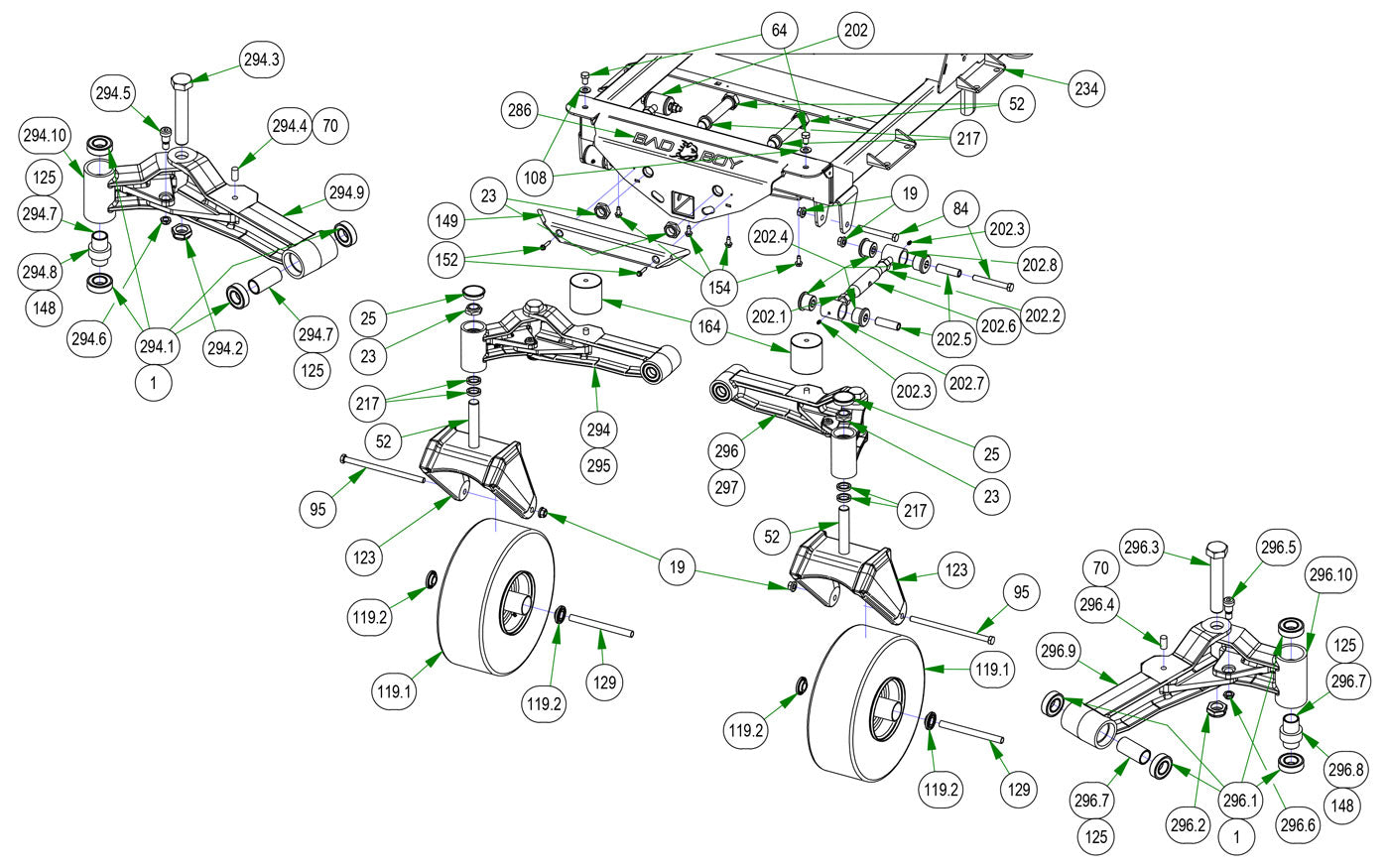

Front End
Parts Index
- 1 Caster Bearing (Qty 8)
- 19 1/2-13 Nylon Insert Flange Nut (Qty 6)
- 23 1" Nylock Nut 1/2 Nut - Fine (Qty 4)
- 25 Bearing Retainer Cap (Qty 2)
- 52 1-14 X 5 1/2 BOLT GR 8 ZC YELLOW (Qty 4)
- 64 1/2-13 x 3/4 Bolt with Patch (GR 5) Zinc (Qty 2)
- 70 1/2-13 x 1" Stud (Qty 2)
- 84 1/2-13 X 4 GR 8 Hex Bolt Yellow (Qty 4)
- 95 1/2-13 X 9 GR 5 Hex Bolts Zinc (Qty 2)
- 108 1/2 SAE Flat Washer GR 8 (Qty 2)
- 119 2019 15x6.00-6 No Flat Black Front Tire (Qty 2)
- 119.1 15x6-6 Tire Only (Qty 1)
- 119.2 1 3/4" Bearing-Large Bore (Qty 2)
- 123 2019 Rogue, Renegade Front Fork (Qty 2)
- 125 MZ/ZT/Mav/ R Series Front Bearing Spacer (Qty 4)
- 129 Front Wheel Spanner-All Models (Qty 2)
- 148 Rubber Stabilizer (Front Fork) (Qty 2)
- 149 Bumper (Qty 1)
- 152 14 X 1-1/2 HWA A T/S Zinc (Qty 2)
- 154 5/16 x 3/4 Hex Washer Type F (Qty 4)
- 164 Isolator (Blue Dot) (Qty 2)
- 202 Toplink (Qty 2)
- 202.1 11/16-12 Hex Nut-2015 Toplink (Qty 1)
- 202.2 11/16-12 Lefthand Hex Nut-Topl (Qty 1)
- 202.3 1/4 Drive-in Grease Fitting (Qty 2)
- 202.4 Bushing-2015 Outlaw Toplink (Qty 4)
- 202.5 Sleeve-2015 Outlaw Toplink (Qty 2)
- 202.6 2015 Outlaw Toplink Body (Qty 1)
- 202.7 2015 Outlaw Toplink RH End (Qty 1)
- 202.8 2015 Outlaw Toplink LH End (Qty 1)
- 217 Spacer ( Front Fork and Suspension ) (Qty 6)
- 234 2021 Vertical (Rogue) Frame (Qty 1)
- 286 Flying Bulldog Front Bumper Decal (Qty 1)
- 294 2022 61/72 Rogue/Renegade Front Suspension Asy RH (Qty 1)
- 294.1 Caster Bearing (Qty 4)
- 294.2 1" Nylock Nut 1/2 Nut - Fine (Qty 1)
- 294.3 1-14 X 5 1/2 BOLT GR 8 ZC YELLOW (Qty 1)
- 294.4 1/2-13 x 1" Stud (Qty 1)
- 294.5 5/8 x 5/8 Shoulder Bolt (Qty 1)
- 294.6 1/2-13 Nylon Insert Jam Locknut (Qty 1)
- 294.7 MZ/ZT/Mav/ R Series Front Bearing Spacer (Qty 2)
- 294.8 Rubber Stabilizer (Front Fork) (Qty 1)
- 295 2022 Front I-Beam Left - Black (Qty 1)
- 296 2022 61/72 Rogue/Renegade Front Suspension Asy LH (Qty 1)
- 296.1 Caster Bearing (Qty 4)
- 296.2 1" Nylock Nut 1/2 Nut - Fine (Qty 1)
- 296.3 1-14 X 5 1/2 BOLT GR 8 ZC YELLOW (Qty 1)
- 296.4 1/2-13 x 1" Stud (Qty 1)
- 296.5 5/8 x 5/8 Shoulder Bolt (Qty 1)
- 296.6 1/2-13 Nylon Insert Jam Locknut (Qty 1)
- 296.7 MZ/ZT/Mav/ R Series Front Bearing Spacer (Qty 2)
- 296.8 Rubber Stabilizer (Front Fork) (Qty 1)
- 296.9 2019 Front I-Beam Right (Qty 1)
-
1294.1296.1#010-1050-00
Caster Bearing
Qty Used: 4Regular price $17.19 USDRegular priceUnit price per
-
19#013-8050-00
1/2-13 Nylon Insert Flange Nut
Qty Used: 6Regular price $1.39 USDRegular priceUnit price per
-
23294.2296.2#013-9004-00
1" Nylock Nut 1/2 Nut - Fine
Qty Used: 1Regular price $3.29 USDRegular priceUnit price per
-
25#014-2025-00
Bearing Retainer Cap
Qty Used: 2Regular price $2.49 USDRegular priceUnit price per
-
52294.3296.3#018-0026-00
1-14 X 5 1/2 BOLT GR 8 ZC YELLOW
Qty Used: 1Regular price $12.99 USDRegular priceUnit price per
-
64#018-1055-00
1/2-13 x 3/4 Bolt with Patch (GR 5) Zinc
Qty Used: 2Regular price $2.69 USDRegular priceUnit price per
-
70294.4296.4#018-2009-00
1/2-13 x 1" Stud
Qty Used: 1Regular price $5.29 USDRegular priceUnit price per
-
84#018-5019-00
1/2-13 X 4 GR 8 Hex Bolt Yellow
Qty Used: 4Regular price $3.99 USDRegular priceUnit price per
-
95#018-7010-00
1/2-13 X 9 GR 5 Hex Bolts Zinc
Qty Used: 2Regular price $5.29 USDRegular priceUnit price per
-
108#019-5702-00
1/2 SAE Flat Washer GR 8
Qty Used: 2Regular price $0.75 USDRegular priceUnit price per
-
119#022-0003-00
2019 15x6.00-6 No Flat Black Front Tire
Qty Used: 2Regular price $159.99 USDRegular priceUnit price per
-
119.1#022-0004-00
15x6-6 Tire Only
Qty Used: 1Regular price $79.99 USDRegular priceUnit price per
-
119.2#022-7010-00
1 3/4" Bearing-Large Bore
Qty Used: 2Regular price $18.99 USDRegular priceUnit price per
-
123#023-0004-00
2019 Rogue, Renegade Front Fork
Qty Used: 2Regular price $169.99 USDRegular priceUnit price per
-
125294.7296.7#025-0003-00
MZ/ZT/Mav/ R Series Front Bearing Spacer
Qty Used: 2Regular price $13.12 USDRegular priceUnit price per
-
129#025-5202-00
Front Wheel Spanner-All Models
Qty Used: 2Regular price $9.49 USDRegular priceUnit price per
-
148294.8296.8#029-7050-00
Rubber Stabilizer (Front Fork)
Qty Used: 1Regular price $7.95 USDRegular priceUnit price per
-
-
152#030-7039-00
14 X 1-1/2 HWA A T/S Zinc
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
154#030-7042-00
5/16 x 3/4 Hex Washer Type F
Qty Used: 4Regular price $0.89 USDRegular priceUnit price per
-
164#032-8999-00
Isolator (Blue Dot)
Qty Used: 2Regular price $60.02 USDRegular priceUnit price per
-
-
202.1#013-0007-00
11/16-12 Hex Nut-2015 Toplink
Qty Used: 1Regular price $2.69 USDRegular priceUnit price per
-
202.2#013-0008-00
11/16-12 Lefthand Hex Nut-Topl
Qty Used: 1Regular price $2.69 USDRegular priceUnit price per
-
202.3#024-6034-00
1/4 Drive-in Grease Fitting
Qty Used: 2Regular price $0.66 USDRegular priceUnit price per
-
202.4#032-2000-00
Bushing-2015 Outlaw Toplink
Qty Used: 4Regular price $3.97 USDRegular priceUnit price per
-
202.5#032-2001-00
Sleeve-2015 Outlaw Toplink
Qty Used: 2Regular price $3.97 USDRegular priceUnit price per
-
202.6#048-7020-00
2015 Outlaw Toplink Body
Qty Used: 1Regular price $26.47 USDRegular priceUnit price per
-
202.7#048-7021-00
2015 Outlaw Toplink RH End
Qty Used: 1Regular price $29.13 USDRegular priceUnit price per
-
202.8#048-7022-00
2015 Outlaw Toplink LH End
Qty Used: 1Regular price $29.13 USDRegular priceUnit price per
-
217#058-1000-00
Spacer ( Front Fork and Suspension )
Qty Used: 6Regular price $5.83 USDRegular priceUnit price per
-
234#070-5375-00
2021 Vertical (Rogue) Frame
Qty Used: 1Regular price $899.99 USDRegular priceUnit price per
-
286#091-4063-00
Flying Bulldog Front Bumper Decal
Qty Used: 1Regular price $11.99 USDRegular priceUnit price per
-
294#250-0032-03
2022 61/ 72 Rogue/Renagade Front Suspension Asy RH
Qty Used: 1Regular price $249.99 USDRegular priceUnit price per
-
294.5296.5#018-3001-00
5/8 x 5/8 Shoulder Bolt
Qty Used: 1Regular price $14.59 USDRegular priceUnit price per
-
294.6296.6#018-4010-00
1/2-13 Nylon Insert Jam Locknut
Qty Used: 1Regular price $1.59 USDRegular priceUnit price per
-
295#250-0032-22
2022 Front I-Beam Left - Black
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
296#250-0033-03
2022 61/72 Rogue/Renegade Front Suspension Asy LH
Qty Used: 1Regular price $249.99 USDRegular priceUnit price per
-
296.9#250-0033-00
2019 Front I-Beam Right
Qty Used: 1Regular price $290.46 USDRegular priceUnit price per
