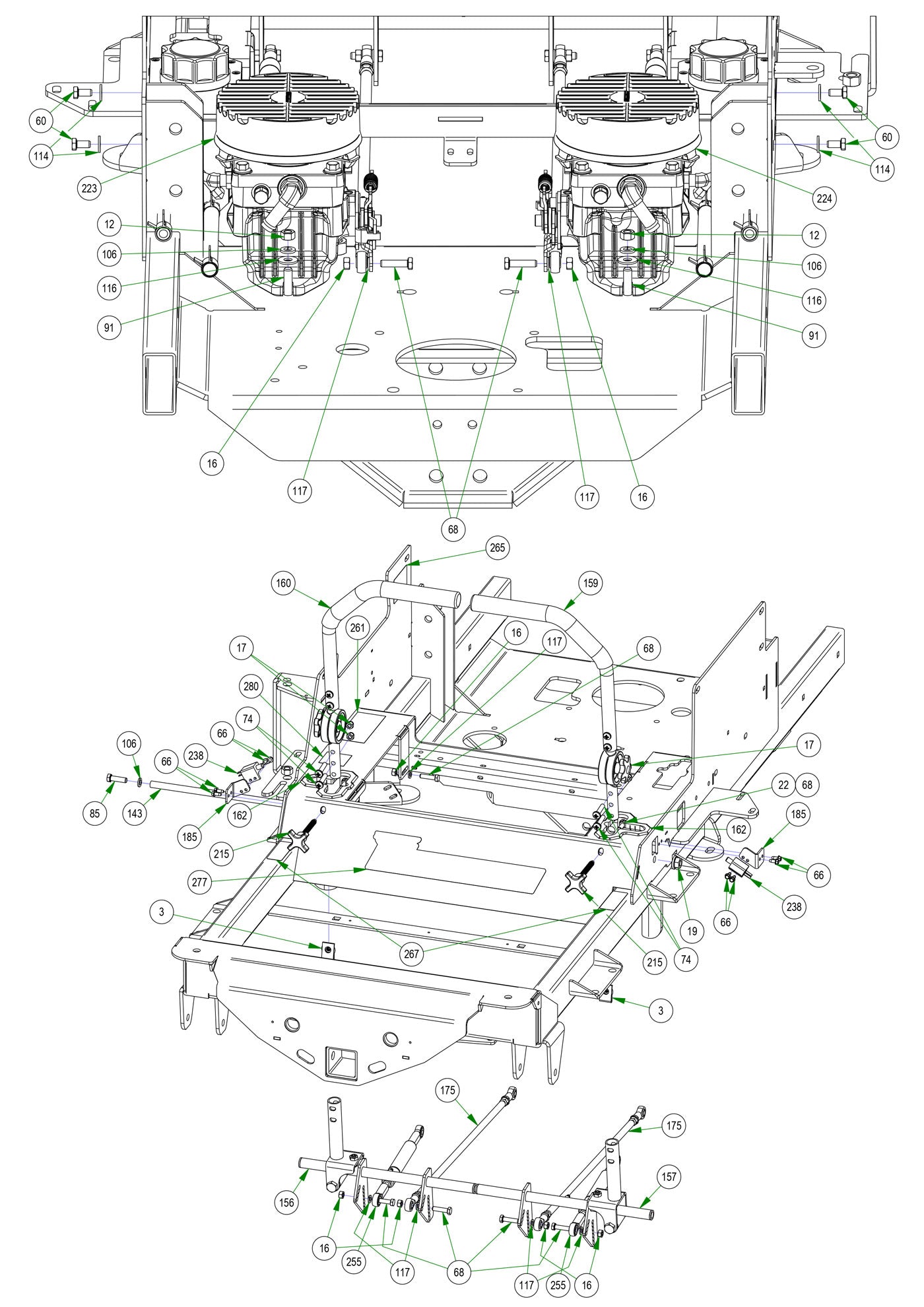

Drive Arms Assembly
Parts Index
- 277 2019 Rogue Cooler Cover Decal (Qty 1)
- 3 Extruded Nut 3/8"-16 3/4" Hole Center With Patch (Qty 2)
- 280 2019 Deck Release Decal (Qty 1)
- 12 3/8-16 Hex Nuts Zinc (Qty 4)
- 16 5/16-18 Hex Nuts Zinc (Qty 8)
- 17 5/16-18 Nylon Insert Locknut Z (Qty 4)
- 19 1/2-13 Nylon Insert Flange Nut (Qty 1)
- 22 5/16-18 Hex Flange Nuts Zinc w (Qty 2)
- 60 5/16-18 x 5/8 Hex Bolt (Qty 4)
- 66 12-24 x 1/2 HWH Bolt (Qty 8)
- 68 5/16-18 X 1-1/4 GR 5 Hex Bolt (Qty 10)
- 74 5/16-18 x 1 3/8" Button Head Torx Drive Bolt (Qty 1)
- 85 3/8-16 X 1-1/4 GR 5 Hex Bolt (Qty 1)
- 91 3/8 x 1 1/2 Bolt (Qty 4)
- 106 3/8 Lockwasher Zinc (Qty 5)
- 114 1/4 USS Flat Washer Zinc (Qty 4)
- 116 5/16 USS Flat Washer Zinc (Qty 4)
- 117 5/16 Lock washer Zinc (Qty 8)
- 143 2019 Steering Actuator Rod (Qty 1)
- 156 2019 R Series RH Arm Rod Assembly (Qty 1)
- 157 2019 R Series LH Arm Rod Assembly (Qty 1)
- 159 Black Steering Arm Kit LH (Qty 1)
- 160 Black Steering Arm Kit RH (Qty 1)
- 162 Drive Arm Bushing (Qty 2)
- 175 2019 Rogue Push Rod Assembly (Qty 2)
- 185 2019 Arm Switch Bracket--Plated (Qty 2)
- 215 Star Knob 3/8- 16 x3" (Qty 2)
- 223 2021 LH Rogue Hydro Tank Line Assy (Qty 1)
- 224 2021 RH Rogue Hydro Tank Line Assy (Qty 1)
- 234 2021 Vertical (Rogue) Frame (Qty 1)
- 238 Safety Switch (Qty 2)
- 255 Damper (Heim Ends) (Qty 2)
- 265 Yellow Hydraulic Decal (Qty 2)
- 267 R-Series LH/RH Steering Control Decal (Qty 1)
- 277 2019 Rogue Cooler Cover Decal (Qty 1)
- 280 2019 Deck Release Decal (Qty 1)
-
277277#091-4028-00
2019 Rogue Cooler Cover Decal
Qty Used: 1Regular price $11.66 USDRegular priceUnit price per
-
3#013-0021-00
Extruded Nut 3/8"-16 3/4" Hole Center With Patch
Qty Used: 2Regular price $2.99 USDRegular priceUnit price per
-
280280#091-4037-00
2019 Deck Release Decal
Qty Used: 1Regular price $7.28 USDRegular priceUnit price per
-
12#013-6014-00
3/8-16 Hex Nuts Zinc
Qty Used: 4Regular price $0.00 USDRegular priceUnit price per
-
16#013-8043-00
5/16-18 Hex Nuts Zinc
Qty Used: 8Regular price $0.69 USDRegular priceUnit price per
-
17#013-8047-00
5/16-18 Nylon Insert Locknut Z
Qty Used: 4Regular price $0.79 USDRegular priceUnit price per
-
19#013-8050-00
1/2-13 Nylon Insert Flange Nut
Qty Used: 1Regular price $1.39 USDRegular priceUnit price per
-
22#013-9002-00
5/16-18 Hex Flange Nuts Zinc w
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
60#018-0068-00
5/16-18 x 5/8 Hex Bolt
Qty Used: 4Regular price $2.99 USDRegular priceUnit price per
-
66#018-1080-00
12-24 x 1/2 HWH Bolt
Qty Used: 8Regular price $1.99 USDRegular priceUnit price per
-
68#018-2006-00
5/16-18 X 1-1/4 GR 5 Hex Bolt
Qty Used: 10Regular price $0.79 USDRegular priceUnit price per
-
74#018-2020-18
5/16-18 x 1 3/8\" Button Head Torx Drive Bolt
Qty Used: 1Regular price $1.49 USDRegular priceUnit price per
-
85#018-5040-00
3/8-16 X 1-1/4 GR 5 Hex Bolt
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
91#018-6012-00
3/8 x 1 1/2 Bolt
Qty Used: 4Regular price $0.79 USDRegular priceUnit price per
-
106#019-5037-00
3/8 Lockwasher Zinc
Qty Used: 5Regular price $0.00 USDRegular priceUnit price per
-
114#019-7040-00
1/4 USS Flat Washer Zinc
Qty Used: 4Regular price $0.69 USDRegular priceUnit price per
-
116#019-8044-00
5/16 USS Flat Washer Zinc
Qty Used: 4Regular price $0.79 USDRegular priceUnit price per
-
117#019-8051-00
5/16 Lock washer Zinc
Qty Used: 8Regular price $0.79 USDRegular priceUnit price per
-
143#028-0051-00
2019 Steering Actuator Rod
Qty Used: 1Regular price $21.88 USDRegular priceUnit price per
-
156#031-0030-19
2019 R Series RH Arm Rod Assembly
Qty Used: 1Regular price $79.60 USDRegular priceUnit price per
-
157#031-0031-19
2019 R Series LH Arm Rod Assembly
Qty Used: 1Regular price $79.60 USDRegular priceUnit price per
-
159#031-9005-70
Black Steering Arm Kit LH
Qty Used: 1Regular price $132.68 USDRegular priceUnit price per
-
160#031-9055-70
Black Steering Arm Kit RH
Qty Used: 1Regular price $115.31 USDRegular priceUnit price per
-
162#032-0002-00
Drive Arm Bushing
Qty Used: 2Regular price $14.53 USDRegular priceUnit price per
-
175#035-0004-00
2019 Rogue Push Rod Assembly
Qty Used: 2Regular price $39.79 USDRegular priceUnit price per
-
185#039-2160-00
2019 Arm Switch Bracket--Plated
Qty Used: 2Regular price $12.99 USDRegular priceUnit price per
-
215#057-5800-00
Star Knob 3/8- 16 x3"
Qty Used: 2Regular price $5.83 USDRegular priceUnit price per
-
223#067-8053-21
2021 LH Rogue Hydro Tank Line Assy
Qty Used: 1Regular price $599.99 USDRegular priceUnit price per
-
224#067-8054-21
2021 RH Rogue Hydro Tank Line Assy
Qty Used: 1Regular price $599.99 USDRegular priceUnit price per
-
234#070-5375-00
2021 Vertical (Rogue) Frame
Qty Used: 1Regular price $899.99 USDRegular priceUnit price per
-
238#077-8073-00
Safety Switch
Qty Used: 2Regular price $9.99 USDRegular priceUnit price per
-
255#087-0002-00
Damper (Heim Ends)
Qty Used: 2Regular price $58.37 USDRegular priceUnit price per
-
265#091-1020-00
Yellow Hydraulic Decal
Qty Used: 2Regular price $1.46 USDRegular priceUnit price per
-
267#091-1114-00
2018 LH/RH Steering Control Decal Roll
Qty Used: 1Regular price $14.58 USDRegular priceUnit price per
