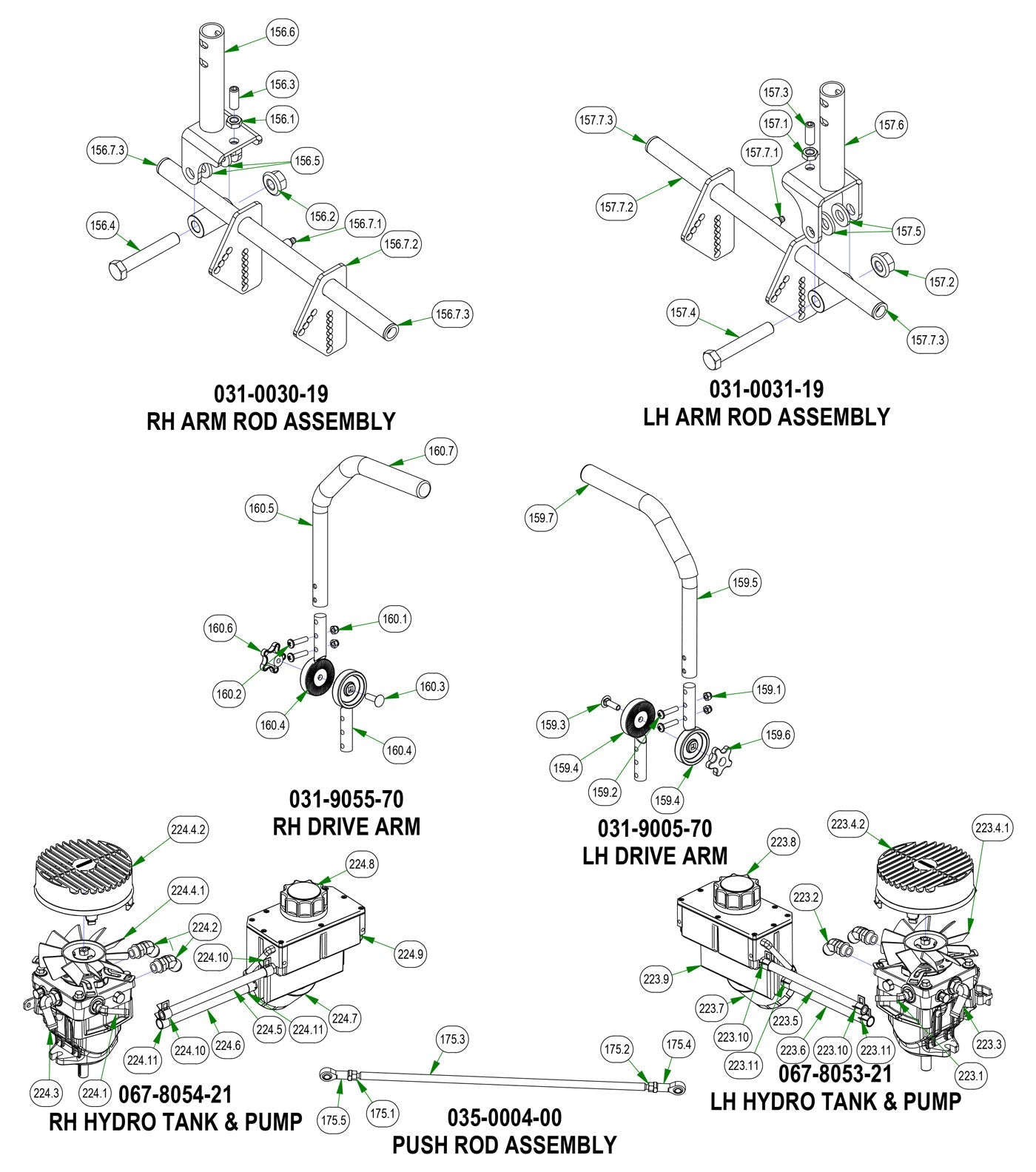

Drive Arm Sub Assemblies
Parts Index
- 156 2019 R Series RH Arm Rod Assembly (Qty 1)
- 156.1 3/8-16 Half Jam Nut (Qty 1)
- 156.2 1/2-13 Nylon Insert Flange Nut (Qty 1)
- 156.3 3/8-16 X 1 SOCKET SET SCREW CUP POINT (Qty 1)
- 156.4 1/2-13 X 3 GR 5 Hex Bolts Zinc (Qty 1)
- 156.5 .505 ID X 1 OD X .128 THK Washer (Qty 2)
- 156.6 Drive Arm Pivot (Qty 1)
- 156.7 Drive Arm Actuator RH (Qty 1)
- 156.7.1 1/4 Drive-in Grease Fitting (Qty 1)
- 156.7.3 Drive Arm Actuator Bushing (Qty 1)
- 157 2019 R Series LH Arm Rod Assembly (Qty 1)
- 157.1 3/8-16 Half Jam Nut (Qty 1)
- 157.2 1/2-13 Nylon Insert Flange Nut (Qty 1)
- 157.3 3/8-16 X 1 SOCKET SET SCREW CUP POINT (Qty 1)
- 157.4 1/2-13 X 3 GR 5 Hex Bolts Zinc (Qty 1)
- 157.5 .505 ID X 1 OD X .128 THK Washer (Qty 1)
- 157.6 Drive Arm Pivot (Qty 1)
- 157.7 Drive Arm Actuator LH (Qty 1)
- 157.7.1 1/4 Drive-in Grease Fitting (Qty 1)
- 157.7.3 Drive Arm Actuator Bushing (Qty 1)
- 159 Black Steering Arm Kit LH (Qty 1)
- 159.1 5/16-18 Nylon Insert Locknut Z (Qty 2)
- 159.2 5/16-18 x 1 3/8" Button Head Torx Drive Bolt (Qty 2)
- 159.3 3/8-16 X 1-1/4 Carriage Bolt (Qty 1)
- 159.4 2019 Upper/Lower Steering Arm Casting (Qty 2)
- 159.5 2019 Steering Arm Tube (Qty 1)
- 159.6 Knob - Adjustable Steering Arm (Qty 1)
- 159.7 Black Steering Grip (Qty 1)
- 160 Black Steering Arm Kit RH (Qty 1)
- 160.1 5/16-18 Nylon Insert Locknut Z (Qty 2)
- 160.2 5/16-18 x 1 3/8" Button Head Torx Drive Bolt (Qty 2)
- 160.3 3/8-16 X 1-1/4 Carriage Bolt (Qty 1)
- 160.4 2019 Upper/Lower Steering Arm Casting (Qty 2)
- 160.5 2019 Steering Arm Tube (Qty 1)
- 160.6 Knob - Adjustable Steering Arm (Qty 1)
- 160.7 Black Steering Grip (Qty 1)
- 175 2019 Rogue Push Rod Assembly (Qty 1)
- 175.1 5/16 RH Nut (Qty 1)
- 175.2 5/16 LH Nut (Qty 1)
- 175.3 2019 Outlaw Gen2 XP Push Rod (Qty 1)
- 175.4 Spherical Rod End - LH Thead - Rebel,Rogue,Renegad (Qty 1)
- 175.5 Spherical Rod End - RH Thread - Rogue and Renegade (Qty 1)
- 223 2021 LH Rogue Hydro Tank Line Assy (Qty 1)
- 223.1 ZT Fitting, 3/8 x 3/8 45 Degree (Qty 1)
- 223.2 2019 Outlaw 45 Degree Pump Fitting (Qty 2)
- 223.3 90 Degree Fitting, 1/2 x 3/4, (Qty 1)
- 223.4 2019 Rogue/Renegade Left Pump 16cc (Qty 1)
- 223.4.1 Hydro Fan - Light/Pup/Outlaw XP (Qty 1)
- 223.4.2 Fan Guard 6" - Fits Wheel (Qty 1)
- 223.5 3/8 Clear Hose - 4 1/4" (Qty 1)
- 223.6 1/2 Braided Hose - 9.5" (Qty 1)
- 223.7 Hydraulic Filter-All Models (Qty 1)
- 223.8 Hydraulic Tank Cap w/Dipstick (Qty 1)
- 223.9 2019 RG/RN Hydro Tank LH (Qty 1)
- 223.10 3/8 Hose Clamp - CTB-16-STFS (Qty 2)
- 223.11 1/2 Hose Clamp (Qty 2)
- 224 2021 RH Rogue Hydro Tank Line Assy (Qty 1)
- 224.1 ZT Fitting, 3/8 x 3/8 45 Degree (Qty 1)
- 224.2 2019 Outlaw 45 Degree Pump Fitting (Qty 2)
- 224.3 90 Degree Fitting, 1/2 x 3/4, (Qty 1)
- 224.4 2019 Rogue Right Pump 16cc (Qty 1)
- 224.4.1 Hydro Fan - Light/Pup/Outlaw XP (Qty 1)
- 224.4.2 Fan Guard 6" - Fits Wheel (Qty 1)
- 224.5 3/8 Clear Hose - 4 1/4" (Qty 1)
- 224.6 1/2 Braided Hose - 9.5" (Qty 1)
- 224.7 Hydraulic Filter-All Models (Qty 1)
- 224.8 Hydraulic Tank Cap w/Dipstick (Qty 1)
- 224.9 2019 RG/RN Hydro Tank RH (Qty 1)
- 224.10 3/8 Hose Clamp - CTB-16-STFS (Qty 2)
- 224.11 1/2 Hose Clamp (Qty 2)
-
156#031-0030-19
2019 R Series RH Arm Rod Assembly
Qty Used: 1Regular price $79.60 USDRegular priceUnit price per
-
156.1157.1#013-0017-00
3/8-16 Half Jam Nut
Qty Used: 1Regular price $2.69 USDRegular priceUnit price per
-
156.2157.2#013-8050-00
1/2-13 Nylon Insert Flange Nut
Qty Used: 1Regular price $1.39 USDRegular priceUnit price per
-
156.3157.3#018-0063-00
3/8-16 X 1 SOCKET SET SCREW CUP POINT
Qty Used: 1Regular price $2.69 USDRegular priceUnit price per
-
156.4157.4#018-7016-00
1/2-13 X 3 GR 5 Hex Bolts Zinc
Qty Used: 1Regular price $1.49 USDRegular priceUnit price per
-
156.5157.5#019-8054-00
.505 ID X 1 OD X .128 THK Washer
Qty Used: 1Regular price $0.69 USDRegular priceUnit price per
-
156.6157.6#031-0014-00
Drive Arm Pivot
Qty Used: 1Regular price $23.29 USDRegular priceUnit price per
-
156.7#031-0030-00
Drive Arm Actuator RH
Qty Used: 1Regular price $43.72 USDRegular priceUnit price per
-
156.7.1157.7.1#024-6034-00
1/4 Drive-in Grease Fitting
Qty Used: 1Regular price $0.66 USDRegular priceUnit price per
-
156.7.3157.7.3#031-0032-00
Drive Arm Actuator Bushing
Qty Used: 1Regular price $6.62 USDRegular priceUnit price per
-
157#031-0031-19
2019 R Series LH Arm Rod Assembly
Qty Used: 1Regular price $79.60 USDRegular priceUnit price per
-
157.7#031-0031-00
Drive Arm Actuator LH
Qty Used: 1Regular price $43.72 USDRegular priceUnit price per
-
159#031-9005-70
Black Steering Arm Kit LH
Qty Used: 1Regular price $132.68 USDRegular priceUnit price per
-
159.1160.1#013-8047-00
5/16-18 Nylon Insert Locknut Z
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
159.2160.2#018-2020-18
5/16-18 x 1 3/8\" Button Head Torx Drive Bolt
Qty Used: 2Regular price $1.49 USDRegular priceUnit price per
-
159.3160.3#018-5043-00
3/8-16 X 1-1/4 Carriage Bolt
Qty Used: 1Regular price $0.99 USDRegular priceUnit price per
-
159.4160.4#031-9005-00
2019 Upper/Lower Steering Arm Casting
Qty Used: 2Regular price $26.53 USDRegular priceUnit price per
-
159.5160.5#031-9006-00
2019 Steering Arm Tube
Qty Used: 1Regular price $39.99 USDRegular priceUnit price per
-
159.6160.6#045-5000-00
Knob - Adjustable Steering Arm
Qty Used: 1Regular price $3.99 USDRegular priceUnit price per
-
159.7160.7#069-4010-00
Black Steering Grip
Qty Used: 1Regular price $7.38 USDRegular priceUnit price per
-
160#031-9055-70
Black Steering Arm Kit RH
Qty Used: 1Regular price $115.31 USDRegular priceUnit price per
-
175#035-0004-00
2019 Rogue Push Rod Assembly
Qty Used: 1Regular price $39.79 USDRegular priceUnit price per
-
175.1#013-6049-00
5/16 RH Nut
Qty Used: 1Regular price $3.99 USDRegular priceUnit price per
-
175.2#013-6050-00
5/16 LH Nut
Qty Used: 1Regular price $3.99 USDRegular priceUnit price per
-
175.3#035-0004-01
2019 Outlaw Gen2 XP Push Rod
Qty Used: 1Regular price $37.14 USDRegular priceUnit price per
-
175.4#048-3002-00
Spherical Rod End - LH Thead - Rebel,Rogue,Renegad
Qty Used: 1Regular price $29.99 USDRegular priceUnit price per
-
175.5#048-3003-00
Spherical Rod End - RH Thread - Rogue and Renegade
Qty Used: 1Regular price $19.89 USDRegular priceUnit price per
-
223#067-8053-21
2021 LH Rogue Hydro Tank Line Assy
Qty Used: 1Regular price $599.99 USDRegular priceUnit price per
-
223.1224.1#024-1200-00
ZT Fitting, 3/8 x 3/8 45 Degree
Qty Used: 1Regular price $18.63 USDRegular priceUnit price per
-
223.2224.2#024-2051-00
2019 Outlaw 45 Degree Pump Fitting
Qty Used: 2Regular price $13.12 USDRegular priceUnit price per
-
223.3224.3#024-5002-00
90 Degree Fitting, 1/2 x 3/4,
Qty Used: 1Regular price $16.48 USDRegular priceUnit price per
-
223.4#050-3001-00
2019 Rogue/Renegade Left Pump 16cc
Qty Used: 1Regular price $499.99 USDRegular priceUnit price per
-
223.4.1224.4.1#015-9999-00
Hydro Fan - Light/Pup/Outlaw XP
Qty Used: 1Regular price $24.99 USDRegular priceUnit price per
-
223.4.2224.4.2#014-5600-00
Fan Guard 6" - Fits Wheel
Qty Used: 1Regular price $37.21 USDRegular priceUnit price per
-
223.5224.5#051-8063-04
3/8 Clear Hose - 4 1/2"
Qty Used: 1Regular price $4.39 USDRegular priceUnit price per
-
223.6224.6#051-8064-10
1/2 Braided Hose - 9.5"
Qty Used: 1Regular price $5.49 USDRegular priceUnit price per
-
223.7224.7#063-8014-00
Hydraulic Filter-All Models
Qty Used: 1Regular price $29.13 USDRegular priceUnit price per
-
223.8224.8#066-8050-00
Hydraulic Tank Cap w/Dipstick
Qty Used: 1Regular price $29.18 USDRegular priceUnit price per
-
223.9#067-8053-00
2019 RG/RN Hydro Tank LH
Qty Used: 1Regular price $149.99 USDRegular priceUnit price per
-
223.10224.10#072-8065-00
3/8 Hose Clamp - CTB-16-STFS
Qty Used: 2Regular price $0.88 USDRegular priceUnit price per
-
223.11224.11#072-8066-00
1/2 Hose Clamp
Qty Used: 2Regular price $0.88 USDRegular priceUnit price per
-
224#067-8054-21
2021 RH Rogue Hydro Tank Line Assy
Qty Used: 1Regular price $599.99 USDRegular priceUnit price per
-
224.4#050-3002-00
2019 Rogue Right Pump 16cc
Qty Used: 1Regular price $499.99 USDRegular priceUnit price per
-
224.9#067-8054-00
2019 RG/RN Hydro Tank RH
Qty Used: 1Regular price $149.99 USDRegular priceUnit price per
