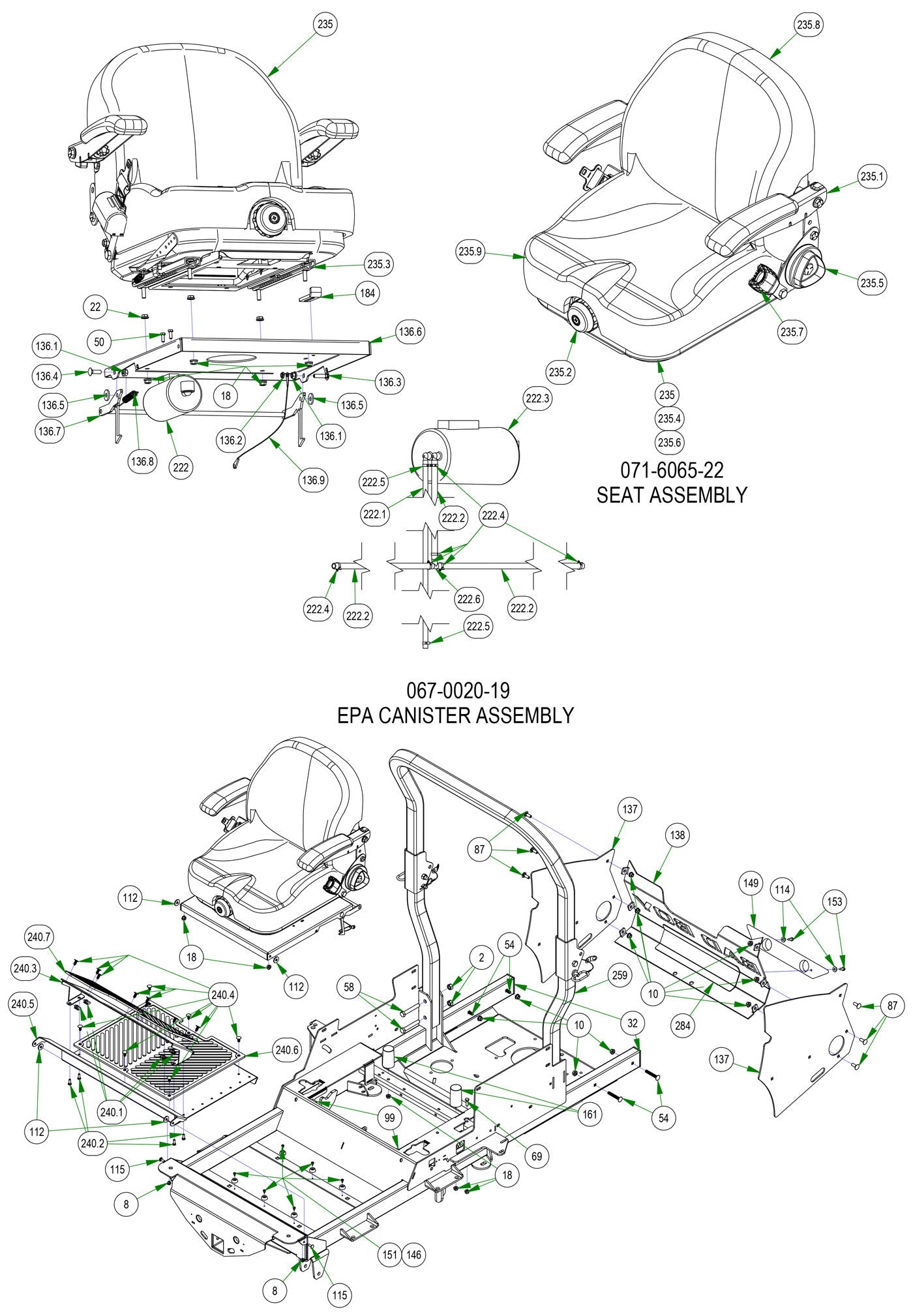

Covers & Seat
Parts Index
- 2 1/2-13 hex 2-WAY REV CNT L/N (GR.B) ZC (Qty 4)
- 8 1/4-20 Nylon Insert Flange Nut (Qty 2)
- 10 3/8 Nylock Flange Nut (Qty 10)
- 18 5/16-18 Nylon Flange Nut (Qty 9)
- 22 5/16-18 Hex Flange Nuts Zinc w (Qty 3)
- 32 1 1/2x 3 Frame Plug (Qty 2)
- 50 M6-1.0 X 16MM HEX BOLT CL 8 (Qty 2)
- 54 3/8 x 2 1/2 Carriage Bolt (Qty 4)
- 58 1/2-13 X 3.25 Hex Bolt-Grade 5 (Qty 4)
- 69 5/16-18 X 1 GR 5 Hex Bolt Zinc (Qty 1)
- 87 3/8 x 1 Carriage Bolt (Qty 6)
- 99 5/16-18 X 1 Carriage Bolt Zinc (Qty 2)
- 112 .360 ID Plastic Washer (Qty 4)
- 114 1/4 USS Flat Washer Zinc (Qty 2)
- 115 1/4 x 3/4 Carriage Bolt (Qty 2)
- 136 2019 Vertical Suspension Rear Cover Side--Orange (Qty 2)
- 137 2019 Vertical Suspension Rear Cover Side--Orange (Qty 2)
- 138 2019 Vertical Rear Cover Tailgate-Orange (Qty 1)
- 146 Button Bumper (Qty 2)
- 149 Bumper (Qty 1)
- 151 10 X 1/2 Pan Phil a T/S Zinc (Qty 6)
- 153 1/4 x 1 Hex Head Tek Screw (Qty 2)
- 161 Bumper (Seat) (Qty 2)
- 222 2019 R-Series EPA Cannister Assembly (Qty 1)
- 222.1 66" 3/16 Vinyl EPA Line (Qty 1)
- 222.2 38" 1/4 Vinyl Tubing (Qty 3)
- 222.3 Carbon Canister ZT,CZT,Outlaw (Qty 1)
- 222.4 MZ Tank Hose Clamp 1/4 Vinyl (Qty 6)
- 222.5 3/16" Vinyl Hose Clamp (Qty 2)
- 222.6 Fuel Line T (Qty 1)
- 235 2022 Seats Inc Suspension Seat with seatbelt (Qty 1)
- 235.1 Arm Kit for 071-6065-00/071-6065-22 (Qty 1)
- 235.2 Weight Adjustment Knob for 071-6065-00/071-6065-22 (Qty 1)
- 235.3 SEAT RAILS for 071-6065-00/071-6065-22 (Qty 1)
- 235.4 Seat Switch for 071-6065-00/071-6065-22 (Qty 1)
- 235.5 Recliner Adjust Knob for 071-6065-00/71-6065-22 (Qty 1)
- 235.6 Bellows w/Hardware for 071-6065-22 (Qty 1)
- 235.7 OBSOLETE USE 071-6063-00 (Qty 1)
- 235.8 Back Cover for I3M - Recl - Logos for 071-6065-22 (Qty 1)
- 235.9 Cushion Cover Kit for I3M - Logo for 071-6065-22 (Qty 1)
- 240 2019 Outlaw Floorboard--Orange (Qty 1)
- 240.1 1/4-20 Cage Nut (Qty 4)
- 240.2 1/4-20 X 3/4 GR 5 Hex Bolts (Qty 4)
- 240.3 Adjustable Foot Plate--Orange (Qty 1)
- 240.4 Ratchet Fastener - Floorboard (Qty 14)
- 240.5 2019 Outlaw Floorboard--Orange (Qty 1)
- 240.6 Mat (Floor) (Qty 1)
- 240.7 Mat (Foot Plate) (Qty 1)
- 184 Seat Stop--Plated (Qty 1)
- 234 2021 Vertical (Rogue) Frame (Qty 1)
-
2#013-0005-00
1/2-13 hex 2-WAY REV CNT L/N (GR.B) ZC
Qty Used: 4Regular price $2.69 USDRegular priceUnit price per
-
8#013-2050-00
1/4-20 Nylon Insert Flange Nut
Qty Used: 2Regular price $1.39 USDRegular priceUnit price per
-
10#013-5202-00
3/8 Nylock Flange Nut
Qty Used: 10Regular price $1.49 USDRegular priceUnit price per
-
18#013-8049-00
5/16-18 Nylon Flange Nut
Qty Used: 9Regular price $0.79 USDRegular priceUnit price per
-
22#013-9002-00
5/16-18 Hex Flange Nuts Zinc w
Qty Used: 3Regular price $0.69 USDRegular priceUnit price per
-
32#014-9003-00
1 1/2x 3 Frame Plug
Qty Used: 2Regular price $2.91 USDRegular priceUnit price per
-
50#018-0024-00
M6-1.0 X 16MM HEX BOLT CL 8
Qty Used: 2Regular price $2.69 USDRegular priceUnit price per
-
54#018-0044-00
3/8 x 2 1/2 Carriage Bolt
Qty Used: 4Regular price $2.69 USDRegular priceUnit price per
-
58#018-0050-00
1/2-13 X 3.25 Hex Bolt-Grade 5
Qty Used: 4Regular price $1.19 USDRegular priceUnit price per
-
69#018-2007-00
5/16-18 X 1 GR 5 Hex Bolt Zinc
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
87#018-5044-00
3/8 x 1 Carriage Bolt
Qty Used: 6Regular price $0.69 USDRegular priceUnit price per
-
99#018-8065-00
5/16-18 X 1 Carriage Bolt Zinc
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
112#019-6042-00
.360 ID Plastic Washer
Qty Used: 4Regular price $0.00 USDRegular priceUnit price per
-
114#019-7040-00
1/4 USS Flat Washer Zinc
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
115#019-8040-00
1/4 x 3/4 Carriage Bolt
Qty Used: 2Regular price $1.49 USDRegular priceUnit price per
-
136137#026-2209-00
2019 Vertical Suspension Rear Cover Side--Orange
Qty Used: 2Regular price $225.56 USDRegular priceUnit price per
-
138#026-2221-00
2019 Vertical Rear Cover Tailgate-Orange
Qty Used: 1Regular price $225.56 USDRegular priceUnit price per
-
146#029-4010-00
Button Bumper
Qty Used: 2Regular price $1.31 USDRegular priceUnit price per
-
-
151#030-3050-00
10 X 1/2 Pan Phil a T/S Zinc
Qty Used: 6Regular price $0.79 USDRegular priceUnit price per
-
153#030-7040-00
1/4 x 1 Hex Head Tek Screw
Qty Used: 2Regular price $1.00 USDRegular priceUnit price per
-
161#032-0001-00
Bumper (Seat)
Qty Used: 2Regular price $21.88 USDRegular priceUnit price per
-
222#067-0020-19
2019 Outlaw EPA Cannister Assembly
Qty Used: 1Regular price $39.95 USDRegular priceUnit price per
-
222.1#051-2025-66
66" 3/16 Vinyl EPA Line
Qty Used: 1Regular price $12.39 USDRegular priceUnit price per
-
222.2#051-8072-38
38" 1/4 Vinyl Tubing
Qty Used: 3Regular price $26.53 USDRegular priceUnit price per
-
222.3#067-0020-00
Carbon Canister ZT,CZT,Outlaw
Qty Used: 1Regular price $58.32 USDRegular priceUnit price per
-
222.4#072-8070-00
MZ Tank Hose Clamp 1/4 Vinyl
Qty Used: 6Regular price $1.45 USDRegular priceUnit price per
-
222.5#072-8073-00
3/16\" Vinyl Hose Clamp
Qty Used: 2Regular price $2.91 USDRegular priceUnit price per
-
222.6#073-8068-00
Fuel Line T
Qty Used: 1Regular price $8.82 USDRegular priceUnit price per
-
235#071-6065-22
2022 Seats Inc Suspension Seat with seatbelt
Qty Used: 1Regular price $829.99 USDRegular priceUnit price per
-
235.1#071-6065-04
Arm Kit for 071-6065-00/071-6065-22
Qty Used: 1Regular price $109.99 USDRegular priceUnit price per
-
235.2#071-6065-05
Weight Adjustment Knob for 071-6065-00/071-6065-22
Qty Used: 1Regular price $29.99 USDRegular priceUnit price per
-
235.3#071-6065-06
SEAT RAILS for 071-6065-00/071-6065-22
Qty Used: 1Regular price $92.87 USDRegular priceUnit price per
-
235.4#071-6065-07
Seat Switch for 071-6065-00/071-6065-22
Qty Used: 1Regular price $19.89 USDRegular priceUnit price per
-
235.5#071-6065-10
Recliner Adjust Knob for 071-6065-00/71-6065-22
Qty Used: 1Regular price $29.99 USDRegular priceUnit price per
-
235.6#071-6065-13
Bellows w/Hardware for 071-6065-22
Qty Used: 1Regular price $59.99 USDRegular priceUnit price per
-
235.7#071-6065-14
OBSOLETE USE 071-6063-00
Qty Used: 1Regular price $119.99 USDRegular priceUnit price per
-
235.8#071-6065-15
Back Cover for I3M - Recl - Logos for 071-6065-22
Qty Used: 1Regular price $199.99 USDRegular priceUnit price per
-
235.9#071-6065-16
Cushion Cover Kit for I3M - Logo for 071-6065-22
Qty Used: 1Regular price $199.99 USDRegular priceUnit price per
-
240240.5#079-3155-00
2019 Outlaw Floorboard--Orange
Qty Used: 1Regular price $109.99 USDRegular priceUnit price per
-
240.1#013-0054-00
1/4-20 Cage Nut
Qty Used: 4Regular price $0.69 USDRegular priceUnit price per
-
240.2#018-8052-00
1/4-20 X 3/4 GR 5 Hex Bolts
Qty Used: 4Regular price $0.69 USDRegular priceUnit price per
-
240.3#026-2230-00
Adjustable Foot Plate--Orange
Qty Used: 1Regular price $66.33 USDRegular priceUnit price per
-
240.4#040-6080-00
Ratchet Fastener - Floorboard
Qty Used: 14Regular price $2.91 USDRegular priceUnit price per
-
240.6#081-0050-00
Mat (Floor)
Qty Used: 1Regular price $72.99 USDRegular priceUnit price per
-
240.7#081-0051-00
Mat (Foot Plate)
Qty Used: 1Regular price $72.99 USDRegular priceUnit price per
-
184#039-2156-00
Seat stop--Plated
Qty Used: 1Regular price $13.26 USDRegular priceUnit price per
-
234#070-5375-00
2021 Vertical (Rogue) Frame
Qty Used: 1Regular price $899.99 USDRegular priceUnit price per
