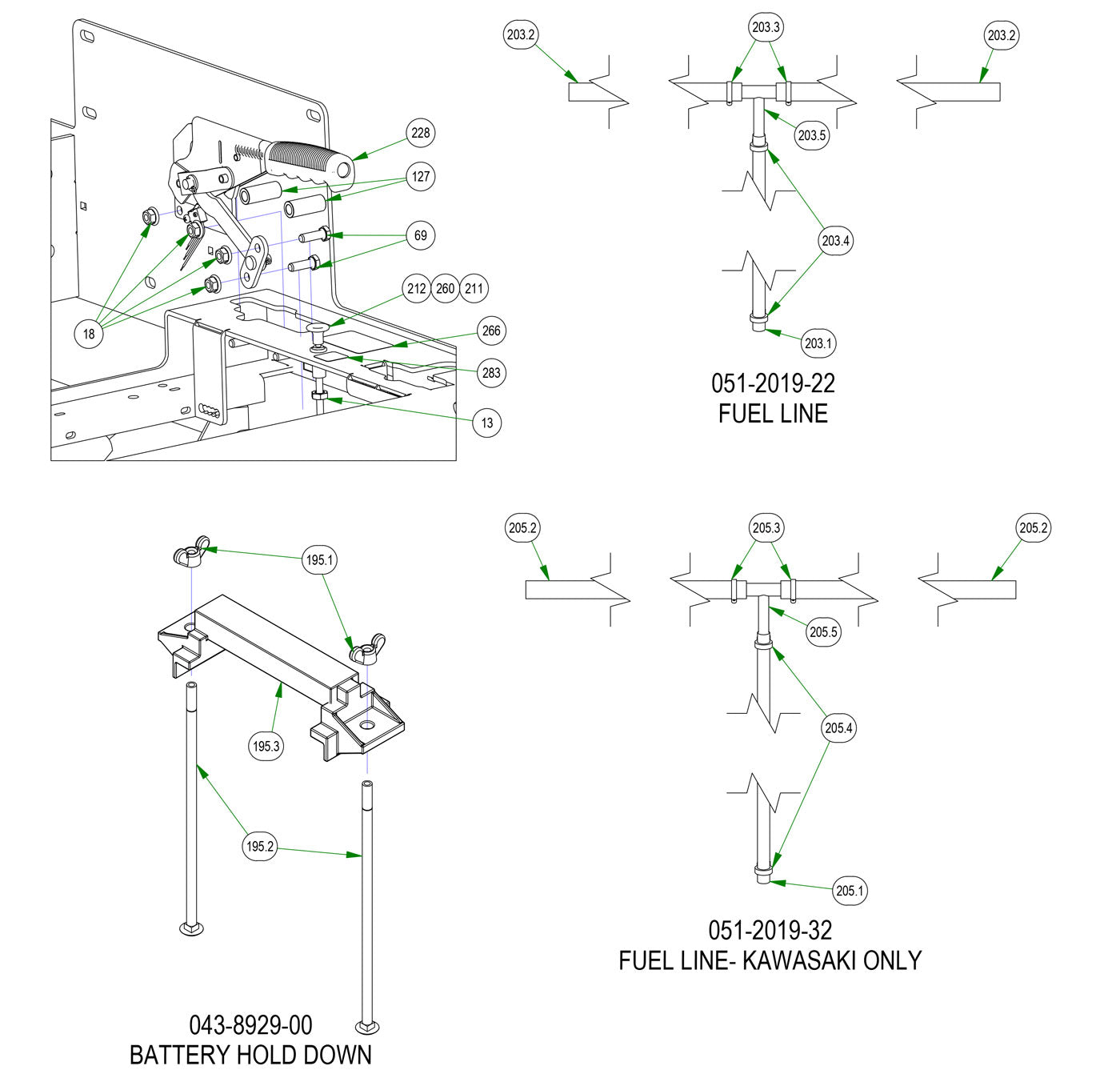

Brakes & Fuel Lines
Parts Index
- 13 3/8-24 Hex Nut Zinc (Qty 1)
- 18 5/16-18 Nylon Flange Nut (Qty 4)
- 69 5/16-18 X 1 GR 5 Hex Bolt Zinc (Qty 10)
- 127 2019 Brake Handle Spacer .625 x 1.5 (Qty 2)
- 195 Battery Hold Down (Plastic) (Qty 1)
- 195.1 1/4-20 Wing Nuts Zinc (Qty 2)
- 195.2 1/4-20 X 8 Carriage Bolts Zinc (Qty 2)
- 195.3 Battery Hold Down (Plastic) (Qty 1)
- 203 2019 R-series Fuel Line for Vangaurd & Yamaha (Qty 1)
- 203.1 22" 1/4" Fuel Line No Clamp (Qty 1)
- 203.2 26" 5/16 Fuel Line No Clamps (Qty 2)
- 203.3 5/8 Fuel Line Clamp (Qty 2)
- 203.4 1/4 Fuel Line Clamp (Qty 2)
- 203.5 5/16 x 5/16 x 1/4 Fuel Line T (Qty 1)
- 205 2019 Rebel Rogue Kaw Fuel Line (Qty 1)
- 205.1 32" 1/4" Fuel Line No Clamps (Qty 1)
- 205.2 26" 5/16 Fuel Line No Clamps (Qty 2)
- 205.3 5/8 Fuel Line Clamp (Qty 2)
- 205.4 1/4 Fuel Line Clamp (Qty 2)
- 205.5 5/16 x 5/16 x 1/4 Fuel Line T (Qty 1)
- 211 Choke - All MZ/ZT/Mav/Rebel/Rogue (Qty 1)
- 212 2019 36HP Vanguard FX1000 Rebel Choke Cable (Qty 1)
- 228 2019 Rebel, Rogue, Renegade Brake Handle Assy (Qty 1)
- 260 MIL Light (Qty 1)
- 266 R-Series Brake Decal (Qty 1)
- 283 MIL Light Decal (Qty 1)
-
13#013-6051-00
3/8-24 Hex Nut Zinc
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
18#013-8049-00
5/16-18 Nylon Flange Nut
Qty Used: 4Regular price $0.79 USDRegular priceUnit price per
-
69#018-2007-00
5/16-18 X 1 GR 5 Hex Bolt Zinc
Qty Used: 10Regular price $0.00 USDRegular priceUnit price per
-
127#025-0027-00
2019 Brake Handle Spacer .625 x 1.5
Qty Used: 2Regular price $6.59 USDRegular priceUnit price per
-
195195.3#043-8929-00
Battery Hold Down (Plastic)
Qty Used: 1Regular price $16.35 USDRegular priceUnit price per
-
195.1#013-8051-00
1/4-20 Wing Nuts Zinc
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
195.2#018-8050-00
1/4-20 X 8 Carriage Bolts Zinc
Qty Used: 2Regular price $1.49 USDRegular priceUnit price per
-
203#051-2019-22
2019 R-series Fuel Line for Vangaurd & Yamaha
Qty Used: 1Regular price $39.99 USDRegular priceUnit price per
-
203.1#051-8067-22
22" 1/4" Fuel Line No Clamp
Qty Used: 1Regular price $10.99 USDRegular priceUnit price per
-
203.2205.2#051-8075-26
26" 5/16 Fuel Line No Clamps
Qty Used: 2Regular price $17.50 USDRegular priceUnit price per
-
203.3205.3#072-8068-00
5/8 Fuel Line Clamp
Qty Used: 2Regular price $3.29 USDRegular priceUnit price per
-
203.4205.4#072-8069-00
1/4 Fuel Line Clamp
Qty Used: 2Regular price $0.88 USDRegular priceUnit price per
-
203.5205.5#073-8069-00
5/16 x 5/16 x 1/4 Fuel Line T
Qty Used: 1Regular price $8.88 USDRegular priceUnit price per
-
205#051-2019-32
2019 Rebel Rogue Kaw Fuel Line
Qty Used: 1Regular price $49.99 USDRegular priceUnit price per
-
205.1#051-8067-32
32" 1/4" Fuel Line No Clamps
Qty Used: 1Regular price $12.09 USDRegular priceUnit price per
-
211#054-8017-00
Choke - All MZ/ZT/Mav/Rebel/Rogue
Qty Used: 1Regular price $24.11 USDRegular priceUnit price per
-
212#054-8019-00
2019 36HP Vanguard FX1000 Rebel Choke Cable
Qty Used: 1Regular price $24.80 USDRegular priceUnit price per
-
228#069-0001-00
2019 Rebel, Rogue, Renegade Brake Handle Assy
Qty Used: 1Regular price $132.68 USDRegular priceUnit price per
-
260#089-2000-00
Code Indicator Light-Yamaha
Qty Used: 1Regular price $19.99 USDRegular priceUnit price per
-
266#091-1101-18
2018 Out/XP/Diesel Brake Decal
Qty Used: 1Regular price $5.49 USDRegular priceUnit price per
-

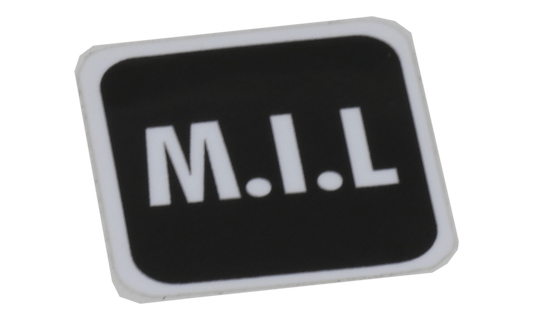

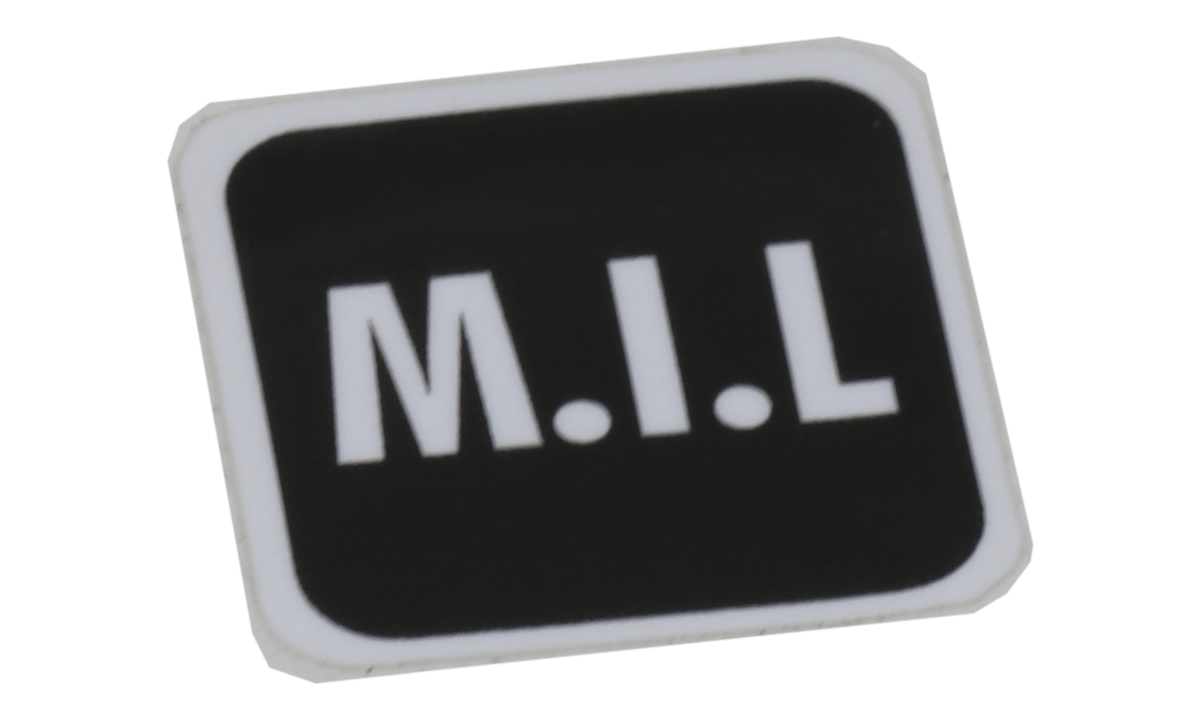

283#091-4040-00
2019 MIL Decal for Rogue EFI Models
Qty Used: 1Regular price $13.26 USDRegular priceUnit price per
