999cc Kawasaki FX-1000 EFI

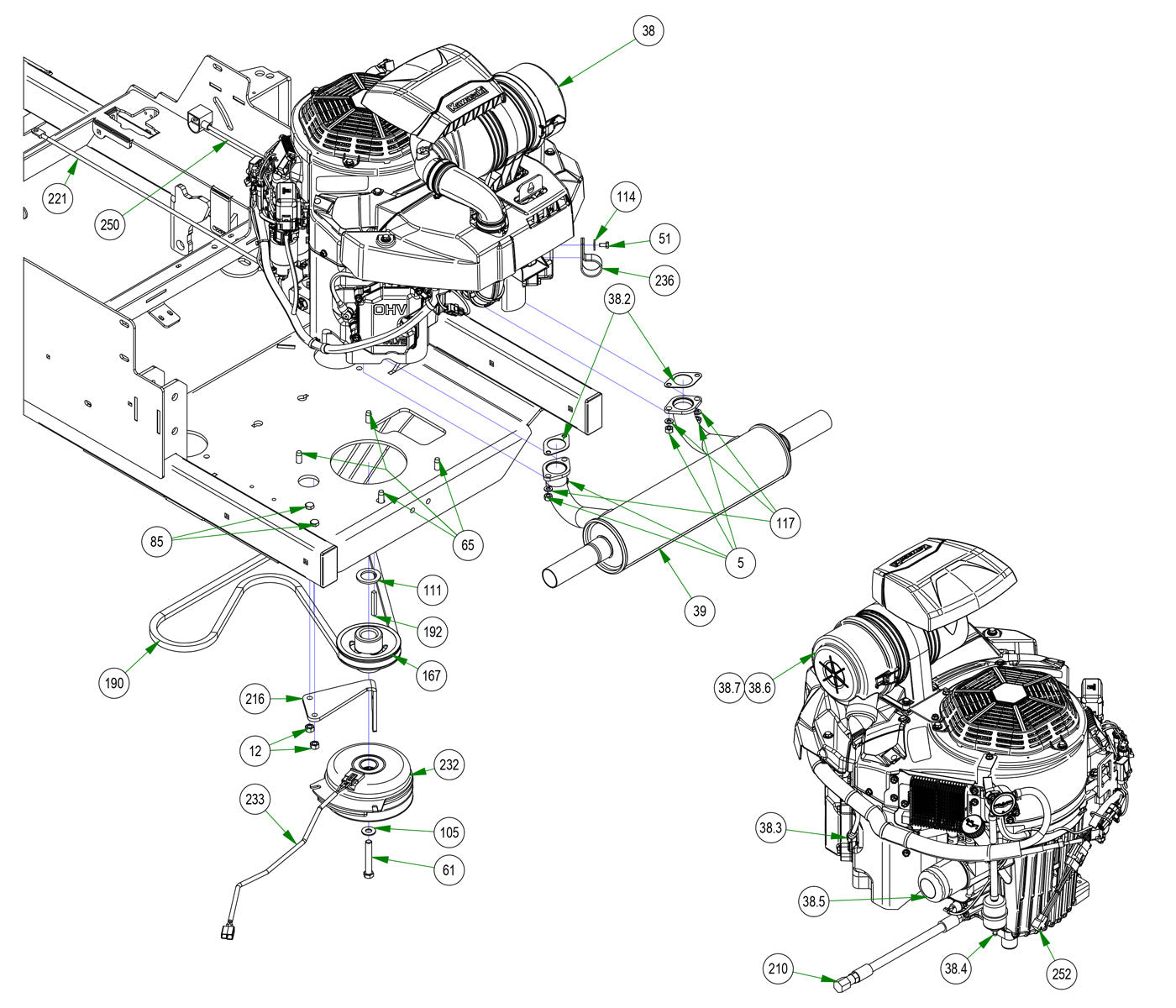

Parts Index
- 5 M8 - 1.25 Stainless Steel Nut (Qty 4)
- 12 3/8-16 Hex Nuts Zinc (Qty 2)
- 32 1 1/2x 3 Frame Plug (Qty 2)
- 38 Kawasaki FX1000EFI 38.5HP (Qty 1)
- 38.2 Exhaust Gasket for FX1000V Kawasaki (Qty 2)
- 38.3 Spark plug-Kawasaki NGKBPR2ES (Qty 2)
- 38.4 Universal Inline Fuel Filter (Qty 1)
- 38.5 Kawasaki Oil Filter (Qty 1)
- 38.6 Canister Air Fil Outer2010&Old (Qty 1)
- 38.7 Canister Air Filter - Inner (Qty 1)
- 39 2019 Rebel/Rogue Kawasaki 1000 Muffler (Qty 1)
- 51 M6-1.0x12mm Bolt 8.8 (Qty 1)
- 65 3/8 x 1 1/8 Engine Mounting Bolt (Qty 4)
- 85 3/8-16 X 1-1/4 GR 5 Hex Bolt (Qty 2)
- 105 3/8 USS Flat Washer Zinc (Qty 1)
- 111 1.140x1.750x .132 Flat Washer (Qty 1)
- 114 1/4 USS Flat Washer Zinc (Qty 1)
- 117 2019 & up Rogue Pump Belt 68" (Qty 4)
- 167 4 3/4 Motor Pulley (Qty 1)
- 190 2019 & up Rogue Pump Belt 68" (Qty 1)
- 192 1/4 X 2 Square Key Stock (Qty 1)
- 210 12" Kawasaki Oil Drain (Qty 1)
- 216 PTO Engager Holder-Clutch--Plated (Qty 1)
- 221 24 Red Battery Cable (Qty 1)
- 232 Revolt, Rogue, Rebel, HD Clutch (Qty 1)
- 233 Clutch Pigtail (Qty 1)
- 234 2021 Vertical (Rogue) Frame (Qty 1)
- 236 Diesel Hydraulic Hose Clamp (Qty 1)
- 250 Rebel, Rogue Ground Wire (Qty 1)
- 252 2019 Harness Adaptor-R-Series FX/35KA (Qty 1)
-
5#013-0075-00
M8 - 1.25 Stainless Steel Nut
Qty Used: 4Regular price $2.99 USDRegular priceUnit price per
-
12#013-6014-00
3/8-16 Hex Nuts Zinc
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
32#014-9003-00
1 1/2x 3 Frame Plug
Qty Used: 2Regular price $2.91 USDRegular priceUnit price per
-
38.2#015-1010-01

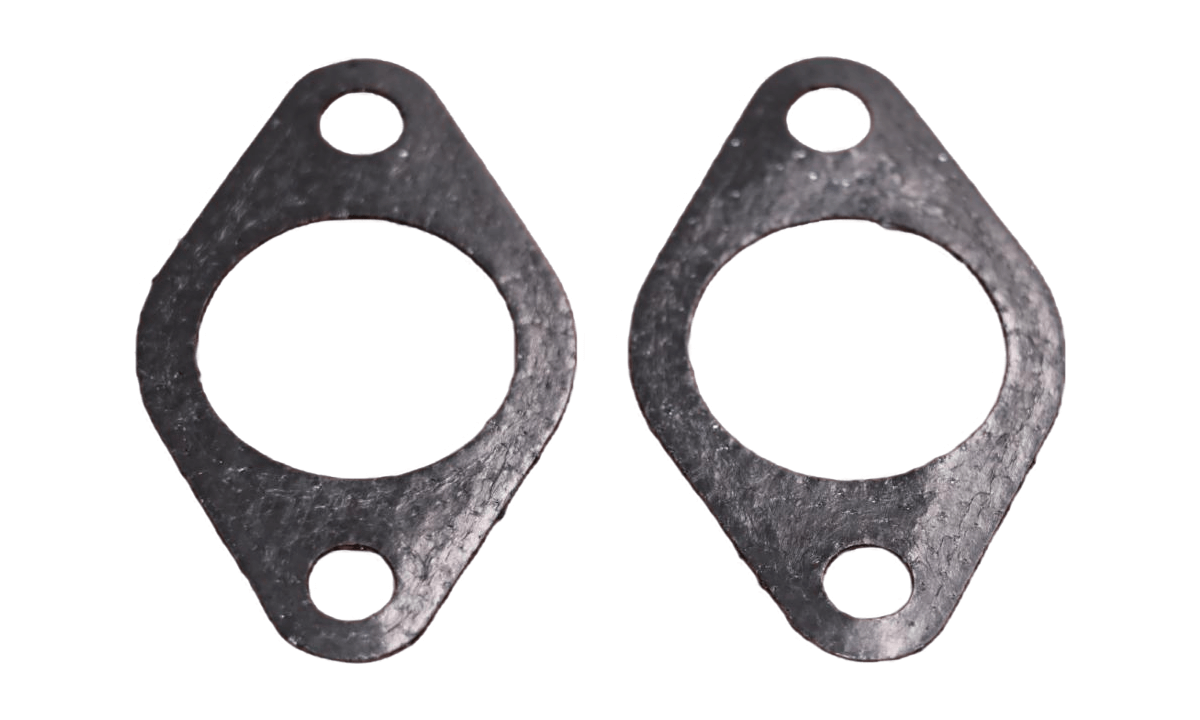

Exhaust Gasket for FX1000V Kawasaki
Qty Used: 2Regular price $7.99 USDRegular priceUnit price per
-
38.3#015-8001-00
Spark plug-Kawasaki NGKBPR2ES
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
38.4#063-6000-00
Universal Inline Fuel Filter
Qty Used: 1Regular price $13.26 USDRegular priceUnit price per
-
38.5#063-8017-00
Kawasaki Oil Filter
Qty Used: 1Regular price $19.99 USDRegular priceUnit price per
-
38.6#063-8019-00
Canister Air Fil Outer2010&Old
Qty Used: 1Regular price $33.50 USDRegular priceUnit price per
-
38.7#063-8020-00
Canister Air Filter - Inner
Qty Used: 1Regular price $30.51 USDRegular priceUnit price per
-
39#015-1010-00

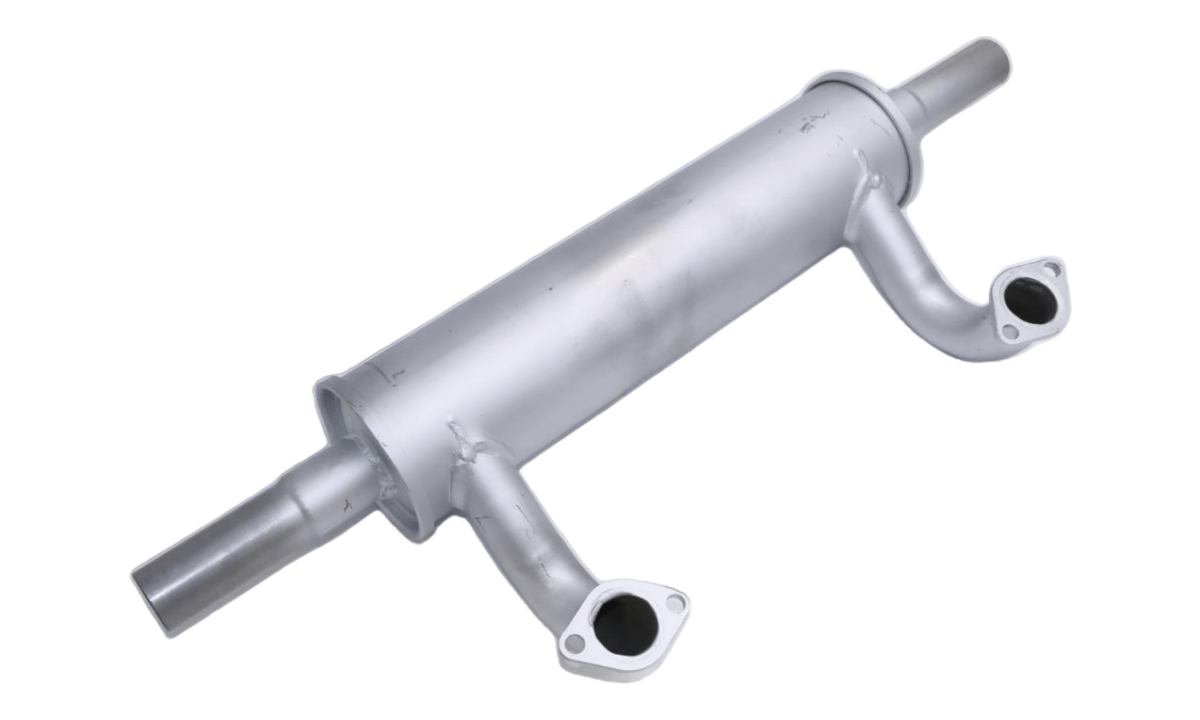

2019 Rebel/Rogue Kawasaki 1000 Muffler
Qty Used: 1Regular price $199.00 USDRegular priceUnit price per
-
51#018-0025-00

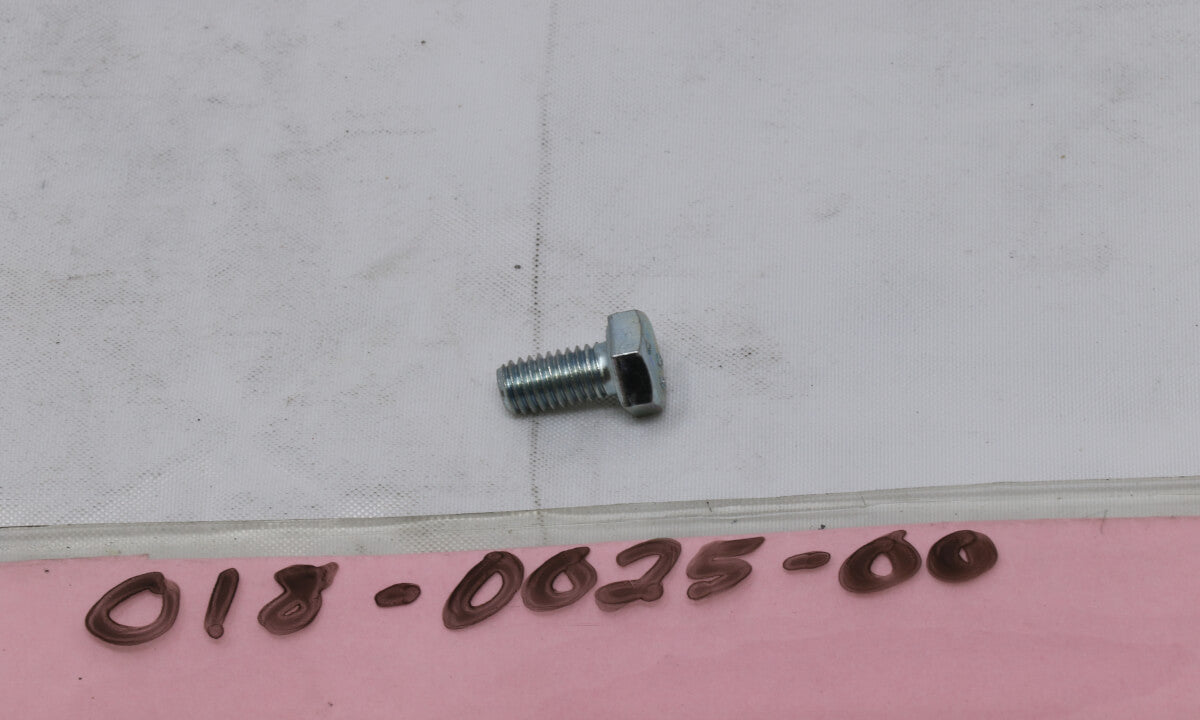

M6-1.0x12mm Bolt 8.8
Qty Used: 1Regular price $2.69 USDRegular priceUnit price per
-
65#018-1075-00
3/8 x 1 1/8 Engine Mounting Bolt
Qty Used: 4Regular price $1.39 USDRegular priceUnit price per
-
85#018-5040-00
3/8-16 X 1-1/4 GR 5 Hex Bolt
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
105#019-5029-00
3/8 USS Flat Washer Zinc
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
111#019-6029-00
1.140x1.750x .132 Flat Washer
Qty Used: 1Regular price $1.19 USDRegular priceUnit price per
-
114#019-7040-00
1/4 USS Flat Washer Zinc
Qty Used: 1Regular price $0.69 USDRegular priceUnit price per
-
117190#041-8051-00

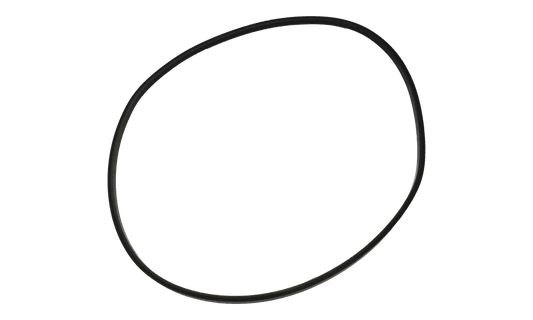

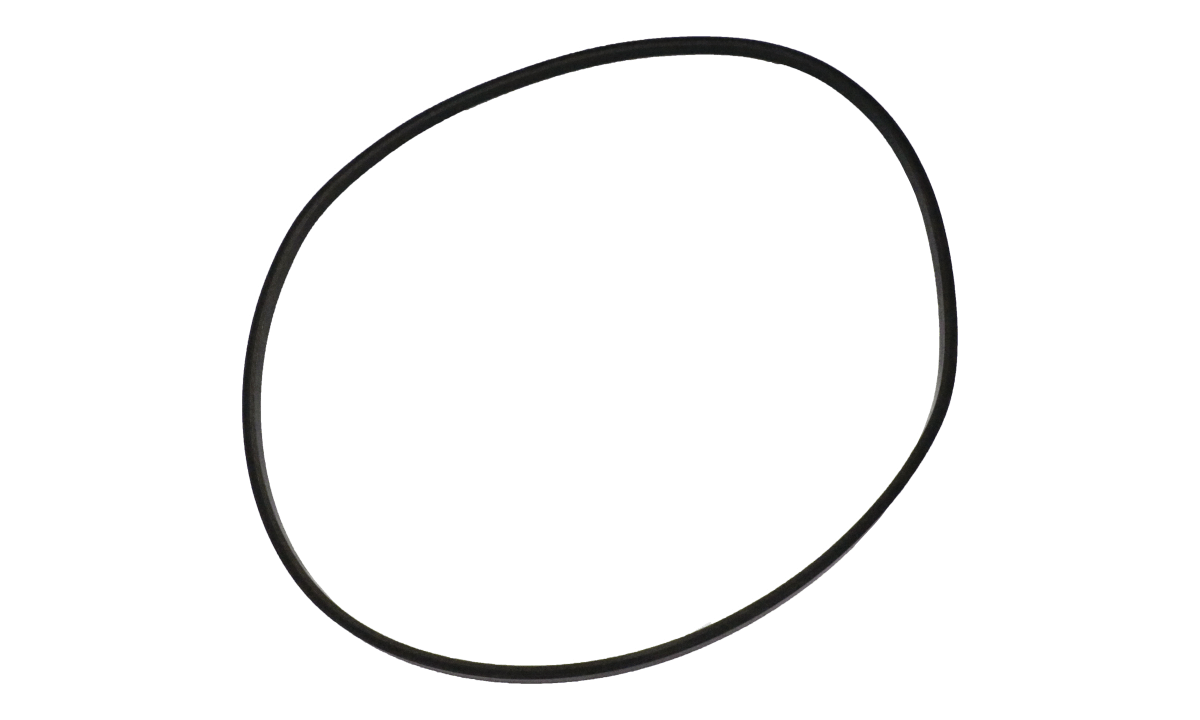

2019 & up Rogue Pump Belt 68"
Qty Used: 1Regular price $74.99 USDRegular priceUnit price per
-
167#033-5035-00
4 3/4 Motor Pulley
Qty Used: 1Regular price $39.79 USDRegular priceUnit price per
-
192#042-5020-00
1/4 X 2 Square Key Stock
Qty Used: 1Regular price $2.92 USDRegular priceUnit price per
-
210#051-5407-00
12" Kawasaki Oil Drain
Qty Used: 1Regular price $39.79 USDRegular priceUnit price per
-
216#057-5906-00
PTO Engager Holder-Clutch--Plated
Qty Used: 1Regular price $19.32 USDRegular priceUnit price per
-
221#064-5300-00
24 Red Battery Cable
Qty Used: 1Regular price $20.42 USDRegular priceUnit price per
-
-
233#070-2000-00
Clutch Pigtail
Qty Used: 1Regular price $19.85 USDRegular priceUnit price per
-
234#070-5375-00
2021 Vertical (Rogue) Frame
Qty Used: 1Regular price $899.99 USDRegular priceUnit price per
-
236#072-5000-00
Diesel Hydraulic Hose Clamp
Qty Used: 1Regular price $6.62 USDRegular priceUnit price per
-
250#086-0005-00
Starter Cable
Qty Used: 1Regular price $9.28 USDRegular priceUnit price per
-
252#086-9002-19
2019 Harness Adaptor-R-Series FX/35KA
Qty Used: 1Regular price $18.96 USDRegular priceUnit price per
