993cc Vanguard EFI 37HP

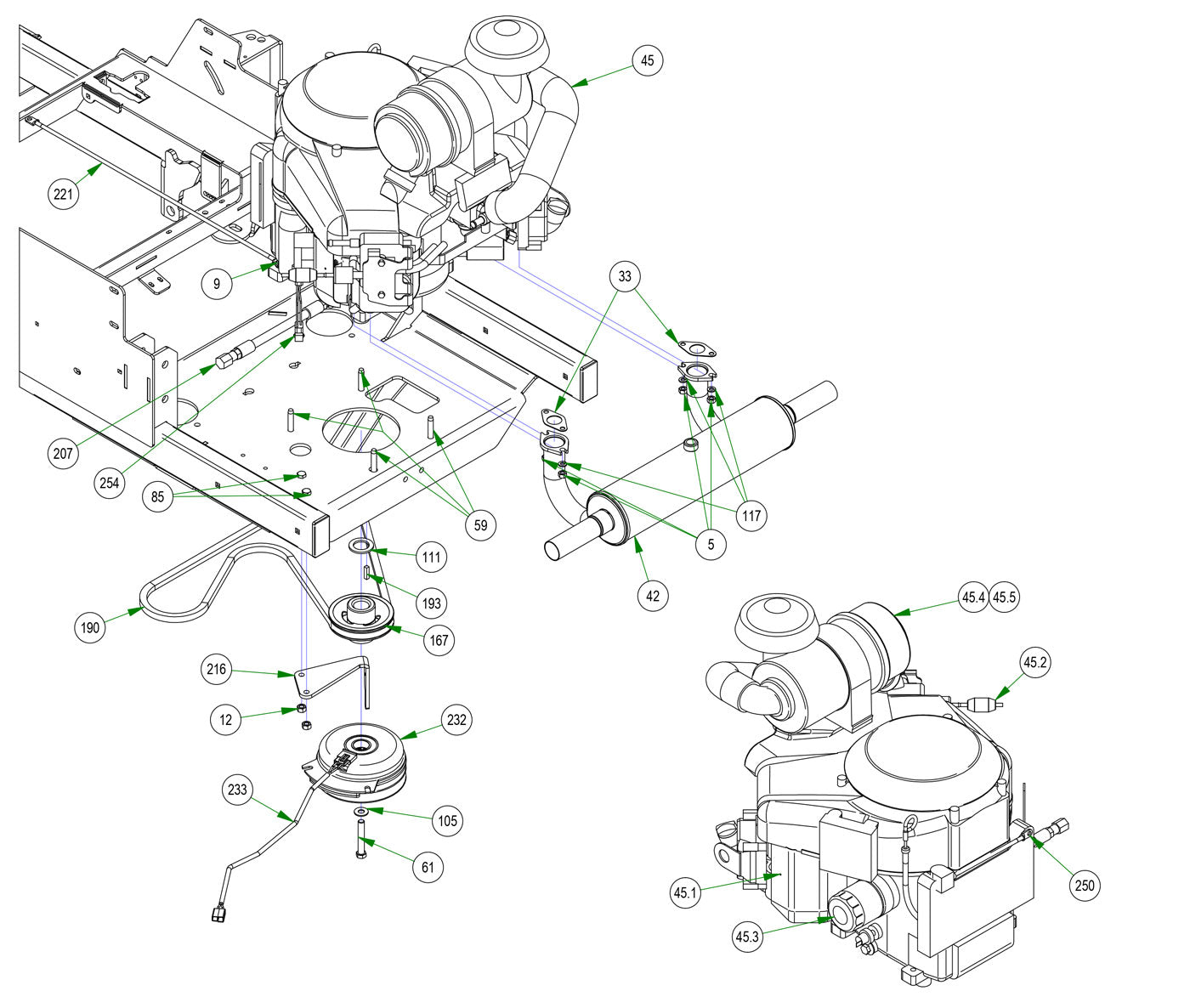

Parts Index
- 5 M8 - 1.25 Stainless Steel Nut (Qty 4)
- 9 3/8-16 Hex Flange Nuts Zinc w/ (Qty 4)
- 12 3/8-16 Hex Nuts Zinc (Qty 2)
- 32 1 1/2x 3 Frame Plug (Qty 2)
- 33 Exhaust Gasket for 23 (Qty 2)
- 42 2019 Rebel/Rogue Vanguard 993 Exhaust& 999cc EFI (Qty 1)
- 45 2019 Vanguard EFI 37HP 993cc Vertical Shaft (Qty 1)
- 45.1 Spark Plug-Kohler/Briggs (Qty 2)
- 45.2 Universal Inline Fuel Filter (Qty 1)
- 45.3 Briggs Oil Filter (Qty 1)
- 45.4 Canister Air Fil Outer2010&Old (Qty 1)
- 45.5 Canister Air Filter - Inner (Qty 1)
- 59 3/8-16 x 2 Hex/ Trilobe Horizontal Engine Bolt (Qty 4)
- 85 3/8-16 X 1-1/4 GR 5 Hex Bolt (Qty 2)
- 105 3/8 USS Flat Washer Zinc (Qty 1)
- 111 1.140x1.750x .132 Flat Washer (Qty 1)
- 117 5/16 Lock washer Zinc (Qty 4)
- 167 4 3/4 Motor Pulley (Qty 1)
- 190 2019 & up Rogue Pump Belt 68" (Qty 1)
- 193 1/4 x 1 Square Key (Qty 1)
- 207 14mm Drain Hose-36hp Vanguard (Qty 1)
- 216 PTO Engager Holder-Clutch--Plated (Qty 1)
- 221 24 Red Battery Cable (Qty 1)
- 232 Revolt, Rogue, Rebel, HD Clutch (Qty 1)
- 233 Clutch Pigtail (Qty 1)
- 234 2021 Vertical (Rogue) Frame (Qty 1)
- 250 Rebel, Rogue Ground Wire (Qty 1)
- 254 2021 Harness Adapter - Vanguard 37 EFI (Qty 1)
-
5#013-0075-00
M8 - 1.25 Stainless Steel Nut
Qty Used: 4Regular price $2.99 USDRegular priceUnit price per
-
9#013-5201-00
3/8-16 Hex Flange Nuts Zinc w/
Qty Used: 4Regular price $1.49 USDRegular priceUnit price per
-
12#013-6014-00
3/8-16 Hex Nuts Zinc
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
32#014-9003-00
1 1/2x 3 Frame Plug
Qty Used: 2Regular price $2.91 USDRegular priceUnit price per
-
33#015-0025-00
Exhaust Gasket for 23
Qty Used: 2Regular price $8.74 USDRegular priceUnit price per
-
42#015-1014-00
2019 Rebel/Rogue Vanguard 993 Exhaust& 999cc EFI
Qty Used: 1Regular price $199.00 USDRegular priceUnit price per
-
45#015-3001-00
2019 Vanguard EFI 37HP 993cc Vertical Shaft
Qty Used: 1Regular price $2,999.99 USDRegular priceUnit price per
-
45.1#015-8000-00
Spark Plug-Kohler/Briggs
Qty Used: 2Regular price $9.99 USDRegular priceUnit price per
-
45.2#063-6000-00
Universal Inline Fuel Filter
Qty Used: 1Regular price $13.26 USDRegular priceUnit price per
-
45.3#063-8018-00
Briggs Oil Filter
Qty Used: 1Regular price $19.99 USDRegular priceUnit price per
-
45.4#063-8019-00
Canister Air Fil Outer2010&Old
Qty Used: 1Regular price $33.50 USDRegular priceUnit price per
-
45.5#063-8020-00
Canister Air Filter - Inner
Qty Used: 1Regular price $30.51 USDRegular priceUnit price per
-
59#018-0061-00
3/8-16 x 2 Hex/ Trilobe Horizontal Engine Bolt
Qty Used: 4Regular price $5.39 USDRegular priceUnit price per
-
85#018-5040-00
3/8-16 X 1-1/4 GR 5 Hex Bolt
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
105#019-5029-00
3/8 USS Flat Washer Zinc
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
111#019-6029-00
1.140x1.750x .132 Flat Washer
Qty Used: 1Regular price $1.19 USDRegular priceUnit price per
-
117#019-8051-00
5/16 Lock washer Zinc
Qty Used: 4Regular price $0.79 USDRegular priceUnit price per
-
167#033-5035-00
4 3/4 Motor Pulley
Qty Used: 1Regular price $39.79 USDRegular priceUnit price per
-
190#041-8051-00
2019 & up Rogue Pump Belt 68"
Qty Used: 1Regular price $74.99 USDRegular priceUnit price per
-
193#042-6030-00
1/4 x 1 Square Key
Qty Used: 1Regular price $4.37 USDRegular priceUnit price per
-
207#051-5402-00
14mm Drain Hose-36hp Vanguard
Qty Used: 1Regular price $29.18 USDRegular priceUnit price per
-
216#057-5906-00
PTO Engager Holder-Clutch--Plated
Qty Used: 1Regular price $19.32 USDRegular priceUnit price per
-
221#064-5300-00
24 Red Battery Cable
Qty Used: 1Regular price $20.42 USDRegular priceUnit price per
-
-
233#070-2000-00
Clutch Pigtail
Qty Used: 1Regular price $19.85 USDRegular priceUnit price per
-
234#070-5375-00
2021 Vertical (Rogue) Frame
Qty Used: 1Regular price $899.99 USDRegular priceUnit price per
-
250#086-0005-00
Starter Cable
Qty Used: 1Regular price $9.28 USDRegular priceUnit price per
-
254#086-9013-21
2021 Harness Adapter - Vanguard 37 EFI
Qty Used: 1Regular price $29.99 USDRegular priceUnit price per
