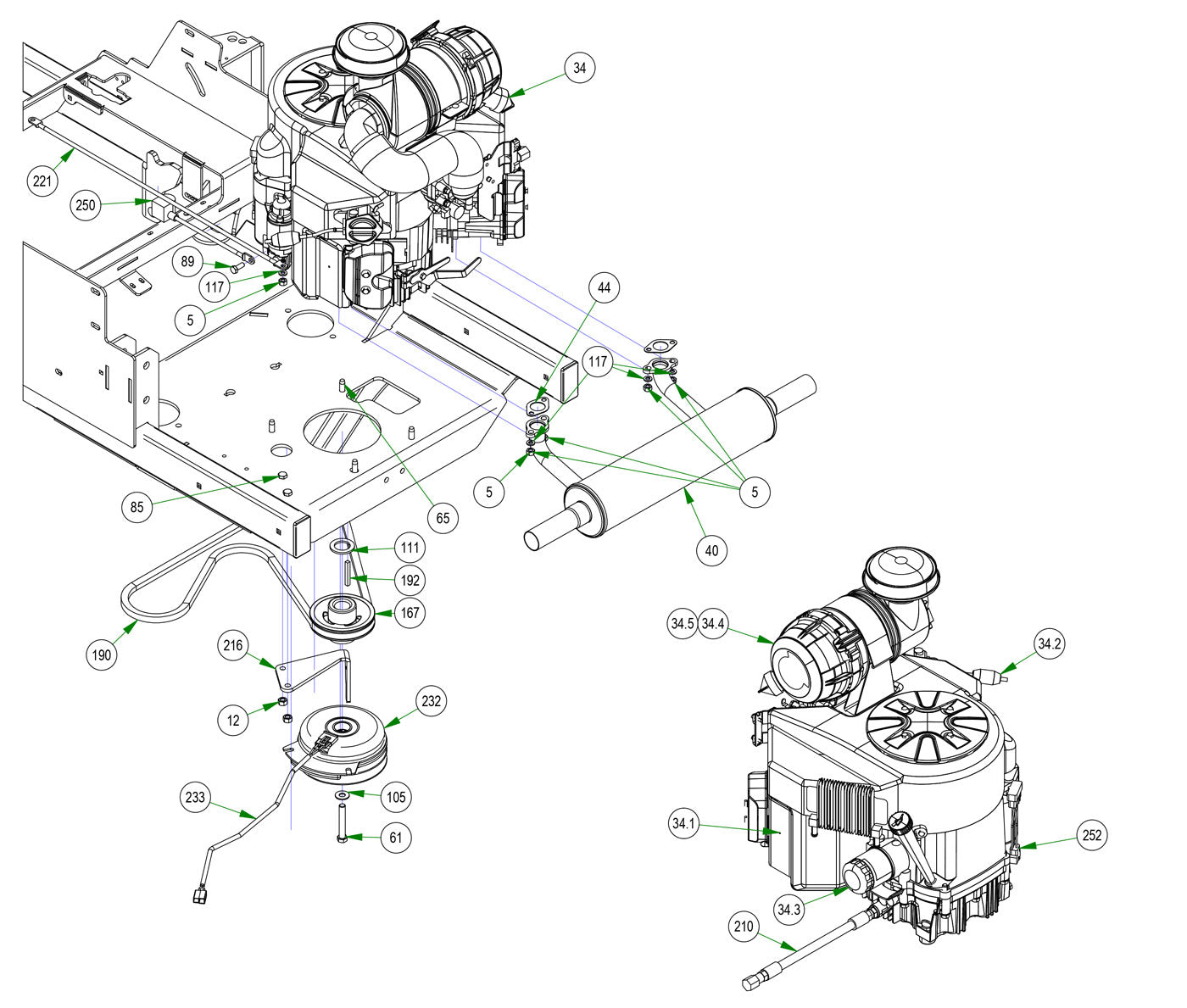

852cc Kawasaki FX-850
Parts Index
- 5 M8 - 1.25 Stainless Steel Nut (Qty 5)
- 12 3/8-16 Hex Nuts Zinc (Qty 2)
- 34 31hp Kawa Engine FX-850V-AS15R (Qty 1)
- 34.1 Spark plug-Kawasaki NGKBPR2ES (Qty 1)
- 34.2 Universal Inline Fuel Filter (Qty 1)
- 34.3 Kawasaki Oil Filter (Qty 1)
- 34.4 Canister Air Fil Outer2010&Old (Qty 1)
- 34.5 Canister Air Filter - Inner (Qty 1)
- 40 2019 Rebel/Rogue Kawasaki 850 Muffler (Qty 1)
- 44 Exhaust Gasket for 27 - Single Gasket (Qty 2)
- 65 3/8 x 1 1/8 Engine Mounting Bolt (Qty 4)
- 85 3/8-16 X 1-1/4 GR 5 Hex Bolt (Qty 2)
- 89 M8 x 1.25 x 20MM Hex Head Bolt (Qty 1)
- 105 3/8 USS Flat Washer Zinc (Qty 1)
- 111 1.140x1.750x .132 Flat Washer (Qty 1)
- 117 5/16 Lock washer Zinc (Qty 5)
- 167 4 3/4 Motor Pulley (Qty 1)
- 190 2019 & up Rogue Pump Belt 68" (Qty 1)
- 192 1/4 X 2 Square Key Stock (Qty 1)
- 210 12" Kawasaki Oil Drain (Qty 1)
- 216 PTO Engager Holder-Clutch--Plated (Qty 1)
- 221 24 Red Battery Cable (Qty 1)
- 232 Revolt, Rogue, Rebel, HD Clutch (Qty 1)
- 233 Clutch Pigtail (Qty 1)
- 234 2021 Vertical (Rogue) Frame (Qty 1)
- 250 Rebel, Rogue Ground Wire (Qty 1)
- 252 2019 Harness Adaptor-R-Series FX/35KA (Qty 1)
-
5#013-0075-00
M8 - 1.25 Stainless Steel Nut
Qty Used: 5Regular price $2.99 USDRegular priceUnit price per
-
12#013-6014-00
3/8-16 Hex Nuts Zinc
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
34#015-0031-00
31hp Kawa Engine FX-850V-AS15R
Qty Used: 1Regular price $2,995.00 USDRegular priceUnit price per
-
34.1#015-8001-00
Spark plug-Kawasaki NGKBPR2ES
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
34.2#063-6000-00
Universal Inline Fuel Filter
Qty Used: 1Regular price $13.26 USDRegular priceUnit price per
-
34.3#063-8017-00
Kawasaki Oil Filter
Qty Used: 1Regular price $19.99 USDRegular priceUnit price per
-
34.4#063-8019-00
Canister Air Fil Outer2010&Old
Qty Used: 1Regular price $33.50 USDRegular priceUnit price per
-
34.5#063-8020-00
Canister Air Filter - Inner
Qty Used: 1Regular price $30.51 USDRegular priceUnit price per
-
40#015-1011-00
2019 Rebel/Rogue Kawasaki 850 Muffler
Qty Used: 1Regular price $199.00 USDRegular priceUnit price per
-
44#015-2709-00
Exhaust Gasket for 27 - Single Gasket
Qty Used: 2Regular price $7.28 USDRegular priceUnit price per
-
65#018-1075-00
3/8 x 1 1/8 Engine Mounting Bolt
Qty Used: 4Regular price $1.39 USDRegular priceUnit price per
-
85#018-5040-00
3/8-16 X 1-1/4 GR 5 Hex Bolt
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
89#018-5321-00
M8 x 1.25 x 20MM Hex Head Bolt
Qty Used: 1Regular price $1.49 USDRegular priceUnit price per
-
105#019-5029-00
3/8 USS Flat Washer Zinc
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
111#019-6029-00
1.140x1.750x .132 Flat Washer
Qty Used: 1Regular price $1.19 USDRegular priceUnit price per
-
117#019-8051-00
5/16 Lock washer Zinc
Qty Used: 5Regular price $0.79 USDRegular priceUnit price per
-
167#033-5035-00
4 3/4 Motor Pulley
Qty Used: 1Regular price $39.79 USDRegular priceUnit price per
-
190#041-8051-00
2019 & up Rogue Pump Belt 68"
Qty Used: 1Regular price $74.99 USDRegular priceUnit price per
-
192#042-5020-00
1/4 X 2 Square Key Stock
Qty Used: 1Regular price $2.92 USDRegular priceUnit price per
-
210#051-5407-00
12" Kawasaki Oil Drain
Qty Used: 1Regular price $39.79 USDRegular priceUnit price per
-
216#057-5906-00
PTO Engager Holder-Clutch--Plated
Qty Used: 1Regular price $19.32 USDRegular priceUnit price per
-
221#064-5300-00
24 Red Battery Cable
Qty Used: 1Regular price $20.42 USDRegular priceUnit price per
-
-
233#070-2000-00
Clutch Pigtail
Qty Used: 1Regular price $19.85 USDRegular priceUnit price per
-
234#070-5375-00
2021 Vertical (Rogue) Frame
Qty Used: 1Regular price $899.99 USDRegular priceUnit price per
-
250#086-0005-00
Starter Cable
Qty Used: 1Regular price $9.28 USDRegular priceUnit price per
-
252#086-9002-19
2019 Harness Adaptor-R-Series FX/35KA
Qty Used: 1Regular price $18.96 USDRegular priceUnit price per
