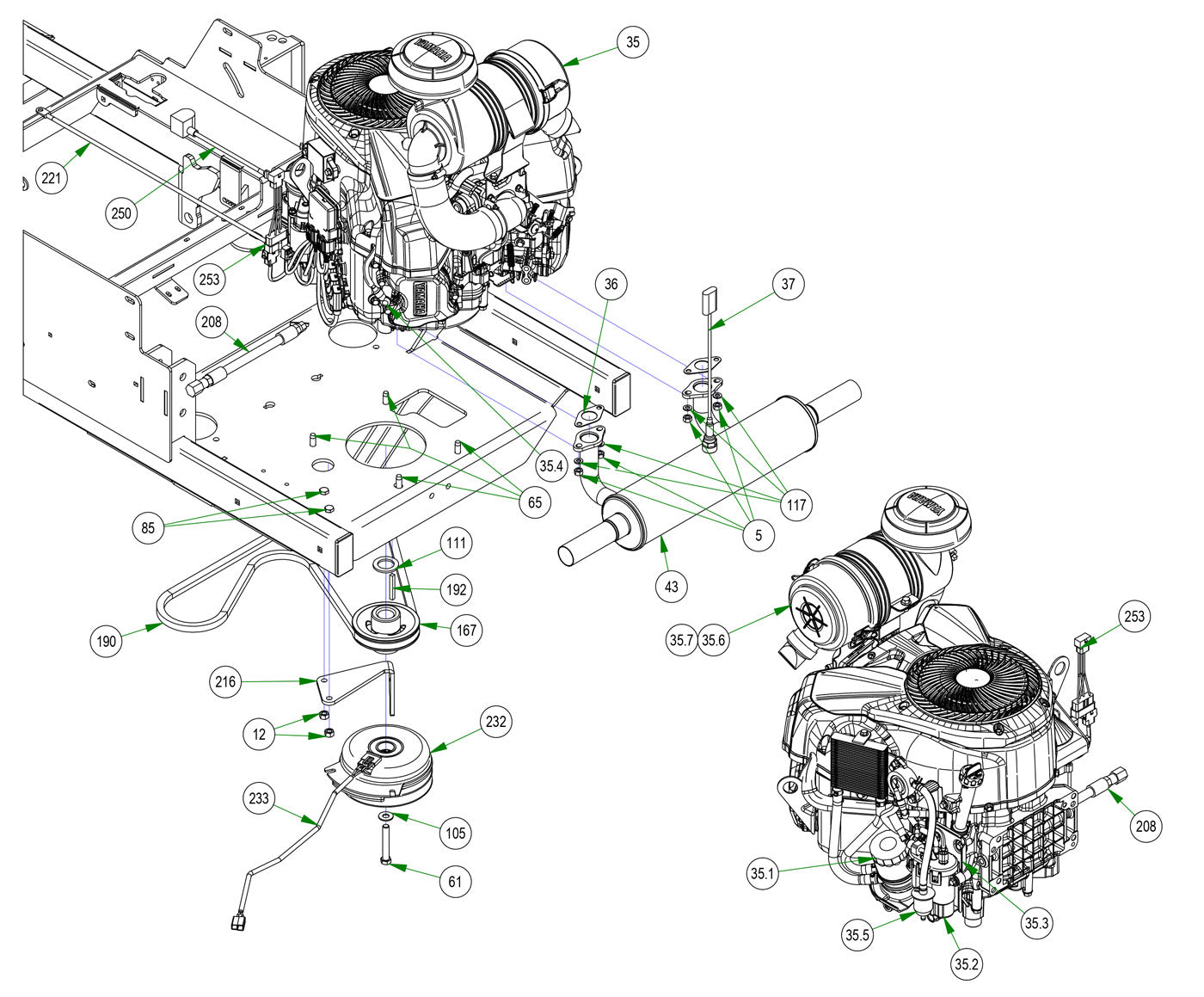

824cc Yamaha EFI 33HP
Parts Index
- 5 M8 - 1.25 Stainless Steel Nut (Qty 4)
- 12 3/8-16 Hex Nuts Zinc (Qty 2)
- 32 1 1/2x 3 Frame Plug (Qty 2)
- 35 2017 Yamaha Engine-33hp (Qty 1)
- 35.1 2017 Yamaha Oil Filter (Qty 1)
- 35.2 2017 Yamaha High Pressure Fuel Pump (Qty 1)
- 35.3 2017 Yamaha Fuel Pump Bracket (Qty 1)
- 35.4 2017 Yamaha Spark Plug (Qty 2)
- 35.5 OBSOLETE USE 063-6000-00 (Qty 1)
- 35.6 Canister Air Fil Outer2010&Old (Qty 1)
- 35.7 Canister Air Filter - Inner (Qty 1)
- 36 2017 Yamaha Exhuast Gasket (Qty 2)
- 37 2017 Yamaha O2 Sensor (Qty 1)
- 43 2019 Rebel/Rogue Yamaha 824 EFI/Carb Muffler (Qty 1)
- 65 3/8 x 1 1/8 Engine Mounting Bolt (Qty 4)
- 85 3/8-16 X 1-1/4 GR 5 Hex Bolt (Qty 2)
- 105 3/8 USS Flat Washer Zinc (Qty 1)
- 111 1.140x1.750x .132 Flat Washer (Qty 1)
- 117 5/16 Lock washer Zinc (Qty 4)
- 167 4 3/4 Motor Pulley (Qty 1)
- 190 2019 & up Rogue Pump Belt 68" (Qty 1)
- 192 1/4 X 2 Square Key Stock (Qty 1)
- 208 Yamaha Oil Drain/ 2019 Rebel Kohler Oil Drain (Qty 1)
- 216 PTO Engager Holder-Clutch--Plated (Qty 1)
- 221 24 Red Battery Cable (Qty 1)
- 232 Revolt, Rogue, Rebel, HD Clutch (Qty 1)
- 233 Clutch Pigtail (Qty 1)
- 234 2021 Vertical (Rogue) Frame (Qty 1)
- 250 Rebel, Rogue Ground Wire (Qty 1)
- 253 2021 Harness Adapter - Yamaha/Kohler EFI (Qty 1)
-
5#013-0075-00
M8 - 1.25 Stainless Steel Nut
Qty Used: 4Regular price $2.99 USDRegular priceUnit price per
-
12#013-6014-00
3/8-16 Hex Nuts Zinc
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-

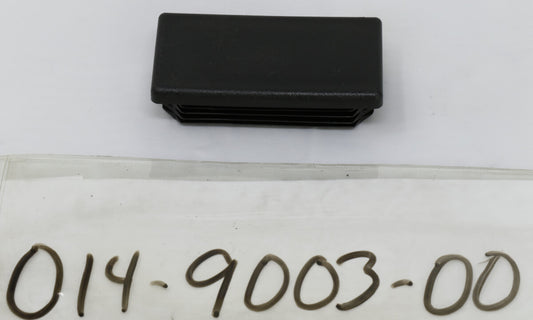

32#014-9003-00
1 1/2x 3 Frame Plug
Qty Used: 2Regular price $2.91 USDRegular priceUnit price per
-
35#015-0053-00
2017 Yamaha Engine-33hp
Qty Used: 1Regular price $2,999.00 USDRegular priceUnit price per
-

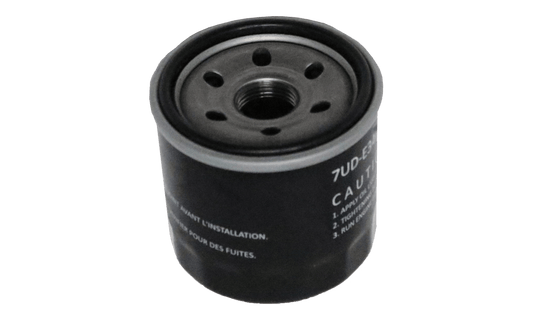

35.1#015-0053-02
2017 Yamaha Oil Filter
Qty Used: 1Regular price $23.99 USDRegular priceUnit price per
-

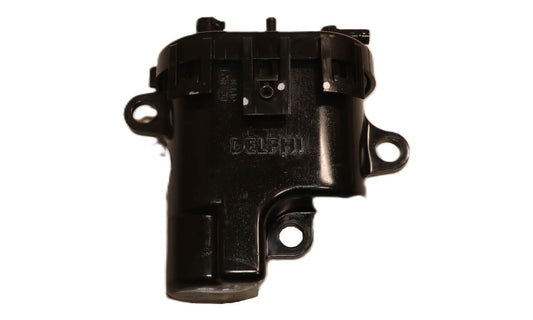

35.2#015-0053-03
2017 Yamaha High Pressure Fuel Pump
Qty Used: 1Regular price $499.99 USDRegular priceUnit price per
-

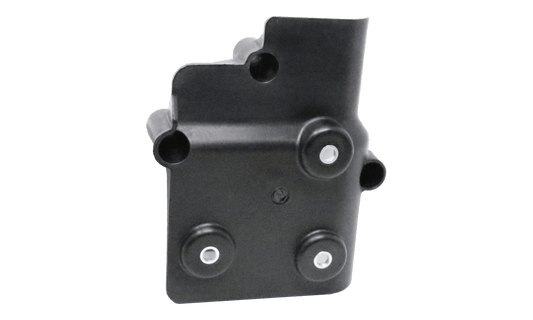

35.3#015-0053-04
2017 Yamaha Fuel Pump Bracket
Qty Used: 1Regular price $49.99 USDRegular priceUnit price per
-

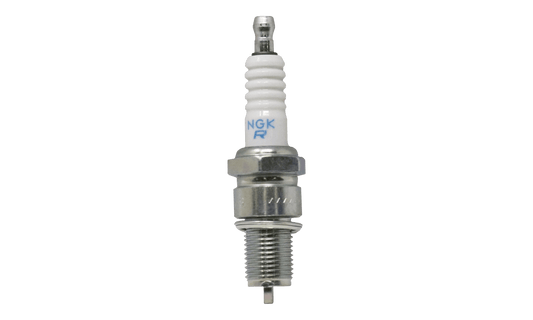

35.4#015-0053-06
2017 Yamaha Spark Plug
Qty Used: 2Regular price $7.99 USDRegular priceUnit price per
-
35.5#015-0053-21
OBSOLETE USE 063-6000-00
Qty Used: 1Regular price $9.99 USDRegular priceUnit price per
-
35.6#063-8019-00
Canister Air Fil Outer2010&Old
Qty Used: 1Regular price $33.50 USDRegular priceUnit price per
-
35.7#063-8020-00
Canister Air Filter - Inner
Qty Used: 1Regular price $30.51 USDRegular priceUnit price per
-

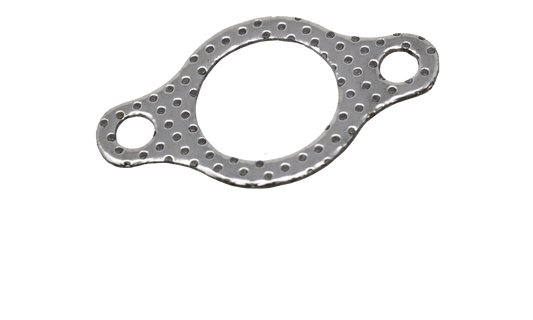

36#015-0053-01
2017 Yamaha Exhuast Gasket
Qty Used: 2Regular price $7.28 USDRegular priceUnit price per
-
37#015-0053-05
2017 Yamaha O2 Sensor
Qty Used: 1Regular price $169.99 USDRegular priceUnit price per
-
43#015-1015-00
2019 Rebel/Rogue Yamaha 824 EFI/Carb Muffler
Qty Used: 1Regular price $108.90 USDRegular priceUnit price per
-
65#018-1075-00
3/8 x 1 1/8 Engine Mounting Bolt
Qty Used: 4Regular price $1.39 USDRegular priceUnit price per
-
85#018-5040-00
3/8-16 X 1-1/4 GR 5 Hex Bolt
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
105#019-5029-00
3/8 USS Flat Washer Zinc
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
111#019-6029-00
1.140x1.750x .132 Flat Washer
Qty Used: 1Regular price $1.19 USDRegular priceUnit price per
-
117#019-8051-00
5/16 Lock washer Zinc
Qty Used: 4Regular price $0.79 USDRegular priceUnit price per
-
167#033-5035-00
4 3/4 Motor Pulley
Qty Used: 1Regular price $39.79 USDRegular priceUnit price per
-
190#041-8051-00
2019 & up Rogue Pump Belt 68"
Qty Used: 1Regular price $74.99 USDRegular priceUnit price per
-
192#042-5020-00
1/4 X 2 Square Key Stock
Qty Used: 1Regular price $2.92 USDRegular priceUnit price per
-

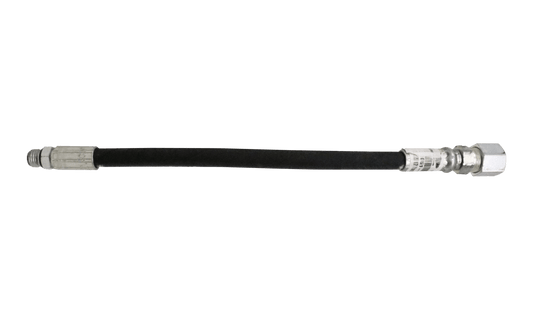

208#051-5403-00
Yamaha Oil Drain/ 2019 Rebel Kohler Oil Drain
Qty Used: 1Regular price $33.50 USDRegular priceUnit price per
-
216#057-5906-00
PTO Engager Holder-Clutch--Plated
Qty Used: 1Regular price $19.32 USDRegular priceUnit price per
-
221#064-5300-00
24 Red Battery Cable
Qty Used: 1Regular price $20.42 USDRegular priceUnit price per
-
-
233#070-2000-00
Clutch Pigtail
Qty Used: 1Regular price $19.85 USDRegular priceUnit price per
-
234#070-5375-00
2021 Vertical (Rogue) Frame
Qty Used: 1Regular price $899.99 USDRegular priceUnit price per
-
250#086-0005-00
Starter Cable
Qty Used: 1Regular price $9.28 USDRegular priceUnit price per
-
253#086-9006-21
2021 Harness Adapter - Yamaha/Kohler EFI
Qty Used: 1Regular price $39.79 USDRegular priceUnit price per
