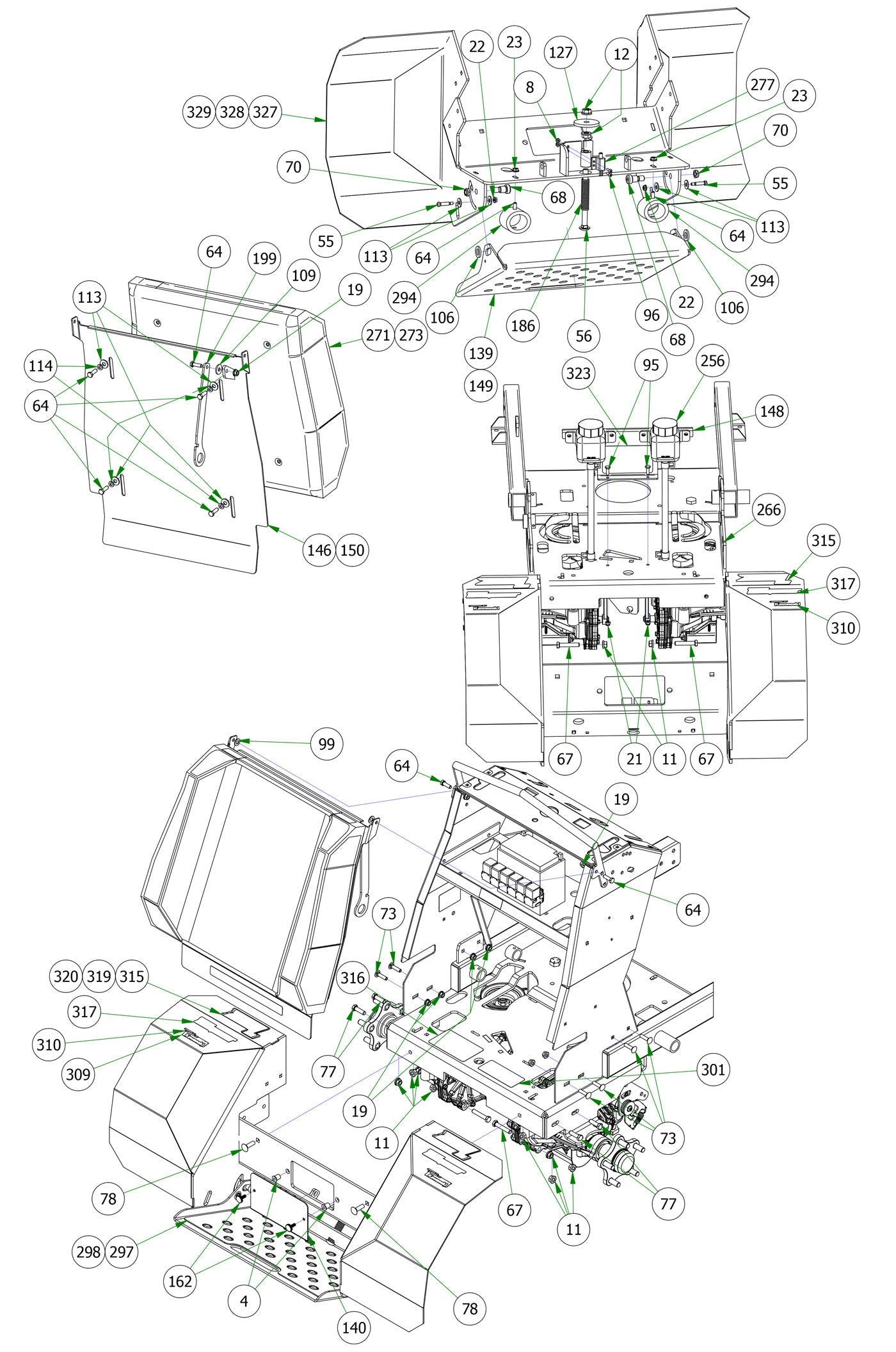

Rear Assemblies
Parts Index
- 4 Wellnut 1/4-20 x 5/8 (Qty 2)
- 8 10-24 Nylon Insert Locknut Zin (Qty 2)
- 11 3/8 Nylock Flange Nut (Qty 10)
- 12 1/2-13 Hex Fange Nuts Zinc w/ (Qty 2)
- 19 5/16-18 Nylon Flange Nut (Qty 11)
- 21 1/4-20 Nylon Insert Locknut Zi (Qty 2)
- 22 1/4-20 Hex Flange Nuts Zinc w/ (Qty 2)
- 23 5/16-18 Hex Flange Nuts Zinc w (Qty 2)
- 55 Steel Shoulder Screw 1/4"-20 x 7/8" Diameter 5/16" (Qty 2)
- 56 1/2-13 x 6" with 2" thread length (Qty 1)
- 64 5/16-18 X 1 GR 5 Hex Bolt Zinc (Qty 9)
- 67 3/8-16 X 2 GR 5 Hex Bolts Zinc (Qty 4)
- 68 5/8 x 5/8 Shoulder Bolt (Qty 2)
- 70 1/2-13 Nylon Insert Jam Locknut (Qty 2)
- 73 5/16-18 X 1-1/4 Carriage Bolt (Qty 8)
- 77 3/8-16 X 1-1/4 GR 5 Hex Bolt (Qty 4)
- 78 3/8-16 X 1-1/4 Carriage Bolt (Qty 2)
- 95 1/4-20 X 3/4 GR 5 Hex Bolts (Qty 2)
- 96 10-24 X 3/4 BS C/S 18-8 SS (Qty 2)
- 99 .390x.750x.062 Nylon Washer (Qty 2)
- 106 .630 ID X 1.122 OD X .142 THK (Qty 2)
- 109 .360 ID Plastic Washer (Qty 1)
- 113 5/16 USS Flat Washer Zinc (Qty 8)
- 114 5/16 Lock washer Zinc (Qty 4)
- 127 ZT/CZT Deck Round Spacer Idler--Plated (Qty 1)
- 139 2019 Stand On Platform Plate--Orange (Qty 1)
- 140 2019 Stand On Access Panel Plate--Black (Qty 1)
- 146 Pad Plate Weldment (Qty 1)
- 149 2020 36" Platform Plate--Orange (Qty 1)
- 150 36" Pad Plate Weldment (Qty 1)
- 186 3-1/8" x 0.75 OD x 0.568 ID Compression Spring (Qty 1)
- 199 Operator Pad Kickstand--Orange (Qty 1)
- 256 2017 ZT Hydro Tank Assembly (Qty 2)
- 266 2020 36" Stand On Frame--Orange (Qty 1)
- 271 2022 48, 54, 61 Revolt seat pad (Qty 1)
- 273 2022 36 revolt seat pad (Qty 1)
- 277 2017? Walk Behind-Safety Switch (Qty 1)
- 294 2019 Revolt Platform Dampener (Qty 2)
- 297 Grip Tape for 026-0062-00 (Qty 1)
- 298 Grip Tape for 026-0158-00 (Qty 1)
- 301 EPA Build Date Punch Label (Qty 1)
- 309 2022 Powered By Vangaurd Decal (Qty 2)
- 310 2022 Powered by Kawi Decal (Qty 4)
- 315 2019 Revolt 726cc Decal Set (Qty 2)
- 316 2019 Revolt Pump Belt Route Decal (Qty 1)
- 317 2019 Revolt Fender Decal (Qty 2)
- 319 810CC Revolt EFI Fender Decal (Qty 2)
- 320 852CC Revot Fender Decal (Qty 2)
- 323 36" Revolt Deck Belt Route Decal (Qty 1)
- 327 2020 61" Stand On Platform Support (Qty 1)
- 328 2020 36" Stand On Platform Support (Qty 1)
- 329 2019 48"-54" Stand On Platform Support (Qty 1)
-
329#201-1120-19
2019 48"-54" Stand On Platform Support
Qty Used: 1Regular price $169.99 USDRegular priceUnit price per
-
4#013-0057-00
Wellnut 1/4-20 x 5/8
Qty Used: 2Regular price $3.99 USDRegular priceUnit price per
-
8#013-5019-00
10-24 Nylon Insert Locknut Zin
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
11#013-5202-00
3/8 Nylock Flange Nut
Qty Used: 10Regular price $1.49 USDRegular priceUnit price per
-
12#013-5300-00
1/2-13 Hex Fange Nuts Zinc w/
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
19#013-8049-00
5/16-18 Nylon Flange Nut
Qty Used: 11Regular price $0.79 USDRegular priceUnit price per
-
21#013-8073-00
1/4-20 Nylon Insert Locknut Zi
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
22#013-9001-00
1/4-20 Hex Flange Nuts Zinc w/
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
23#013-9002-00
5/16-18 Hex Flange Nuts Zinc w
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
55#018-0059-00
Steel Shoulder Screw 1/4"-20 x 7/8" Diameter 5/16"
Qty Used: 2Regular price $3.99 USDRegular priceUnit price per
-
56#018-0069-00
1/2-13 x 6" with 2" thread length
Qty Used: 1Regular price $19.99 USDRegular priceUnit price per
-
64#018-2007-00
5/16-18 X 1 GR 5 Hex Bolt Zinc
Qty Used: 9Regular price $0.00 USDRegular priceUnit price per
-
67#018-3000-00
3/8-16 X 2 GR 5 Hex Bolts Zinc
Qty Used: 4Regular price $0.89 USDRegular priceUnit price per
-
68#018-3001-00
5/8 x 5/8 Shoulder Bolt
Qty Used: 2Regular price $14.59 USDRegular priceUnit price per
-
70#018-4010-00
1/2-13 Nylon Insert Jam Locknut
Qty Used: 2Regular price $1.59 USDRegular priceUnit price per
-
73#018-4703-00
5/16-18 X 1-1/4 Carriage Bolt
Qty Used: 8Regular price $0.69 USDRegular priceUnit price per
-
77#018-5040-00
3/8-16 X 1-1/4 GR 5 Hex Bolt
Qty Used: 4Regular price $0.79 USDRegular priceUnit price per
-
78#018-5043-00
3/8-16 X 1-1/4 Carriage Bolt
Qty Used: 2Regular price $0.99 USDRegular priceUnit price per
-
95#018-8052-00
1/4-20 X 3/4 GR 5 Hex Bolts
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
96#018-8057-00
10-24 X 3/4 BS C/S 18-8 SS
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
99#019-2003-00
.390x.750x.062 Nylon Washer
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
106#019-6017-00
.630 ID X 1.122 OD X .142 THK
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
109#019-6042-00
.360 ID Plastic Washer
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
113#019-8044-00
5/16 USS Flat Washer Zinc
Qty Used: 8Regular price $0.79 USDRegular priceUnit price per
-
114#019-8051-00
5/16 Lock washer Zinc
Qty Used: 4Regular price $0.79 USDRegular priceUnit price per
-
127#025-0025-00
ZT/CZT Deck Round Spacer Idler--Plated
Qty Used: 1Regular price $6.62 USDRegular priceUnit price per
-
139#026-0062-00
2019 Stand On Platform Plate--Orange
Qty Used: 1Regular price $33.16 USDRegular priceUnit price per
-
140#026-0063-00
2019 Stand On Access Panel Plate--Black
Qty Used: 1Regular price $33.16 USDRegular priceUnit price per
-
146#026-0096-00
Pad Plate Weldment
Qty Used: 1Regular price $92.82 USDRegular priceUnit price per
-
149#026-0158-00
2020 36" Platform Plate--Orange
Qty Used: 1Regular price $99.99 USDRegular priceUnit price per
-
150#026-0159-00
36" Pad Plate Weldment
Qty Used: 1Regular price $69.95 USDRegular priceUnit price per
-
186#034-1001-00
3-1/8" x 0.75 OD x 0.568 ID Compression Spring
Qty Used: 1Regular price $11.99 USDRegular priceUnit price per
-
199#039-0082-00
Operator Pad Kickstand--Orange
Qty Used: 1Regular price $26.53 USDRegular priceUnit price per
-
256#067-8090-03
2017 ZT Hydro Tank Assembly
Qty Used: 2Regular price $39.68 USDRegular priceUnit price per
-
271#071-6004-22
2022 48, 54, 61 Revolt seat pad
Qty Used: 1Regular price $199.99 USDRegular priceUnit price per
-
273#071-6006-22
2022 36 revolt seat pad
Qty Used: 1Regular price $159.99 USDRegular priceUnit price per
-
277#077-0002-00
2017? Walk Behind-Safety Switch
Qty Used: 1Regular price $21.88 USDRegular priceUnit price per
-
294#087-0003-00
2019 Revolt Platform Dampener
Qty Used: 2Regular price $79.60 USDRegular priceUnit price per
-

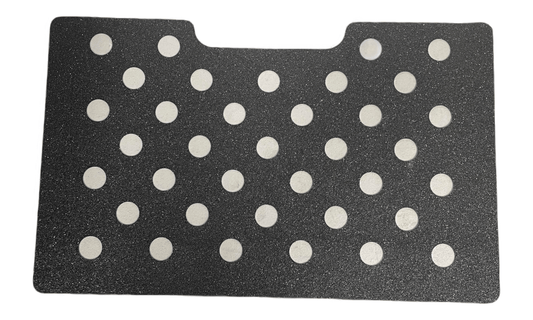

297#088-0050-00
Grip Tape for 026-0062-00
Qty Used: 1Regular price $19.99 USDRegular priceUnit price per
-
298#088-0051-00
Grip Tape for 026-0158-00
Qty Used: 1Regular price $23.99 USDRegular priceUnit price per
-
301#091-0015-00
EPA Build Date Punch Label
Qty Used: 1Regular price $3.29 USDRegular priceUnit price per
-
309#091-4002-22
2022 Powered By Vangaurd Decal
Qty Used: 2Regular price $5.49 USDRegular priceUnit price per
-
310#091-4003-22
2022 Powered by Kawi Decal
Qty Used: 4Regular price $2.49 USDRegular priceUnit price per
-
315#091-4021-00
2019 Revolt 726cc Decal Set
Qty Used: 2Regular price $7.28 USDRegular priceUnit price per
-
316#091-4022-00
2019 Revolt Pump Belt Route Decal
Qty Used: 1Regular price $5.49 USDRegular priceUnit price per
-
317#091-4031-00
2019 Revolt Fender Decal
Qty Used: 2Regular price $10.20 USDRegular priceUnit price per
-
319#091-4053-00
810CC Revolt EFI Fender Decal
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
320#091-4054-00
852CC Revot Fender Decal
Qty Used: 2Regular price $14.99 USDRegular priceUnit price per
-
323#091-4058-00
36\" Revolt Deck Belt Route Decal
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
327#201-1118-20
2020 61" Stand On Platform Support
Qty Used: 1Regular price $149.99 USDRegular priceUnit price per
-
328#201-1119-20
2020 36\" Stand On Platform Support
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
