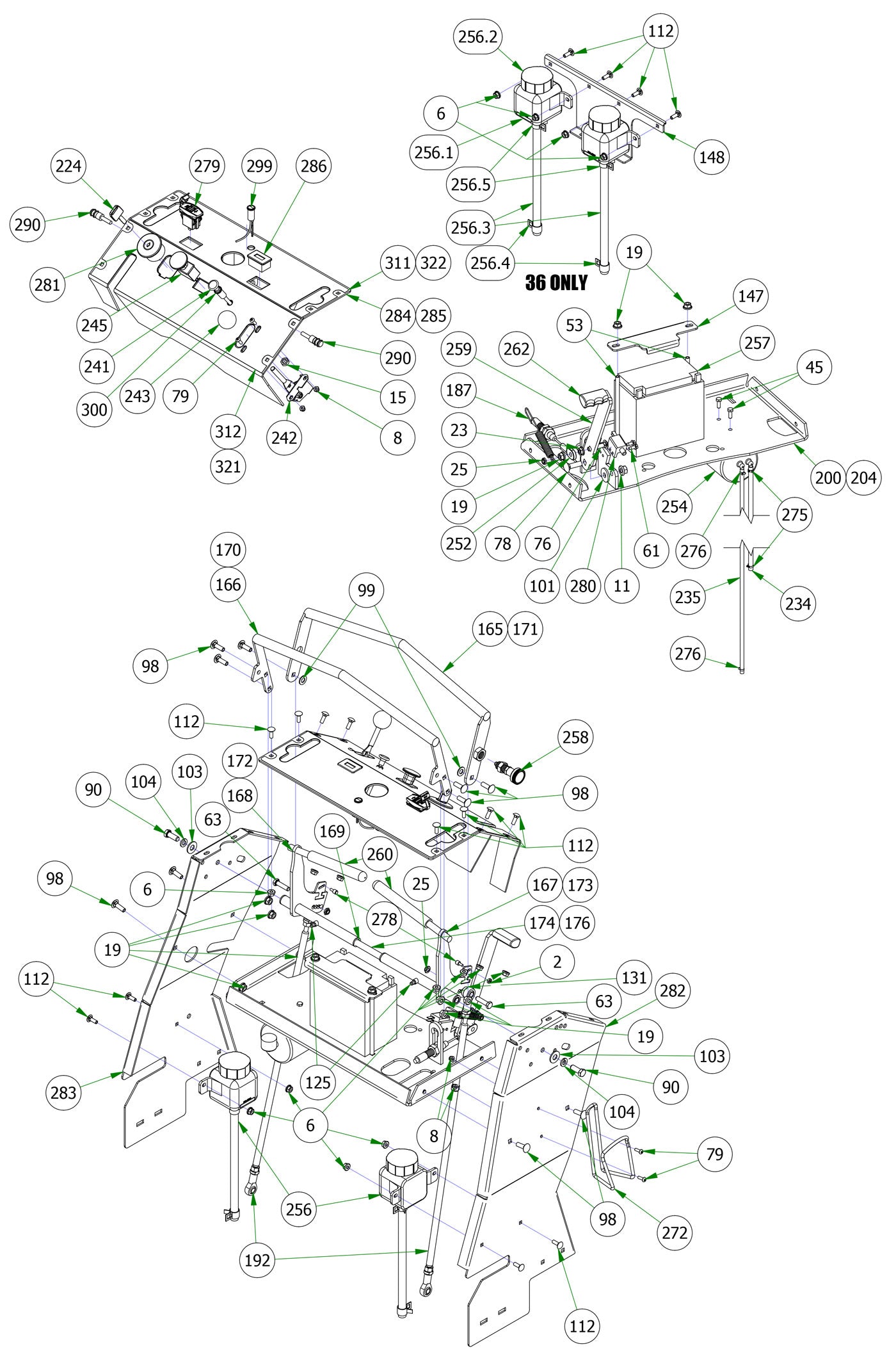

Podium
Parts Index
- 2 8-32 Hex M/S Nut (Qty 2)
- 6 1/4-20 Nylon Insert Flange Nut (Qty 16)
- 8 10-24 Nylon Insert Locknut Zin (Qty 4)
- 11 3/8 Nylock Flange Nut (Qty 1)
- 15 3/8-24 Hex Nut Zinc (Qty 1)
- 19 5/16-18 Nylon Flange Nut (Qty 13)
- 23 5/16-18 Hex Flange Nuts Zinc w (Qty 1)
- 25 5/16-18 Nylock Jam Nut (Qty 3)
- 45 M6-1.0 X 16MM HEX BOLT CL 8 (Qty 2)
- 53 5/16x6 Carriage Bolt-Grade 5 (Qty 2)
- 61 M6-1.0 X 16MM HEX BOLT CL 8 (Qty 2)
- 63 5/16-18 X 1-1/4 GR 5 Hex Bolt (Qty 2)
- 76 5/16-18 X 1-1/2 Carriage Bolt (Qty 1)
- 78 3/8-16 X 1-1/4 Carriage Bolt (Qty 1)
- 79 10-24 X 5/8 BS C/S 18-8 SS (Qty 4)
- 90 3/8-16 X 1 GR 5 Hex Bolts Zinc (Qty 2)
- 98 5/16-18 X 1 Carriage Bolt Zinc (Qty 10)
- 99 .390x.750x.062 Nylon Washer (Qty 2)
- 101 .390 ID Plastic Washer (Qty 1)
- 103 3/8 USS Flat Washer Zinc (Qty 2)
- 104 3/8 Lockwasher Zinc (Qty 2)
- 112 1/4 x 3/4 Carriage Bolt (Qty 12)
- 125 1/4 Drive-in Grease Fitting (Qty 2)
- 131 ACS Spacer 3/4x3/8x1/4 (Qty 2)
- 147 Battery Hold Down Plate-Raider--Orange (Qty 1)
- 165 Revolt Front Control Arm Stop Weldment--Black (Qty 1)
- 166 Revolt Rear Control Arm Stop Weldment (Qty 1)
- 167 Revolt RH Drive Arm Actuator Weldment (Qty 1)
- 168 Revolt LH Drive Arm Actuator Weldment (Qty 1)
- 169 Drive Arm Actuator Bushing (Qty 4)
- 170 36" Revolt Rear Control Arm Stop Weldment (Qty 1)
- 171 36" Front Control Arm Stop Weldment--Black (Qty 1)
- 172 36" RH Drive Arm Actuator Weldment--Black (Qty 1)
- 173 36" Revolt LH Drive Arm Actuator Weldment--Black (Qty 1)
- 174 2019 Stand On Drive Pivot Bar (Qty 1)
- 176 2020 36" Stand On Drive Pivot Bar (Qty 1)
- 187 Brake Spring (Qty 1)
- 192 2019 Stand On Push Rod Assembly (Qty 2)
- 200 Console Bracket Weldment (Qty 1)
- 204 36" Console Bracket Weldment (Qty 1)
- 224 Ignition Key (Qty 1)
- 234 1/4 Vinyl 46" EPA Line (Qty 1)
- 235 3/16 Vinyl 55" EPA Line (Qty 1)
- 241 Choke - All MZ/ZT/Mav/Rebel/Rogue (Qty 1)
- 242 Universal Throttle Head - 2012 (Qty 1)
- 243 Throttle / Brake Head Ball (Qty 1)
- 252 Brake Cable Walk Behind/Revolt (Qty 1)
- 254 Carbon Canister ZT,CZT,Outlaw (Qty 1)
- 256 2017 ZT Hydro Tank Assembly (Qty 2)
- 256.1 71328-Expansion Tank CZT/ZT (Qty 1)
- 256.2 ZT Hydraulic Tank Cap (Qty 1)
- 256.3 2017 ZT/ Maverick Hydro Tank Hose (Qty 1)
- 256.4 3/8 Hose Clamp - CTB-16-STFS (Qty 1)
- 256.5 1/2 Hose Clamp (Qty 1)
- 257 Revolt Battery (Qty 1)
- 258 Plunger 5/8-11 All Stainless Steel (Qty 1)
- 259 2019 Stand On Brake Handle--Black (Qty 1)
- 260 2019 Revolt Cushioned hand Grip (Qty 2)
- 262 Rubber Brake Grip-cZT/ZT 2013 (Qty 1)
- 272 2019 Stand-On Cup Holder (Qty 1)
- 275 MZ Tank Hose Clamp 1/4 Vinyl (Qty 2)
- 276 3/16" Vinyl Hose Clamp (Qty 2)
- 278 Magnet-Steering Arm-Stand ON (Qty 2)
- 279 USB Port (Qty 1)
- 280 Safety Switch (Qty 1)
- 281 Ignition Switch (Qty 1)
- 282 RH Podium Panel--Orange (Qty 1)
- 283 LH Podium Panel--Orange (Qty 1)
- 284 Podium Front Panel Weldment--Orange (Qty 1)
- 285 36" Podium Front Panel Weldment--Orange (Qty 1)
- 286 Tachometer-N310-0100-1018 (Qty 1)
- 290 Safety Switch Harness (Qty 2)
- 299 Oil Light (Qty 1)
- 300 MIL Light (Qty 1)
- 311 2019 Revolt Control Panel Lower Decal (Qty 1)
- 312 2019 Revolt Control Panel Upper Decal (Qty 1)
- 321 36" Control Panel (upper) (Qty 1)
- 322 36" Control Panel (lower) (Qty 1)
-
256.3#051-0016-00
2017 ZT/ Maverick Hydro Tank Hose
Qty Used: 1Regular price $8.74 USDRegular priceUnit price per
-
256.4#072-8065-00
3/8 Hose Clamp - CTB-16-STFS
Qty Used: 1Regular price $0.88 USDRegular priceUnit price per
-
256.5#072-8066-00
1/2 Hose Clamp
Qty Used: 1Regular price $0.88 USDRegular priceUnit price per
-
257#068-8051-00
2019 Stand-On Battery
Qty Used: 1Regular price $119.99 USDRegular priceUnit price per
-
258#069-0002-00
Plunger 5/8-11 All Stainless Steel
Qty Used: 1Regular price $58.37 USDRegular priceUnit price per
-
259#069-2013-00
2019 Stand On Brake Handle--Black
Qty Used: 1Regular price $109.99 USDRegular priceUnit price per
-
260#069-2014-00
2019 Revolt Cushioned hand Grip
Qty Used: 2Regular price $7.28 USDRegular priceUnit price per
-
262#069-7000-00
Rubber Brake Grip-cZT/ZT 2013
Qty Used: 1Regular price $5.83 USDRegular priceUnit price per
-
272#071-6005-00
2019 Stand-On Cup Holder
Qty Used: 1Regular price $21.22 USDRegular priceUnit price per
-
275#072-8070-00
MZ Tank Hose Clamp 1/4 Vinyl
Qty Used: 2Regular price $1.45 USDRegular priceUnit price per
-
276#072-8073-00
3/16\" Vinyl Hose Clamp
Qty Used: 2Regular price $2.91 USDRegular priceUnit price per
-
278#077-1000-00
Magnet-Steering Arm-Stand ON
Qty Used: 2Regular price $13.85 USDRegular priceUnit price per
-
-
280#077-8073-00
Safety Switch
Qty Used: 1Regular price $9.99 USDRegular priceUnit price per
-
281#077-8076-00
Ignition Switch
Qty Used: 1Regular price $19.99 USDRegular priceUnit price per
-
282#079-4106-00
RH Podium Panel--Orange
Qty Used: 1Regular price $34.99 USDRegular priceUnit price per
-
283#079-4111-00
LH Podium Panel--Orange
Qty Used: 1Regular price $34.99 USDRegular priceUnit price per
-
284#079-4112-00
Podium Front Panel Weldment--Orange
Qty Used: 1Regular price $44.99 USDRegular priceUnit price per
-
285#079-4113-00
36" Podium Front Panel Weldment--Orange
Qty Used: 1Regular price $99.99 USDRegular priceUnit price per
-
286#083-4013-00
Tachometer-N310-0100-1018
Qty Used: 1Regular price $69.99 USDRegular priceUnit price per
-
290#086-0015-00
Safety Switch Harness
Qty Used: 2Regular price $65.67 USDRegular priceUnit price per
-
-
300#089-2000-00
Code Indicator Light-Yamaha
Qty Used: 1Regular price $19.99 USDRegular priceUnit price per
-
311#091-4017-00
2019 Revolt Control Panel Lower Decal
Qty Used: 1Regular price $14.58 USDRegular priceUnit price per
-
312#091-4018-00
2019 Revolt Control Panel Upper Decal
Qty Used: 1Regular price $17.50 USDRegular priceUnit price per
-
321#091-4056-00
36" Control Panel (upper)
Qty Used: 1Regular price $9.99 USDRegular priceUnit price per
-
322#091-4057-00
36" Control Panel (lower)
Qty Used: 1Regular price $9.99 USDRegular priceUnit price per
-
2#013-0001-00
8-32 Hex M/S Nut
Qty Used: 2Regular price $1.39 USDRegular priceUnit price per
-
6#013-2050-00
1/4-20 Nylon Insert Flange Nut
Qty Used: 16Regular price $1.39 USDRegular priceUnit price per
-
8#013-5019-00
10-24 Nylon Insert Locknut Zin
Qty Used: 4Regular price $0.69 USDRegular priceUnit price per
-
11#013-5202-00
3/8 Nylock Flange Nut
Qty Used: 1Regular price $1.49 USDRegular priceUnit price per
-
15#013-6051-00
3/8-24 Hex Nut Zinc
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
19#013-8049-00
5/16-18 Nylon Flange Nut
Qty Used: 13Regular price $0.79 USDRegular priceUnit price per
-
23#013-9002-00
5/16-18 Hex Flange Nuts Zinc w
Qty Used: 1Regular price $0.69 USDRegular priceUnit price per
-
25#013-9005-00
5/16-18 Nylock Jam Nut
Qty Used: 3Regular price $2.69 USDRegular priceUnit price per
-
4561#018-0024-00
M6-1.0 X 16MM HEX BOLT CL 8
Qty Used: 2Regular price $2.69 USDRegular priceUnit price per
-
53#018-0056-00
5/16x6 Carriage Bolt-Grade 5
Qty Used: 2Regular price $2.69 USDRegular priceUnit price per
-
63#018-2006-00
5/16-18 X 1-1/4 GR 5 Hex Bolt
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
76#018-5020-00
5/16-18 X 1-1/2 Carriage Bolt
Qty Used: 1Regular price $0.69 USDRegular priceUnit price per
-
78#018-5043-00
3/8-16 X 1-1/4 Carriage Bolt
Qty Used: 1Regular price $0.99 USDRegular priceUnit price per
-
79#018-5200-00
10-24 X 5/8 BS C/S 18-8 SS
Qty Used: 4Regular price $0.79 USDRegular priceUnit price per
-
90#018-6049-00
3/8-16 X 1 GR 5 Hex Bolts Zinc
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
98#018-8065-00
5/16-18 X 1 Carriage Bolt Zinc
Qty Used: 10Regular price $0.79 USDRegular priceUnit price per
-
99#019-2003-00
.390x.750x.062 Nylon Washer
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
101#019-2073-00
.390 ID Plastic Washer
Qty Used: 1Regular price $1.49 USDRegular priceUnit price per
-
103#019-5029-00
3/8 USS Flat Washer Zinc
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
104#019-5037-00
3/8 Lockwasher Zinc
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
112#019-8040-00
1/4 x 3/4 Carriage Bolt
Qty Used: 12Regular price $1.49 USDRegular priceUnit price per
-
125#024-6034-00
1/4 Drive-in Grease Fitting
Qty Used: 2Regular price $0.66 USDRegular priceUnit price per
-
131#025-2001-00
ACS Spacer 3/4x3/8x1/4
Qty Used: 2Regular price $14.58 USDRegular priceUnit price per
-
147#026-0098-00
Battery Hold Down Plate-Revolt--Orange
Qty Used: 1Regular price $15.91 USDRegular priceUnit price per
-
165#031-0026-00
Revolt Front Control Arm Stop Weldment--Black
Qty Used: 1Regular price $57.09 USDRegular priceUnit price per
-
166#031-0027-00
Revolt Rear Control Arm Stop Weldment
Qty Used: 1Regular price $42.99 USDRegular priceUnit price per
-
167#031-0028-00
Revolt RH Drive Arm Actuator Weldment
Qty Used: 1Regular price $39.74 USDRegular priceUnit price per
-
168#031-0029-00
Revolt LH Drive Arm Actuator Weldment
Qty Used: 1Regular price $39.74 USDRegular priceUnit price per
-
169#031-0032-00
Drive Arm Actuator Bushing
Qty Used: 4Regular price $6.62 USDRegular priceUnit price per
-
170#031-0033-00
36\" Revolt Rear Control Arm Stop Weldment
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
171#031-0034-00
36" Front Control Arm Stop Weldment--Black
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
172#031-0037-00
36" RH Drive Arm Actuator Weldment--Black
Qty Used: 1Regular price $29.95 USDRegular priceUnit price per
-
173#031-0038-00
36" Revolt LH Drive Arm Actuator Weldment--Black
Qty Used: 1Regular price $29.95 USDRegular priceUnit price per
-
174#031-0091-00
2019 Stand On Drive Pivot Bar
Qty Used: 1Regular price $33.16 USDRegular priceUnit price per
-
176#031-0094-00
2020 36" Stand On Drive Pivot Bar
Qty Used: 1Regular price $19.99 USDRegular priceUnit price per
-
187#034-1025-00
Compact Outlaw Brake Spring
Qty Used: 1Regular price $11.66 USDRegular priceUnit price per
-
192#035-0006-19
2019 Stand On Push Rod Assembly
Qty Used: 2Regular price $43.78 USDRegular priceUnit price per
-
200#039-0087-00
Console Bracket Weldment
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
204#039-0154-00
36\" Console Bracket Weldment
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
224#042-9000-00
Ignition Key
Qty Used: 1Regular price $3.69 USDRegular priceUnit price per
-
234#051-2020-01
1/4 Vinyl 46" EPA Line
Qty Used: 1Regular price $11.66 USDRegular priceUnit price per
-
235#051-2025-02
3/16 Vinyl 55" EPA Line
Qty Used: 1Regular price $11.66 USDRegular priceUnit price per
-
241#054-8017-00
Choke - All MZ/ZT/Mav/Rebel/Rogue
Qty Used: 1Regular price $24.11 USDRegular priceUnit price per
-
242#055-2012-00
Universal Throttle Head - 2012
Qty Used: 1Regular price $23.87 USDRegular priceUnit price per
-
243#055-2013-00
Throttle Head Ball
Qty Used: 1Regular price $11.66 USDRegular priceUnit price per
