Kawasaki FX-691

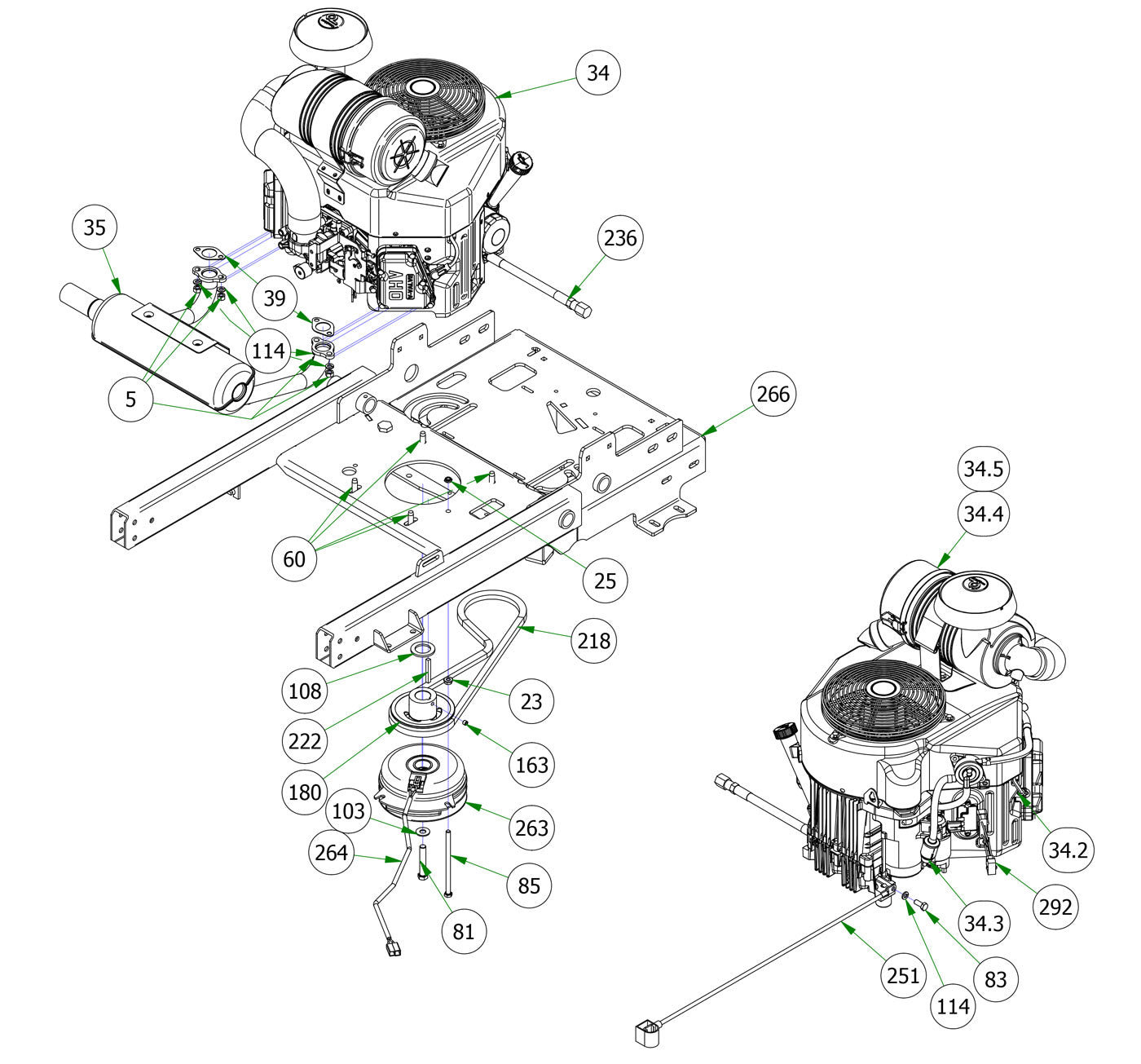

Parts Index
- 5 M8 - 1.25 Stainless Steel Nut (Qty 4)
- 23 5/16-18 Hex Flange Nuts Zinc w (Qty 1)
- 25 5/16-18 Nylock Jam Nut (Qty 1)
- 34 FX691 Kawasaki (Qty 1)
- 34.2 Spark plug-Kawasaki NGKBPR2ES (Qty 2)
- 34.3 Universal Inline Fuel Filter (Qty 1)
- 34.4 Canister Air Fil Outer2010&Old (Qty 1)
- 34.5 Canister Air Filter - Inner (Qty 1)
- 35 Exhaust-Stand On-FX691V Kawasaki (Qty 1)
- 39 Exhaust Gasket for 27 - Single Gasket (Qty 2)
- 60 3/8 x 1 1/8 Engine Mounting Bolt (Qty 4)
- 81 7/16-20 X 2-1/2 GR 5 Hex Bolt (Qty 1)
- 83 M8 x 1.25 x 20MM Hex Head Bolt (Qty 1)
- 85 5/16-18 X 5-1/2 GR 5 Hex Bolt (Qty 1)
- 103 3/8 USS Flat Washer Zinc (Qty 1)
- 108 1.140x1.750x .132 Flat Washer (Qty 2)
- 114 5/16 Lock washer Zinc (Qty 5)
- 163 5/16-24 x 1/4 Set Screw (Qty 1)
- 180 4 3/4 Motor Pulley (Qty 1)
- 218 2019 Renegade / 2020 Revolt - Pump Belt (Qty 1)
- 222 1/4 X 2 Square Key Stock (Qty 1)
- 236 Kawasaki Oil Drain (Qty 1)
- 251 24 inch Black Cable - MZ/ZT (Qty 1)
- 263 Revolt, Rogue, Rebel, HD Clutch (Qty 1)
- 264 Clutch Pigtail (Qty 1)
- 266 2020 36" Stand On Frame--Orange (Qty 1)
- 292 2019 Harness Adaptor-R-Series FX/35KA (Qty 1)
-
5#013-0075-00
M8 - 1.25 Stainless Steel Nut
Qty Used: 4Regular price $2.99 USDRegular priceUnit price per
-
23#013-9002-00
5/16-18 Hex Flange Nuts Zinc w
Qty Used: 1Regular price $0.69 USDRegular priceUnit price per
-
25#013-9005-00
5/16-18 Nylock Jam Nut
Qty Used: 1Regular price $2.69 USDRegular priceUnit price per
-
34#015-0691-00
FX691 Kawasaki-2016 Compact Outlaw
Qty Used: 1Regular price $2,599.00 USDRegular priceUnit price per
-
34.2#015-8001-00
Spark plug-Kawasaki NGKBPR2ES
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
34.3#063-6000-00
Universal Inline Fuel Filter
Qty Used: 1Regular price $13.26 USDRegular priceUnit price per
-
34.4#063-8019-00
Canister Air Fil Outer2010&Old
Qty Used: 1Regular price $33.50 USDRegular priceUnit price per
-
34.5#063-8020-00
Canister Air Filter - Inner
Qty Used: 1Regular price $30.51 USDRegular priceUnit price per
-
35#015-0692-00
Exhaust-Stand On-FX691V Kawasaki
Qty Used: 1Regular price $145.95 USDRegular priceUnit price per
-
39#015-2709-00
Exhaust Gasket for 27 - Single Gasket
Qty Used: 2Regular price $7.28 USDRegular priceUnit price per
-
60#018-1075-00
3/8 x 1 1/8 Engine Mounting Bolt
Qty Used: 4Regular price $1.39 USDRegular priceUnit price per
-
81#018-5300-00
7/16-20 X 2-1/2 GR 5 Hex Bolt
Qty Used: 1Regular price $1.19 USDRegular priceUnit price per
-
83#018-5321-00
M8 x 1.25 x 20MM Hex Head Bolt
Qty Used: 1Regular price $1.49 USDRegular priceUnit price per
-
85#018-5350-00
5/16-18 X 5-1/2 GR 5 Hex Bolt
Qty Used: 1Regular price $1.79 USDRegular priceUnit price per
-
103#019-5029-00
3/8 USS Flat Washer Zinc
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
108#019-6029-00
1.140x1.750x .132 Flat Washer
Qty Used: 2Regular price $1.19 USDRegular priceUnit price per
-
114#019-8051-00
5/16 Lock washer Zinc
Qty Used: 5Regular price $0.79 USDRegular priceUnit price per
-
163#030-0050-00
5/16-24 x 1/4 Set Screw
Qty Used: 1Regular price $1.59 USDRegular priceUnit price per
-
180#033-5035-00
4 3/4 Motor Pulley
Qty Used: 1Regular price $39.79 USDRegular priceUnit price per
-
218#041-8000-00
2019 Renegade / 2020 Revolt - Pump Belt
Qty Used: 1Regular price $74.99 USDRegular priceUnit price per
-
222#042-5020-00
1/4 X 2 Square Key Stock
Qty Used: 1Regular price $2.92 USDRegular priceUnit price per
-
236#051-5404-00
Kawasaki Oil Drain
Qty Used: 1Regular price $26.27 USDRegular priceUnit price per
-
251#064-0030-00
24 inch Black Cable - MZ/ZT
Qty Used: 1Regular price $17.50 USDRegular priceUnit price per
-
-
264#070-2000-00
Clutch Pigtail
Qty Used: 1Regular price $19.85 USDRegular priceUnit price per
-
292#086-9002-19
2019 Harness Adaptor-R-Series FX/35KA
Qty Used: 1Regular price $18.96 USDRegular priceUnit price per
