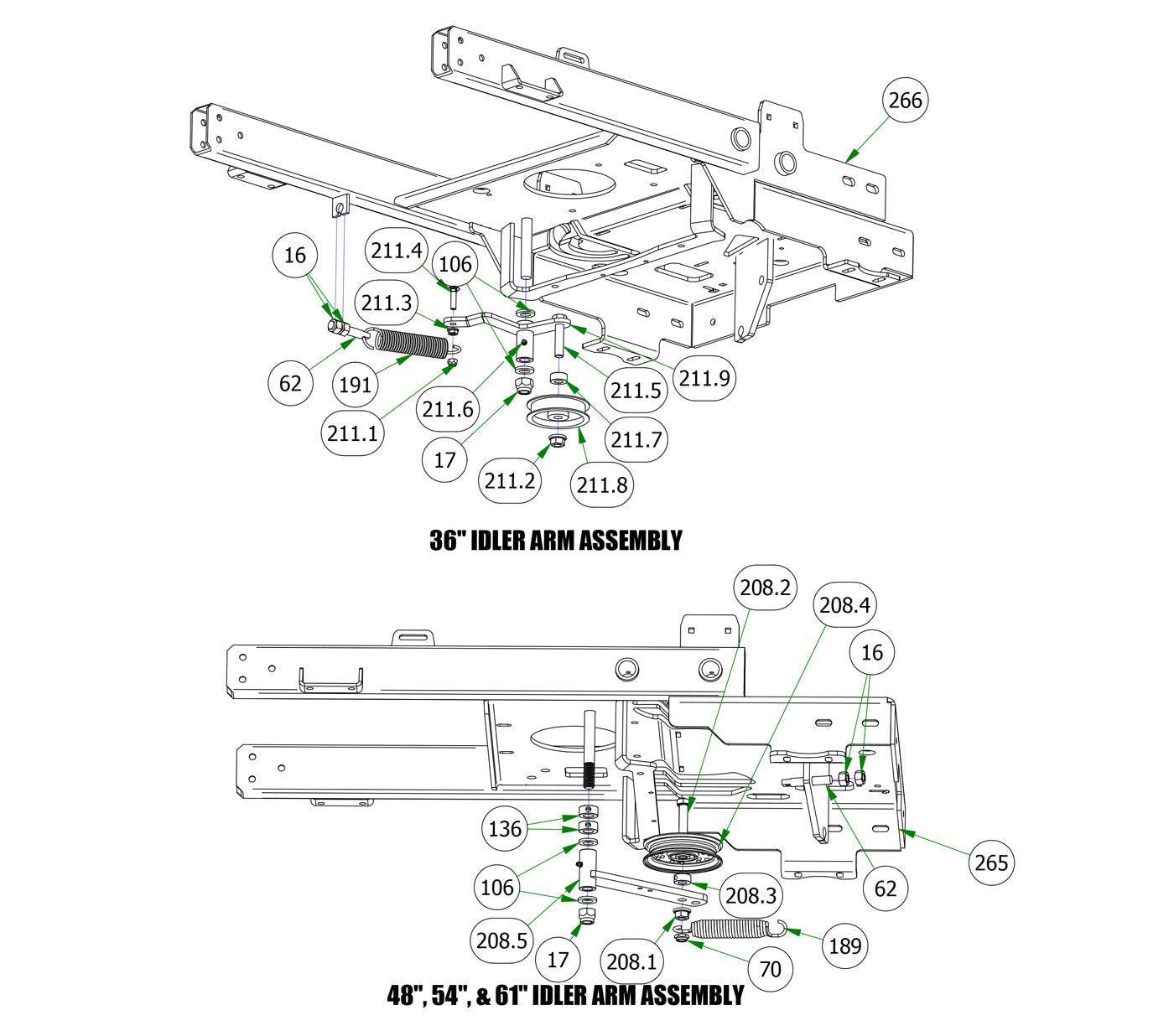

Idler Arm Mount
Parts Index
- 16 1/2-13 Hex Nuts Zinc (Qty 2)
- 17 5/8-11 Nylon Insert Locknut Zi (Qty 1)
- 62 All Thread (Qty 1)
- 70 1/2-13 Nylon Insert Jam Locknut (Qty 1)
- 106 .630 ID X 1.122 OD X .142 THK (Qty 2)
- 136 5/8 Set Collar W/One Set Screw (Qty 2)
- 189 2015 Deck Idler Spring (Qty 1)
- 191 2019 Deck Spring - Big Diameter (Qty 1)
- 208 2019 Revolt Pump Idler Assembly (Qty 1)
- 208.1 1/2-13 Nylon Insert Flange Nut (Qty 1)
- 208.2 1/2-13 X 2-3/4 GR 5 Bolt Zinc (Qty 1)
- 208.3 1/2 Set Collar w/set collar (Qty 1)
- 208.4 4 3/4 Idler Pulley - ABFI-76 (Qty 1)
- 208.5 Idler Bracket (Qty 1)
- 211 2020 36" Stand On Drive Pulley Assembly (Qty 1)
- 211.1 5/16-18 Nylon Insert Locknut Z (Qty 1)
- 211.2 1/2-13 Nylon Insert Flange Nut (Qty 1)
- 211.3 5/16-18 Hex Flange Nuts Zinc w (Qty 1)
- 211.4 5/16-18 X 1-1/4 Carriage Bolt (Qty 1)
- 211.5 1/2-13 X 2-1/4 GR 5 Hex Bolts (Qty 1)
- 211.6 1/4 Drive-in Grease Fitting (Qty 1)
- 211.7 1/2 Set Collar w/set collar (Qty 1)
- 211.8 2019 Renegade Horizontal Pump Pulley (Qty 1)
- 211.9 2020 36" Pump Idler Weldment--Plated (Qty 1)
- 265 2019 Stand On Frame--Orange (Qty 1)
- 266 2020 36" Stand On Frame--Orange (Qty 1)
-
16#013-7018-00
1/2-13 Hex Nuts Zinc
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
17#013-7021-00
5/8-11 Nylon Insert Locknut Zi
Qty Used: 1Regular price $1.19 USDRegular priceUnit price per
-
62#018-2004-50
All Thread
Qty Used: 1Regular price $12.09 USDRegular priceUnit price per
-
70#018-4010-00
1/2-13 Nylon Insert Jam Locknut
Qty Used: 1Regular price $1.59 USDRegular priceUnit price per
-
106#019-6017-00
.630 ID X 1.122 OD X .142 THK
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
136#025-7020-00
5/8 Set Collar W/One Set Screw
Qty Used: 2Regular price $3.97 USDRegular priceUnit price per
-
189#034-2020-00
2015 Deck Idler Spring
Qty Used: 1Regular price $15.99 USDRegular priceUnit price per
-
191#034-9050-00
2019 Deck Spring - Big Diameter
Qty Used: 1Regular price $15.99 USDRegular priceUnit price per
-
208#039-6945-09
2019 Revolt Pump Idler Assembly
Qty Used: 1Regular price $54.99 USDRegular priceUnit price per
-
208.1211.2#013-8050-00
1/2-13 Nylon Insert Flange Nut
Qty Used: 1Regular price $1.39 USDRegular priceUnit price per
-
208.2#018-6036-00
1/2-13 X 2-3/4 GR 5 Bolt Zinc
Qty Used: 1Regular price $1.59 USDRegular priceUnit price per
-
208.3211.7#025-7036-00
1/2 Set Collar w/set collar
Qty Used: 1Regular price $4.18 USDRegular priceUnit price per
-
208.4#033-6001-00
4 3/4 Idler Pulley - ABFI-76
Qty Used: 1Regular price $29.18 USDRegular priceUnit price per
-
208.5#039-6945-00
Idler Bracket
Qty Used: 1Regular price $37.88 USDRegular priceUnit price per
-
211#039-6947-20
2020 36" Stand On Drive Pulley Assembly
Qty Used: 1Regular price $54.99 USDRegular priceUnit price per
-
211.1#013-8047-00
5/16-18 Nylon Insert Locknut Z
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
211.3#013-9002-00
5/16-18 Hex Flange Nuts Zinc w
Qty Used: 1Regular price $0.69 USDRegular priceUnit price per
-
211.4#018-4703-00
5/16-18 X 1-1/4 Carriage Bolt
Qty Used: 1Regular price $0.69 USDRegular priceUnit price per
-
211.5#018-6037-00
1/2-13 X 2-1/4 GR 5 Hex Bolts
Qty Used: 1Regular price $1.39 USDRegular priceUnit price per
-
211.6#024-6034-00
1/4 Drive-in Grease Fitting
Qty Used: 1Regular price $0.66 USDRegular priceUnit price per
-
211.8#033-1876-00
2019 Renegade Horizontal Pump Pulley
Qty Used: 1Regular price $26.53 USDRegular priceUnit price per
-
211.9#039-6947-00
2020 36" Pump Idler Weldment--Plated
Qty Used: 1Regular price $29.99 USDRegular priceUnit price per
-
265#070-5220-19
2019 Stand On Frame--Orange
Qty Used: 1Regular price $749.99 USDRegular priceUnit price per
