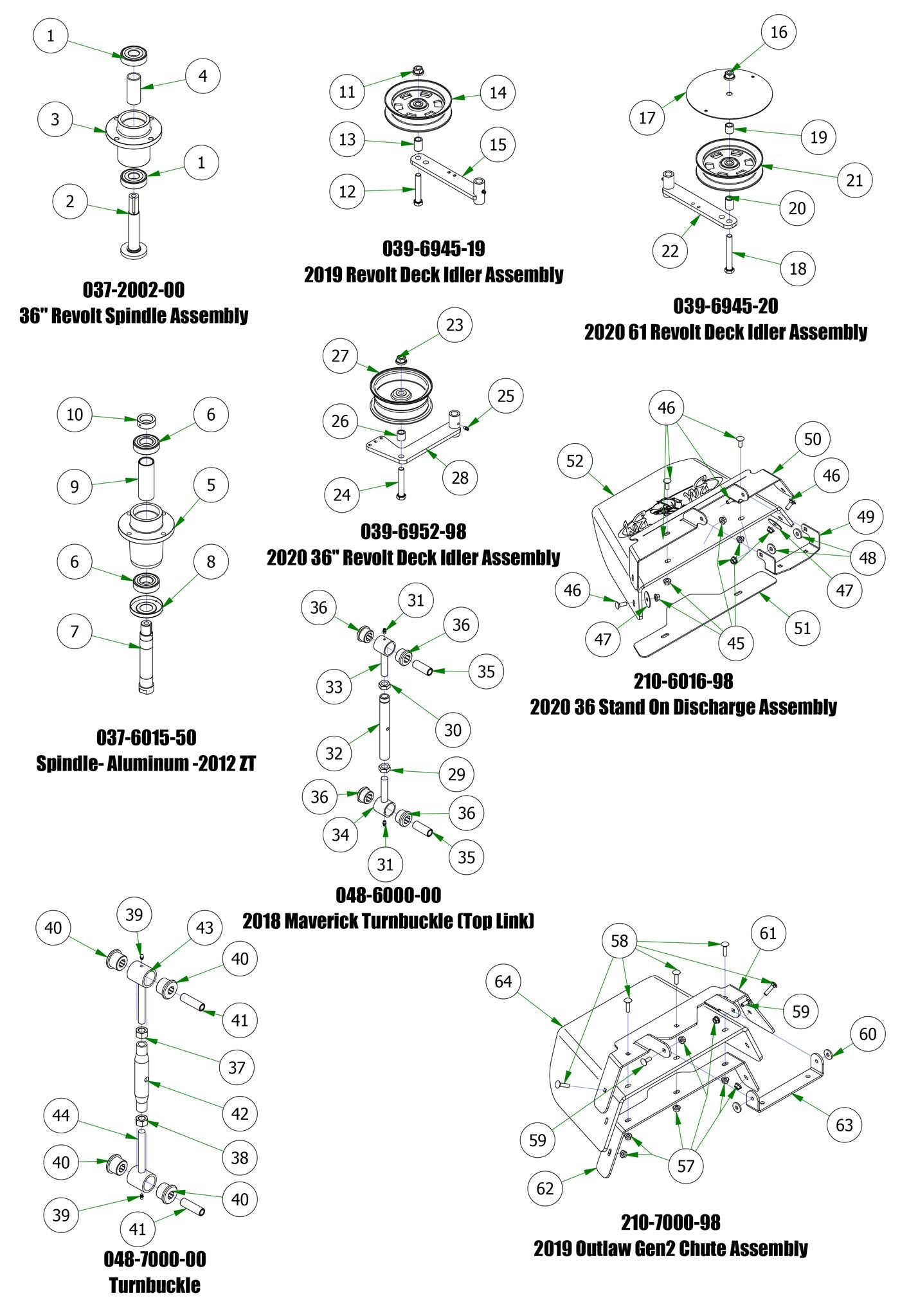

Deck Subassemblies
Parts Index
- 1 MZ Spindle Bearing (Qty 2)
- 2 36" Revolt Spindle Shaft (Qty 1)
- 3 MZ Spindle Housing (Qty 1)
- 4 MZ Spindle Spacer-Component (Qty 1)
- 5 Aluminum Spindle Housing-2010 (Qty 1)
- 6 OBSOLETE USE 037-6029-00 (Qty 2)
- 7 Short Spindle Shaft for Locking Collar- No Grooved (Qty 1)
- 8 Dust Cover for 037-8000-00 - (Qty 1)
- 9 Tube Spacer for Spindle Shaft (Qty 1)
- 10 Collar Spacer - Top of Spindle (Qty 1)
- 11 1/2-13 Nylon Insert Flange Nut (Qty 1)
- 12 1/2-13 X 3 GR 5 Hex Bolts Zinc (Qty 1)
- 13 .502x.750x1.130 Length Spacer (Qty 1)
- 14 2017 5" Split Idler Pulley-Tensioner Only (Qty 1)
- 15 Idler Bracket (Qty 1)
- 16 1/2-13 Nylon Insert Flange Nut (Qty 1)
- 17 61" Revolt Idler Pulley Cover--Black (Qty 1)
- 18 1/2-13 X 3.75 Hex Bolt-Grade 5 (Qty 1)
- 19 Spacer 3/4ODx1/2IDx0.75 (Qty 1)
- 20 .502x.750x1.130 Length Spacer (Qty 1)
- 21 2017 5" Split Idler Pulley-Tensioner Only (Qty 1)
- 22 Idler Bracket (Qty 1)
- 23 1/2-13 Nylon Insert Flange Nut (Qty 1)
- 24 1/2-13 X 3 GR 5 Hex Bolts Zinc (Qty 1)
- 25 1/4-28 Threaded Grease Fitting (Qty 1)
- 26 Spacer 3/4ODx1/2IDx0.75 (Qty 1)
- 27 Double Bearing Flat Idler (Qty 1)
- 28 2020 SD/36" Deck Idler Weldment--Plated (Qty 1)
- 29 Nut, 5/8-18 RH (Qty 1)
- 30 Nut, 5/8-18 LH (Qty 1)
- 31 1/4-28 Threaded Grease Fitting (Qty 2)
- 32 2018 Maverick Toplink Body (Qty 1)
- 33 2018 Maverick Topllink Bushing Retainer-Left Hand (Qty 1)
- 34 2018 Maverick Topllink Bushing Retainer-Right Hand (Qty 1)
- 35 2018 Maverick Topllink Bushing Sleeve (Qty 2)
- 36 2018 Maverick Topllink Bushing (Qty 4)
- 37 11/16-12 Hex Nut-2015 Toplink (Qty 1)
- 38 11/16-12 Lefthand Hex Nut-Topl (Qty 1)
- 39 1/4 Drive-in Grease Fitting (Qty 2)
- 40 Bushing-2015 Outlaw Toplink (Qty 4)
- 41 Sleeve-2015 Outlaw Toplink (Qty 2)
- 42 2015 Outlaw Toplink Body (Qty 1)
- 43 2015 Outlaw Toplink RH End (Qty 1)
- 44 2015 Outlaw Toplink LH End (Qty 1)
- 45 5/16-18 Nylon Flange Nut (Qty 6)
- 46 5/16 x 7/8 Carriage Bolt (Qty 6)
- 47 5/16" Fender Washer (Qty 2)
- 48 .360 ID Plastic Washer (Qty 2)
- 49 2020 36" Chute Hanger Bracket (Qty 1)
- 50 Discharge Chute Bracket 48 MZ (Qty 1)
- 51 OBSOLETE USE 039-4890-00 (Qty 1)
- 52 2017 MZ Discharge Chute Rubber (Qty 1)
- 57 5/16-18 Nylon Flange Nut (Qty 7)
- 58 5/16-18 X 1-1/4 Carriage Bolt (Qty 5)
- 59 5/16 x 7/8 Carriage Bolt (Qty 2)
- 60 .360 ID Plastic Washer (Qty 2)
- 61 Chute Bracket (upper) (Qty 1)
- 62 Chute Bracket (lower) (Qty 1)
- 63 Chute Hanger (Qty 1)
- 64 Discharge Chute (Rubber Component) (Qty 1)
-
1#037-6024-00
MZ Spindle Bearing
Qty Used: 2Regular price $32.10 USDRegular priceUnit price per
-
2#037-6025-01
36" Revolt Spindle Shaft
Qty Used: 1Regular price $59.00 USDRegular priceUnit price per
-
3#037-6027-00
MZ Spindle Housing
Qty Used: 1Regular price $92.82 USDRegular priceUnit price per
-
4#037-6028-00
MZ Spindle Spacer-Component
Qty Used: 1Regular price $13.26 USDRegular priceUnit price per
-
5#037-6017-50
Aluminum Spindle Housing-2010
Qty Used: 1Regular price $119.36 USDRegular priceUnit price per
-
6#037-6023-00
OBSOLETE USE 037-6029-00
Qty Used: 2Regular price $39.79 USDRegular priceUnit price per
-
7#037-6026-00
Short Spindle Shaft w/Locking Collar- No Grooved
Qty Used: 1Regular price $78.29 USDRegular priceUnit price per
-
8#037-8002-00
Dust Cover for 037-8000-00
Qty Used: 1Regular price $10.99 USDRegular priceUnit price per
-
9#037-8050-00
Tube Spacer for Spindle Shaft
Qty Used: 1Regular price $7.90 USDRegular priceUnit price per
-
10#037-9050-00
Collar Spacer - Top of Spindle
Qty Used: 1Regular price $6.62 USDRegular priceUnit price per
-
111623#013-8050-00
1/2-13 Nylon Insert Flange Nut
Qty Used: 1Regular price $1.39 USDRegular priceUnit price per
-
1224#018-7016-00
1/2-13 X 3 GR 5 Hex Bolts Zinc
Qty Used: 1Regular price $1.49 USDRegular priceUnit price per
-
1320#025-5337-00
.502x.750x1.130 Length Spacer
Qty Used: 1Regular price $2.91 USDRegular priceUnit price per
-
1421#033-8050-00
2017 5" Split Idler Pulley-Tensioner Only
Qty Used: 1Regular price $33.16 USDRegular priceUnit price per
-
1522#039-6945-00
Idler Bracket
Qty Used: 1Regular price $37.88 USDRegular priceUnit price per
-
17#014-4005-00
61" Revolt Idler Pulley Cover--Black
Qty Used: 1Regular price $19.99 USDRegular priceUnit price per
-
18#018-0051-00
1/2-13 X 3.75 Hex Bolt-Grade 5
Qty Used: 1Regular price $1.29 USDRegular priceUnit price per
-
1926#025-5203-00
Spacer 3/4ODx1/2IDx0.75
Qty Used: 1Regular price $2.99 USDRegular priceUnit price per
-
2531#024-0001-00
1/4-28 Threaded Grease Fitting
Qty Used: 2Regular price $0.50 USDRegular priceUnit price per
-
27#033-5000-00
Double Bearing Flat Idler
Qty Used: 1Regular price $53.06 USDRegular priceUnit price per
-
28#039-6952-00
2020 SD/36" Deck Idler Weldment--Plated
Qty Used: 1Regular price $9.99 USDRegular priceUnit price per
-
29#013-0019-00
Nut, 5/8-18 RH
Qty Used: 1Regular price $3.99 USDRegular priceUnit price per
-
30#013-0020-00
Nut, 5/8-18 LH
Qty Used: 1Regular price $3.99 USDRegular priceUnit price per
-
32#048-6001-00
2018 Maverick Toplink Body
Qty Used: 1Regular price $26.47 USDRegular priceUnit price per
-
33#048-6002-00
2018 Maverick Topllink Bushing Retainer-Left Hand
Qty Used: 1Regular price $26.47 USDRegular priceUnit price per
-
34#048-6003-00
2018 Maverick Topllink Bushing Retainer-Right Hand
Qty Used: 1Regular price $26.47 USDRegular priceUnit price per
-
35#048-6004-00
2018 Maverick Topllink Bushing Sleeve
Qty Used: 2Regular price $10.55 USDRegular priceUnit price per
-
36#048-6005-00
2018 Maverick Topllink Bushing
Qty Used: 4Regular price $29.99 USDRegular priceUnit price per
-
37#013-0007-00
11/16-12 Hex Nut-2015 Toplink
Qty Used: 1Regular price $2.69 USDRegular priceUnit price per
-
38#013-0008-00
11/16-12 Lefthand Hex Nut-Topl
Qty Used: 1Regular price $2.69 USDRegular priceUnit price per
-
39#024-6034-00
1/4 Drive-in Grease Fitting
Qty Used: 2Regular price $0.66 USDRegular priceUnit price per
-
40#032-2000-00
Bushing-2015 Outlaw Toplink
Qty Used: 4Regular price $3.97 USDRegular priceUnit price per
-
41#032-2001-00
Sleeve-2015 Outlaw Toplink
Qty Used: 2Regular price $3.97 USDRegular priceUnit price per
-
42#048-7020-00
2015 Outlaw Toplink Body
Qty Used: 1Regular price $26.47 USDRegular priceUnit price per
-
43#048-7021-00
2015 Outlaw Toplink RH End
Qty Used: 1Regular price $29.13 USDRegular priceUnit price per
-
44#048-7022-00
2015 Outlaw Toplink LH End
Qty Used: 1Regular price $29.13 USDRegular priceUnit price per
-
4557#013-8049-00
5/16-18 Nylon Flange Nut
Qty Used: 7Regular price $0.79 USDRegular priceUnit price per
-
4659#018-8066-00
5/16 x 7/8 Carriage Bolt
Qty Used: 2Regular price $1.49 USDRegular priceUnit price per
-
47#019-0002-00
5/16" Fender Washer
Qty Used: 2Regular price $1.99 USDRegular priceUnit price per
-
4860#019-6042-00
.360 ID Plastic Washer
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
49#039-0152-00
2020 36" Chute Hanger Bracket
Qty Used: 1Regular price $19.99 USDRegular priceUnit price per
-
50#039-4891-00
Discharge Chute Bracket 48 MZ
Qty Used: 1Regular price $33.11 USDRegular priceUnit price per
-
51#039-4892-00
OBSOLETE USE 039-4890-00
Qty Used: 1Regular price $33.11 USDRegular priceUnit price per
-
52#210-6014-00
2017 MZ Discharge Chute Rubber
Qty Used: 1Regular price $49.99 USDRegular priceUnit price per
-
58#018-4703-00
5/16-18 X 1-1/4 Carriage Bolt
Qty Used: 5Regular price $0.69 USDRegular priceUnit price per
-
61#039-4893-00
Chute Bracket (upper)
Qty Used: 1Regular price $43.78 USDRegular priceUnit price per
-
62#039-4894-00
Chute Bracket (lower)
Qty Used: 1Regular price $40.86 USDRegular priceUnit price per
-
63#206-6018-00
Chute Hanger
Qty Used: 1Regular price $8.79 USDRegular priceUnit price per
-
64#210-6025-00
Discharge Chute (Rubber Component)
Qty Used: 1Regular price $58.32 USDRegular priceUnit price per
