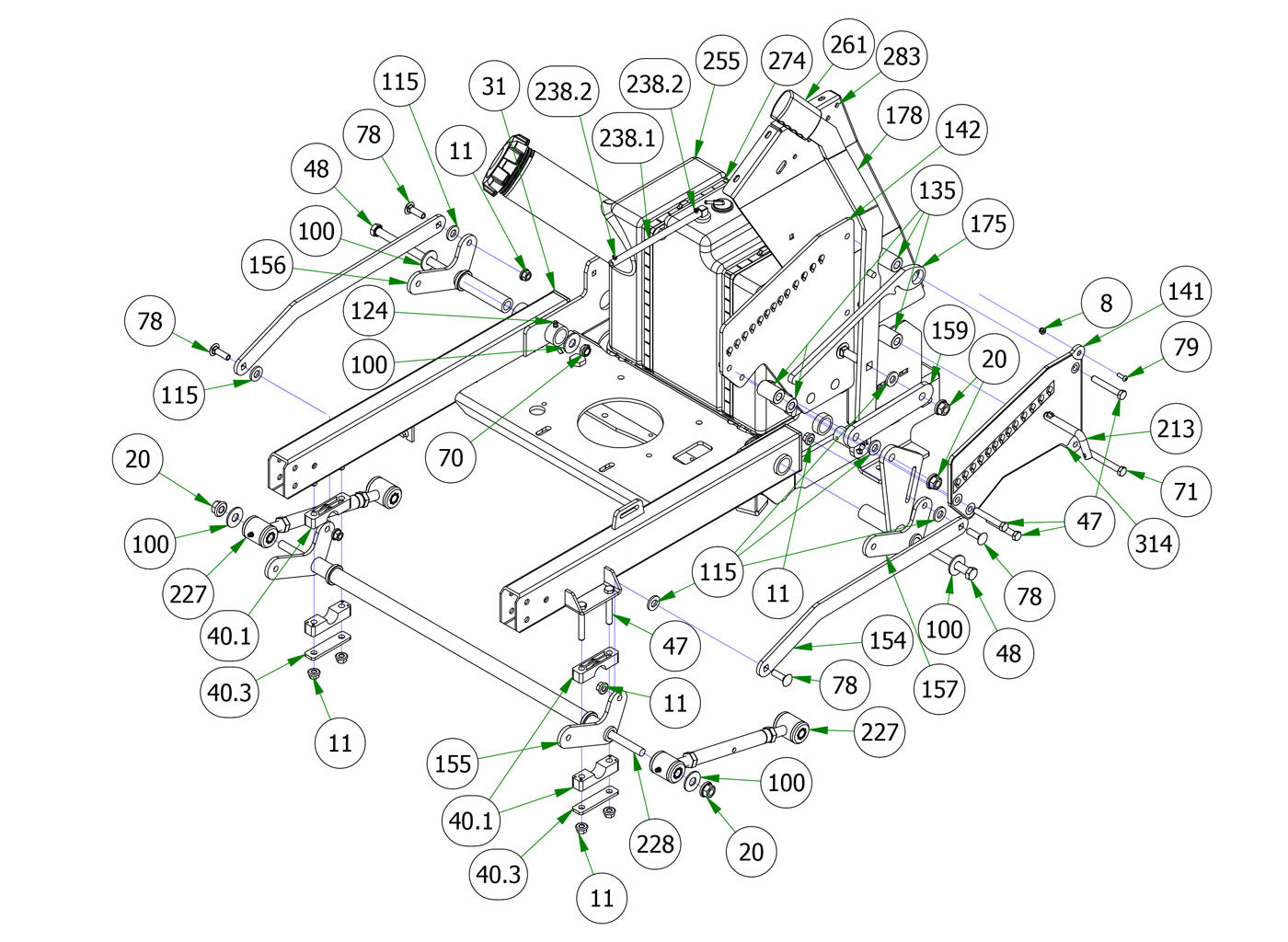

Deck Height - 36" Deck Only
Parts Index
- 8 10-24 Nylon Insert Locknut Zin (Qty 1)
- 9 3/8-16 Nylon Insert Locknut Zi (Qty 4)
- 11 3/8 Nylock Flange Nut (Qty 8)
- 19 5/16-18 Nylon Flange Nut (Qty 2)
- 20 1/2-13 Nylon Insert Flange Nut (Qty 4)
- 31 1 1/2x 3 Frame Plug (Qty 2)
- 40 Pillow Block (Qty 2)
- 40.1 2017 Magnum Pillow Block-Male (Qty 2)
- 40.3 2017 Magnum Pillow Block-Metal Plate (Qty 1)
- 42 1/2 x 1 1/2 Carriage Bolt (Qty 1)
- 47 3/8x2 1/2" Hex Bolt (Qty 7)
- 48 1/2-13 x 6 1/2 Hex Bolt Grade 5 (Qty 2)
- 70 1/2-13 Nylon Insert Jam Locknut (Qty 2)
- 71 3/8-16 X 3 GR 5 Hex Bolts Zinc (Qty 1)
- 73 5/16-18 X 1-1/4 Carriage Bolt (Qty 2)
- 78 3/8-16 X 1-1/4 Carriage Bolt (Qty 4)
- 79 10-24 X 5/8 BS C/S 18-8 SS (Qty 1)
- 100 1/2 Flat Washer (Qty 6)
- 115 .505 ID X 1 OD X .128 THK Washer (Qty 6)
- 124 1/8" Drive-in Grease Fitting No Ball (Qty 3)
- 135 .502 ID X 1.000 0D X 1.500 (Qty 4)
- 141 Outer Adjustment Plate--Orange (Qty 1)
- 154 Revolt Actuator Linkage-BLACK (Qty 2)
- 155 Revolt Front Actuator Bar Weldment--Black (Qty 1)
- 156 Revolt Rear Actuator Bar Weldment-RH--Black (Qty 1)
- 159 Lever Secondary Linkage--Black (Qty 1)
- 175 2019 Stand On Deck Lever Lock--Black (Qty 1)
- 178 2020 36" Stand On Deck Lift Lever (Qty 1)
- 213 Pin and Lanyard( 1/2 X 2 ) (Qty 1)
- 227 Toplink (Qty 2)
- 228 2020 36" Stand On Turnbuckle Rod (Qty 1)
- 238 Revolt Fuel Line Assy (Qty 1)
- 238.1 1/4 Fuel Line Hose PRICED/FOOT (Qty 1)
- 238.2 1/4 Fuel Line Clamp (Qty 2)
- 255 Stand-On/Revolt Fuel Tank (Qty 1)
- 261 Grip (Deck Lift) (Qty 1)
- 266 2020 36" Stand On Frame--Orange (Qty 1)
- 274 Band 13.5" (Qty 2)
- 283 LH Podium Panel--Orange (Qty 1)
- 314 2022 Revolt Deck Height Decal (Qty 1)
-
8#013-5019-00
10-24 Nylon Insert Locknut Zin
Qty Used: 1Regular price $0.69 USDRegular priceUnit price per
-
9#013-5041-00
3/8-16 Nylon Insert Locknut Zi
Qty Used: 4Regular price $0.69 USDRegular priceUnit price per
-
11#013-5202-00
3/8 Nylock Flange Nut
Qty Used: 8Regular price $1.49 USDRegular priceUnit price per
-
19#013-8049-00
5/16-18 Nylon Flange Nut
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
20#013-8050-00
1/2-13 Nylon Insert Flange Nut
Qty Used: 4Regular price $1.39 USDRegular priceUnit price per
-
31#014-9003-00
1 1/2x 3 Frame Plug
Qty Used: 2Regular price $2.91 USDRegular priceUnit price per
-
40#017-9076-00
Pillow Block
Qty Used: 2Regular price $21.88 USDRegular priceUnit price per
-
40.1#017-9077-00
2017 Magnum Pillow Block-Male
Qty Used: 2Regular price $19.89 USDRegular priceUnit price per
-
40.3#017-9079-00
2017 Magnum Pillow Block-Metal Plate
Qty Used: 1Regular price $19.89 USDRegular priceUnit price per
-
42#018-0008-00
1/2 x 1 1/2 Carriage Bolt
Qty Used: 1Regular price $1.39 USDRegular priceUnit price per
-
47#018-0028-00
3/8x2 1/2" Hex Bolt
Qty Used: 7Regular price $3.99 USDRegular priceUnit price per
-
48#018-0038-00
1/2-13 x 6 1/2 Hex Bolt Grade 5
Qty Used: 2Regular price $2.69 USDRegular priceUnit price per
-
70#018-4010-00
1/2-13 Nylon Insert Jam Locknut
Qty Used: 2Regular price $1.59 USDRegular priceUnit price per
-
71#018-4700-00
3/8-16 X 3 GR 5 Hex Bolts Zinc
Qty Used: 1Regular price $0.89 USDRegular priceUnit price per
-
73#018-4703-00
5/16-18 X 1-1/4 Carriage Bolt
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
78#018-5043-00
3/8-16 X 1-1/4 Carriage Bolt
Qty Used: 4Regular price $0.99 USDRegular priceUnit price per
-
79#018-5200-00
10-24 X 5/8 BS C/S 18-8 SS
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
100#019-2040-00
1/2 Flat Washer
Qty Used: 6Regular price $1.39 USDRegular priceUnit price per
-
115#019-8054-00
.505 ID X 1 OD X .128 THK Washer
Qty Used: 6Regular price $0.69 USDRegular priceUnit price per
-
124#024-3050-00
1/4" Drive-in Grease Fitting
Qty Used: 3Regular price $0.99 USDRegular priceUnit price per
-
135#025-5338-00
.502 ID X 1.000 0D X 1.500
Qty Used: 4Regular price $3.29 USDRegular priceUnit price per
-

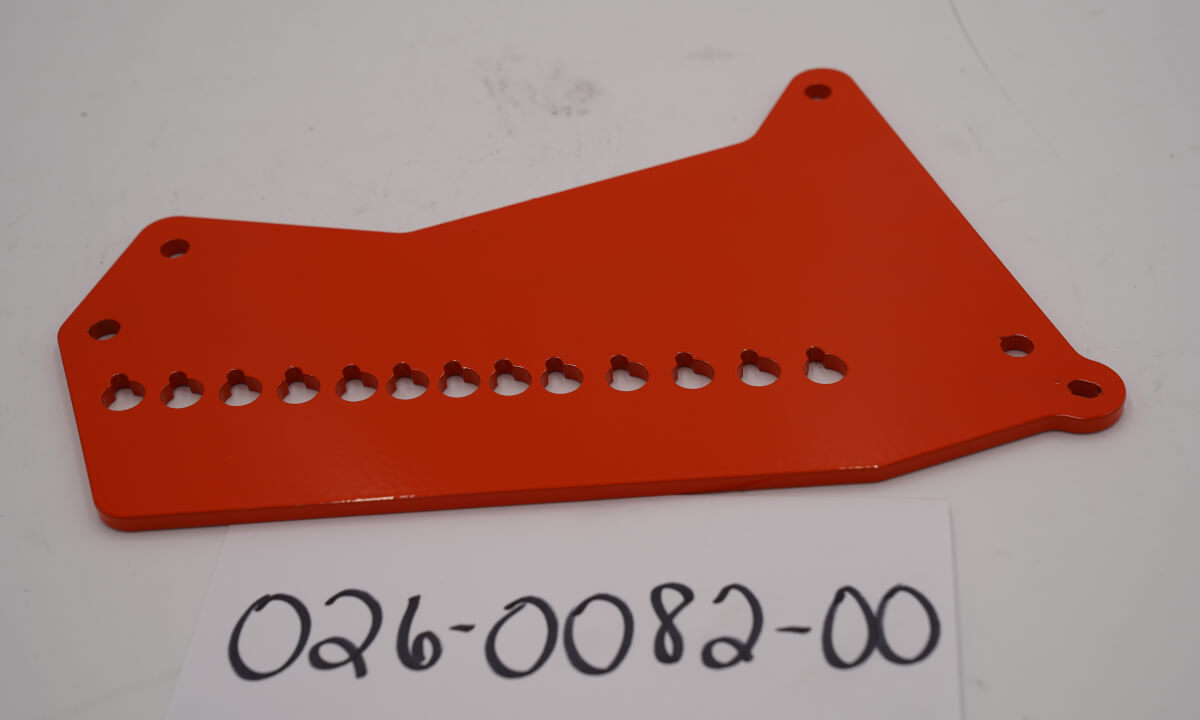

141#026-0082-00
Outer Adjustment Plate--Orange
Qty Used: 1Regular price $29.99 USDRegular priceUnit price per
-
154#028-0033-00
Revolt Actuator Linkage-BLACK
Qty Used: 2Regular price $9.28 USDRegular priceUnit price per
-
155#028-0036-00
Revolt Front Actuator Bar Weldment--Black
Qty Used: 1Regular price $69.99 USDRegular priceUnit price per
-
156#028-0037-00
Revolt Rear Actuator Bar Weldment-RH--Black
Qty Used: 1Regular price $19.99 USDRegular priceUnit price per
-
159#028-5001-00
Lever Secondary Linkage--Black
Qty Used: 1Regular price $11.99 USDRegular priceUnit price per
-
175#031-0093-00
2019 Stand On Deck Lever Lock--Black
Qty Used: 1Regular price $22.54 USDRegular priceUnit price per
-
178#031-7148-00
2020 36" Stand On Deck Lift Lever
Qty Used: 1Regular price $69.95 USDRegular priceUnit price per
-
213#040-4001-00
Pin and Lanyard( 1/2 X 2 )
Qty Used: 1Regular price $13.26 USDRegular priceUnit price per
-
-
228#048-6058-00
2020 36" Stand On Turnbuckle Rod
Qty Used: 1Regular price $39.99 USDRegular priceUnit price per
-
No sequence found for SKU:
Revolt Fuel Line Assy
Regular price $0.00 USDRegular priceUnit price per
-
238.1#051-8067-00
1/4 Fuel Line Hose PRICED/FOOT
Qty Used: 1Regular price $5.83 USDRegular priceUnit price per
-
238.2#072-8069-00
1/4 Fuel Line Clamp
Qty Used: 2Regular price $0.88 USDRegular priceUnit price per
-
255#067-0030-00
Stand-On/Revolt Fuel Tank
Qty Used: 1Regular price $229.99 USDRegular priceUnit price per
-
261#069-4012-00
Grip (Deck Lift)
Qty Used: 1Regular price $13.26 USDRegular priceUnit price per
-
274#072-0051-00
Band 13.5"
Qty Used: 2Regular price $10.60 USDRegular priceUnit price per
-
283#079-4111-00
LH Podium Panel--Orange
Qty Used: 1Regular price $34.99 USDRegular priceUnit price per
-
314#091-4020-22
2022 Revolt Deck Height Decal
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
