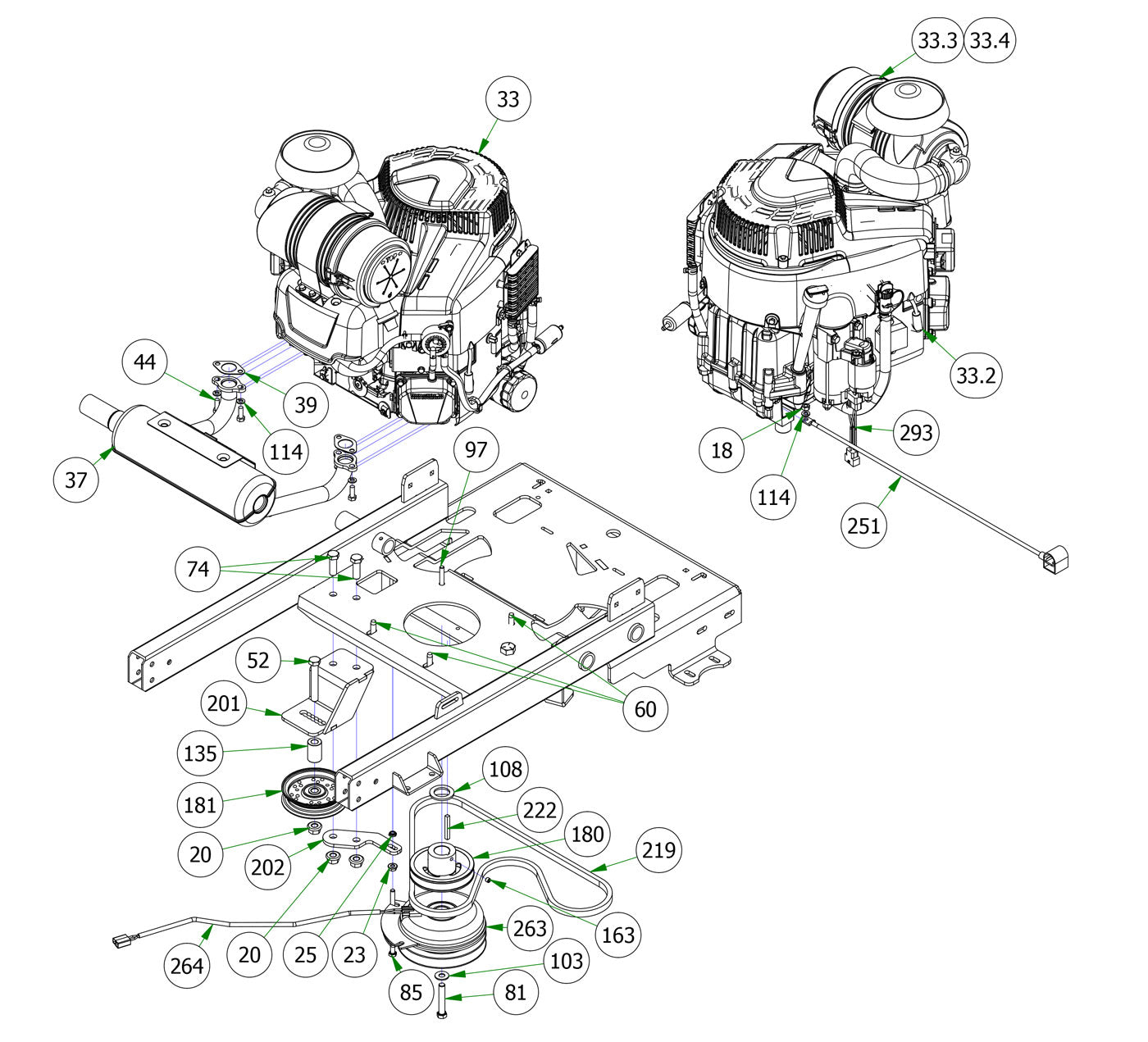

Briggs 28HP Vanguard
Parts Index
- 18 5/16-18 Hex Nuts Zinc (Qty 1)
- 20 1/2-13 Nylon Insert Flange Nut (Qty 3)
- 23 5/16-18 Hex Flange Nuts Zinc w (Qty 1)
- 25 5/16-18 Nylock Jam Nut (Qty 1)
- 33 28HP Briggs Vanguard 810cc (Qty 1)
- 33.2 Spark Plug-Kohler/Briggs (Qty 2)
- 33.3 Canister Air Fil Outer2010&Old (Qty 1)
- 33.4 Canister Air Filter - Inner (Qty 1)
- 37 Briggs 28 EFI Exhaust Revolt (Qty 1)
- 39 Exhaust Gasket for 27 - Single Gasket (Qty 2)
- 44 Torx Bolt-Exhaust-23hp Vanguard (Qty 4)
- 52 1/2-13 X 3.25 Hex Bolt-Grade 5 (Qty 1)
- 60 3/8 x 1 1/8 Engine Mounting Bolt (Qty 3)
- 74 1/2-13 X 1-1/2 GR 5 Hex Bolt (Qty 2)
- 81 7/16-20 X 2-1/2 GR 5 Hex Bolt (Qty 1)
- 85 5/16-18 X 5-1/2 GR 5 Hex Bolt (Qty 1)
- 97 5/16-18x1-3/4 GR 5 Hex Bolts (Qty 1)
- 103 3/8 USS Flat Washer Zinc (Qty 1)
- 108 1.140x1.750x .132 Flat Washer (Qty 2)
- 114 5/16 Lock washer Zinc (Qty 5)
- 135 .502 ID X 1.000 0D X 1.500 (Qty 1)
- 163 5/16-24 x 1/4 Set Screw (Qty 1)
- 180 4 3/4 Motor Pulley (Qty 1)
- 181 4 3/4 Idler Pulley - ABFI-76 (Qty 1)
- 201 Idler Pulley Bracket Weldment--Orange (Qty 1)
- 202 Clutch Stop Bracket--Plated Rev B (Qty 1)
- 219 2019 & up Stand On Drive Belt (Qty 1)
- 222 1/4 X 2 Square Key Stock (Qty 1)
- 251 24 inch Black Cable - MZ/ZT (Qty 1)
- 263 Revolt, Rogue, Rebel, HD Clutch (Qty 1)
- 264 Clutch Pigtail (Qty 1)
- 265 2019 Stand On Frame--Orange (Qty 1)
- 293 2021 28 Briggs EFI Pigtail (Qty 1)
-
18#013-8043-00
5/16-18 Hex Nuts Zinc
Qty Used: 1Regular price $0.69 USDRegular priceUnit price per
-
20#013-8050-00
1/2-13 Nylon Insert Flange Nut
Qty Used: 3Regular price $1.39 USDRegular priceUnit price per
-
23#013-9002-00
5/16-18 Hex Flange Nuts Zinc w
Qty Used: 1Regular price $0.69 USDRegular priceUnit price per
-
25#013-9005-00
5/16-18 Nylock Jam Nut
Qty Used: 1Regular price $2.69 USDRegular priceUnit price per
-
33#015-0092-00
28HP Briggs Vanguard 810cc
Qty Used: 1Regular price $2,399.99 USDRegular priceUnit price per
-
33.2#015-8000-00
Spark Plug-Kohler/Briggs
Qty Used: 2Regular price $9.99 USDRegular priceUnit price per
-
33.3#063-8019-00
Canister Air Fil Outer2010&Old
Qty Used: 1Regular price $33.50 USDRegular priceUnit price per
-
33.4#063-8020-00
Canister Air Filter - Inner
Qty Used: 1Regular price $30.51 USDRegular priceUnit price per
-
37#015-1021-00
Briggs 28 EFI Exhaust Revolt
Qty Used: 1Regular price $179.99 USDRegular priceUnit price per
-
39#015-2709-00
Exhaust Gasket for 27 - Single Gasket
Qty Used: 2Regular price $7.28 USDRegular priceUnit price per
-
44#018-0017-00
Torx Bolt-Exhaust-23hp Vanguard
Qty Used: 4Regular price $5.29 USDRegular priceUnit price per
-
52#018-0050-00
1/2-13 X 3.25 Hex Bolt-Grade 5
Qty Used: 1Regular price $1.19 USDRegular priceUnit price per
-
60#018-1075-00
3/8 x 1 1/8 Engine Mounting Bolt
Qty Used: 3Regular price $1.39 USDRegular priceUnit price per
-
74#018-5006-00
1/2-13 X 1-1/2 GR 5 Hex Bolt
Qty Used: 2Regular price $0.89 USDRegular priceUnit price per
-
81#018-5300-00
7/16-20 X 2-1/2 GR 5 Hex Bolt
Qty Used: 1Regular price $1.19 USDRegular priceUnit price per
-
85#018-5350-00
5/16-18 X 5-1/2 GR 5 Hex Bolt
Qty Used: 1Regular price $1.79 USDRegular priceUnit price per
-
97#018-8059-00
5/16-18x1-3/4 GR 5 Hex Bolts
Qty Used: 1Regular price $0.69 USDRegular priceUnit price per
-
103#019-5029-00
3/8 USS Flat Washer Zinc
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
108#019-6029-00
1.140x1.750x .132 Flat Washer
Qty Used: 2Regular price $1.19 USDRegular priceUnit price per
-
114#019-8051-00
5/16 Lock washer Zinc
Qty Used: 5Regular price $0.79 USDRegular priceUnit price per
-
135#025-5338-00
.502 ID X 1.000 0D X 1.500
Qty Used: 1Regular price $3.29 USDRegular priceUnit price per
-
163#030-0050-00
5/16-24 x 1/4 Set Screw
Qty Used: 1Regular price $1.59 USDRegular priceUnit price per
-
180#033-5035-00
4 3/4 Motor Pulley
Qty Used: 1Regular price $39.79 USDRegular priceUnit price per
-
181#033-6001-00
4 3/4 Idler Pulley - ABFI-76
Qty Used: 1Regular price $29.18 USDRegular priceUnit price per
-
201#039-0089-00
Idler Pulley Bracket Weldment--Orange
Qty Used: 1Regular price $26.53 USDRegular priceUnit price per
-
202#039-0119-00
Clutch Stop Bracket--Plated
Qty Used: 1Regular price $9.28 USDRegular priceUnit price per
-
219#041-8052-00
2019 & up Stand On Drive Belt
Qty Used: 1Regular price $74.99 USDRegular priceUnit price per
-
222#042-5020-00
1/4 X 2 Square Key Stock
Qty Used: 1Regular price $2.92 USDRegular priceUnit price per
-
251#064-0030-00
24 inch Black Cable - MZ/ZT
Qty Used: 1Regular price $17.50 USDRegular priceUnit price per
-
-
264#070-2000-00
Clutch Pigtail
Qty Used: 1Regular price $19.85 USDRegular priceUnit price per
-
265#070-5220-19
2019 Stand On Frame--Orange
Qty Used: 1Regular price $749.99 USDRegular priceUnit price per
-
293#086-9015-21
2021 28 Briggs EFI Pigtail
Qty Used: 1Regular price $19.99 USDRegular priceUnit price per
