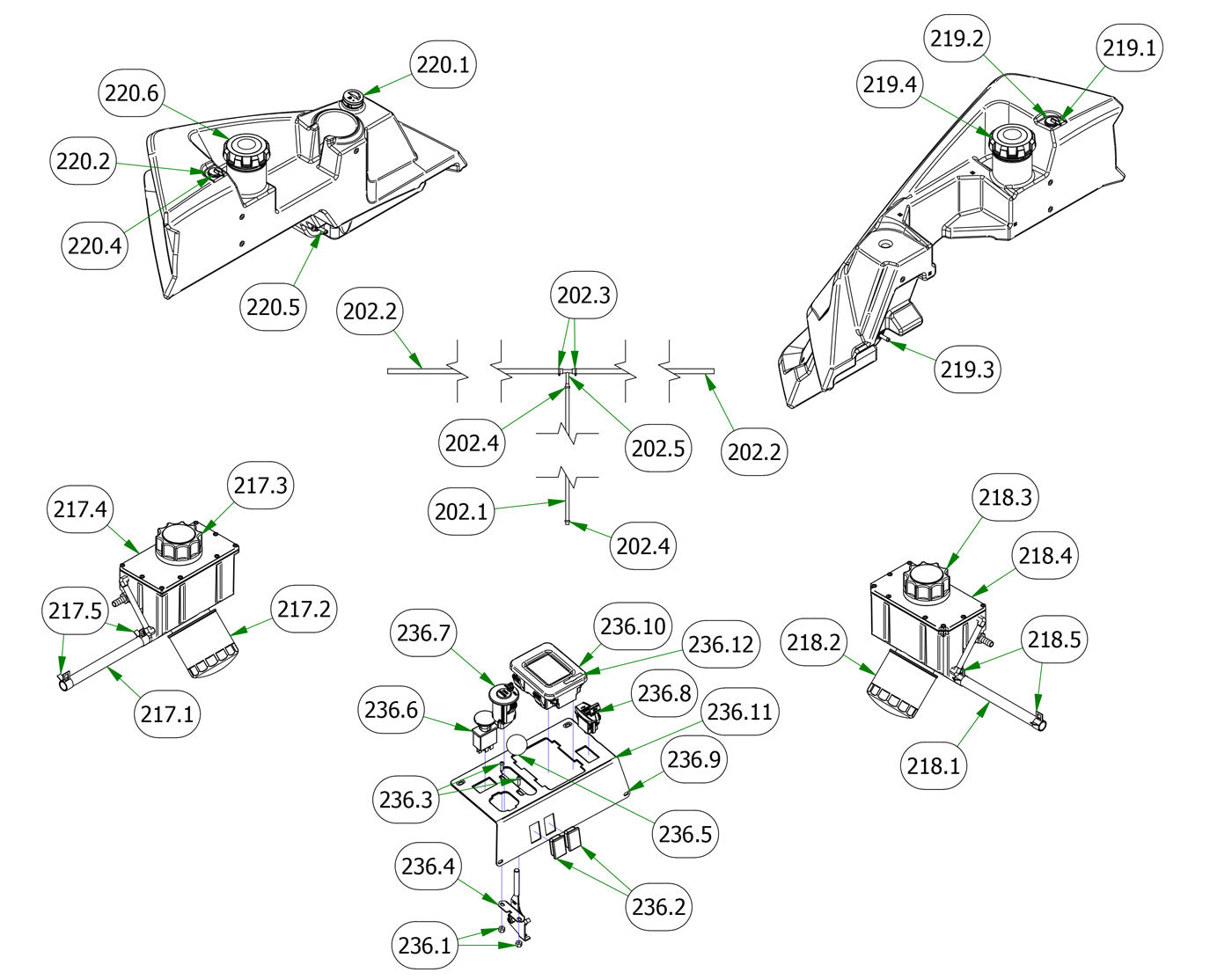

Tank Subassemblies

Parts Index
- 202 2019 R-Series Fuel Line for Kohler (Qty 1)
- 202.1 28" 1/4 Fuel Line No Clamp (Qty 1)
- 202.2 26" 5/16 Fuel Line No Clamps (Qty 2)
- 202.3 5/8 Fuel Line Clamp (Qty 2)
- 202.4 1/4 Fuel Line Clamp (Qty 2)
- 202.5 5/16 x 5/16 x 1/4 Fuel Line T (Qty 1)
- 217 LH Renegade Hydro Tank Assy (Qty 1)
- 217.1 21" 1/2 Braided Hose (Qty 1)
- 217.2 Hydraulic Filter-All Models (Qty 1)
- 217.3 Hydraulic Tank Cap w/Dipstick (Qty 1)
- 217.4 2019 RG/RN Hydro Tank LH (Qty 1)
- 217.5 1/2 Hose Clamp (Qty 2)
- 218 RH Renegade Hydro Tank Assy (Qty 1)
- 218.1 21" 1/2 Braided Hose (Qty 1)
- 218.2 Hydraulic Filter-All Models (Qty 1)
- 218.3 Hydraulic Tank Cap w/Dipstick (Qty 1)
- 218.41 2019 RG/RN Hydro Tank RH (Qty 1)
- 218.5 1/2 Hose Clamp (Qty 2)
- 219 2019 Right Rebel, Rogue, Renagade Fuel Tank (GAS) (Qty 1)
- 219.1 Old Style Grommet for Fule Gau (Qty 1)
- 219.2 Rollover Valve and Grommet New (Qty 1)
- 219.3 Fuel Pickup for 2019 Fuel Tanks (Qty 1)
- 219.4 Fuel Tank Cap for 2019 Fuel Tank (Qty 1)
- 220 2019 Left Rebel, Rogue, Renegade Fuel Tank (GAS) (Qty 1)
- 220.1 Fuel Gauge Assembly w/ Grommet-2014 ZT,2015 Outlaw (Qty 1)
- 220.2 Old Style Grommet for Fule Gau (Qty 1)
- 220.3 New Style Grommet for 2017 MZ Magnum Fuel Gauge (Qty 1)
- 220.4 Rollover Valve and Grommet New (Qty 1)
- 220.5 Fuel Pickup for 2019 Fuel Tanks (Qty 1)
- 220.6 Fuel Tank Cap for 2019 Fuel Tank (Qty 1)
- 236 Renegade Control Panel ASSY (Qty 1)
- 236.1 10-24 Nylon Insert Locknut Zin (Qty 2)
- 236.2 Light Plug (Qty 2)
- 236.3 10-24 X 5/8 BS C/S 18-8 SS (Qty 2)
- 236.4 Universal Throttle Head - 2012 (Qty 1)
- 236.5 Throttle / Brake Head Ball (Qty 1)
- 236.6 PTO Engager-Switch for Blades (Qty 1)
- 236.7 2019 Push to Start Switch w/fob (Qty 1)
- 236.8 USB Port (Qty 1)
- 236.9 Digital Control Panel--Orange (Qty 1)
- 236.10 2019 LED Display (Qty 1)
- 236.11 2022 Renegade(GAS) control panal decal (Qty 1)
- 236.12 2022 Digital Display Decal (Qty 1)
