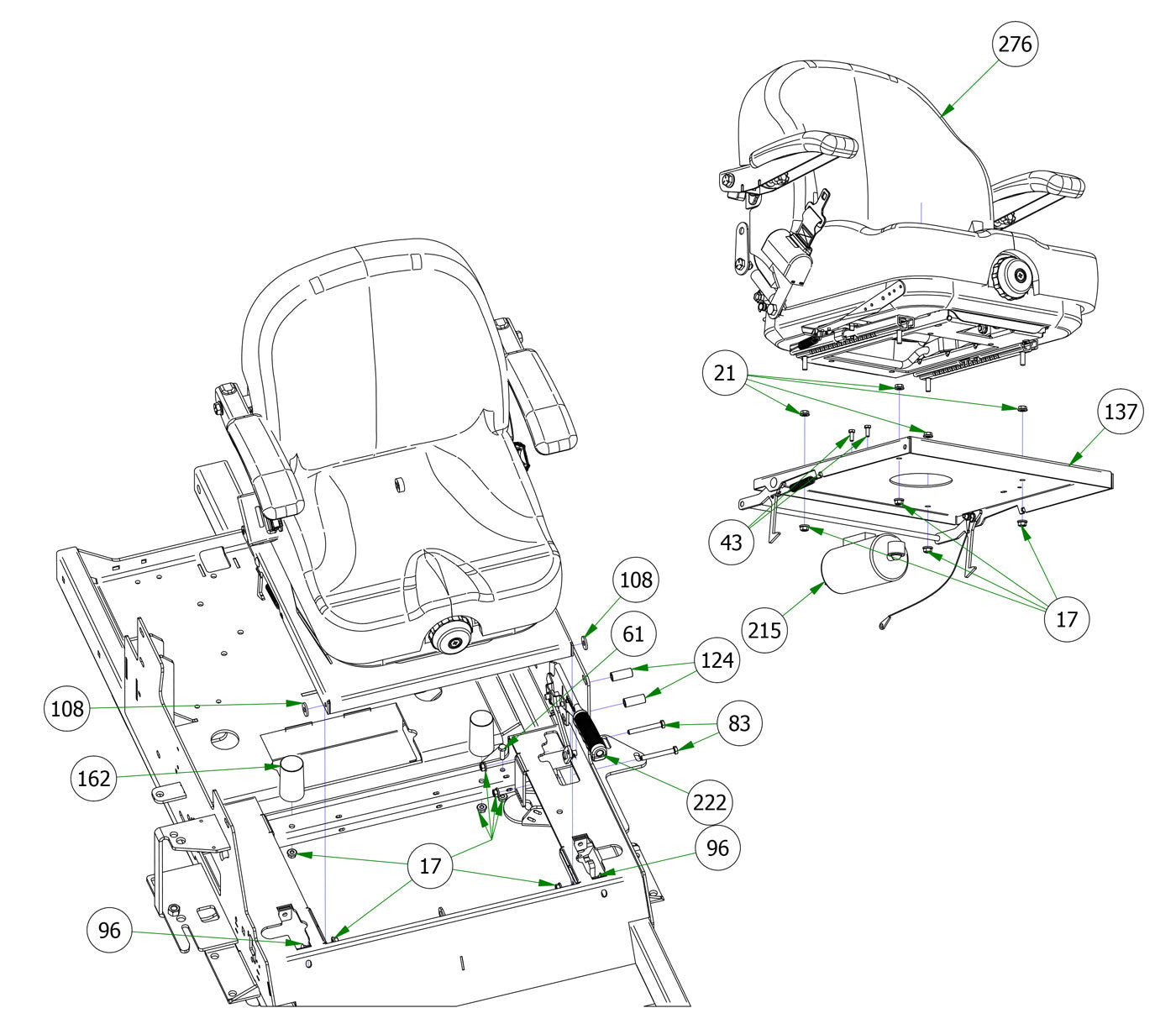

Seat & Brake
Parts Index
- 17 5/16-18 Nylon Flange Nut (Qty 11)
- 21 5/16-18 Hex Flange Nuts Zinc w (Qty 4)
- 43 M6-1.0 X 16MM HEX BOLT CL 8 (Qty 2)
- 61 5/16-18 X 1 GR 5 Hex Bolt Zinc (Qty 1)
- 83 5/16 x 2 1/2 Bolt (Qty 2)
- 96 5/16-18 X 1 Carriage Bolt Zinc (Qty 2)
- 108 .360 ID Plastic Washer (Qty 2)
- 124 2019 Brake Handle Spacer .625 x 1.5 (Qty 2)
- 137 R-Series Seat Plate Assembly (Qty 1)
- 162 Bumper (Seat) (Qty 2)
- 215 2019 R-Series EPA Cannister Assembly (Qty 1)
- 222 2019 Rebel, Rogue, Renegade Brake Handle Assy (Qty 1)
- 228 2019 Horizontal Gas Frame--Orange (Qty 1)
- 276 2022 Seats Inc Suspension Seat with seatbelt (Qty 1)
-
17#013-8049-00
5/16-18 Nylon Flange Nut
Qty Used: 11Regular price $0.79 USDRegular priceUnit price per
-
21#013-9002-00
5/16-18 Hex Flange Nuts Zinc w
Qty Used: 4Regular price $0.69 USDRegular priceUnit price per
-
43#018-0024-00
M6-1.0 X 16MM HEX BOLT CL 8
Qty Used: 2Regular price $2.69 USDRegular priceUnit price per
-
61#018-2007-00
5/16-18 X 1 GR 5 Hex Bolt Zinc
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
83#018-5344-00
5/16 x 2 1/2 Bolt
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
96#018-8065-00
5/16-18 X 1 Carriage Bolt Zinc
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
108#019-6042-00
.360 ID Plastic Washer
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
124#025-0027-00
2019 Brake Handle Spacer .625 x 1.5
Qty Used: 2Regular price $6.59 USDRegular priceUnit price per
-
137#026-2019-21
R-Series Seat Plate Assembly
Qty Used: 1Regular price $119.99 USDRegular priceUnit price per
-
162#032-0001-00
Bumper (Seat)
Qty Used: 2Regular price $21.88 USDRegular priceUnit price per
-
215#067-0020-19
2019 Outlaw EPA Cannister Assembly
Qty Used: 1Regular price $39.95 USDRegular priceUnit price per
-
222#069-0001-00
2019 Rebel, Rogue, Renegade Brake Handle Assy
Qty Used: 1Regular price $132.68 USDRegular priceUnit price per
-
228#070-5373-19
2019 Horizontal Gas Frame--Orange
Qty Used: 1Regular price $1,061.53 USDRegular priceUnit price per
-
276#071-6065-22
2022 Seats Inc Suspension Seat with seatbelt
Qty Used: 1Regular price $829.99 USDRegular priceUnit price per
