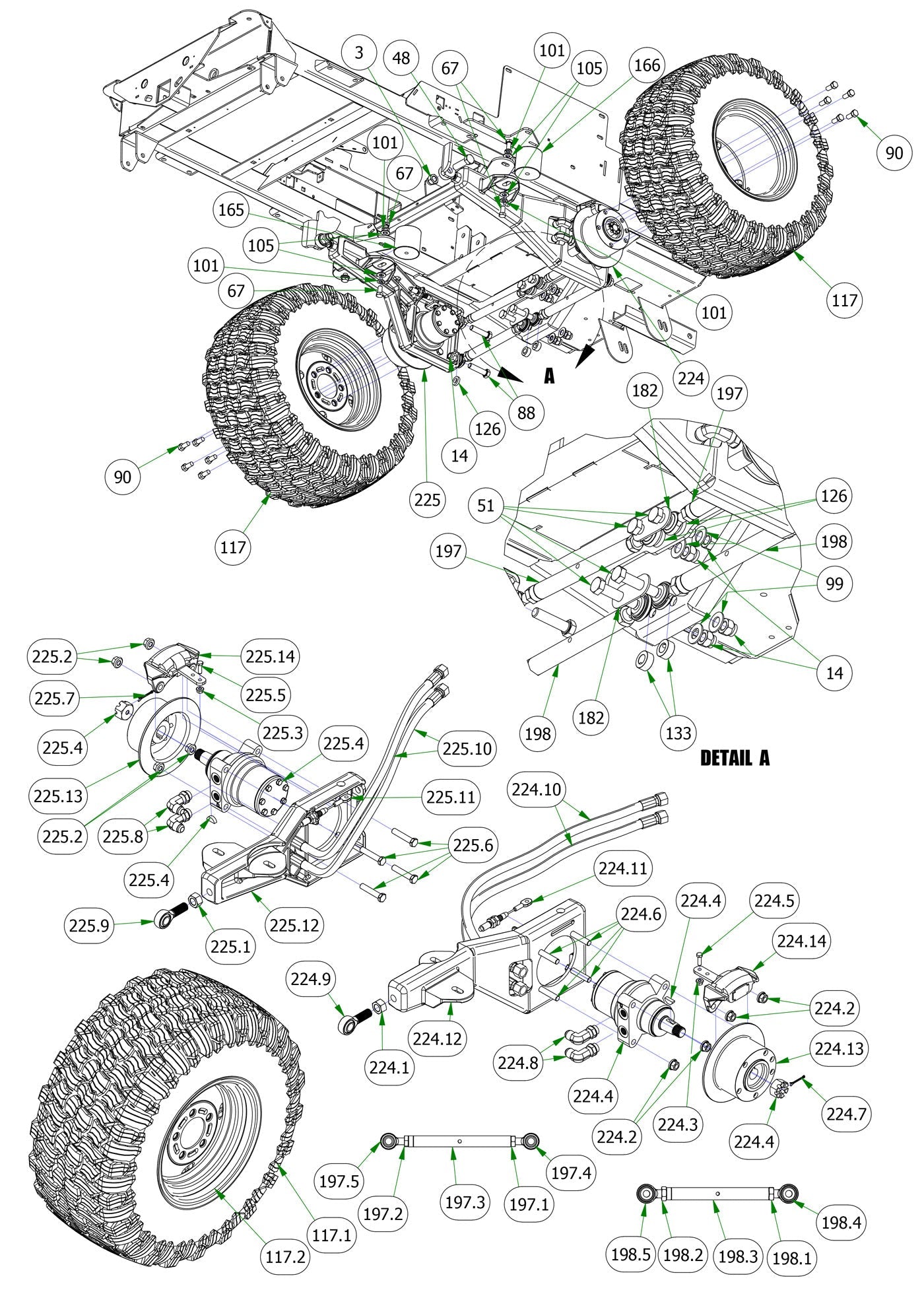

Rear Suspension
Parts Index
- 3 3/4" Course Thread Nylon Lock Nut (Qty 2)
- 14 5/8-11 Nylon Insert Locknut Zi (Qty 8)
- 24 2019 2" x .25 Rubber Grommet (Qty 2)
- 48 3/4 x 2 1/2 Course Thread Bolt (Qty 2)
- 51 5/8-11 x 2 3/4 Hex Head Bolt GR 5 (Qty 4)
- 67 1/2 x 1 Bolt (Qty 8)
- 88 5/8-11 X 2-1/2 GR 5 Hex Bolts (Qty 4)
- 90 1/2-20 Wheel Bolt -3/4" 60 Degree Seat 1" Threads (Qty 10)
- 99 1/2-20 Wheel Bolt -3/4" 60 Degree Seat 1" Threads (Qty 4)
- 101 1/2 Lockwasher Zinc (Qty 8)
- 105 1/2 SAE Flat Washer GR 8 (Qty 8)
- 117 2019 Assy-26x12-12 Reaper Turf 2019-10.5" Rim (Qty 2)
- 117.1 2019 26x12-12 Reaper Turf Tire (Qty 1)
- 117.2 2019 10.5" Wheel Fits 022-4090-00 (Qty 1)
- 126 Spacer 1.125 OD x .625 ID x .250 Length (Qty 4)
- 133 5/8 Set Collar W/One Set Screw (Qty 2)
- 165 Isolator (Blue Dot) (Qty 2)
- 166 Isolator (Green Dot) (Qty 2)
- 182 2019 Suspension Gusset--Plated (Qty 2)
- 197 2019 Rear Radius Rod W/ Greasable Hiem (Qty 2)
- 197.1 Nut, 5/8-18 RH (Qty 1)
- 197.2 Nut, 5/8-18 LH (Qty 1)
- 197.3 2019 Suspension Link Body-RH and LH Threads (Qty 1)
- 197.4 Heim 5/8" RH (Qty 1)
- 197.5 Heim 5/8" LH (Qty 1)
- 198 Supension linkage (3/4 body | 5/8 Hole) (Qty 2)
- 198.2 3/4 - 16 LH Half Nut (Qty 1)
- 198.4 Hime RH (3/4 body | 5/8 hole) (Qty 1)
- 198.5 Heim LH (3/4 Body | 5/8 Hole) (Qty 1)
- 224.1 3/4"-16 Fine Full Nut (Qty 1)
- 224.2 1/2-13 Gr 8 Centerlock Flange Nut (Qty 4)
- 224.3 5/16-18 Nylon Flange Nut (Qty 1)
- 224.4 18ci Parker Wheel Motor - Left (Qty 1)
- 224.5 5/16-18 X 1 GR 5 Hex Bolt Zinc (Qty 1)
- 224.6 1/2-13 x 2.75 Gr.8 Hex Head Bolt (Qty 4)
- 224.7 1/8 X 1 1/2 Cotter Pins Zinc (Qty 1)
- 224.8 2019 Rogue/Renegade Wheel Motor 90* Fitting (Qty 2)
- 224.9 Heim 3/4" RH (Qty 1)
- 224.10 2019 Renegade Hydro Hose (Qty 2)
- 224.11 2019 Short Brake Cable-Suspension Models (Qty 1)
- 224.12 2019 Left Trailing Arm (Qty 1)
- 224.13 Brake Disc (96-37486) (Qty 1)
- 224.14 Brake Caliper with Bracket LH (Qty 1)
- 225.1 5/16-18 X 1 GR 5 Hex Bolt Zinc (Qty 1)
- 225.2 1/2-13 Gr 8 Centerlock Flange Nut (Qty 4)
- 225.3 5/16-18 Nylon Flange Nut (Qty 1)
- 225.4 18ci Parker Wheel Motor-Right (Qty 1)
- 225.5 5/16-18 X 1 GR 5 Hex Bolt Zinc (Qty 1)
- 225.6 1/2-13 x 2.75 Gr.8 Hex Head Bolt (Qty 4)
- 225.7 1/8 X 1 1/2 Cotter Pins Zinc (Qty 1)
- 225.8 2019 Rogue/Renegade Wheel Motor 90* Fitting (Qty 2)
- 225.9 Heim 3/4" RH (Qty 1)
- 225.10 2019 Renegade Hydro Hose (Qty 2)
- 225.11 2019 Long Brake Cable-Renegade, Rogue (Qty 1)
- 225.12 2019 Right Trailing Arm (Qty 1)
- 225.13 Brake Disc (96-37486) (Qty 1)
- 225.14 Brake Caliper with Bracket RH (Qty 1)
- 228 2019 Horizontal Gas Frame--Orange (Qty 1)
-
3#013-0023-00
3/4" Course Thread Nylon Lock Nut
Qty Used: 2Regular price $6.69 USDRegular priceUnit price per
-
14#013-7021-00
5/8-11 Nylon Insert Locknut Zi
Qty Used: 8Regular price $1.19 USDRegular priceUnit price per
-
24#014-2052-00
2019 2" x .25 Rubber Grommet
Qty Used: 2Regular price $7.99 USDRegular priceUnit price per
-
48#018-0045-00
3/4 x 2 1/2 Course Thread Bolt
Qty Used: 2Regular price $2.69 USDRegular priceUnit price per
-
51#018-0049-00
5/8-11 x 2 3/4 Hex Head Bolt GR 5
Qty Used: 4Regular price $3.99 USDRegular priceUnit price per
-
67#018-2030-00
1/2 x 1 Bolt
Qty Used: 8Regular price $2.69 USDRegular priceUnit price per
-
88#018-6059-00
5/8-11 X 2-1/2 GR 5 Hex Bolts
Qty Used: 4Regular price $2.29 USDRegular priceUnit price per
-
9099#018-7033-00
1/2-20 Wheel Bolt -3/4" 60 Degree Seat 1" Threads
Qty Used: 4Regular price $1.99 USDRegular priceUnit price per
-
101#019-5007-00
1/2 Lockwasher Zinc
Qty Used: 8Regular price $0.00 USDRegular priceUnit price per
-
105#019-5702-00
1/2 SAE Flat Washer GR 8
Qty Used: 8Regular price $0.75 USDRegular priceUnit price per
-
117#022-4090-00
2019 Assy-26x12-12 Reaper Turf 2019-10.5" Rim
Qty Used: 2Regular price $209.99 USDRegular priceUnit price per
-
117.1#022-4085-00
2019 26x12-12 Reaper Turf Tire
Qty Used: 1Regular price $209.99 USDRegular priceUnit price per
-
117.2#022-4086-00
2019 10.5" Wheel Fits 022-4090-00
Qty Used: 1Regular price $131.99 USDRegular priceUnit price per
-
126#025-0071-00
Spacer 1.125 OD x .625 ID x .250 Length
Qty Used: 4Regular price $13.26 USDRegular priceUnit price per
-
133#025-7020-00
5/8 Set Collar W/One Set Screw
Qty Used: 2Regular price $3.97 USDRegular priceUnit price per
-
165#032-8999-00
Isolator (Blue Dot)
Qty Used: 2Regular price $60.02 USDRegular priceUnit price per
-
166#032-9000-00
Isolator (Green Dot)
Qty Used: 2Regular price $66.33 USDRegular priceUnit price per
-
182#039-2145-00
2019 Suspension Gusset--Plated
Qty Used: 2Regular price $13.26 USDRegular priceUnit price per
-
197#048-6061-00
2019 Rear Radius Rod W/ Greasable Hiem
Qty Used: 2Regular price $53.06 USDRegular priceUnit price per
-
197.1#013-0019-00
Nut, 5/8-18 RH
Qty Used: 1Regular price $3.99 USDRegular priceUnit price per
-
197.2#013-0020-00
Nut, 5/8-18 LH
Qty Used: 1Regular price $3.99 USDRegular priceUnit price per
-
197.3#048-0001-00
2019 Suspension Link Body-RH and LH Threads
Qty Used: 1Regular price $26.47 USDRegular priceUnit price per
-
197.4#048-6062-00
Heim 5/8" RH
Qty Used: 1Regular price $19.89 USDRegular priceUnit price per
-
197.5#048-6063-00
Heim 5/8" LH
Qty Used: 1Regular price $19.89 USDRegular priceUnit price per
-
198#048-6064-00
Supension linkage (3/4 body | 5/8 Hole)
Qty Used: 2Regular price $72.97 USDRegular priceUnit price per
-
198.2#013-0028-00
3/4 - 16 LH Half Nut
Qty Used: 1Regular price $1.99 USDRegular priceUnit price per
-
198.4#048-6065-00
Hime RH (3/4 body | 5/8 hole)
Qty Used: 1Regular price $39.79 USDRegular priceUnit price per
-
198.5#048-6066-00
Heim LH (3/4 Body | 5/8 Hole)
Qty Used: 1Regular price $39.79 USDRegular priceUnit price per
-
224.1#013-0022-00
3/4"-16 Fine Full Nut
Qty Used: 1Regular price $6.69 USDRegular priceUnit price per
-

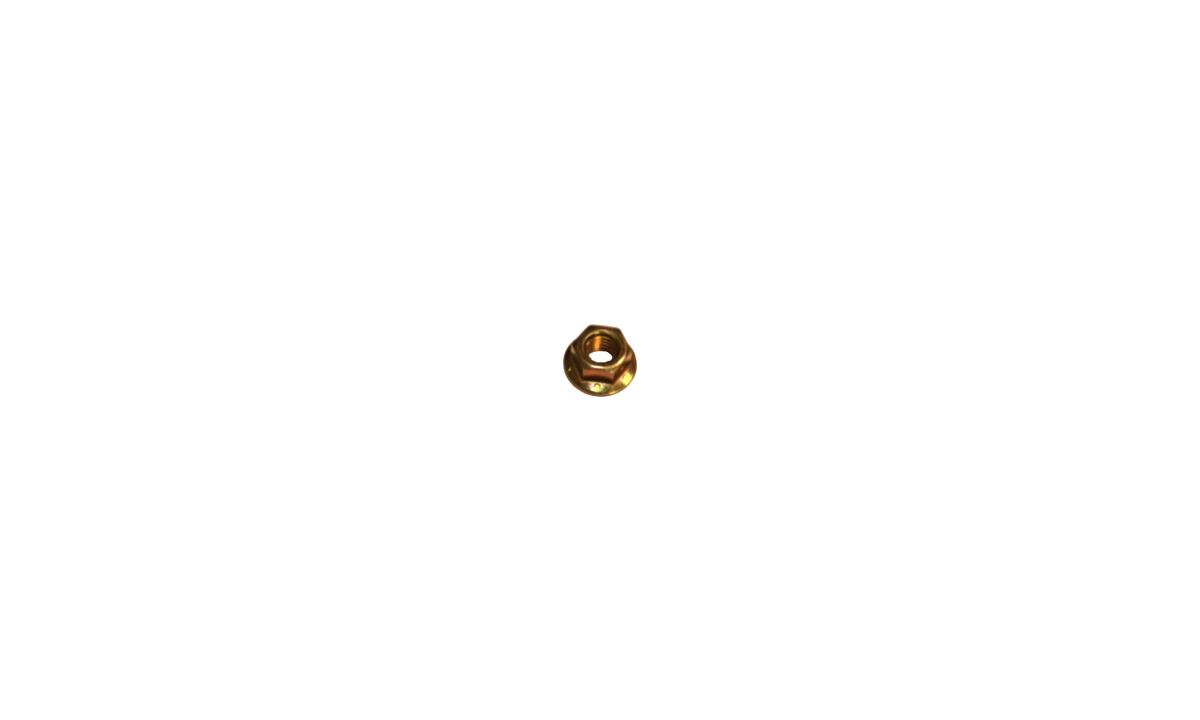

224.2225.2#013-6040-00
1/2-13 Gr 8 Centerlock Flange Nut
Qty Used: 4Regular price $0.99 USDRegular priceUnit price per
-
224.3225.3#013-8049-00
5/16-18 Nylon Flange Nut
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
224.4#015-4601-00
18ci Parker Wheel Motor - Left
Qty Used: 1Regular price $599.00 USDRegular priceUnit price per
-
224.5225.1225.5#018-2007-00
5/16-18 X 1 GR 5 Hex Bolt Zinc
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
224.6225.6#018-6041-00
1/2-13 x 2.75 Gr.8 Hex Head Bolt
Qty Used: 4Regular price $2.69 USDRegular priceUnit price per
-
224.7225.7#020-7022-00
1/8 X 1 1/2 Cotter Pins Zinc
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
224.8225.8#024-2065-00
2019 Rogue/Renegade Wheel Motor 90* Fitting
Qty Used: 2Regular price $17.45 USDRegular priceUnit price per
-
224.9225.9#048-7001-00
Heim 3/4" RH
Qty Used: 1Regular price $26.53 USDRegular priceUnit price per
-
224.10225.10#051-6007-00
2019 Renegade Hydro Hose
Qty Used: 2Regular price $51.07 USDRegular priceUnit price per
-
224.11#064-8054-00
2019 Short Brake Cable-Suspension Models
Qty Used: 1Regular price $48.10 USDRegular priceUnit price per
-
224.12#070-0001-00
2019 Left Trailing Arm
Qty Used: 1Regular price $291.91 USDRegular priceUnit price per
-
224.13225.13#092-5201-00
Brake Disc (96-37486)
Qty Used: 1Regular price $119.36 USDRegular priceUnit price per
-
224.14#092-7001-00
Brake Caliper with Bracket LH
Qty Used: 1Regular price $92.82 USDRegular priceUnit price per
-
225.4#015-4600-00
18ci Parker Wheel Motor-Right
Qty Used: 1Regular price $599.00 USDRegular priceUnit price per
-
225.11#064-9002-00
2019 Long Brake Cable-Renegade, Rogue
Qty Used: 1Regular price $48.10 USDRegular priceUnit price per
-
225.12#070-0002-00
2019 Right Trailing Arm
Qty Used: 1Regular price $219.99 USDRegular priceUnit price per
-
225.14#092-7000-00
Brake Caliper RH
Qty Used: 1Regular price $92.82 USDRegular priceUnit price per
-
228#070-5373-19
2019 Horizontal Gas Frame--Orange
Qty Used: 1Regular price $1,061.53 USDRegular priceUnit price per
