Pump & Idler Subassemblies

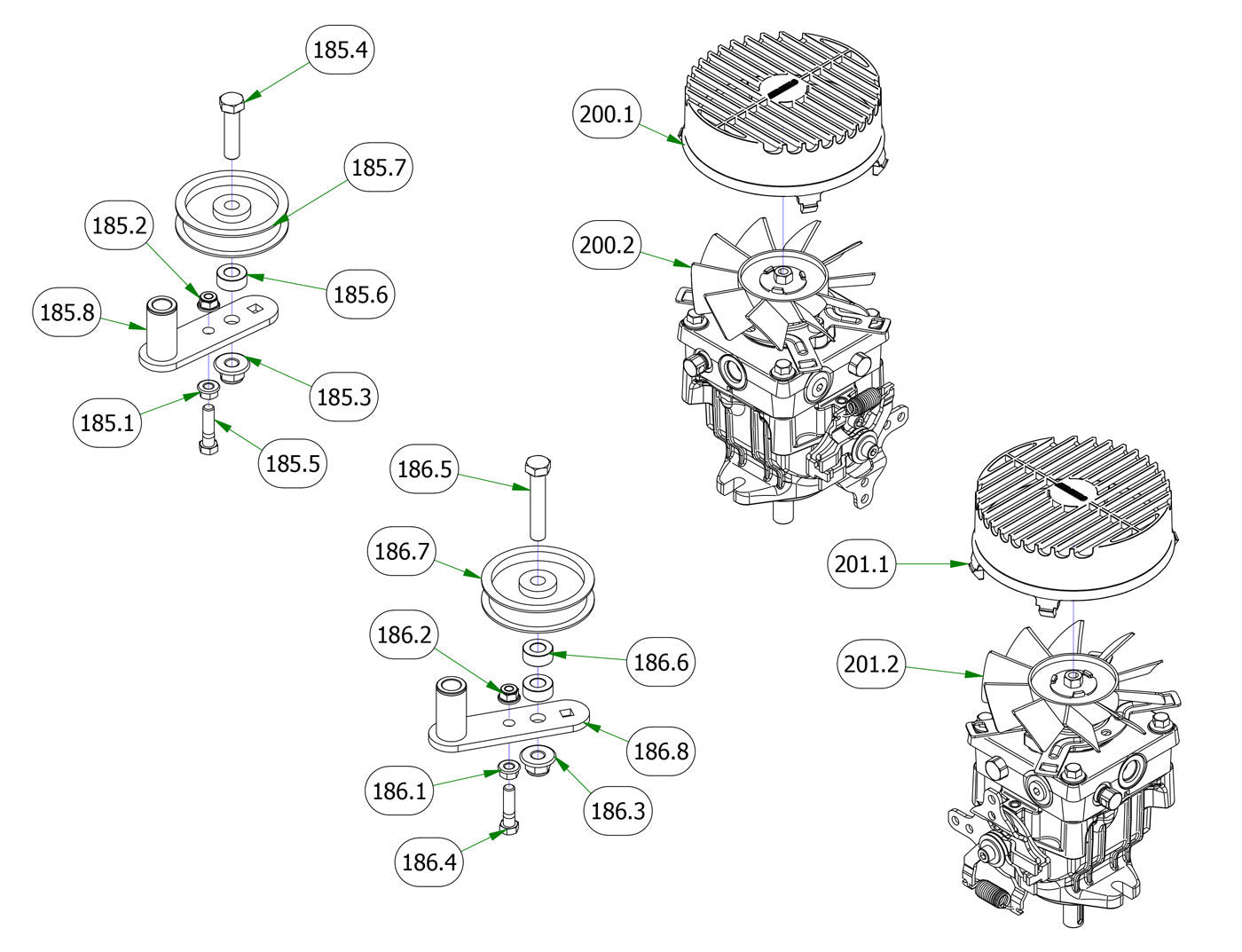

Parts Index
- 185 2019 Renegade Belt Tensioner LH (Qty 1)
- 185.1 3/8-16 Hex Flange Nuts Zinc w/ (Qty 1)
- 185.2 3/8 Nylock Flange Nut (Qty 1)
- 185.3 1/2-13 Nylon Insert Flange Nut (Qty 1)
- 185.4 1/2-13 x 2 Grade 8 Hex Bolt (Qty 1)
- 185.5 3/8 x 1 1/2 Bolt (Qty 1)
- 185.6 1/2 Set Collar w/set collar (Qty 1)
- 185.7 2019 Renegade Horizontal Pump Pulley (Qty 1)
- 185.8 Horizontal Idler Arm With Bushings--Plated (Qty 1)
- 186 2019 Renegade Pump Belt Tensioner RH (Qty 1)
- 186.1 3/8-16 Hex Flange Nuts Zinc w/ (Qty 1)
- 186.2 3/8 Nylock Flange Nut (Qty 1)
- 186.3 1/2-13 Nylon Insert Flange Nut (Qty 1)
- 186.4 3/8 x 1 1/2 Bolt (Qty 1)
- 186.5 1/2-13 X 2-3/4 GR 5 Bolt Zinc (Qty 1)
- 186.6 1/2 Set Collar w/set collar (Qty 2)
- 186.7 2019 Renegade Horizontal Pump Pulley (Qty 1)
- 186.8 Horizontal Idler Arm With Bushings--Plated (Qty 1)
- 200 2019 Rogue/Renegade Left Pump 16cc (Qty 1)
- 200.1 Fan Guard 6" - Fits Wheel (Qty 1)
- 200.2 Hydro Fan - Light/Pup/Outlaw XP (Qty 1)
- 201 Renegade Right Pump 16cc (Qty 1)
- 201.1 Fan Guard 6" - Fits Wheel (Qty 1)
- 201.2 Hydro Fan - Light/Pup/Outlaw XP (Qty 1)
-
185#039-6950-98
2019 Renegade Belt Tensioner LH
Qty Used: 1Regular price $79.60 USDRegular priceUnit price per
-
185.1186.1#013-5201-00
3/8-16 Hex Flange Nuts Zinc w/
Qty Used: 1Regular price $1.49 USDRegular priceUnit price per
-
185.2186.2#013-5202-00
3/8 Nylock Flange Nut
Qty Used: 1Regular price $1.49 USDRegular priceUnit price per
-
185.3186.3#013-8050-00
1/2-13 Nylon Insert Flange Nut
Qty Used: 1Regular price $1.39 USDRegular priceUnit price per
-
185.4#018-0022-00
1/2-13 x 2 Grade 8 Hex Bolt
Qty Used: 1Regular price $2.69 USDRegular priceUnit price per
-
185.5186.4#018-6012-00
3/8 x 1 1/2 Bolt
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
185.6186.6#025-7036-00
1/2 Set Collar w/set collar
Qty Used: 2Regular price $4.18 USDRegular priceUnit price per
-
185.7186.7#033-1876-00
2019 Renegade Horizontal Pump Pulley
Qty Used: 1Regular price $26.53 USDRegular priceUnit price per
-
185.8186.8#039-6950-01
Horizontal Idler Arm With Bushings--Plated
Qty Used: 1Regular price $27.85 USDRegular priceUnit price per
-
186#039-6950-99
2019 Renegade Pump Belt Tensioner RH
Qty Used: 1Regular price $79.60 USDRegular priceUnit price per
-
186.5#018-6036-00
1/2-13 X 2-3/4 GR 5 Bolt Zinc
Qty Used: 1Regular price $1.59 USDRegular priceUnit price per
-
200#050-3001-00
2019 Rogue/Renegade Left Pump 16cc
Qty Used: 1Regular price $499.99 USDRegular priceUnit price per
-
200.1201.1#014-5600-00
Fan Guard 6" - Fits Wheel
Qty Used: 1Regular price $37.21 USDRegular priceUnit price per
-
200.2201.2#015-9999-00
Hydro Fan - Light/Pup/Outlaw XP
Qty Used: 1Regular price $24.99 USDRegular priceUnit price per
-
201#050-3003-00
2019 Outlaw Renegade Right Pump 16cc
Qty Used: 1Regular price $729.79 USDRegular priceUnit price per
