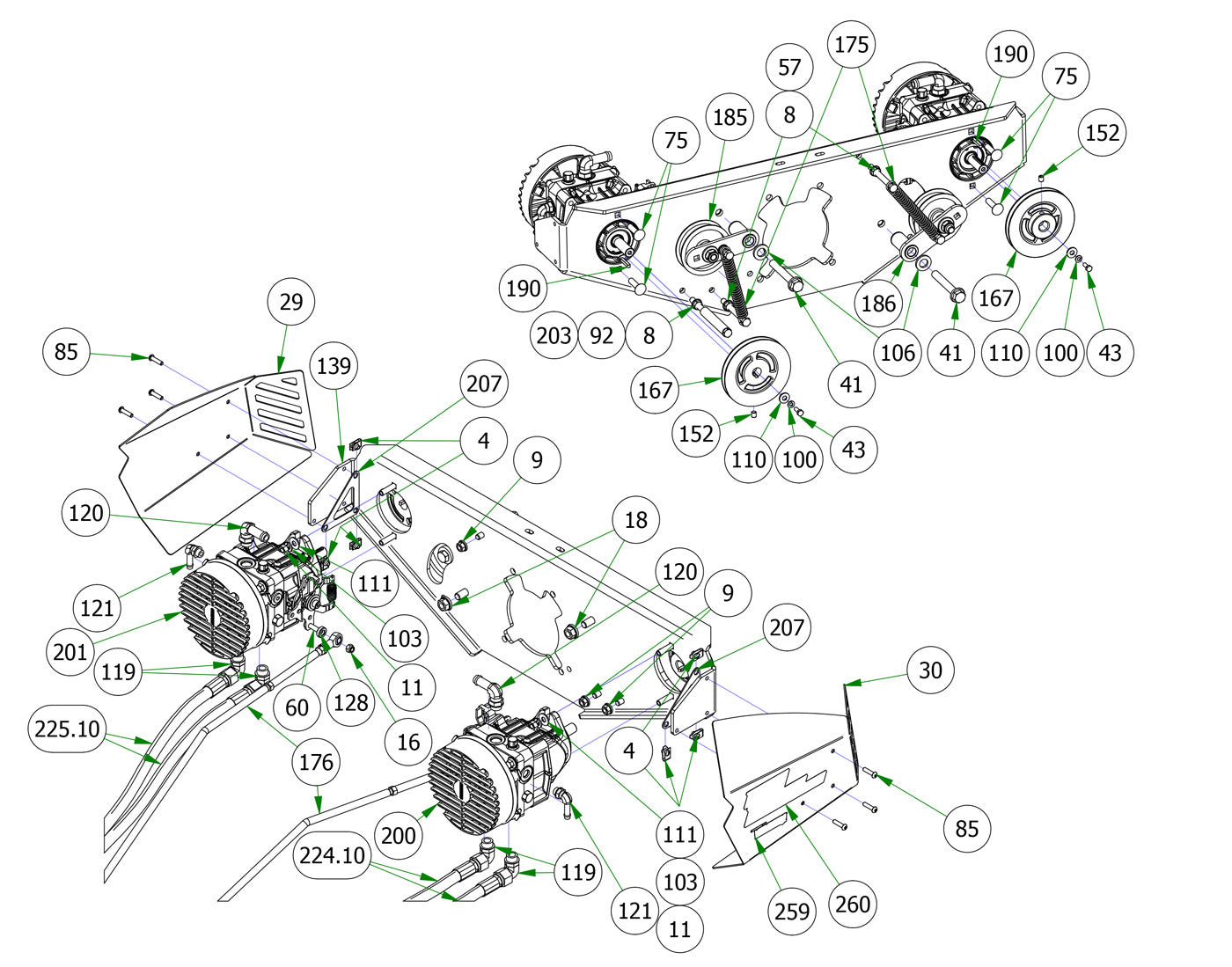

Pump & Idler Assembly
Parts Index
- 4 1/4-20 Cage Nut (Qty 6)
- 8 3/8-16 Hex Flange Nuts Zinc w/ (Qty 3)
- 9 3/8 Nylock Flange Nut (Qty 3)
- 11 3/8-16 Hex Nuts Zinc (Qty 4)
- 16 5/16-18 Nylon Insert Locknut Z (Qty 2)
- 18 1/2-13 Nylon Insert Flange Nut (Qty 2)
- 29 Pump Cover--RH-Black (Qty 1)
- 30 Pump Cover--LH-Black (Qty 1)
- 41 Deck Wheel Bolt (Qty 2)
- 43 M6-1.0 X 16MM HEX BOLT CL 8 (Qty 2)
- 57 3/8-16x3-1/2 Grade 5 Hex Bolt (Qty 2)
- 60 5/16-18 X 1-1/4 GR 5 Hex Bolt (Qty 2)
- 75 3/8 x 1 1/2 Carriage Bolt (Qty 4)
- 85 1/4-20 x 1" BS C/S 18-8 SS (Qty 6)
- 92 3/8-16 x 5 1/2 Hex Bolt - Grade 5 (Qty 1)
- 100 1/4 Lockwasher Zinc (Qty 2)
- 103 3/8 Lockwasher Zinc (Qty 4)
- 106 .630 ID X 1.122 OD X .142 THK (Qty 2)
- 110 1/4 USS Flat Washer Zinc (Qty 2)
- 111 5/16 USS Flat Washer Zinc (Qty 4)
- 119 Renegade Pump Fitting 90 Degree (Qty 4)
- 120 90 Degree Fitting, 1/2 x 3/4, (Qty 2)
- 121 90 Degree Fitting, 3/8 x 9/16, (Qty 2)
- 128 ACS Spacer 3/4x3/8x1/4 (Qty 2)
- 139 Pump Plate--Orange (Qty 1)
- 152 5/16-24 X 3/8 Set Screw (Qty 2)
- 167 Cast Pump Pulley - 17mm Assembly (Qty 2)
- 175 ZT and ACS Handle Spring (Qty 2)
- 176 2019 Renegade Push Rod Assembly (Qty 2)
- 185 2019 Renegade Belt Tensioner LH (Qty 1)
- 186 2019 Renegade Pump Belt Tensioner RH (Qty 1)
- 190 OBSOLETE USE 042-5013-00 (Qty 2)
- 200 2019 Rogue/Renegade Left Pump 16cc (Qty 1)
- 201 Renegade Right Pump 16cc (Qty 1)
- 203 3/8 Fuel Line-Priced per Foot (Qty 1)
- 207 Pump Plate Clip Nut Holder--Plated (Qty 2)
- 224.10 2019 Renegade Hydro Hose (Qty 2)
- 225.10 2019 Renegade Hydro Hose (Qty 2)
- 259 2022 Powered By Vangaurd Decal (Qty 2)
- 260 993cc-EFI Decal (Qty 1)
-
4#013-0054-00
1/4-20 Cage Nut
Qty Used: 6Regular price $0.69 USDRegular priceUnit price per
-
8#013-5201-00
3/8-16 Hex Flange Nuts Zinc w/
Qty Used: 3Regular price $1.49 USDRegular priceUnit price per
-
9#013-5202-00
3/8 Nylock Flange Nut
Qty Used: 3Regular price $1.49 USDRegular priceUnit price per
-
11#013-6014-00
3/8-16 Hex Nuts Zinc
Qty Used: 4Regular price $0.00 USDRegular priceUnit price per
-
16#013-8047-00
5/16-18 Nylon Insert Locknut Z
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
18#013-8050-00
1/2-13 Nylon Insert Flange Nut
Qty Used: 2Regular price $1.39 USDRegular priceUnit price per
-
29#014-5060-22
Pump Cover--RH-Black
Qty Used: 1Regular price $19.99 USDRegular priceUnit price per
-
30#014-5061-22
Pump Cover--LH-Black
Qty Used: 1Regular price $19.99 USDRegular priceUnit price per
-
41#018-0010-00
Deck Wheel Bolt - 2011 Outlaw
Qty Used: 2Regular price $5.89 USDRegular priceUnit price per
-
43#018-0024-00
M6-1.0 X 16MM HEX BOLT CL 8
Qty Used: 2Regular price $2.69 USDRegular priceUnit price per
-
57#018-1010-00
3/8-16x3-1/2 Grade 5 Hex Bolt
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
60#018-2006-00
5/16-18 X 1-1/4 GR 5 Hex Bolt
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
75#018-4706-00
3/8 x 1 1/2 Carriage Bolt
Qty Used: 4Regular price $1.39 USDRegular priceUnit price per
-
85#018-6014-00
1/4-20 x 1" BS C/S 18-8 SS
Qty Used: 6Regular price $5.29 USDRegular priceUnit price per
-
92#018-7060-00
3/8-16 x 5 1/2 Hex Bolt - Grade 5
Qty Used: 1Regular price $2.69 USDRegular priceUnit price per
-
100#019-4008-00
1/4 Lockwasher Zinc
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
103#019-5037-00
3/8 Lockwasher Zinc
Qty Used: 4Regular price $0.00 USDRegular priceUnit price per
-
106#019-6017-00
.630 ID X 1.122 OD X .142 THK
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
110#019-7040-00
1/4 USS Flat Washer Zinc
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
111#019-8044-00
5/16 USS Flat Washer Zinc
Qty Used: 4Regular price $0.79 USDRegular priceUnit price per
-
119#024-2052-00
2019 Outlaw Renegade Pump Fitting 90 Degree
Qty Used: 4Regular price $11.66 USDRegular priceUnit price per
-
120#024-5002-00
90 Degree Fitting, 1/2 x 3/4,
Qty Used: 2Regular price $16.48 USDRegular priceUnit price per
-
121#024-5206-00
90 Degree Fitting, 3/8 x 9/16,
Qty Used: 2Regular price $11.61 USDRegular priceUnit price per
-
128#025-2001-00
ACS Spacer 3/4x3/8x1/4
Qty Used: 2Regular price $14.58 USDRegular priceUnit price per
-
139#026-8010-00
Pump Plate--Orange
Qty Used: 1Regular price $99.99 USDRegular priceUnit price per
-
152#030-0075-00
5/16-24 X 3/8 Set Screw
Qty Used: 2Regular price $1.49 USDRegular priceUnit price per
-
167#033-5011-00
Cast Pump Pulley - 17mm Assembly
Qty Used: 2Regular price $33.16 USDRegular priceUnit price per
-
175#034-9000-00
ZT and ACS Handle Spring
Qty Used: 2Regular price $14.53 USDRegular priceUnit price per
-
176#035-0005-00
2019 Renegade Push Rod Assembly
Qty Used: 2Regular price $43.78 USDRegular priceUnit price per
-
185#039-6950-98
2019 Renegade Belt Tensioner LH
Qty Used: 1Regular price $79.60 USDRegular priceUnit price per
-
186#039-6950-99
2019 Renegade Pump Belt Tensioner RH
Qty Used: 1Regular price $79.60 USDRegular priceUnit price per
-
190#042-5012-00
OBSOLETE USE 042-5013-00
Qty Used: 2Regular price $2.92 USDRegular priceUnit price per
-
200#050-3001-00
2019 Rogue/Renegade Left Pump 16cc
Qty Used: 1Regular price $499.99 USDRegular priceUnit price per
-
201#050-3003-00
2019 Outlaw Renegade Right Pump 16cc
Qty Used: 1Regular price $729.79 USDRegular priceUnit price per
-
203#051-8076-00
3/8 Fuel Line-Priced per Foot
Qty Used: 1Regular price $4.37 USDRegular priceUnit price per
-
207#057-5915-00
Pump Plate Clip Nut Holder--Plated
Qty Used: 2Regular price $15.99 USDRegular priceUnit price per
-
224.10225.10#051-6007-00
2019 Renegade Hydro Hose
Qty Used: 2Regular price $51.07 USDRegular priceUnit price per
-
259#091-4002-22
2022 Powered By Vangaurd Decal
Qty Used: 2Regular price $5.49 USDRegular priceUnit price per
-
260#091-4013-00
993cc-EFI Decal
Qty Used: 1Regular price $13.26 USDRegular priceUnit price per
