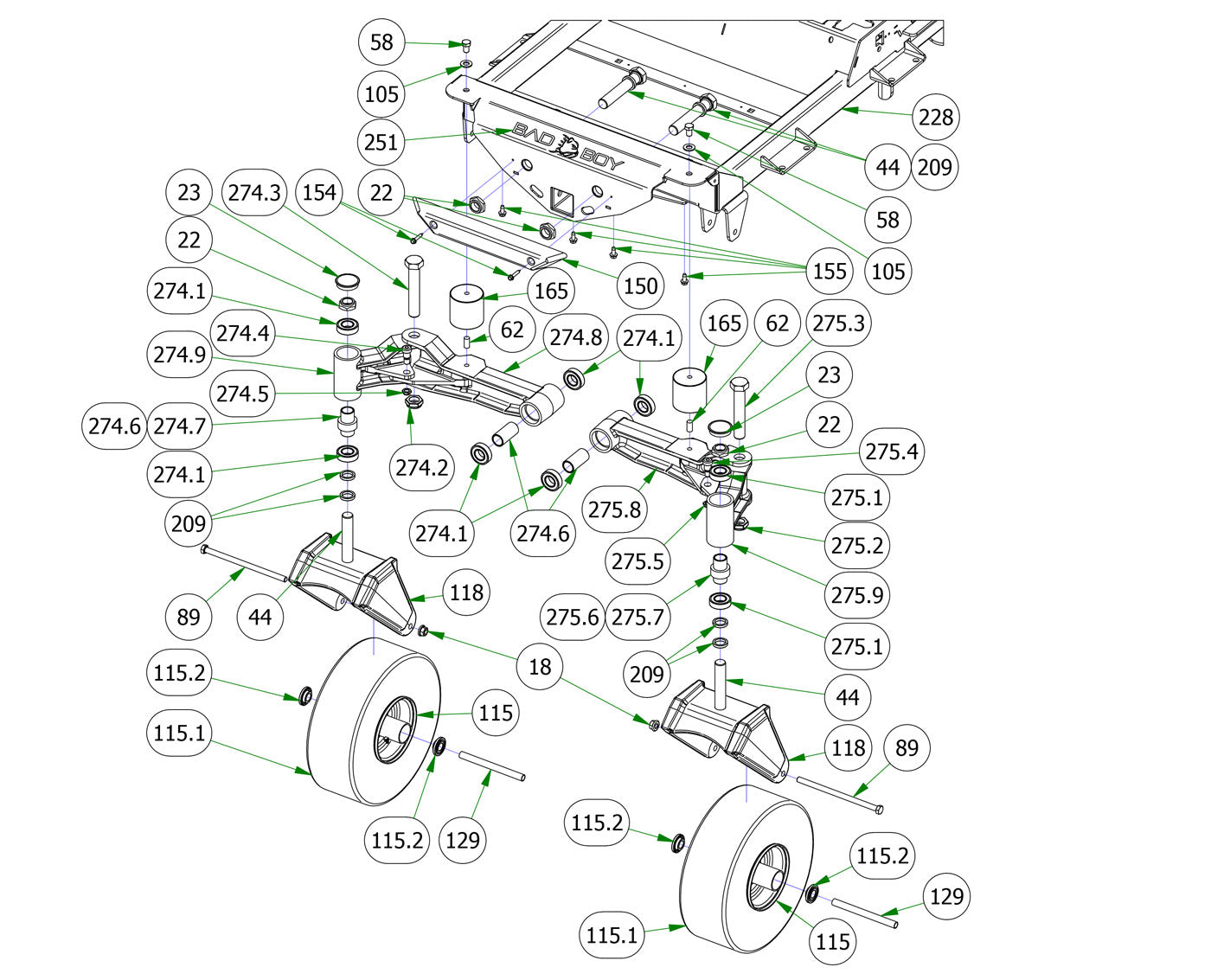

Front End

Parts Index
- 18 1/2-13 Nylon Insert Flange Nut (Qty 2)
- 22 1" Nylock Nut 1/2 Nut - Fine (Qty 4)
- 23 Bearing Retainer Cap (Qty 2)
- 44 1-14 X 5 1/2 BOLT GR 8 ZC YELLOW (Qty 4)
- 58 1/2-13 x 3/4 Bolt with Patch (GR 5) Zinc (Qty 2)
- 62 1/2-13 x 1" Stud (Qty 2)
- 89 1/2-13 X 9 GR 5 Hex Bolts Zinc (Qty 2)
- 105 1/2 SAE Flat Washer GR 8 (Qty 2)
- 115 2019 15x6.00-6 No Flat Black Front Tire (Qty 2)
- 115.1 15x6-6 Tire Only (Qty 1)
- 115.2 1 3/4" Bearing-Large Bore (Qty 1)
- 118 2020 R Series Cast Front Fork (Qty 2)
- 129 Front Wheel Spanner-All Models (Qty 2)
- 150 Bumper (Qty 1)
- 154 14 X 1-1/2 HWA A T/S Zinc (Qty 2)
- 155 5/16 x 3/4 Hex Washer Type F (Qty 4)
- 165 Isolator (Blue Dot) (Qty 2)
- 209 Spacer ( Front Fork and Suspension ) (Qty 6)
- 228 2019 Horizontal Gas Frame--Orange (Qty 1)
- 251 Flying Bulldog Front Bumper Decal (Qty 1)
- 271 Independently Articulating Front Suspension Arms (Qty 1)
- 274 2022 61/72 Rogue/Renegade Front Suspension Asy RH (Qty 1)
- 274.1 Caster Bearing (Qty 4)
- 274.2 1" Nylock Nut 1/2 Nut - Fine (Qty 1)
- 274.3 1-14 X 5 1/2 BOLT GR 8 ZC YELLOW (Qty 1)
- 274.4 5/8 x 5/8 Shoulder Bolt (Qty 1)
- 274.5 1/2-13 Nylon Insert Jam Locknut (Qty 1)
- 274.6 MZ/ZT/Mav/ R Series Front Bearing Spacer (Qty 2)
- 274.7 Rubber Stabilizer (Front Fork) (Qty 1)
- 275 2022 61/72 Rogue/Renegade Front Suspension Asy LH (Qty 1)
- 275.1 Caster Bearing (Qty 4)
- 275.2 1" Nylock Nut 1/2 Nut - Fine (Qty 1)
- 275.3 1-14 X 5 1/2 BOLT GR 8 ZC YELLOW (Qty 1)
- 275.4 5/8 x 5/8 Shoulder Bolt (Qty 1)
- 275.5 1/2-13 Nylon Insert Jam Locknut (Qty 1)
- 275.6 MZ/ZT/Mav/ R Series Front Bearing Spacer (Qty 2)
- 275.7 Rubber Stabilizer (Front Fork) (Qty 1)
