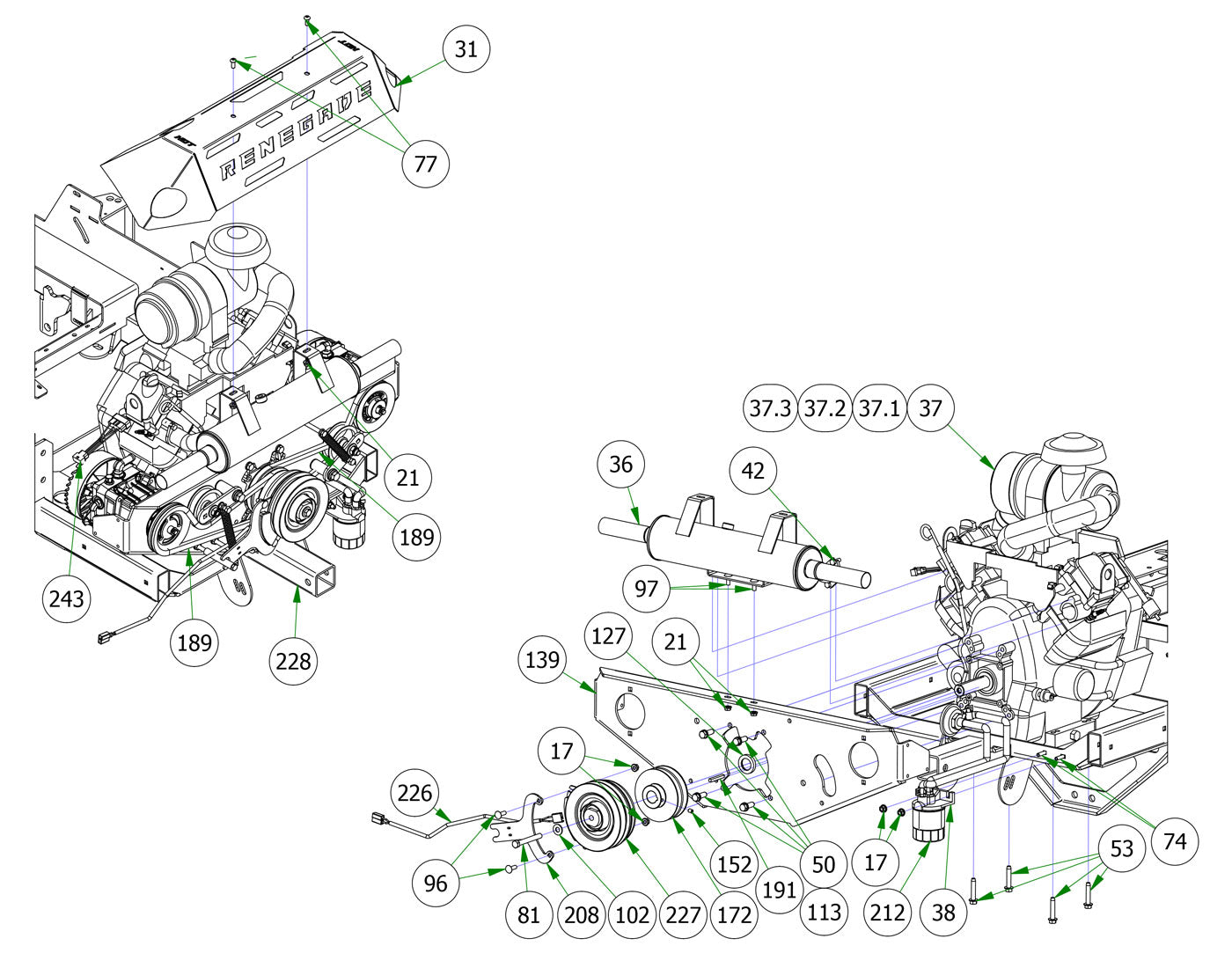

Engine Mounting
Parts Index
- 17 5/16-18 Nylon Flange Nut (Qty 4)
- 21 5/16-18 Hex Flange Nuts Zinc w (Qty 4)
- 31 Muffler Cover--Orange (Qty 1)
- 36 2019 Renegade Vanguard 999cc EFI Exhaust (Qty 1)
- 37 2019 Vanguard EFI 37HP 993cc Horizontal Shaft (Qty 1)
- 37.1 Spark Plug-Kohler/Briggs (Qty 1)
- 37.2 Canister Air Fil Outer2010&Old (Qty 1)
- 37.3 Canister Air Filter - Inner (Qty 1)
- 38 Remote Oil Filter Kit For 015-3002-00 Engine (Qty 1)
- 42 Torx Bolt-Exhaust-23hp Vanguard (Qty 4)
- 53 3/8-16 x 2 Hex/ Trilobe Horizontal Engine Bolt (Qty 4)
- 77 5/16-18 X 3/4 Bolt (Qty 2)
- 81 7/16-20x3.5” Hex Bolt GR 8 W/ Patch (Qty 1)
- 96 5/16-18 X 1 Carriage Bolt Zinc (Qty 2)
- 97 5/16 x 7/8 Carriage Bolt (Qty 2)
- 102 3/8 USS Flat Washer Zinc (Qty 1)
- 113 7/16 Lock washer zinc (Qty 4)
- 127 Horizontal Engine Spacer (Qty 1)
- 139 Pump Plate--Orange (Qty 1)
- 152 5/16-24 X 3/8 Set Screw (Qty 3)
- 172 Renegade Horizontal Double V Pulley (Qty 1)
- 189 2020 Renegade Pump Belt (Qty 2)
- 191 1/4 X 2 Square Key Stock (Qty 1)
- 200.2 Hydro Fan - Light/Pup/Outlaw XP (Qty 1)
- 201.2 Hydro Fan - Light/Pup/Outlaw XP (Qty 1)
- 208 2019 Outlaw Renegade Clutch Bracket--Plated (Qty 1)
- 212 Briggs Oil Filter (Qty 1)
- 226 Clutch Pigtail (Qty 1)
- 227 Renegade Clutch (Qty 1)
- 228 2019 Horizontal Gas Frame--Orange (Qty 1)
- 243 2021 Harness Adapter - Vanguard 37 EFI (Qty 1)
-
17#013-8049-00
5/16-18 Nylon Flange Nut
Qty Used: 4Regular price $0.79 USDRegular priceUnit price per
-
21#013-9002-00
5/16-18 Hex Flange Nuts Zinc w
Qty Used: 4Regular price $0.69 USDRegular priceUnit price per
-
31#014-5062-00
Muffler Cover--Orange
Qty Used: 1Regular price $26.53 USDRegular priceUnit price per
-
36#015-1018-00
2019 Renegade Vanguard 999cc EFI Exhaust
Qty Used: 1Regular price $233.53 USDRegular priceUnit price per
-
37#015-3002-00
2019 Vanguard EFI 37HP 993cc Horizontal Shaft
Qty Used: 1Regular price $3,299.00 USDRegular priceUnit price per
-
37.1#015-8000-00
Spark Plug-Kohler/Briggs
Qty Used: 1Regular price $9.99 USDRegular priceUnit price per
-
37.2#063-8019-00
Canister Air Fil Outer2010&Old
Qty Used: 1Regular price $33.50 USDRegular priceUnit price per
-
37.3#063-8020-00
Canister Air Filter - Inner
Qty Used: 1Regular price $30.51 USDRegular priceUnit price per
-
38#015-3002-01
Remote Oil Filter Kit For 015-3002-00 Engine
Qty Used: 1Regular price $259.99 USDRegular priceUnit price per
-
42#018-0017-00
Torx Bolt-Exhaust-23hp Vanguard
Qty Used: 4Regular price $5.29 USDRegular priceUnit price per
-
53#018-0061-00
3/8-16 x 2 Hex/ Trilobe Horizontal Engine Bolt
Qty Used: 4Regular price $5.39 USDRegular priceUnit price per
-
77#018-5007-00
5/16-18 X 3/4 Bolt
Qty Used: 2Regular price $0.89 USDRegular priceUnit price per
-
81#018-5052-21
7/16-20x3.5” Hex Bolt GR 8 W/ Patch
Qty Used: 1Regular price $3.29 USDRegular priceUnit price per
-
96#018-8065-00
5/16-18 X 1 Carriage Bolt Zinc
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
97#018-8066-00
5/16 x 7/8 Carriage Bolt
Qty Used: 2Regular price $1.49 USDRegular priceUnit price per
-
102#019-5029-00
3/8 USS Flat Washer Zinc
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
113#019-8053-00
7/16 Lock washer zinc
Qty Used: 4Regular price $0.69 USDRegular priceUnit price per
-
127#025-0076-00
Horizontal Engine Spacer
Qty Used: 1Regular price $7.99 USDRegular priceUnit price per
-
139#026-8010-00
Pump Plate--Orange
Qty Used: 1Regular price $99.99 USDRegular priceUnit price per
-
152#030-0075-00
5/16-24 X 3/8 Set Screw
Qty Used: 3Regular price $1.49 USDRegular priceUnit price per
-
172#033-8001-00
2019 Outlaw Renegade Horizontal Double V Pulley
Qty Used: 1Regular price $43.99 USDRegular priceUnit price per
-
189#041-8001-00
2020 Renegade Pump Belt
Qty Used: 2Regular price $74.99 USDRegular priceUnit price per
-
191#042-5020-00
1/4 X 2 Square Key Stock
Qty Used: 1Regular price $2.92 USDRegular priceUnit price per
-
200.2201.2#015-9999-00
Hydro Fan - Light/Pup/Outlaw XP
Qty Used: 1Regular price $24.99 USDRegular priceUnit price per
-
208#057-5919-00
2019 Outlaw Renegade Clutch Bracket--Plated
Qty Used: 1Regular price $26.53 USDRegular priceUnit price per
-
212#063-8018-00
Briggs Oil Filter
Qty Used: 1Regular price $19.99 USDRegular priceUnit price per
-
226#070-2000-00
Clutch Pigtail
Qty Used: 1Regular price $19.85 USDRegular priceUnit price per
-
227#070-5040-00
Renegade Clutch
Qty Used: 1Regular price $359.99 USDRegular priceUnit price per
-
228#070-5373-19
2019 Horizontal Gas Frame--Orange
Qty Used: 1Regular price $1,061.53 USDRegular priceUnit price per
-
243#086-9013-21
2021 Harness Adapter - Vanguard 37 EFI
Qty Used: 1Regular price $29.99 USDRegular priceUnit price per
