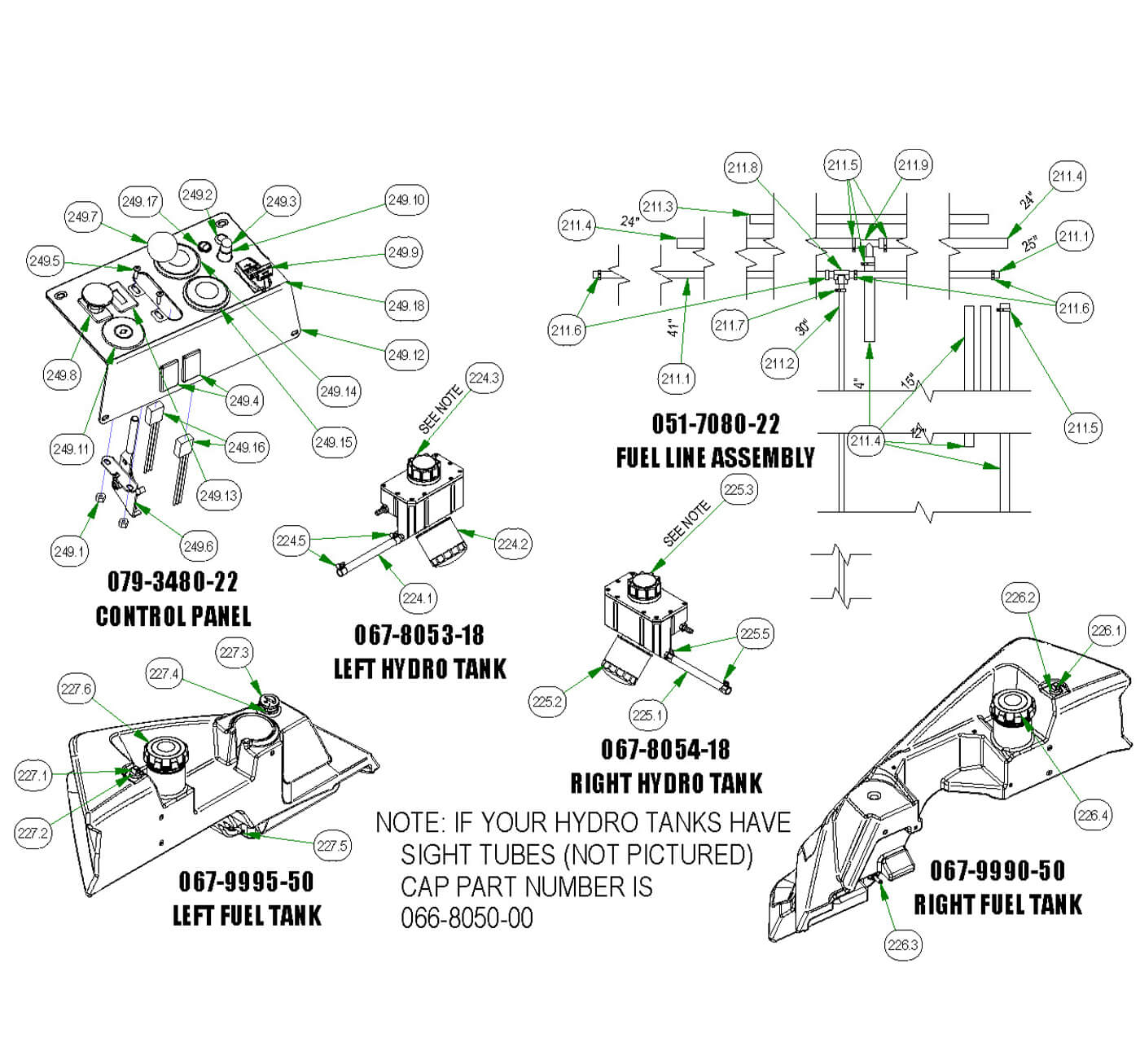

Tank Subassemblies
Parts Index
- 211.1 1/4 Fuel Line Hose PRICED/FOOT (Qty 6)
- 211.2 3/16 Fuel Line (Qty 3)
- 211.3 5/16 Clear Hose (Qty 4)
- 211.4 5/16 Fuel Line Hose (Qty 8)
- 211.5 5/8 Fuel Line Clamp (Qty 5)
- 211.6 1/4 Fuel Line Clamp (Qty 4)
- 211.7 MZ Tank Hose Clamp 1/4 Vinyl (Qty 2)
- 211.8 Brass Fuel Line T - Diesels (Qty 1)
- 211.9 5/16 x 5/16 x 5/16 Fuel Line T (Qty 1)
- 224 LH Renegade Hydro Tank Assy (Qty 1)
- 224.1 21" 1/2 Braided Hose (Qty 1)
- 224.2 Hydraulic Filter-All Models (Qty 1)
- 224.3 2022 Cap With Dip Stick (Qty 1)
- 224.4 2019 RG/RN Hydro Tank LH (Qty 1)
- 224.5 1/2 Hose Clamp (Qty 2)
- 225 RH Renegade Hydro Tank Assy (Qty 1)
- 225.1 21" 1/2 Braided Hose (Qty 1)
- 225.2 Hydraulic Filter-All Models (Qty 1)
- 225.3 2022 Cap With Dip Stick (Qty 1)
- 225.4 2019 RG/RN Hydro Tank RH (Qty 1)
- 225.5 1/2 Hose Clamp (Qty 2)
- 226 2019 Right Outlaw Renegade Diesel Fuel Tank (Qty 1)
- 226.1 90 Degree Elbow Fitting for 2019 Diesel Fuel Tank (Qty 1)
- 226.2 Nitrile Bushing for 2019 Diesel Fuel Tank (Qty 1)
- 226.3 Fuel Pickup for 2019 Fuel Tanks (Qty 1)
- 226.4 Diesel Fuel Tank Cap for 2019 Fuel Tank (Qty 1)
- 227 2019 Left Outlaw Renegade Diesel Fuel Tank (Qty 1)
- 227.1 90 Degree Elbow Fitting for 2019 Diesel Fuel Tank (Qty 1)
- 227.2 Nitrile Bushing for 2019 Diesel Fuel Tank (Qty 1)
- 227.3 Fuel Gauge Assembly w/ Grommet-2014 ZT,2015 Outlaw (Qty 1)
- 227.4 New Style Grommet for 2017 MZ Magnum Fuel Gauge (Qty 1)
- 227.5 Fuel Pickup for 2019 Fuel Tanks (Qty 1)
- 227.6 Diesel Fuel Tank Cap for 2019 Fuel Tank (Qty 1)
- 249.1 10-24 Nylon Insert Locknut Zin (Qty 2)
- 249.2 5/8 Round Insert - Deck (Qty 1)
- 249.3 Start Switch Boot - Diesel (Qty 1)
- 249.4 Light Plug (Qty 2)
- 249.5 10-24 X 5/8 BS C/S 18-8 SS (Qty 2)
- 249.6 Universal Throttle Head - 2012 (Qty 1)
- 249.7 Throttle / Brake Head Ball (Qty 1)
- 249.8 PTO Engager-Switch for Blades (Qty 1)
- 249.9 USB Port (Qty 1)
- 249.11 Ignition Switch (Qty 1)
- 249.12 Control Panel--Orange (Qty 1)
- 249.13 Tachometer-N310-0100-1018 (Qty 1)
- 249.14 2" Oil Pressure Gauge (Qty 1)
- 249.15 2" Water Temperature Gauge (Qty 1)
- 249.16 Diesel Gauge Adapter (Qty 2)
- 249.17 Oil Light (Qty 1)
- 249.18 2022 Renegade(Diesel) Control Panel Decal (Qty 1)
-
211.1#051-8067-00
1/4 Fuel Line Hose PRICED/FOOT
Qty Used: 6Regular price $5.83 USDRegular priceUnit price per
-
211.2#051-8068-00
3/16 Fuel Line
Qty Used: 3Regular price $3.26 USDRegular priceUnit price per
-
211.3#051-8069-00
5/16 Clear Hose
Qty Used: 4Regular price $2.91 USDRegular priceUnit price per
-
211.4#051-8075-00
5/16 Fuel Line Hose
Qty Used: 8Regular price $4.37 USDRegular priceUnit price per
-
211.5#072-8068-00
5/8 Fuel Line Clamp
Qty Used: 5Regular price $3.29 USDRegular priceUnit price per
-
211.6#072-8069-00
1/4 Fuel Line Clamp
Qty Used: 4Regular price $0.88 USDRegular priceUnit price per
-
211.7#072-8070-00
MZ Tank Hose Clamp 1/4 Vinyl
Qty Used: 2Regular price $1.45 USDRegular priceUnit price per
-
211.8#073-2000-00
Brass Fuel Line T - Diesels
Qty Used: 1Regular price $9.28 USDRegular priceUnit price per
-
211.9#073-8070-00
5/16 x 5/16 x 5/16 Fuel Line T
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
224#067-8053-18
LH Renegade Hydro Tank Assy
Qty Used: 1Regular price $201.96 USDRegular priceUnit price per
-
224.1225.1#051-8064-21
21" 1/2 Braided Hose
Qty Used: 1Regular price $10.60 USDRegular priceUnit price per
-
224.2225.2#063-8014-00
Hydraulic Filter-All Models
Qty Used: 1Regular price $29.13 USDRegular priceUnit price per
-
224.3225.3#066-8050-22
2022 Cap With Dip Stick
Qty Used: 1Regular price $27.99 USDRegular priceUnit price per
-
224.4#067-8053-00
2019 RG/RN Hydro Tank LH
Qty Used: 1Regular price $149.99 USDRegular priceUnit price per
-
224.5225.5#072-8066-00
1/2 Hose Clamp
Qty Used: 2Regular price $0.88 USDRegular priceUnit price per
-
225#067-8054-18
RH Renegade Hydro Tank Assy
Qty Used: 1Regular price $201.96 USDRegular priceUnit price per
-
225.4#067-8054-00
2019 RG/RN Hydro Tank RH
Qty Used: 1Regular price $149.99 USDRegular priceUnit price per
-
226#067-9990-50
2019 Right Outlaw Renegade Diesel Fuel Tank
Qty Used: 1Regular price $249.99 USDRegular priceUnit price per
-
226.1227.1#024-9903-00
90 Degree Elbow Fitting for 2019 Diesel Fuel Tank
Qty Used: 1Regular price $7.99 USDRegular priceUnit price per
-
226.2227.2#032-9902-00
Nitrile Bushing for 2019 Diesel Fuel Tank
Qty Used: 1Regular price $3.99 USDRegular priceUnit price per
-
226.3227.5#067-9901-00
Fuel Pickup for 2019 Fuel Tanks
Qty Used: 1Regular price $21.22 USDRegular priceUnit price per
-
226.4227.6#067-9905-00
Diesel Fuel Tank Cap for 2019 Fuel Tank
Qty Used: 1Regular price $29.99 USDRegular priceUnit price per
-
227#067-9995-50
2019 Left Outlaw Renegade Diesel Fuel Tank
Qty Used: 1Regular price $249.99 USDRegular priceUnit price per
-
227.3#067-4080-00
Fuel Gauge Assembly w/ Grommet-2014 ZT,2015 Outlaw
Qty Used: 1Regular price $29.99 USDRegular priceUnit price per
-
227.4#067-6056-00
New Style Grommet for 2017 MZ Magnum Fuel Gauge
Qty Used: 1Regular price $6.49 USDRegular priceUnit price per
-
249.1#013-5019-00
10-24 Nylon Insert Locknut Zin
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
249.2#014-3010-00
5/8 Round Insert - Deck
Qty Used: 1Regular price $1.39 USDRegular priceUnit price per
-
249.3#014-6000-00
Start Switch Boot - Diesel
Qty Used: 1Regular price $4.43 USDRegular priceUnit price per
-
249.4#018-1040-00
Light Plug
Qty Used: 2Regular price $2.69 USDRegular priceUnit price per
-
249.5#018-5200-00
10-24 X 5/8 BS C/S 18-8 SS
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
249.6#055-2012-00
Universal Throttle Head - 2012
Qty Used: 1Regular price $23.87 USDRegular priceUnit price per
-
249.7#055-2013-00
Throttle Head Ball
Qty Used: 1Regular price $11.66 USDRegular priceUnit price per
-
249.8#056-8058-00
PTO Engager-Switch for Blades
Qty Used: 1Regular price $32.05 USDRegular priceUnit price per
-
-
249.11#077-8076-00
Ignition Switch
Qty Used: 1Regular price $19.99 USDRegular priceUnit price per
-
249.12#079-3480-00
Control Panel--Orange
Qty Used: 1Regular price $9.99 USDRegular priceUnit price per
-
249.13#083-4013-00
Tachometer-N310-0100-1018
Qty Used: 1Regular price $69.99 USDRegular priceUnit price per
-
249.14#086-7000-00
2" Oil Pressure Gauge
Qty Used: 1Regular price $100.71 USDRegular priceUnit price per
-
249.15#086-7001-00
2" Water Temperature Gauge
Qty Used: 1Regular price $100.71 USDRegular priceUnit price per
-
249.16#086-7007-00
Diesel Gauge Adapter
Qty Used: 2Regular price $10.99 USDRegular priceUnit price per
-
-
249.18#091-4016-22
2022 Renegade(Diesel) Control Panel Decal
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
