Seat & Brake

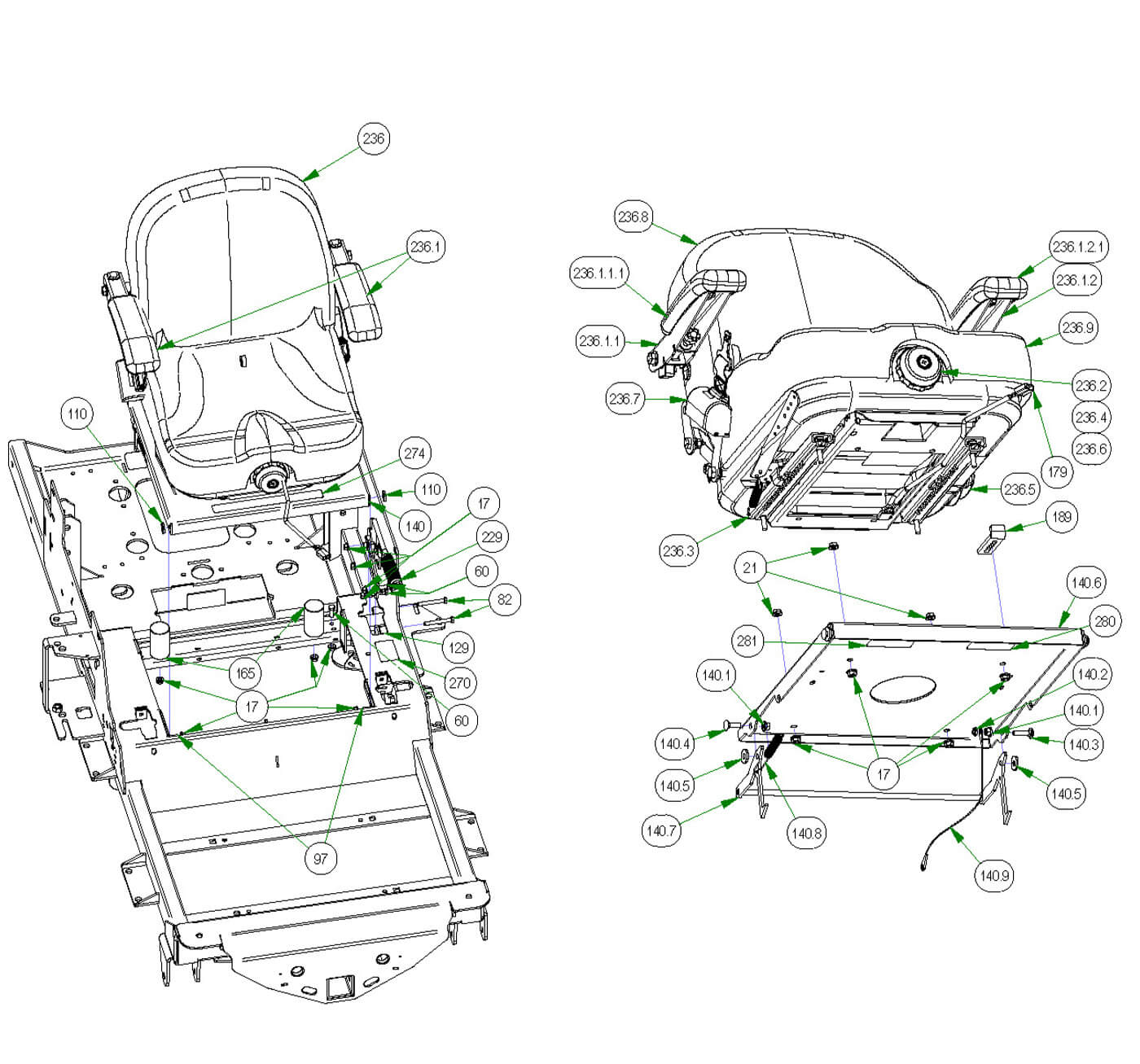

Parts Index
- 17 5/16-18 Nylon Flange Nut (Qty 13)
- 21 5/16-18 Hex Flange Nuts Zinc w (Qty 3)
- 60 5/16-18 X 1 GR 5 Hex Bolt Zinc (Qty 3)
- 82 5/16-18 X 1 GR 5 Hex Bolt Zinc (Qty 2)
- 97 5/16-18 X 1 Carriage Bolt Zinc (Qty 2)
- 110 .360 ID Plastic Washer (Qty 2)
- 129 2019 Brake Handle Spacer .625 x 1.5 (Qty 2)
- 140 R-Series Seat Plate Assembly (Qty 1)
- 140.1 5/16-18 Nylon Flange Nut (Qty 2)
- 140.2 5/16-18 Nylock Jam Nut (Qty 1)
- 140.3 5/16-18 X 1-1/4 Carriage Bolt (Qty 1)
- 140.4 5/16-18 X 1 Carriage Bolt Zinc (Qty 1)
- 140.5 .360 ID Plastic Washer (Qty 2)
- 140.6 Seat Plate--Orange (Qty 1)
- 140.7 Seat Latch Rod (Qty 1)
- 140.8 Brake Spring (Qty 1)
- 140.9 Seat Cable (Qty 1)
- 165 Bumper (Seat) (Qty 2)
- 179 Seat Switch Adaptor - Pup (Qty 1)
- 189 Seat Stop--Plated (Qty 1)
- 229 2019 Rebel, Rogue, Renegade Brake Handle Assy (Qty 1)
- 236 2022 Seats Inc Suspension Seat with seatbelt (Qty 1)
- 236.1 Arm Kit for 071-6065-00/071-6065-22 (Qty 1)
- 236.1.1 RH Arm rest -Selfskin Front Adj for 071-6065-22 (Qty 1)
- 236.1.1.1 Arm Pad for 071-6065-00/071-6065-22 (Qty 1)
- 236.1.2 LH Armrest -Selfskin Front Adj for 071-6065-22 (Qty 1)
- 236.1.2.1 Arm Pad for 071-6065-00/071-6065-22 (Qty 1)
- 236.2 Weight Adjustment Knob for 071-6065-00/071-6065-22 (Qty 1)
- 236.3 SEAT RAILS for 071-6065-00/071-6065-22 (Qty 1)
- 236.4 Seat Switch for 071-6065-00/071-6065-22 (Qty 1)
- 236.5 Recliner Adjust Knob for 071-6065-00/71-6065-22 (Qty 1)
- 236.6 Bellows w/Hardware for 071-6065-22 (Qty 1)
- 236.7 OBSOLETE USE 071-6063-00 (Qty 1)
- 236.8 Back Cover for I3M - Recl - Logos for 071-6065-22 (Qty 1)
- 236.9 Cushion Cover Kit for I3M - Logo for 071-6065-22 (Qty 1)
- 270 R-Series Brake Decal (Qty 1)
- 274 Long Seat Plate Warning Decal (Qty 1)
- 280 Control Adj. Control Rod Decal (Qty 1)
- 281 Control Adj. Control Dampener Decal (Qty 1)
-
17140.1#013-8049-00
5/16-18 Nylon Flange Nut
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
21#013-9002-00
5/16-18 Hex Flange Nuts Zinc w
Qty Used: 3Regular price $0.69 USDRegular priceUnit price per
-
6082#018-2007-00
5/16-18 X 1 GR 5 Hex Bolt Zinc
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
97140.4#018-8065-00
5/16-18 X 1 Carriage Bolt Zinc
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
110140.5#019-6042-00
.360 ID Plastic Washer
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
129#025-0027-00
2019 Brake Handle Spacer .625 x 1.5
Qty Used: 2Regular price $6.59 USDRegular priceUnit price per
-
140#026-2019-21
R-Series Seat Plate Assembly
Qty Used: 1Regular price $119.99 USDRegular priceUnit price per
-
140.2#013-9005-00
5/16-18 Nylock Jam Nut
Qty Used: 1Regular price $2.69 USDRegular priceUnit price per
-
140.3#018-4703-00
5/16-18 X 1-1/4 Carriage Bolt
Qty Used: 1Regular price $0.69 USDRegular priceUnit price per
-
140.6#026-2019-00
Seat Plate--Orange
Qty Used: 1Regular price $92.82 USDRegular priceUnit price per
-
140.7#028-0090-00
Seat Latch Rod
Qty Used: 1Regular price $36.42 USDRegular priceUnit price per
-
140.8#034-1025-00
Compact Outlaw Brake Spring
Qty Used: 1Regular price $11.66 USDRegular priceUnit price per
-
140.9#064-8081-00
Seat Cable
Qty Used: 1Regular price $14.58 USDRegular priceUnit price per
-
165#032-0001-00
Bumper (Seat)
Qty Used: 2Regular price $21.88 USDRegular priceUnit price per
-
179#036-5300-00
Seat Switch Adaptor - Pup
Qty Used: 1Regular price $14.53 USDRegular priceUnit price per
-
189#039-2156-00
Seat stop--Plated
Qty Used: 1Regular price $13.26 USDRegular priceUnit price per
-
229#069-0001-00
2019 Rebel, Rogue, Renegade Brake Handle Assy
Qty Used: 1Regular price $132.68 USDRegular priceUnit price per
-
236#071-6065-22
2022 Seats Inc Suspension Seat with seatbelt
Qty Used: 1Regular price $829.99 USDRegular priceUnit price per
-
236.1#071-6065-04
Arm Kit for 071-6065-00/071-6065-22
Qty Used: 1Regular price $109.99 USDRegular priceUnit price per
-
236.1.1#071-6065-11
RH Arm rest -Selfskin Front Adj for 071-6065-22
Qty Used: 1Regular price $119.99 USDRegular priceUnit price per
-
236.1.1.1236.1.2.1#071-6065-03
Arm Pad for 071-6065-00/071-6065-22
Qty Used: 1Regular price $29.99 USDRegular priceUnit price per
-
236.1.2#071-6065-12
LH Armrest -Selfskin Front Adj for 071-6065-22
Qty Used: 1Regular price $119.99 USDRegular priceUnit price per
-
236.2#071-6065-05
Weight Adjustment Knob for 071-6065-00/071-6065-22
Qty Used: 1Regular price $29.99 USDRegular priceUnit price per
-
236.3#071-6065-06
SEAT RAILS for 071-6065-00/071-6065-22
Qty Used: 1Regular price $92.87 USDRegular priceUnit price per
-
236.4#071-6065-07
Seat Switch for 071-6065-00/071-6065-22
Qty Used: 1Regular price $19.89 USDRegular priceUnit price per
-
236.5#071-6065-10
Recliner Adjust Knob for 071-6065-00/71-6065-22
Qty Used: 1Regular price $29.99 USDRegular priceUnit price per
-
236.6#071-6065-13
Bellows w/Hardware for 071-6065-22
Qty Used: 1Regular price $59.99 USDRegular priceUnit price per
-
236.7#071-6065-14
OBSOLETE USE 071-6063-00
Qty Used: 1Regular price $119.99 USDRegular priceUnit price per
-
236.8#071-6065-15
Back Cover for I3M - Recl - Logos for 071-6065-22
Qty Used: 1Regular price $199.99 USDRegular priceUnit price per
-
236.9#071-6065-16
Cushion Cover Kit for I3M - Logo for 071-6065-22
Qty Used: 1Regular price $199.99 USDRegular priceUnit price per
-
270#091-1101-18
2018 Out/XP/Diesel Brake Decal
Qty Used: 1Regular price $5.49 USDRegular priceUnit price per
-
274#091-3150-00
Outlaw Warning Decal
Qty Used: 1Regular price $10.20 USDRegular priceUnit price per
-
280#091-4038-00
Control Adj. Control Rod Decal
Qty Used: 1Regular price $5.49 USDRegular priceUnit price per
-
281#091-4039-00
Control Adj. Control Dampener Decal
Qty Used: 1Regular price $5.49 USDRegular priceUnit price per
