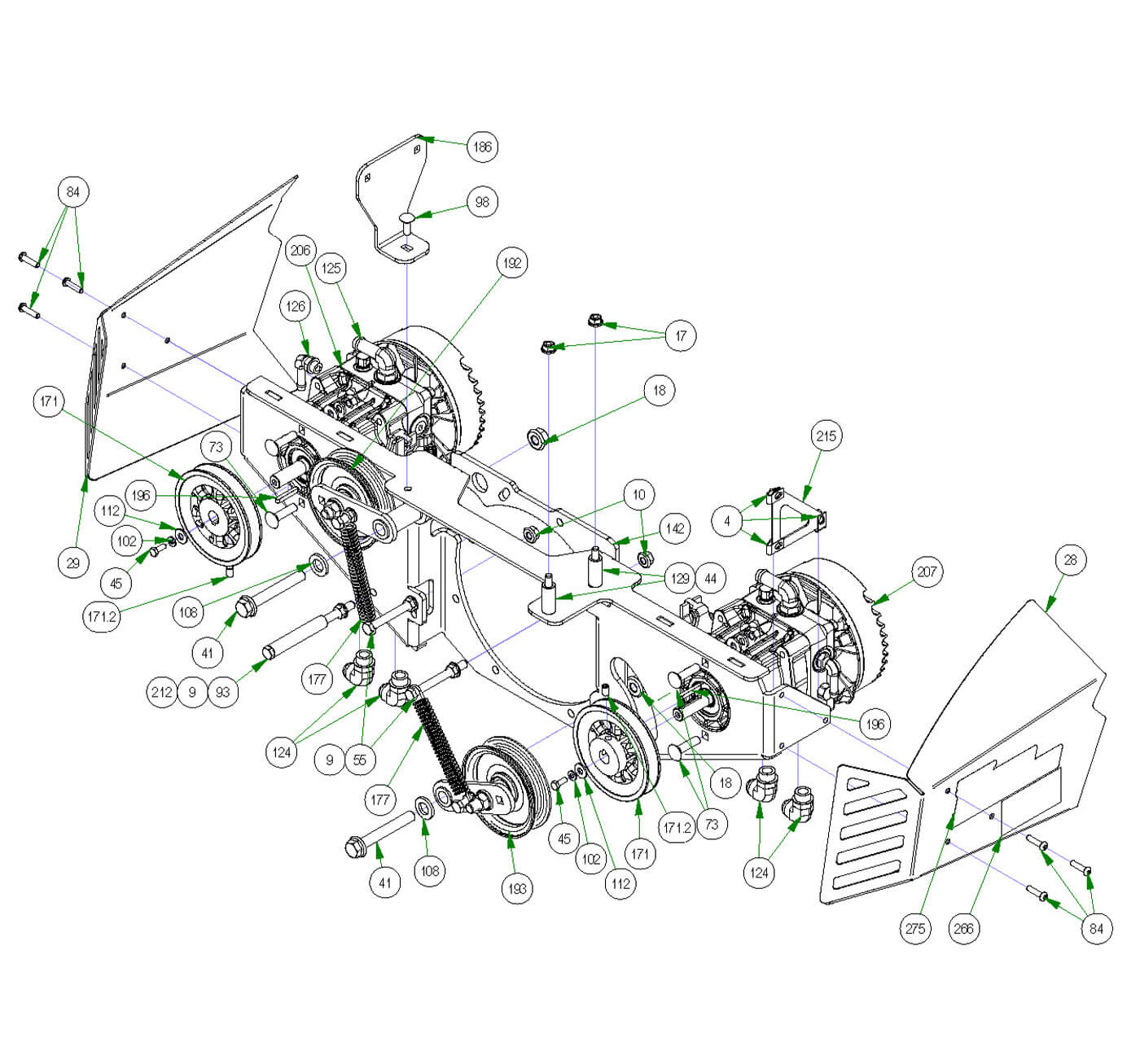

Pump Plate
Parts Index
- 4 1/4-20 Cage Nut (Qty 6)
- 9 3/8-16 Hex Flange Nuts Zinc w/ (Qty 3)
- 10 3/8 Nylock Flange Nut (Qty 3)
- 12 3/8-16 Hex Nuts Zinc (Qty 4)
- 17 5/16-18 Nylon Flange Nut (Qty 2)
- 18 1/2-13 Nylon Insert Flange Nut (Qty 2)
- 21 5/16-18 Hex Flange Nuts Zinc w (Qty 1)
- 28 Pump Cover--RH-Black (Qty 1)
- 29 Pump Cover--LH-Black (Qty 1)
- 41 Deck Wheel Bolt (Qty 2)
- 44 5/16-18 x 2.25" Hex Bolt Gr 5 (Qty 2)
- 45 M6-1.0 X 16MM HEX BOLT CL 8 (Qty 2)
- 55 3/8-16x3-1/2 Grade 5 Hex Bolt (Qty 2)
- 73 3/8 x 1 1/2 Carriage Bolt (Qty 4)
- 84 1/4-20 x 1" BS C/S 18-8 SS (Qty 6)
- 93 3/8-16 x 5 1/2 Hex Bolt - Grade 5 (Qty 1)
- 98 5/16 x 7/8 Carriage Bolt (Qty 1)
- 102 1/4 Lockwasher Zinc (Qty 2)
- 105 3/8 Lockwasher Zinc (Qty 4)
- 108 .630 ID X 1.122 OD X .142 THK (Qty 2)
- 112 1/4 USS Flat Washer Zinc (Qty 2)
- 114 5/16 USS Flat Washer Zinc (Qty 4)
- 124 Renegade Pump Fitting 90 Degree (Qty 4)
- 125 90 Degree Fitting, 1/2 x 3/4, (Qty 2)
- 126 90 Degree Fitting, 3/8 x 9/16, (Qty 2)
- 129 2019 Brake Handle Spacer .625 x 1.5 (Qty 2)
- 171 Cast Pump Pulley - 17mm Assembly (Qty 2)
- 171.2 5/16-18 X 1/2 SOCKET SET SCREW KNURLED CUP POINT (Qty 1)
- 177 ZT and ACS Handle Spring (Qty 2)
- 186 2019 Diesel Muffler Bracket--Plated (Qty 1)
- 192 2020 Diesel Pump Tensioner Assembly LH (Qty 1)
- 193 2020 Diesel Pump Tensioner Assembly RH (Qty 1)
- 196 M5 X 36MM SQUARE MACHINERY KEY C1018 ROUNDED ENDS (Qty 2)
- 206 2019 Rogue/Renegade Left Pump 16cc (Qty 1)
- 207 Renegade Right Pump 16cc (Qty 1)
- 212 3/8 Fuel Line-Priced per Foot (Qty 1)
- 215 Pump Plate Clip Nut Holder--Plated (Qty 2)
- 266 PERKINS Decal (Qty 2)
- 275 2019 Renegade 1100cc Pump Decal (Qty 2)
-
4#013-0054-00
1/4-20 Cage Nut
Qty Used: 6Regular price $0.69 USDRegular priceUnit price per
-
9#013-5201-00
3/8-16 Hex Flange Nuts Zinc w/
Qty Used: 3Regular price $1.49 USDRegular priceUnit price per
-
10#013-5202-00
3/8 Nylock Flange Nut
Qty Used: 3Regular price $1.49 USDRegular priceUnit price per
-
12#013-6014-00
3/8-16 Hex Nuts Zinc
Qty Used: 4Regular price $0.00 USDRegular priceUnit price per
-
17#013-8049-00
5/16-18 Nylon Flange Nut
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
18#013-8050-00
1/2-13 Nylon Insert Flange Nut
Qty Used: 2Regular price $1.39 USDRegular priceUnit price per
-
21#013-9002-00
5/16-18 Hex Flange Nuts Zinc w
Qty Used: 1Regular price $0.69 USDRegular priceUnit price per
-
28#014-5060-22
Pump Cover--RH-Black
Qty Used: 1Regular price $19.99 USDRegular priceUnit price per
-
29#014-5061-22
Pump Cover--LH-Black
Qty Used: 1Regular price $19.99 USDRegular priceUnit price per
-
41#018-0010-00
Deck Wheel Bolt - 2011 Outlaw
Qty Used: 2Regular price $5.89 USDRegular priceUnit price per
-
44#018-0023-00
5/16-18 x 2.25" Hex Bolt Gr 5
Qty Used: 2Regular price $0.61 USDRegular priceUnit price per
-
45#018-0024-00
M6-1.0 X 16MM HEX BOLT CL 8
Qty Used: 2Regular price $2.69 USDRegular priceUnit price per
-
55#018-1010-00
3/8-16x3-1/2 Grade 5 Hex Bolt
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
73#018-4706-00
3/8 x 1 1/2 Carriage Bolt
Qty Used: 4Regular price $1.39 USDRegular priceUnit price per
-
84#018-6014-00
1/4-20 x 1" BS C/S 18-8 SS
Qty Used: 6Regular price $5.29 USDRegular priceUnit price per
-
93#018-7060-00
3/8-16 x 5 1/2 Hex Bolt - Grade 5
Qty Used: 1Regular price $2.69 USDRegular priceUnit price per
-
98#018-8066-00
5/16 x 7/8 Carriage Bolt
Qty Used: 1Regular price $1.49 USDRegular priceUnit price per
-
102#019-4008-00
1/4 Lockwasher Zinc
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
105#019-5037-00
3/8 Lockwasher Zinc
Qty Used: 4Regular price $0.00 USDRegular priceUnit price per
-
108#019-6017-00
.630 ID X 1.122 OD X .142 THK
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
112#019-7040-00
1/4 USS Flat Washer Zinc
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
114#019-8044-00
5/16 USS Flat Washer Zinc
Qty Used: 4Regular price $0.79 USDRegular priceUnit price per
-
124#024-2052-00
2019 Outlaw Renegade Pump Fitting 90 Degree
Qty Used: 4Regular price $11.66 USDRegular priceUnit price per
-
125#024-5002-00
90 Degree Fitting, 1/2 x 3/4,
Qty Used: 2Regular price $16.48 USDRegular priceUnit price per
-
126#024-5206-00
90 Degree Fitting, 3/8 x 9/16,
Qty Used: 2Regular price $11.61 USDRegular priceUnit price per
-
129#025-0027-00
2019 Brake Handle Spacer .625 x 1.5
Qty Used: 2Regular price $6.59 USDRegular priceUnit price per
-
171#033-5011-00
Cast Pump Pulley - 17mm Assembly
Qty Used: 2Regular price $33.16 USDRegular priceUnit price per
-
171.2#030-0076-00
5/16-18 X 1/2 SOCKET SET SCREW KNURLED CUP POINT
Qty Used: 1Regular price $0.69 USDRegular priceUnit price per
-
177#034-9000-00
ZT and ACS Handle Spring
Qty Used: 2Regular price $14.53 USDRegular priceUnit price per
-
186#039-1025-00
2019 Diesel Muffler Bracket--Plated
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
192#039-6950-94
2020 Diesel Pump Tensioner Assembly LH
Qty Used: 1Regular price $79.60 USDRegular priceUnit price per
-
193#039-6950-95
2020 Diesel Pump Tensioner Assembly RH
Qty Used: 1Regular price $79.60 USDRegular priceUnit price per
-
196#042-5013-00
M5 X 36MM SQUARE MACHINERY KEY C1018 ROUNDED ENDS
Qty Used: 2Regular price $2.92 USDRegular priceUnit price per
-
206#050-3001-00
2019 Rogue/Renegade Left Pump 16cc
Qty Used: 1Regular price $499.99 USDRegular priceUnit price per
-
207#050-3003-00
2019 Outlaw Renegade Right Pump 16cc
Qty Used: 1Regular price $729.79 USDRegular priceUnit price per
-
212#051-8076-00
3/8 Fuel Line-Priced per Foot
Qty Used: 1Regular price $4.37 USDRegular priceUnit price per
-
215#057-5915-00
Pump Plate Clip Nut Holder--Plated
Qty Used: 2Regular price $15.99 USDRegular priceUnit price per
-
266#091-0017-00
PERKINS Decal
Qty Used: 2Regular price $12.99 USDRegular priceUnit price per
-
275#091-4012-00
2019 Renegade 1100cc Pump Decal
Qty Used: 2Regular price $11.66 USDRegular priceUnit price per
