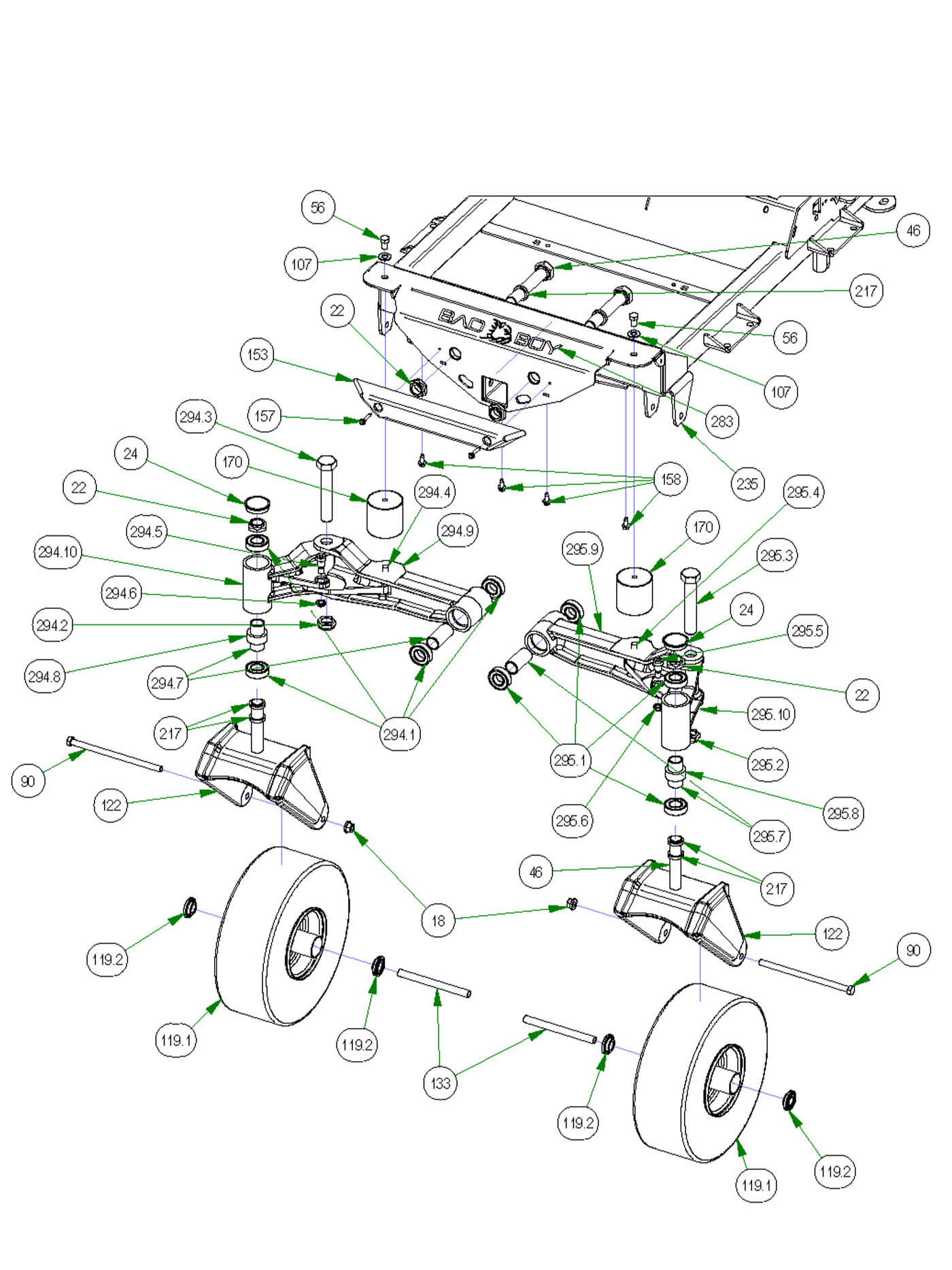

Front End
Parts Index
- 18 1/2-13 Nylon Insert Flange Nut (Qty 2)
- 22 1" Nylock Nut 1/2 Nut - Fine (Qty 4)
- 24 Bearing Retainer Cap (Qty 2)
- 46 1-14 X 5 1/2 BOLT GR 8 ZC YELLOW (Qty 4)
- 56 1/2-13 x 3/4 Bolt with Patch (GR 5) Zinc (Qty 2)
- 90 1/2-13 X 9 GR 5 Hex Bolts Zinc (Qty 2)
- 107 1/2 SAE Flat Washer GR 8 (Qty 2)
- 119.1 2019 15x6.00-6 No Flat Black Front Tire (Qty 2)
- 119.2 1 3/4" Bearing-Large Bore (Qty 2)
- 122 2020 R Series Cast Front Fork (Qty 2)
- 133 Front Wheel Spanner-All Models (Qty 2)
- 153 Bumper (Qty 1)
- 157 14 X 1-1/2 HWA A T/S Zinc (Qty 2)
- 158 5/16 x 3/4 Hex Washer Type F (Qty 4)
- 170 Isolator (Blue Dot) (Qty 2)
- 217 Spacer ( Front Fork and Suspension ) (Qty 6)
- 283 Flying Bulldog Front Bumper Decal (Qty 1)
- 286 Independently Articulating Front Suspension Arms (Qty 1)
- 294 2019 Front I-Beam Left (Qty 1)
- 294.1 Caster Bearing (Qty 4)
- 294.2 1" Nylock Nut 1/2 Nut - Fine (Qty 1)
- 294.3 1-14 X 5 1/2 BOLT GR 8 ZC YELLOW (Qty 1)
- 294.4 1/2-13 x 1" Stud (Qty 1)
- 294.5 5/8 x 5/8 Shoulder Bolt (Qty 1)
- 294.6 1/2-13 Nylon Insert Jam Locknut (Qty 1)
- 294.7 MZ/ZT/Mav/ R Series Front Bearing Spacer (Qty 2)
- 294.8 Rubber Stabilizer (Front Fork) (Qty 1)
- 294.9 2019 Front I-Beam Left (Qty 1)
- 295 2019 Front I-Beam Right (Qty 1)
- 295.1 Caster Bearing (Qty 4)
- 295.2 1" Nylock Nut 1/2 Nut - Fine (Qty 1)
- 295.3 1-14 X 5 1/2 BOLT GR 8 ZC YELLOW (Qty 1)
- 295.4 1/2-13 x 1" Stud (Qty 1)
- 295.5 5/8 x 5/8 Shoulder Bolt (Qty 1)
- 295.6 1/2-13 Nylon Insert Jam Locknut (Qty 1)
- 295.7 MZ/ZT/Mav/ R Series Front Bearing Spacer (Qty 2)
- 295.8 Rubber Stabilizer (Front Fork) (Qty 1)
-
18#013-8050-00
1/2-13 Nylon Insert Flange Nut
Qty Used: 2Regular price $1.39 USDRegular priceUnit price per
-

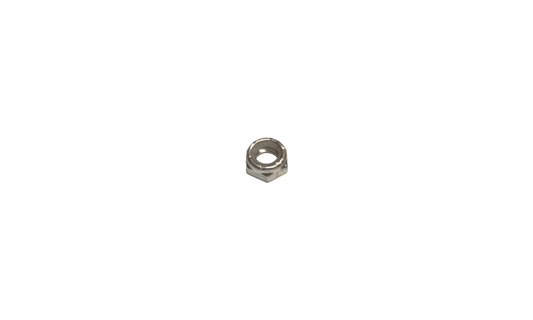

22294.2295.2#013-9004-00
1" Nylock Nut 1/2 Nut - Fine
Qty Used: 1Regular price $3.29 USDRegular priceUnit price per
-

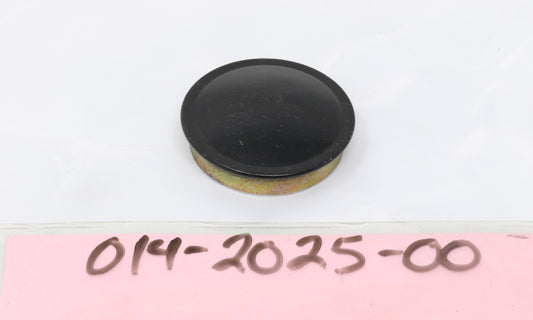

24#014-2025-00
Bearing Retainer Cap
Qty Used: 2Regular price $2.49 USDRegular priceUnit price per
-
46294.3295.3#018-0026-00
1-14 X 5 1/2 BOLT GR 8 ZC YELLOW
Qty Used: 1Regular price $12.99 USDRegular priceUnit price per
-
56#018-1055-00
1/2-13 x 3/4 Bolt with Patch (GR 5) Zinc
Qty Used: 2Regular price $2.69 USDRegular priceUnit price per
-

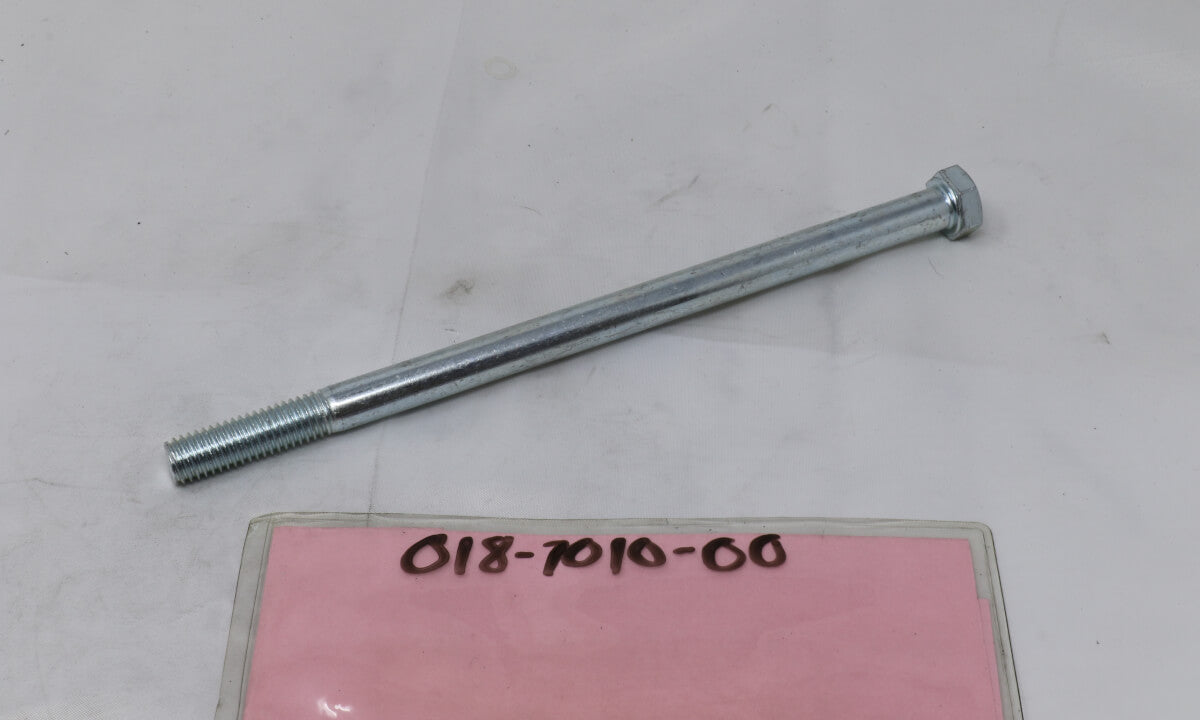

90#018-7010-00

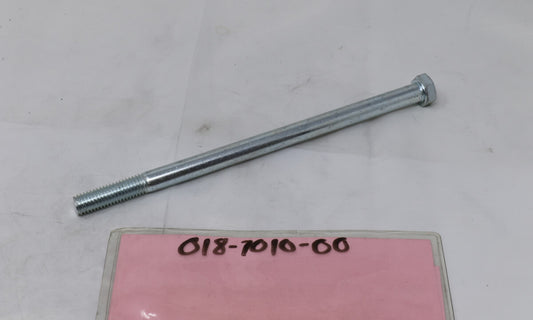

1/2-13 X 9 GR 5 Hex Bolts Zinc
Qty Used: 2Regular price $5.29 USDRegular priceUnit price per
-
107#019-5702-00
1/2 SAE Flat Washer GR 8
Qty Used: 2Regular price $0.75 USDRegular priceUnit price per
-
119.1#022-0003-00
2019 15x6.00-6 No Flat Black Front Tire
Qty Used: 2Regular price $159.99 USDRegular priceUnit price per
-
119.2#022-7010-00

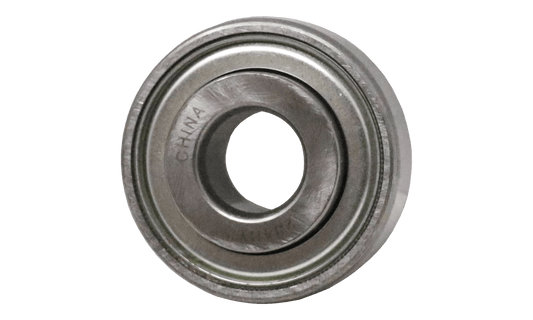

1 3/4" Bearing-Large Bore
Qty Used: 2Regular price $18.99 USDRegular priceUnit price per
-
122#023-0004-20
2020 R Series Cast Front Fork
Qty Used: 2Regular price $169.99 USDRegular priceUnit price per
-
133#025-5202-00
Front Wheel Spanner-All Models
Qty Used: 2Regular price $9.49 USDRegular priceUnit price per
-
-
157#030-7039-00
14 X 1-1/2 HWA A T/S Zinc
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-

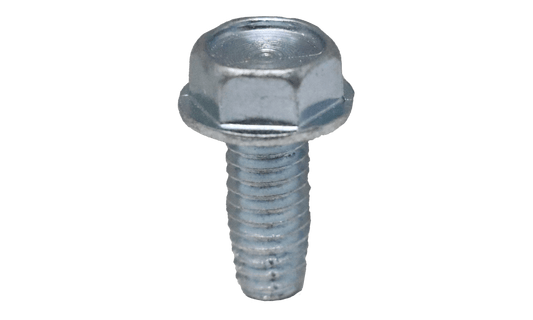

158#030-7042-00
5/16 x 3/4 Hex Washer Type F
Qty Used: 4Regular price $0.89 USDRegular priceUnit price per
-
170#032-8999-00
Isolator (Blue Dot)
Qty Used: 2Regular price $60.02 USDRegular priceUnit price per
-
217#058-1000-00
Spacer ( Front Fork and Suspension )
Qty Used: 6Regular price $5.83 USDRegular priceUnit price per
-
283#091-4063-00
Flying Bulldog Front Bumper Decal
Qty Used: 1Regular price $11.99 USDRegular priceUnit price per
-
286#091-8002-00
Independently Articulating Front Suspension Arms
Qty Used: 1Regular price $4.99 USDRegular priceUnit price per
-
294294.9#250-0032-00
2019 Front I-Beam Left
Qty Used: 1Regular price $218.90 USDRegular priceUnit price per
-
294.1295.1#010-1050-00
Caster Bearing
Qty Used: 4Regular price $17.19 USDRegular priceUnit price per
-
294.4295.4#018-2009-00
1/2-13 x 1" Stud
Qty Used: 1Regular price $5.29 USDRegular priceUnit price per
-

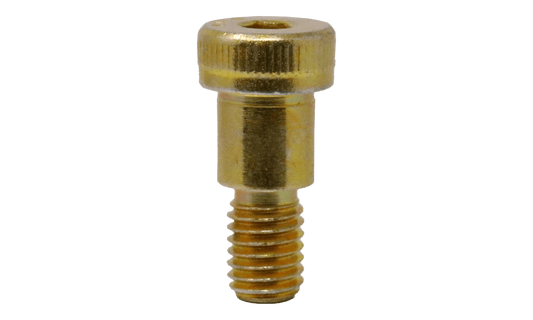

294.5295.5#018-3001-00
5/8 x 5/8 Shoulder Bolt
Qty Used: 1Regular price $14.59 USDRegular priceUnit price per
-

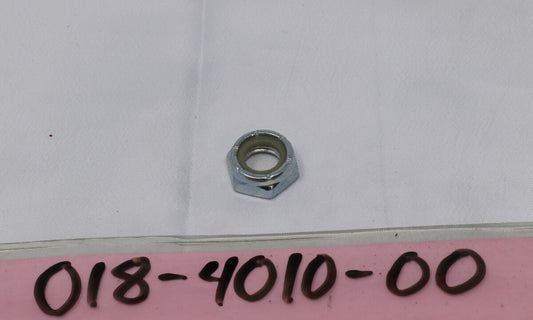

294.6295.6#018-4010-00
1/2-13 Nylon Insert Jam Locknut
Qty Used: 1Regular price $1.59 USDRegular priceUnit price per
-
294.7295.7#025-0003-00
MZ/ZT/Mav/ R Series Front Bearing Spacer
Qty Used: 2Regular price $13.12 USDRegular priceUnit price per
-
294.8295.8#029-7050-00

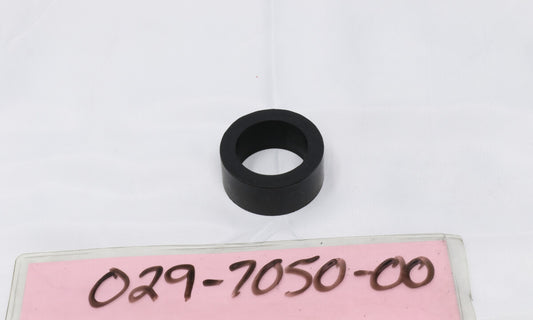

Rubber Stabilizer (Front Fork)
Qty Used: 1Regular price $7.95 USDRegular priceUnit price per
-
295#250-0033-00
2019 Front I-Beam Right
Qty Used: 1Regular price $290.46 USDRegular priceUnit price per
