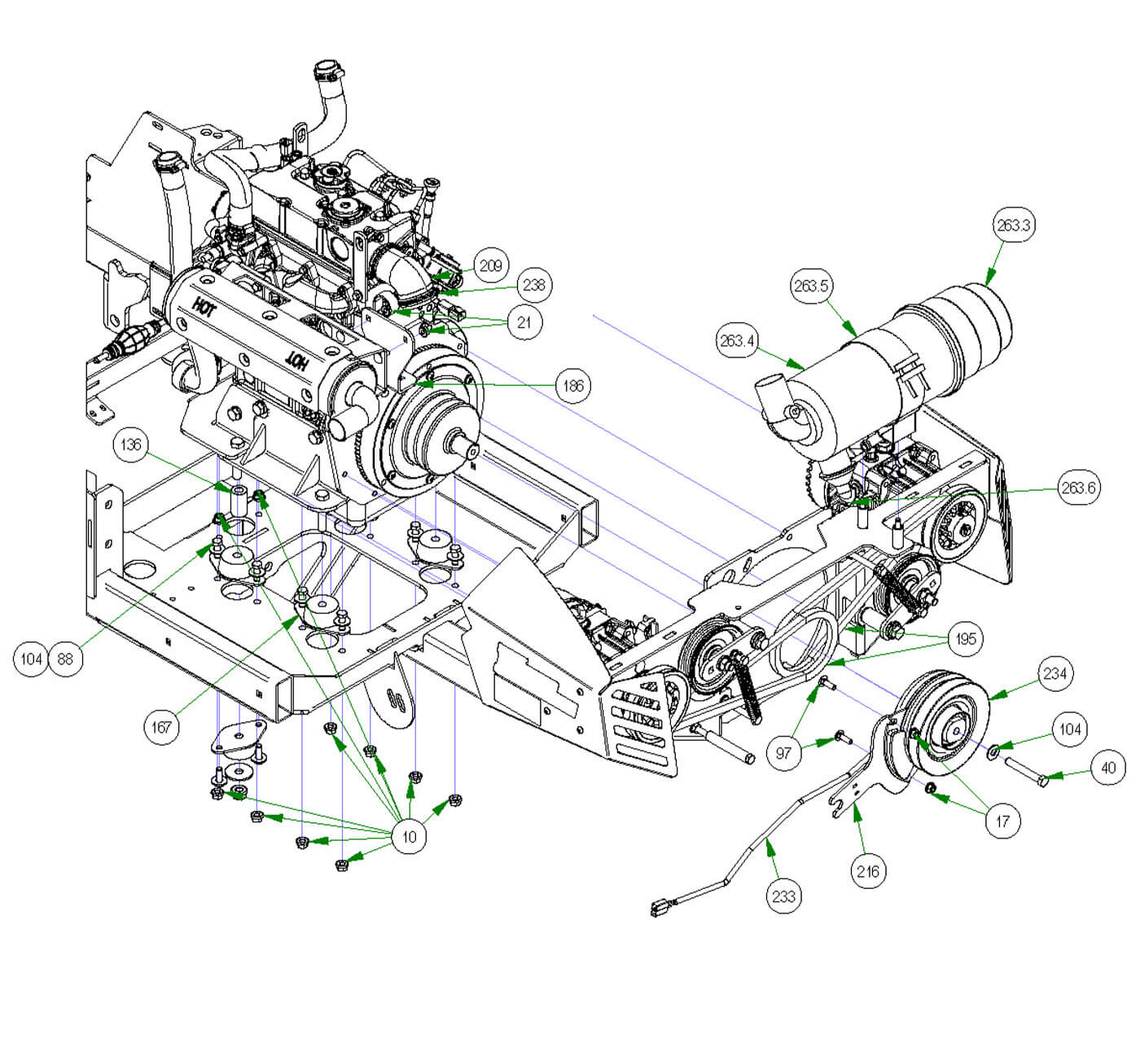

Engine Bay
Parts Index
- 10 3/8 Nylock Flange Nut (Qty 13)
- 17 5/16-18 Nylon Flange Nut (Qty 10)
- 21 5/16-18 Hex Flange Nuts Zinc w (Qty 3)
- 40 7/16-20x3” Hex Bolt GR 8 W/ Patch (Qty 1)
- 75 1/2-13 X 4 GR 8 Hex Bolt Yellow (Qty 1)
- 88 3/8-16 X 1 GR 5 Hex Bolts Zinc (Qty 1)
- 104 3/8 USS Flat Washer Zinc (Qty 1)
- 129 2019 Brake Handle Spacer .625 x 1.5 (Qty 2)
- 136 .502 ID X 1.00 OD X 1.750 (Qty 1)
- 167 Rubber Compression Mount (Qty 5)
- 171.1 Cast Pump Pulley - 17mm Assembly (Qty 1)
- 171.2 5/16-18 X 1/2 SOCKET SET SCREW KNURLED CUP POINT (Qty 1)
- 186 2019 Diesel Muffler Bracket--Plated (Qty 1)
- 195 2020 Renegade Pump Belt (Qty 2)
- 209 Air Intake Hose (Qty 1)
- 216 2019 Outlaw Renegade Clutch Bracket--Plated (Qty 1)
- 233 Clutch Pigtail (Qty 1)
- 234 Renegade Clutch (Qty 1)
- 238 2-1/2 Hose Clamp (Qty 2)
- 263 Enginaire Canister VLR-Complet (Qty 1)
- 263.1 Diesel Air Filter - Outer (Qty 1)
- 263.2 Diesel Air Filter - Inner (Qty 1)
- 263.3 Enginaire air canister cap (Qty 1)
- 263.4 Canister forAll Diesel Air (Qty 1)
- 263.5 Mounting Bracket for Diesel Ai (Qty 1)
- 263.6 Debris Plug-Enginaire Filter (Qty 1)
- 44 5/16-18 x 2.25" Hex Bolt Gr 5 (Qty 1)
-
195#041-8001-00
2020 Renegade Pump Belt
Qty Used: 2Regular price $74.99 USDRegular priceUnit price per
-
44#018-0023-00
5/16-18 x 2.25" Hex Bolt Gr 5
Qty Used: 1Regular price $0.61 USDRegular priceUnit price per
-
263.6#088-1020-00
Debris Plug-Enginaire Filter
Qty Used: 1Regular price $13.26 USDRegular priceUnit price per
-
263.5#088-1019-00
Mounting Bracket for Diesel Ai
Qty Used: 1Regular price $29.99 USDRegular priceUnit price per
-
263.4#088-1018-00
Canister forAll Diesel Air
Qty Used: 1Regular price $79.60 USDRegular priceUnit price per
-
263.3#088-1017-00
Enginaire air canister cap
Qty Used: 1Regular price $59.99 USDRegular priceUnit price per
-
263.2#063-2060-00
Diesel Air Filter - Inner
Qty Used: 1Regular price $39.79 USDRegular priceUnit price per
-
263.1#063-2050-00
Diesel Air Filter - Outer
Qty Used: 1Regular price $43.72 USDRegular priceUnit price per
-
263#088-1010-50
Enginaire Canister VLR-Complet
Qty Used: 1Regular price $197.71 USDRegular priceUnit price per
-
238#072-2002-00
2-1/2 Hose Clamp
Qty Used: 2Regular price $10.60 USDRegular priceUnit price per
-
234#070-5040-00
Renegade Clutch
Qty Used: 1Regular price $359.99 USDRegular priceUnit price per
-
233#070-2000-00
Clutch Pigtail
Qty Used: 1Regular price $19.85 USDRegular priceUnit price per
-
216#057-5919-00
2019 Outlaw Renegade Clutch Bracket--Plated
Qty Used: 1Regular price $26.53 USDRegular priceUnit price per
-
209#051-3004-00
Air Intake Hose
Qty Used: 1Regular price $13.19 USDRegular priceUnit price per
-
10#013-5202-00
3/8 Nylock Flange Nut
Qty Used: 13Regular price $1.49 USDRegular priceUnit price per
-
186#039-1025-00
2019 Diesel Muffler Bracket--Plated
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
171.2#030-0076-00
5/16-18 X 1/2 SOCKET SET SCREW KNURLED CUP POINT
Qty Used: 1Regular price $0.69 USDRegular priceUnit price per
-
171.1#033-5011-00
Cast Pump Pulley - 17mm Assembly
Qty Used: 1Regular price $33.16 USDRegular priceUnit price per
-
167#032-4050-00
Rubber Compression Mount
Qty Used: 5Regular price $71.52 USDRegular priceUnit price per
-
136#025-5339-00
.502 ID X 1.00 OD X 1.750
Qty Used: 1Regular price $4.87 USDRegular priceUnit price per
-
129#025-0027-00
2019 Brake Handle Spacer .625 x 1.5
Qty Used: 2Regular price $6.59 USDRegular priceUnit price per
-
104#019-5029-00
3/8 USS Flat Washer Zinc
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
88#018-6049-00
3/8-16 X 1 GR 5 Hex Bolts Zinc
Qty Used: 1Regular price $0.69 USDRegular priceUnit price per
-
75#018-5019-00
1/2-13 X 4 GR 8 Hex Bolt Yellow
Qty Used: 1Regular price $3.99 USDRegular priceUnit price per
-
40#018-0007-21
7/16-20x3” Hex Bolt GR 8 W/ Patch
Qty Used: 1Regular price $2.99 USDRegular priceUnit price per
-
21#013-9002-00
5/16-18 Hex Flange Nuts Zinc w
Qty Used: 3Regular price $0.69 USDRegular priceUnit price per
-
17#013-8049-00
5/16-18 Nylon Flange Nut
Qty Used: 10Regular price $0.79 USDRegular priceUnit price per
