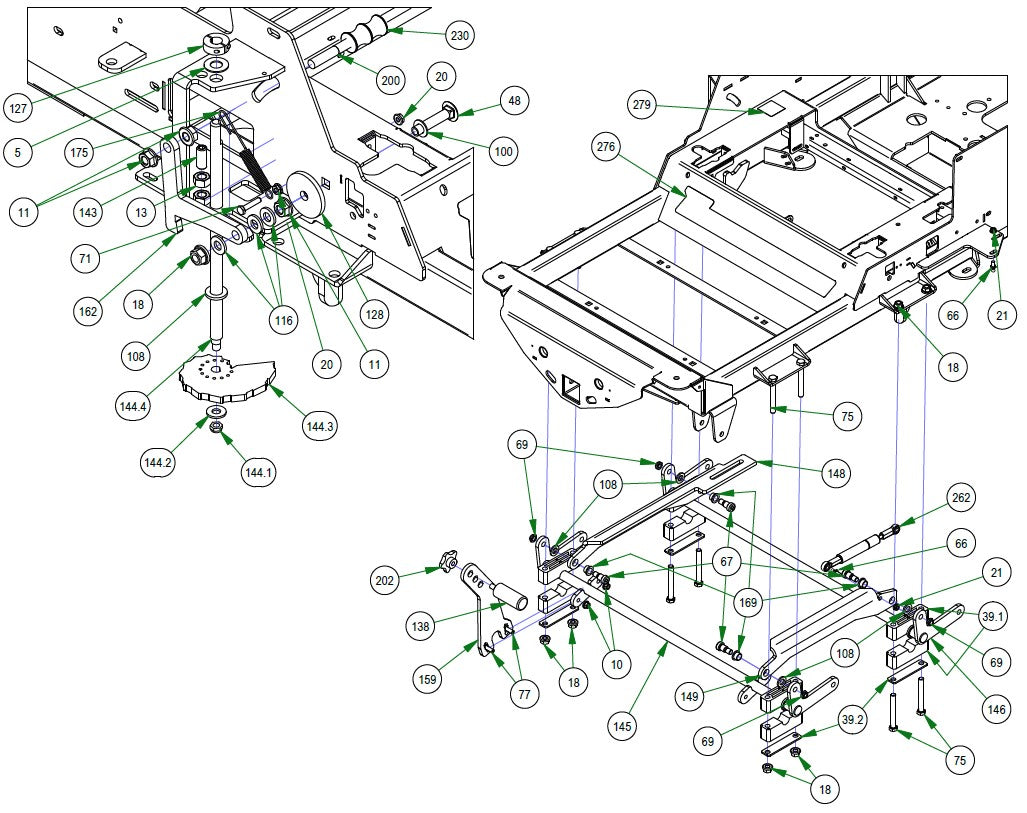

Deck Height Actuators

Parts Index
- 5 .630 ID x 1.130 OD x .062 THK F/W Nylon Black (Qty 1)
- 10 3/8 Nylock Flange Nut (Qty 2)
- 11 1/2-13 Hex Fange Nuts Zinc w/ (Qty 3)
- 13 1/2-13 Hex Nuts Zinc (Qty 1)
- 18 1/2-13 Nylon Insert Flange Nut (Qty 9)
- 20 1/4-20 Hex Flange Nuts Zinc w/ (Qty 2)
- 21 5/16-18 Hex Flange Nuts Zinc w (Qty 2)
- 39 2015 Outlaw Pillow Block (Qty 4)
- 39.1 Two Piece Pillow Block-Male (Qty 2)
- 39.2 Two Piece Pillow Block-Plate (Qty 1)
- 48 2 1/2 X 1/2 Carriage Bolt (Qty 1)
- 66 10mm Ball Stud (Long Thread) (Qty 2)
- 67 5/8 x 5/8 Shoulder Bolt (Qty 4)
- 69 1/2-13 Nylon Insert Jam Locknut (Qty 4)
- 71 1/4-20 X 1-1/4 GR 5 Hex Bolt (Qty 1)
- 75 1/2-13 X 4 GR 8 Hex Bolt Yellow (Qty 8)
- 77 3/8-16 X 1-1/4 Carriage Bolt (Qty 2)
- 100 .517 Square Hole Round Washer (Qty 1)
- 108 .630 ID X 1.122 OD X .142 THK (Qty 5)
- 116 .505 ID X 1 OD X .128 THK Washer (Qty 3)
- 127 Split Collar (Qty 1)
- 128 ZT/CZT Deck Round Spacer Idler--Plated (Qty 1)
- 138 Knurled Foot Pedal (Qty 1)
- 143 Deck Height Cam Plunger (Qty 1)
- 144 R-Series Deck Height Dial Rod Assy (Qty 1)
- 144.1 3/8-24 Nylon Insert Jam Locknu (Qty 1)
- 144.2 3/8 USS Flat Washer Zinc (Qty 1)
- 144.3 Deck Height Cam Plate (Qty 1)
- 144.4 2019 "R" Series Dial Rod (Qty 1)
- 145 Actuator Bar (Front) (Qty 1)
- 146 Actuator Bar (Rear) (Qty 1)
- 148 2019 Actuator Linkage-Right-Black (Qty 1)
- 159 Foot Lift Upright Lever--Orange (Qty 1)
- 162 Deck Travel Lock Lever--Plated (Qty 1)
- 169 Bronze Bushing - SF-2024-8 (Qty 4)
- 175 Brake Spring (Qty 1)
- 200 Seat Bracket Pin - 2008 Models (Qty 1)
- 202 Star Knob 1/2-13 (Qty 1)
- 230 Grip (Travel Lock) (Qty 1)
- 262 Dampener (250lbs) (Qty 1)
- 276 2019 Renegade Cooler Cover Decal (Qty 1)
- 279 2019 Deck Release Decal (Qty 1)
