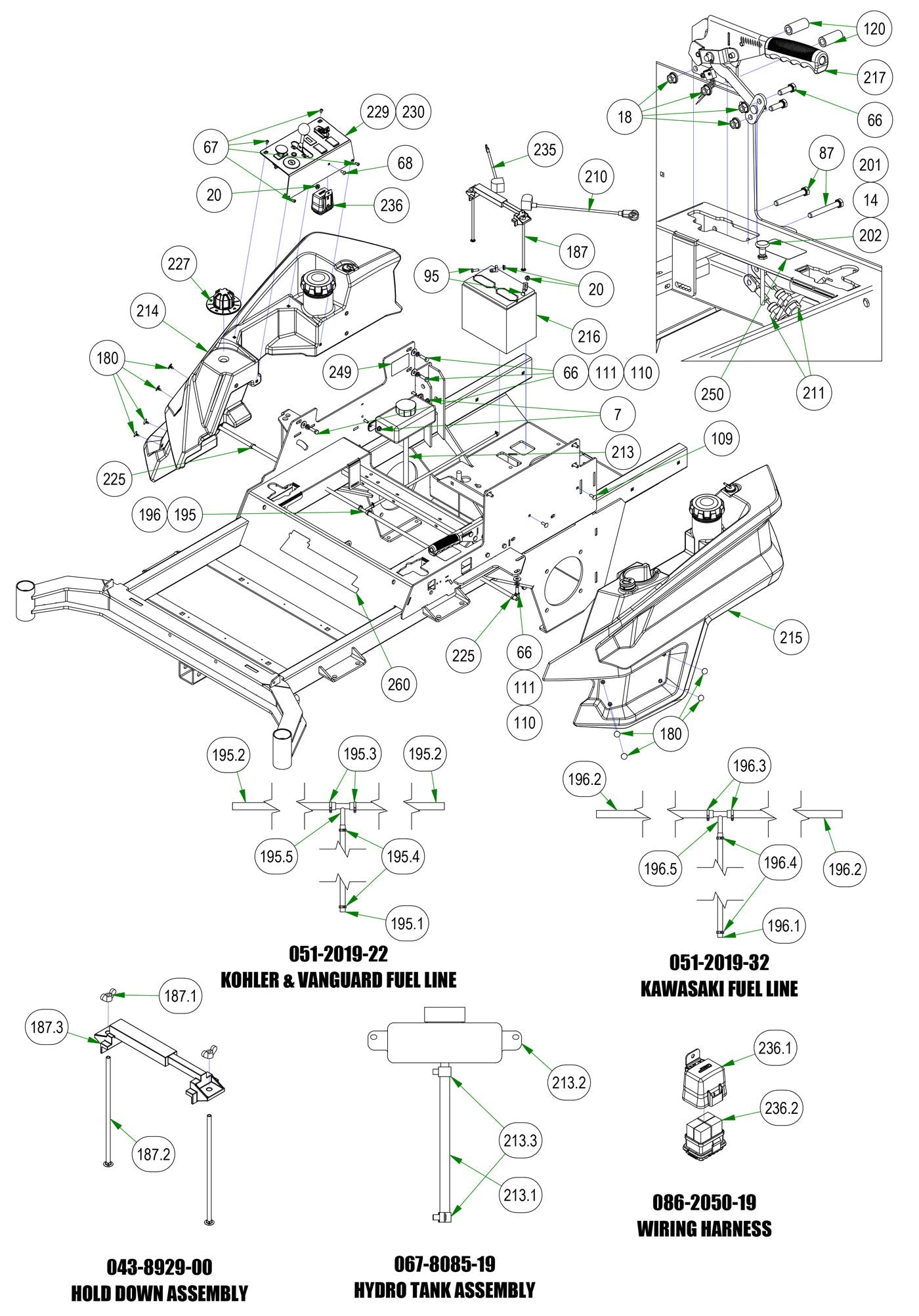

Tanks & Battery
Parts Index
- 7 1/4-20 Nylon Insert Flange Nut (Qty 4)
- 14 3/8-24 Hex Nut Zinc (Qty 1)
- 18 5/16-18 Nylon Flange Nut (Qty 4)
- 20 1/4-20 Hex Flange Nuts Zinc w/ (Qty 3)
- 66 5/16-18 X 1 GR 5 Hex Bolt Zinc (Qty 10)
- 67 10-32 X 3/8 BS C/S 18-8 SS with Patch (Qty 4)
- 68 1/4-20 X 1/2 BS C/S 18-8 SS (Qty 1)
- 87 5/16 x 2 1/2 Bolt (Qty 2)
- 95 1/4-20 X 3/4 GR 5 Hex Bolts (Qty 2)
- 109 1/4 x 3/4 Carriage Bolt (Qty 4)
- 110 5/16 USS Flat Washer Zinc (Qty 8)
- 111 5/16 Lock washer Zinc (Qty 8)
- 119 ZT/CZT Deck Round Spacer Idler--Plated (Qty 1)
- 120 2019 Brake Handle Spacer .625 x 1.5 (Qty 2)
- 180 3/16 x .48 Christmas Tree Nylon Black (Qty 8)
- 187 Battery Hold Down (Plastic) (Qty 1)
- 187.1 1/4-20 Wing Nuts Zinc (Qty 2)
- 187.2 1/4-20 X 8 Carriage Bolts Zinc (Qty 2)
- 187.3 Battery Hold Down (Plastic) (Qty 1)
- 195 2019 R-series Fuel Line for Vangaurd & Yamaha (Qty 1)
- 195.1 22" 1/4" Fuel Line No Clamp (Qty 1)
- 195.2 26" 5/16 Fuel Line No Clamps (Qty 2)
- 195.3 5/8 Fuel Line Clamp (Qty 2)
- 195.4 1/4 Fuel Line Clamp (Qty 2)
- 195.5 5/16 x 5/16 x 1/4 Fuel Line T (Qty 1)
- 196 2019 Rebel Rogue Kaw Fuel Line (Qty 1)
- 196.1 32" 1/4" Fuel Line No Clamps (Qty 1)
- 196.2 26" 5/16 Fuel Line No Clamps (Qty 2)
- 196.3 5/8 Fuel Line Clamp (Qty 2)
- 196.4 1/4 Fuel Line Clamp (Qty 2)
- 196.5 5/16 x 5/16 x 1/4 Fuel Line T (Qty 1)
- 201 Choke - All MZ/ZT/Mav/Rebel/Rogue (Qty 1)
- 202 2019 36HP Vanguard FX1000 Rebel Choke Cable (Qty 1)
- 210 14" Red Battery Cable- Rebel, Raider (Qty 1)
- 211 Long Brake Cable (Qty 2)
- 213 2019 Rebel Hydro Tank Assembly (Qty 2)
- 213.1 2019 7.5" Outlaw Gen2 Hydro Tank Hose (Qty 1)
- 213.2 Expansion Tank for Outlaw (Qty 1)
- 213.3 5/8" Wire Clamp-Outlaw Only (Qty 1)
- 214 2019 Right Rebel, Rogue, Renagade Fuel Tank (GAS) (Qty 1)
- 215 2019 Left Rebel, Rogue, Renegade Fuel Tank (GAS) (Qty 1)
- 216 Battery - All models except Renegade and Revolt (Qty 1)
- 217 2019 Rebel, Rogue, Renegade Brake Handle Assy (Qty 1)
- 225 12.5mm/15mm OETIKER 2 Ear Clamp (Qty 2)
- 227 Deck Height Dial (1.5 - 5.5) (Qty 1)
- 229 Rebel/Rogue Control Panel Assy (Qty 1)
- 235 Rebel, Rogue Ground Wire (Qty 1)
- 236 2019 Harness-Rebel/Rogue harness-No Display (Qty 1)
- 236.1 2019 Relay Cap Kit (Qty 1)
- 236.2 2019 Relay Terminal (Qty 1)
- 249 Yellow Hydraulic Decal (Qty 2)
- 250 R-Series Brake Decal (Qty 1)
- 260 2019 Rebel Cooler Cover Decal (Qty 1)
-
7#013-2050-00
1/4-20 Nylon Insert Flange Nut
Qty Used: 4Regular price $1.39 USDRegular priceUnit price per
-
14#013-6051-00
3/8-24 Hex Nut Zinc
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
18#013-8049-00
5/16-18 Nylon Flange Nut
Qty Used: 4Regular price $0.79 USDRegular priceUnit price per
-
20#013-9001-00
1/4-20 Hex Flange Nuts Zinc w/
Qty Used: 3Regular price $0.69 USDRegular priceUnit price per
-
66#018-2007-00
5/16-18 X 1 GR 5 Hex Bolt Zinc
Qty Used: 10Regular price $0.00 USDRegular priceUnit price per
-
67#018-2010-00
10-32 X 3/8 BS C/S 18-8 SS
Qty Used: 4Regular price $0.79 USDRegular priceUnit price per
-
68#018-2012-00
1/4-20 X 1/2 BS C/S 18-8 SS
Qty Used: 1Regular price $0.69 USDRegular priceUnit price per
-
87#018-5344-00
5/16 x 2 1/2 Bolt
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
95#018-8052-00
1/4-20 X 3/4 GR 5 Hex Bolts
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
109#019-8040-00
1/4 x 3/4 Carriage Bolt
Qty Used: 4Regular price $1.49 USDRegular priceUnit price per
-
110#019-8044-00
5/16 USS Flat Washer Zinc
Qty Used: 8Regular price $0.79 USDRegular priceUnit price per
-
111#019-8051-00
5/16 Lock washer Zinc
Qty Used: 8Regular price $0.79 USDRegular priceUnit price per
-
119#025-0025-00
ZT/CZT Deck Round Spacer Idler--Plated
Qty Used: 1Regular price $6.62 USDRegular priceUnit price per
-
120#025-0027-00
2019 Brake Handle Spacer .625 x 1.5
Qty Used: 2Regular price $6.59 USDRegular priceUnit price per
-
180#040-6081-00
3/16 x .48 Christmas Tree Nylon Black
Qty Used: 8Regular price $2.64 USDRegular priceUnit price per
-
187187.3#043-8929-00
Battery Hold Down (Plastic)
Qty Used: 1Regular price $16.35 USDRegular priceUnit price per
-
187.1#013-8051-00
1/4-20 Wing Nuts Zinc
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
187.2#018-8050-00
1/4-20 X 8 Carriage Bolts Zinc
Qty Used: 2Regular price $1.49 USDRegular priceUnit price per
-
195#051-2019-22
2019 R-series Fuel Line for Vangaurd & Yamaha
Qty Used: 1Regular price $39.99 USDRegular priceUnit price per
-
195.1#051-8067-22
22" 1/4" Fuel Line No Clamp
Qty Used: 1Regular price $10.99 USDRegular priceUnit price per
-
195.2196.2#051-8075-26
26" 5/16 Fuel Line No Clamps
Qty Used: 2Regular price $17.50 USDRegular priceUnit price per
-
195.3196.3#072-8068-00
5/8 Fuel Line Clamp
Qty Used: 2Regular price $3.29 USDRegular priceUnit price per
-
195.4196.4#072-8069-00
1/4 Fuel Line Clamp
Qty Used: 2Regular price $0.88 USDRegular priceUnit price per
-
195.5196.5#073-8069-00
5/16 x 5/16 x 1/4 Fuel Line T
Qty Used: 1Regular price $8.88 USDRegular priceUnit price per
-
196#051-2019-32
2019 Rebel Rogue Kaw Fuel Line
Qty Used: 1Regular price $49.99 USDRegular priceUnit price per
-
196.1#051-8067-32
32" 1/4" Fuel Line No Clamps
Qty Used: 1Regular price $12.09 USDRegular priceUnit price per
-
201#054-8017-00
Choke - All MZ/ZT/Mav/Rebel/Rogue
Qty Used: 1Regular price $24.11 USDRegular priceUnit price per
-
202#054-8019-00
2019 36HP Vanguard FX1000 Rebel Choke Cable
Qty Used: 1Regular price $24.80 USDRegular priceUnit price per
-
210#064-5301-01
14" Red Battery Cable-Base Outlaw
Qty Used: 1Regular price $12.09 USDRegular priceUnit price per
-
211#064-8056-00
Long Brake Cable
Qty Used: 2Regular price $49.99 USDRegular priceUnit price per
-
213#067-8085-19
2019 Rebel Hydro Tank Assembly
Qty Used: 2Regular price $46.65 USDRegular priceUnit price per
-
213.1#051-0019-00
2019 7.5" Outlaw Gen2 Hydro Tank Hose
Qty Used: 1Regular price $10.60 USDRegular priceUnit price per
-
213.2#067-8085-00
Expansion Tank for Outlaw
Qty Used: 1Regular price $29.18 USDRegular priceUnit price per
-
213.3#072-8074-00
5/8" Wire Clamp-Outlaw Only
Qty Used: 1Regular price $4.37 USDRegular priceUnit price per
-
214#067-9950-50
2019 Right Rebel, Rogue, Renagade Fuel Tank (GAS)
Qty Used: 1Regular price $331.72 USDRegular priceUnit price per
-
215#067-9960-50
2019 Left Rebel, Rogue, Renegade Fuel Tank (GAS)
Qty Used: 1Regular price $331.72 USDRegular priceUnit price per
-
216#068-8049-00
Battery - All models except Diesel and Revolt
Qty Used: 1Regular price $64.99 USDRegular priceUnit price per
-
217#069-0001-00
2019 Rebel, Rogue, Renegade Brake Handle Assy
Qty Used: 1Regular price $132.68 USDRegular priceUnit price per
-
225#072-8076-00
12.5mm/15mm OETIKER 2 Ear Clamp
Qty Used: 2Regular price $1.99 USDRegular priceUnit price per
-
227#077-9002-00
Deck Height Dial (1.5 - 5.5)
Qty Used: 1Regular price $29.13 USDRegular priceUnit price per
-
229#079-3481-19
Rebel/Rogue Control Panel Assy
Qty Used: 1Regular price $109.00 USDRegular priceUnit price per
-
235#086-0005-00
Starter Cable
Qty Used: 1Regular price $9.28 USDRegular priceUnit price per
-
236#086-2050-19
2019 Harness-Rebel/Rogue harness-No Display
Qty Used: 1Regular price $363.44 USDRegular priceUnit price per
-
236.1#086-1202-01
2019 Relay Cap Kit
Qty Used: 1Regular price $17.24 USDRegular priceUnit price per
-
236.2#086-1202-19
2019 Relay Terminal
Qty Used: 1Regular price $23.34 USDRegular priceUnit price per
-
249#091-1020-00
Yellow Hydraulic Decal
Qty Used: 2Regular price $1.46 USDRegular priceUnit price per
-
250#091-1101-18
2018 Out/XP/Diesel Brake Decal
Qty Used: 1Regular price $5.49 USDRegular priceUnit price per
-
260#091-4010-00
2019 Rebel Cooler Cover Decal
Qty Used: 1Regular price $7.28 USDRegular priceUnit price per
