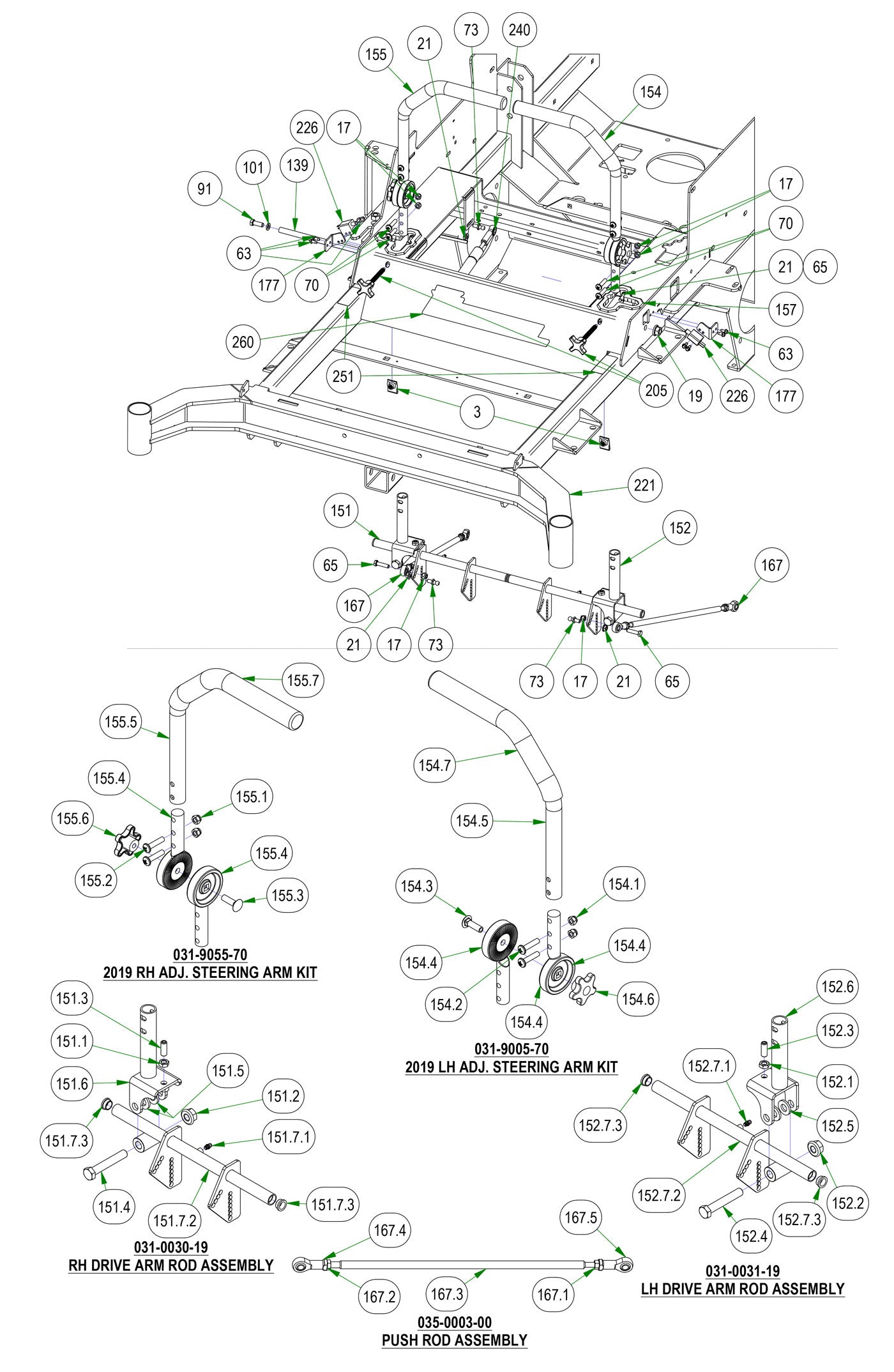

Drive Arm Assembly
Parts Index
- 3 Extruded Nut 3/8"-16 3/4" Hole Center With Patch (Qty 2)
- 17 5/16-18 Nylon Insert Locknut Z (Qty 6)
- 19 1/2-13 Nylon Insert Flange Nut (Qty 1)
- 21 5/16-18 Hex Flange Nuts Zinc w (Qty 6)
- 63 12-24 x 1/2 HWH Bolt (Qty 8)
- 65 5/16-18 X 1-1/4 GR 5 Hex Bolt (Qty 4)
- 70 5/16-18 x 1 3/8" Button Head Torx Drive Bolt (Qty 4)
- 73 10mm Damper Ball Stud- (Qty 4)
- 91 3/8-16 X 1 GR 5 Hex Bolts Zinc (Qty 1)
- 101 3/8 Lockwasher Zinc (Qty 1)
- 139 2019 Steering Actuator Rod (Qty 1)
- 151 2019 R Series RH Arm Rod Assembly (Qty 1)
- 151.1 3/8-16 Half Jam Nut (Qty 1)
- 151.2 1/2-13 Nylon Insert Flange Nut (Qty 1)
- 151.3 3/8-16 X 1 SOCKET SET SCREW CUP POINT (Qty 1)
- 151.4 1/2-13 X 3 GR 5 Hex Bolts Zinc (Qty 1)
- 151.5 .505 ID X 1 OD X .128 THK Washer (Qty 2)
- 151.6 Drive Arm Pivot (Qty 1)
- 151.7 Drive Arm Actuator RH (Qty 1)
- 151.7.1 1/4 Drive-in Grease Fitting (Qty 1)
- 151.7.3 Drive Arm Actuator Bushing (Qty 2)
- 152 2019 R Series LH Arm Rod Assembly (Qty 1)
- 152.1 3/8-16 Half Jam Nut (Qty 1)
- 152.2 1/2-13 Nylon Insert Flange Nut (Qty 1)
- 152.3 3/8-16 X 1 SOCKET SET SCREW CUP POINT (Qty 1)
- 152.4 1/2-13 X 3 GR 5 Hex Bolts Zinc (Qty 1)
- 152.5 .505 ID X 1 OD X .128 THK Washer (Qty 2)
- 152.6 Drive Arm Pivot (Qty 1)
- 152.7 5/16-18 x 1.5" Torx Cutter-Blk (Qty 1)
- 152.7.1 1/4 Drive-in Grease Fitting (Qty 1)
- 152.7.3 Drive Arm Actuator Bushing (Qty 2)
- 154 Black Steering Arm Kit LH (Qty 1)
- 154.1 5/16-18 Nylon Insert Locknut Z (Qty 2)
- 154.2 5/16-18 x 1 3/8" Button Head Torx Drive Bolt (Qty 2)
- 154.3 3/8-16 X 1-1/4 Carriage Bolt (Qty 1)
- 154.4 2019 Upper/Lower Steering Arm Casting (Qty 2)
- 154.5 2019 Steering Arm Tube (Qty 1)
- 154.6 Knob - Adjustable Steering Arm (Qty 1)
- 154.7 Black Steering Grip (Qty 1)
- 155 Black Steering Arm Kit RH (Qty 1)
- 155.1 5/16-18 Nylon Insert Locknut Z (Qty 2)
- 155.2 5/16-18 x 1 3/8" Button Head Torx Drive Bolt (Qty 2)
- 155.3 3/8-16 X 1-1/4 Carriage Bolt (Qty 1)
- 155.4 2019 Upper/Lower Steering Arm Casting (Qty 2)
- 155.5 2019 Steering Arm Tube (Qty 1)
- 155.6 Knob - Adjustable Steering Arm (Qty 1)
- 155.7 Black Steering Grip (Qty 1)
- 157 Drive Arm Bushing (Qty 1)
- 167 2019 Rebel Push Rod Assembly (Qty 1)
- 167.1 5/16 LH Nut (Qty 1)
- 167.2 3/8-24 Hex Nut Zinc (Qty 1)
- 167.3 2019 Rebel Push Rod Assembly (Qty 1)
- 167.4 Spherical Rod End (Qty 1)
- 167.5 Spherical Rod End - LH Thead - Rebel,Rogue,Renegad (Qty 1)
- 177 2019 Arm Switch Bracket--Plated (Qty 2)
- 205 Star Knob 3/8- 16 x3" (Qty 2)
- 226 Safety Switch (Qty 2)
- 240 Arm Dampener (Qty 2)
- 251 R-Series LH/RH Steering Control Decal (Qty 1)
- 260 2019 Rebel Cooler Cover Decal (Qty 1)
-
3#013-0021-00
Extruded Nut 3/8"-16 3/4" Hole Center With Patch
Qty Used: 2Regular price $2.99 USDRegular priceUnit price per
-
17154.1155.1#013-8047-00
5/16-18 Nylon Insert Locknut Z
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
19151.2152.2#013-8050-00
1/2-13 Nylon Insert Flange Nut
Qty Used: 1Regular price $1.39 USDRegular priceUnit price per
-
21#013-9002-00
5/16-18 Hex Flange Nuts Zinc w
Qty Used: 6Regular price $0.69 USDRegular priceUnit price per
-
63#018-1080-00
12-24 x 1/2 HWH Bolt
Qty Used: 8Regular price $1.99 USDRegular priceUnit price per
-
65#018-2006-00
5/16-18 X 1-1/4 GR 5 Hex Bolt
Qty Used: 4Regular price $0.79 USDRegular priceUnit price per
-
70154.2155.2#018-2020-18
5/16-18 x 1 3/8\" Button Head Torx Drive Bolt
Qty Used: 2Regular price $1.49 USDRegular priceUnit price per
-
73#018-2050-00
10mm Damper Ball Stud-
Qty Used: 4Regular price $1.99 USDRegular priceUnit price per
-
91#018-6049-00
3/8-16 X 1 GR 5 Hex Bolts Zinc
Qty Used: 1Regular price $0.69 USDRegular priceUnit price per
-
101#019-5037-00
3/8 Lockwasher Zinc
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
139#028-0051-00
2019 Steering Actuator Rod
Qty Used: 1Regular price $21.88 USDRegular priceUnit price per
-
151#031-0030-19
2019 R Series RH Arm Rod Assembly
Qty Used: 1Regular price $79.60 USDRegular priceUnit price per
-
151.1152.1#013-0017-00
3/8-16 Half Jam Nut
Qty Used: 1Regular price $2.69 USDRegular priceUnit price per
-
151.3152.3#018-0063-00
3/8-16 X 1 SOCKET SET SCREW CUP POINT
Qty Used: 1Regular price $2.69 USDRegular priceUnit price per
-

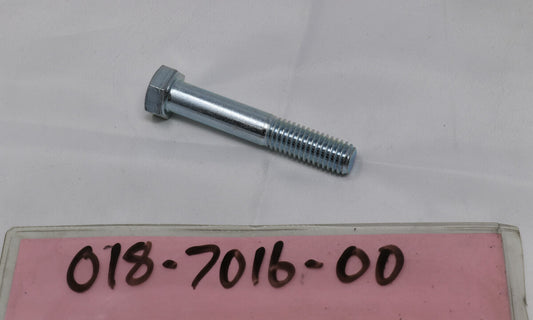

151.4152.4#018-7016-00
1/2-13 X 3 GR 5 Hex Bolts Zinc
Qty Used: 1Regular price $1.49 USDRegular priceUnit price per
-
151.5152.5#019-8054-00
.505 ID X 1 OD X .128 THK Washer
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-

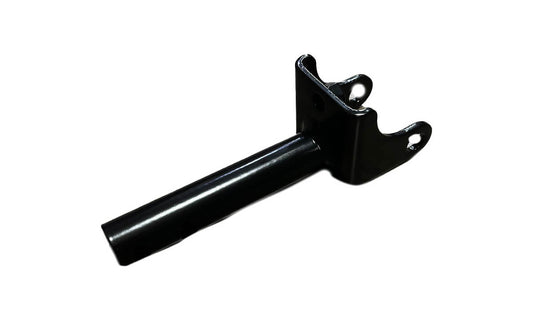

151.6152.6#031-0014-00
Drive Arm Pivot
Qty Used: 1Regular price $23.29 USDRegular priceUnit price per
-
151.7#031-0030-00
Drive Arm Actuator RH
Qty Used: 1Regular price $43.72 USDRegular priceUnit price per
-
151.7.1152.7.1#024-6034-00
1/4 Drive-in Grease Fitting
Qty Used: 1Regular price $0.66 USDRegular priceUnit price per
-
151.7.3152.7.3#031-0032-00
Drive Arm Actuator Bushing
Qty Used: 2Regular price $6.62 USDRegular priceUnit price per
-
152#031-0031-19
2019 R Series LH Arm Rod Assembly
Qty Used: 1Regular price $79.60 USDRegular priceUnit price per
-
152.7#018-0031-00
5/16-18 x 1.5" Torx Cutter-Blk
Qty Used: 1Regular price $3.99 USDRegular priceUnit price per
-
154#031-9005-70
Black Steering Arm Kit LH
Qty Used: 1Regular price $132.68 USDRegular priceUnit price per
-
154.3155.3#018-5043-00
3/8-16 X 1-1/4 Carriage Bolt
Qty Used: 1Regular price $0.99 USDRegular priceUnit price per
-
154.4155.4#031-9005-00
2019 Upper/Lower Steering Arm Casting
Qty Used: 2Regular price $26.53 USDRegular priceUnit price per
-
154.5155.5#031-9006-00
2019 Steering Arm Tube
Qty Used: 1Regular price $39.99 USDRegular priceUnit price per
-
154.6155.6#045-5000-00
Knob - Adjustable Steering Arm
Qty Used: 1Regular price $3.99 USDRegular priceUnit price per
-
154.7155.7#069-4010-00
Black Steering Grip
Qty Used: 1Regular price $7.38 USDRegular priceUnit price per
-
155#031-9055-70
Black Steering Arm Kit RH
Qty Used: 1Regular price $115.31 USDRegular priceUnit price per
-
157#032-0002-00
Drive Arm Bushing
Qty Used: 1Regular price $14.53 USDRegular priceUnit price per
-
167167.3#035-0003-00
2019 Rebel Push Rod Assembly
Qty Used: 1Regular price $39.79 USDRegular priceUnit price per
-

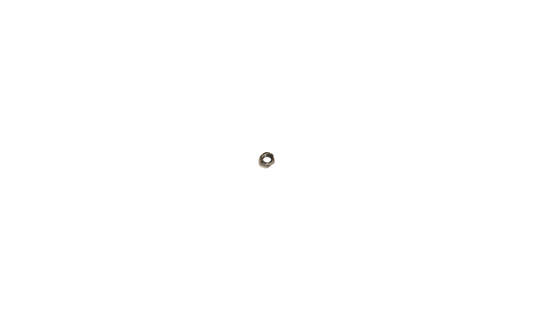

167.1#013-6050-00
5/16 LH Nut
Qty Used: 1Regular price $3.99 USDRegular priceUnit price per
-
167.2#013-6051-00
3/8-24 Hex Nut Zinc
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
167.4#048-3000-00
Spherical Rod End-Outlaw Only
Qty Used: 1Regular price $13.26 USDRegular priceUnit price per
-

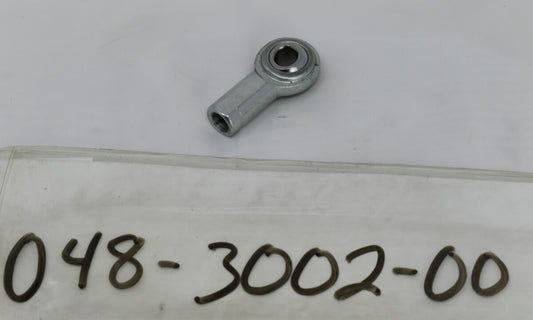

167.5#048-3002-00
Spherical Rod End - LH Thead - Rebel,Rogue,Renegad
Qty Used: 1Regular price $29.99 USDRegular priceUnit price per
-
177#039-2160-00
2019 Arm Switch Bracket--Plated
Qty Used: 2Regular price $12.99 USDRegular priceUnit price per
-
205#057-5800-00
Star Knob 3/8- 16 x3"
Qty Used: 2Regular price $5.83 USDRegular priceUnit price per
-
226#077-8073-00
Safety Switch
Qty Used: 2Regular price $9.99 USDRegular priceUnit price per
-
-
251#091-1114-00
2018 LH/RH Steering Control Decal Roll
Qty Used: 1Regular price $14.58 USDRegular priceUnit price per
-
260#091-4010-00
2019 Rebel Cooler Cover Decal
Qty Used: 1Regular price $7.28 USDRegular priceUnit price per
