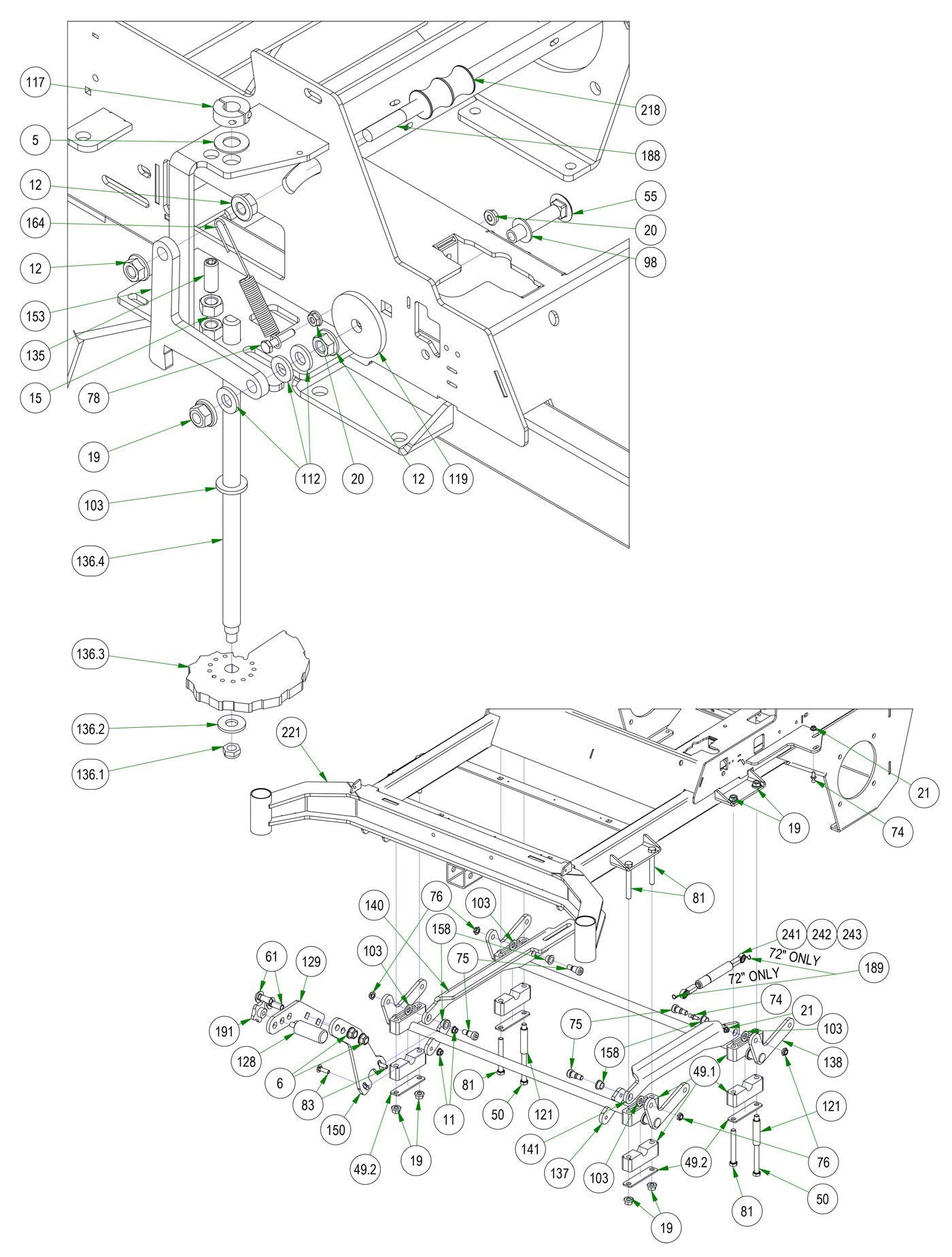

Deck Control Assembly
Parts Index
- 5 .630 ID x 1.130 OD x .062 THK F/W Nylon Black (Qty 1)
- 6 5/8-11 NYL INS FLNG L/N ZC (Qty 2)
- 11 3/8 Nylock Flange Nut (Qty 2)
- 12 1/2-13 Hex Fange Nuts Zinc w/ (Qty 3)
- 15 1/2-13 Hex Nuts Zinc (Qty 1)
- 19 1/2-13 Nylon Insert Flange Nut (Qty 9)
- 20 1/4-20 Hex Flange Nuts Zinc w/ (Qty 2)
- 21 5/16-18 Hex Flange Nuts Zinc w (Qty 2)
- 49 2015 Outlaw Pillow Block (Qty 4)
- 49.1 Two Piece Pillow Block-Male (Qty 2)
- 49.2 Two Piece Pillow Block-Plate (Qty 1)
- 50 1/2-13 X 7 Hex Bolt - Grade 5 (Qty 2)
- 55 2 1/2 X 1/2 Carriage Bolt (Qty 1)
- 61 5/8-11 X 1-1/2 CARRIAGE BOLT GR. 5 ZC (Qty 2)
- 74 10mm Ball Stud (Long Thread) (Qty 2)
- 75 5/8 x 5/8 Shoulder Bolt (Qty 4)
- 76 1/2-13 Nylon Insert Jam Locknut (Qty 4)
- 78 1/4-20 X 1-1/4 GR 5 Hex Bolt (Qty 1)
- 81 1/2-13 X 4 GR 8 Hex Bolt Yellow (Qty 6)
- 83 3/8-16 X 1-1/4 Carriage Bolt (Qty 2)
- 98 .517 Square Hole Round Washer (Qty 1)
- 103 .630 ID X 1.122 OD X .142 THK (Qty 5)
- 112 .505 ID X 1 OD X .128 THK Washer (Qty 3)
- 117 Split Collar (Qty 1)
- 119 ZT/CZT Deck Round Spacer Idler--Plated (Qty 1)
- 121 2019 Deck Stop Spacer (Qty 2)
- 128 Knurled Foot Pedal (Qty 1)
- 129 R-Series Lift Extender Plate--Orange (Qty 1)
- 135 Deck Height Cam Plunger (Qty 1)
- 136 R-Series Deck Height Dial Rod Assy (Qty 1)
- 136.1 3/8-24 Nylon Insert Jam Locknu (Qty 1)
- 136.2 3/8 USS Flat Washer Zinc (Qty 1)
- 136.3 Deck Height Cam Plate (Qty 1)
- 136.4 2019 "R" Series Dial Rod (Qty 1)
- 137 Actuator Bar (Front) (Qty 1)
- 138 Actuator Bar (Rear) (Qty 1)
- 140 2019 Actuator Linkage-Right-Black (Qty 1)
- 150 Foot Lift Upright Lever--Orange (Qty 1)
- 153 Deck Travel Lock Lever--Plated (Qty 1)
- 158 Bronze Bushing - SF-2024-8 (Qty 4)
- 164 Brake Spring (Qty 1)
- 188 Seat Bracket Pin - 2008 Models (Qty 1)
- 189 Security Ring - PC744 For 72" Deck Dampener (Qty 2)
- 191 Security Ring - PC744 For 72" Deck Dampener (Qty 1)
- 218 Grip (Travel Lock) (Qty 1)
- 241 Dampener (200lbs) (Qty 1)
- 242 Dampener (250lbs) (Qty 1)
- 243 Dampener (300lbs) (Qty 1)
-
5#013-0080-00
.630 ID x 1.130 OD x .062 THK F/W Nylon Black
Qty Used: 1Regular price $1.39 USDRegular priceUnit price per
-
6#013-0090-00
5/8-11 NYL INS FLNG L/N ZC
Qty Used: 2Regular price $2.49 USDRegular priceUnit price per
-
11#013-5202-00
3/8 Nylock Flange Nut
Qty Used: 2Regular price $1.49 USDRegular priceUnit price per
-
12#013-5300-00
1/2-13 Hex Fange Nuts Zinc w/
Qty Used: 3Regular price $0.79 USDRegular priceUnit price per
-
15#013-7018-00
1/2-13 Hex Nuts Zinc
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
19#013-8050-00
1/2-13 Nylon Insert Flange Nut
Qty Used: 9Regular price $1.39 USDRegular priceUnit price per
-
20#013-9001-00
1/4-20 Hex Flange Nuts Zinc w/
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
21#013-9002-00
5/16-18 Hex Flange Nuts Zinc w
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
49#017-9075-00
2015 Outlaw Pillow Block
Qty Used: 4Regular price $21.88 USDRegular priceUnit price per
-
49.1#017-9000-00
Two Piece Pillow Block-Male
Qty Used: 2Regular price $9.99 USDRegular priceUnit price per
-
49.2#017-9025-00
Two Piece Pillow Block-Plate
Qty Used: 1Regular price $29.99 USDRegular priceUnit price per
-
50#018-0004-00
1/2-13 X 7 Hex Bolt - Grade 5
Qty Used: 2Regular price $4.99 USDRegular priceUnit price per
-
55#018-0043-00
2 1/2 X 1/2 Carriage Bolt
Qty Used: 1Regular price $2.99 USDRegular priceUnit price per
-
61#018-0080-00
5/8-11 X 1-1/2 CARRIAGE BOLT GR. 5 ZC
Qty Used: 2Regular price $2.99 USDRegular priceUnit price per
-
74#018-2055-00
10mm Ball Stud (Long Thread)
Qty Used: 2Regular price $1.99 USDRegular priceUnit price per
-
75#018-3001-00
5/8 x 5/8 Shoulder Bolt
Qty Used: 4Regular price $14.59 USDRegular priceUnit price per
-
76#018-4010-00
1/2-13 Nylon Insert Jam Locknut
Qty Used: 4Regular price $1.59 USDRegular priceUnit price per
-
78#018-4702-00
1/4-20 X 1-1/4 GR 5 Hex Bolt
Qty Used: 1Regular price $0.69 USDRegular priceUnit price per
-
81#018-5019-00
1/2-13 X 4 GR 8 Hex Bolt Yellow
Qty Used: 6Regular price $3.99 USDRegular priceUnit price per
-
83#018-5043-00
3/8-16 X 1-1/4 Carriage Bolt
Qty Used: 2Regular price $0.99 USDRegular priceUnit price per
-
98#019-0007-00
.517 Square Hole Round Washer
Qty Used: 1Regular price $1.09 USDRegular priceUnit price per
-
103#019-6017-00
.630 ID X 1.122 OD X .142 THK
Qty Used: 5Regular price $0.79 USDRegular priceUnit price per
-
112#019-8054-00
.505 ID X 1 OD X .128 THK Washer
Qty Used: 3Regular price $0.69 USDRegular priceUnit price per
-
117#025-0002-00
Split Collar
Qty Used: 1Regular price $10.20 USDRegular priceUnit price per
-
119#025-0025-00
ZT/CZT Deck Round Spacer Idler--Plated
Qty Used: 1Regular price $6.62 USDRegular priceUnit price per
-
121#025-0033-00
2019 Deck Stop Spacer
Qty Used: 2Regular price $7.99 USDRegular priceUnit price per
-
128#026-0026-00
Knurled Foot Pedal
Qty Used: 1Regular price $36.48 USDRegular priceUnit price per
-
129#026-0222-00
R-Series Lift Extender Plate--Orange
Qty Used: 1Regular price $9.99 USDRegular priceUnit price per
-
135#028-0008-00
Deck Height Cam Plunger
Qty Used: 1Regular price $29.13 USDRegular priceUnit price per
-
136#028-0015-19
2019 Outlaw Gen2 Deck Height Dial Rod Assy
Qty Used: 1Regular price $39.99 USDRegular priceUnit price per
-
136.1#018-4011-00
3/8-24 Nylon Insert Jam Locknu
Qty Used: 1Regular price $1.49 USDRegular priceUnit price per
-
136.2#019-5029-00
3/8 USS Flat Washer Zinc
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
136.3#026-1101-00
Deck Height Cam Plate
Qty Used: 1Regular price $14.53 USDRegular priceUnit price per
-
136.4#028-0015-00
2019 "R" Series Dial Rod
Qty Used: 1Regular price $16.49 USDRegular priceUnit price per
-
137#028-0026-00
Actuator Bar (Front)
Qty Used: 1Regular price $119.41 USDRegular priceUnit price per
-
138#028-0027-00
Actuator Bar (Rear)
Qty Used: 1Regular price $76.99 USDRegular priceUnit price per
-
140#028-6075-22
2019 Actuator Linkage-Right-Black
Qty Used: 1Regular price $40.99 USDRegular priceUnit price per
-
150#031-0003-00
Foot Lift Upright Lever--Orange
Qty Used: 1Regular price $15.99 USDRegular priceUnit price per
-
153#031-0125-00
Deck Travel Lock Lever--Plated
Qty Used: 1Regular price $26.53 USDRegular priceUnit price per
-
158#032-5052-00
Bronze Bushing - SF-2024-8
Qty Used: 4Regular price $4.37 USDRegular priceUnit price per
-
164#034-1025-00
Compact Outlaw Brake Spring
Qty Used: 1Regular price $11.66 USDRegular priceUnit price per
-
188#044-4000-00
Seat Bracket Pin - 2008 Models
Qty Used: 1Regular price $6.59 USDRegular priceUnit price per
-
189191#044-6050-00
Security Ring - PC744
Qty Used: 1Regular price $2.64 USDRegular priceUnit price per
-
218#069-4011-00
Grip (Travel Lock)
Qty Used: 1Regular price $7.99 USDRegular priceUnit price per
-
241#087-5400-00
Damper (200lbs)
Qty Used: 1Regular price $58.32 USDRegular priceUnit price per
-
242#087-6100-00
Dampener (250lbs)
Qty Used: 1Regular price $72.91 USDRegular priceUnit price per
-
243#087-7200-00
Damper (300lbs)
Qty Used: 1Regular price $58.32 USDRegular priceUnit price per
