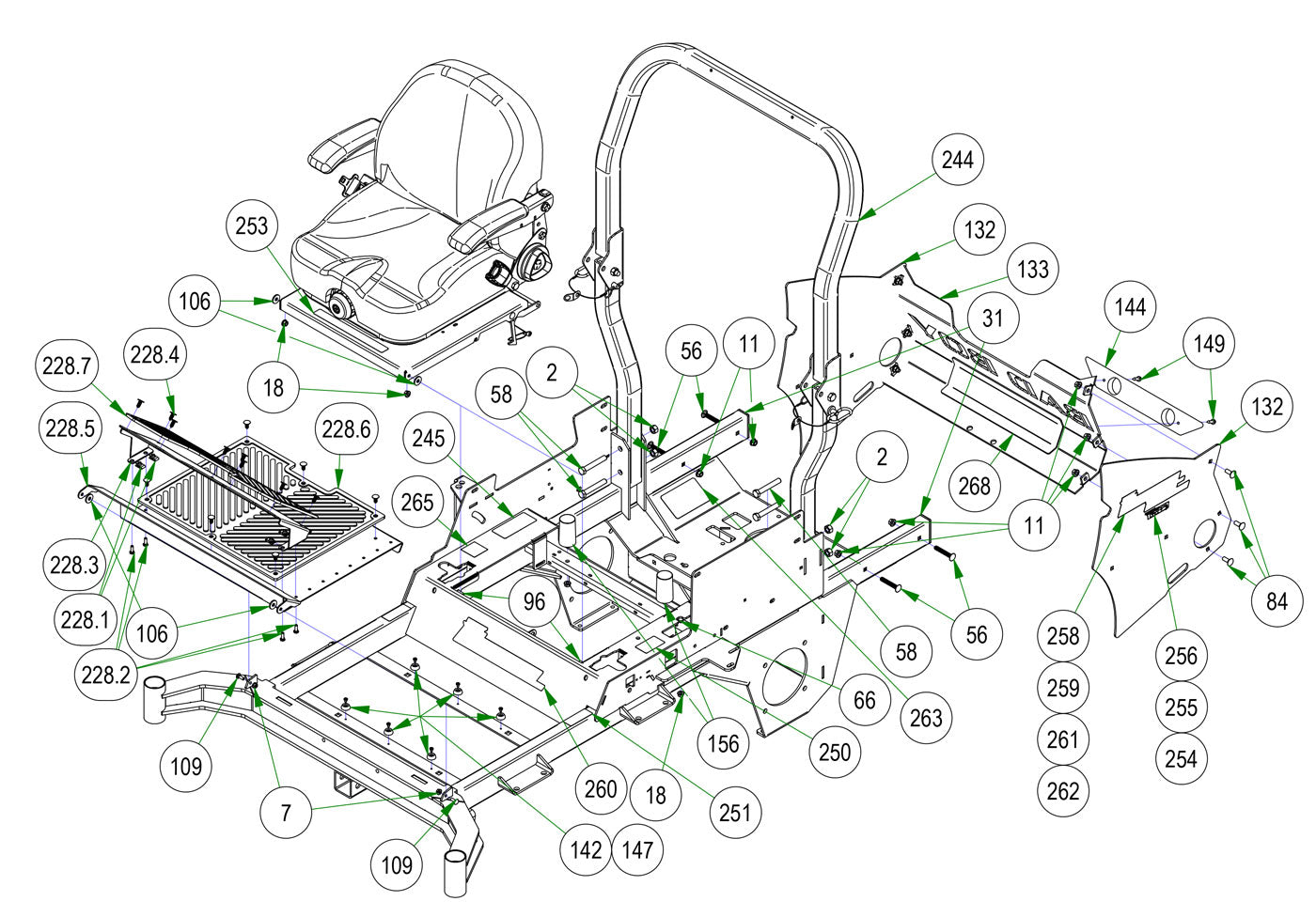

Covers & Seat Pan Assembly
Parts Index
- 2 1/2-13 hex 2-WAY REV CNT L/N (GR.B) ZC (Qty 4)
- 7 1/4-20 Nylon Insert Flange Nut (Qty 3)
- 11 3/8 Nylock Flange Nut (Qty 12)
- 18 5/16-18 Nylon Flange Nut (Qty 9)
- 21 5/16-18 Hex Flange Nuts Zinc w (Qty 4)
- 31 1 1/2x 3 Frame Plug (Qty 2)
- 52 M6-1.0 X 16MM HEX BOLT CL 8 (Qty 2)
- 56 3/8 x 2 1/2 Carriage Bolt (Qty 4)
- 58 1/2-13 X 3.25 Hex Bolt-Grade 5 (Qty 4)
- 66 5/16-18 X 1 GR 5 Hex Bolt Zinc (Qty 1)
- 84 3/8 x 1 Carriage Bolt (Qty 6)
- 96 5/16-18 X 1 Carriage Bolt Zinc (Qty 2)
- 106 .360 ID Plastic Washer (Qty 4)
- 109 1/4 x 3/4 Carriage Bolt (Qty 2)
- 132 2019 Vertical Rigid Rear Cover Side--Orange (Qty 1)
- 133 2019 Vertical Rear Cover Tailgate-Orange (Qty 1)
- 142 Button Bumper (Qty 6)
- 144 Bumper (Qty 1)
- 147 10 X 1/2 Pan Phil a T/S Zinc (Qty 6)
- 149 1/4 x 1 Hex Head Tek Screw (Qty 2)
- 156 Bumper (Seat) (Qty 2)
- 176 Seat Stop--Plated (Qty 1)
- 212 2019 R-Series EPA Cannister Assembly (Qty 1)
- 222 2021 Rebel Seat (Qty 1)
- 228.1 1/4-20 Cage Nut (Qty 4)
- 228.2 1/4-20 X 3/4 GR 5 Hex Bolts (Qty 4)
- 228.3 Adjustable Foot Plate--Orange (Qty 1)
- 228.4 Ratchet Fastener - Floorboard (Qty 14)
- 228.5 2019 Outlaw Floorboard--Orange (Qty 1)
- 228.6 Mat (Floor) (Qty 1)
- 228.7 Mat (Foot Plate) (Qty 1)
- 244 2019 2x2 R SERIES Folding Rops (Qty 1)
- 250 R-Series Brake Decal (Qty 1)
- 251 R-Series LH/RH Steering Control Decal (Qty 1)
- 253 Long Seat Plate Warning Decal (Qty 1)
- 254 2022 Powered By Vangaurd Decal (Qty 2)
- 255 2022 Powered by Kawi Decal (Qty 2)
- 256 2022 Powered By Kohler Decal (Qty 2)
- 258 2019 Rebel 852cc Backplate Cluster (Qty 1)
- 259 2019 Rebel 993cc Backplate Cluster (Qty 1)
- 260 2019 Rebel Cooler Cover Decal (Qty 1)
- 261 2019 Rebel 747cc Backplate Cluster (Qty 1)
- 262 2019 Rebel 999cc Backplate Cluster (Qty 1)
- 263 2019 Rebel Pump Belt Route Decal (Qty 1)
- 265 2019 Deck Release Decal (Qty 1)
- 266 Control Adj. Control Rod Decal (Qty 1)
- 267 Control Adj. Control Dampener Decal (Qty 1)
- 268 Heat Shield (Fiberglass Adhesive) (Qty 1)
-
2#013-0005-00
1/2-13 hex 2-WAY REV CNT L/N (GR.B) ZC
Qty Used: 4Regular price $2.69 USDRegular priceUnit price per
-
7#013-2050-00
1/4-20 Nylon Insert Flange Nut
Qty Used: 3Regular price $1.39 USDRegular priceUnit price per
-
11#013-5202-00
3/8 Nylock Flange Nut
Qty Used: 12Regular price $1.49 USDRegular priceUnit price per
-
18#013-8049-00
5/16-18 Nylon Flange Nut
Qty Used: 9Regular price $0.79 USDRegular priceUnit price per
-
21#013-9002-00
5/16-18 Hex Flange Nuts Zinc w
Qty Used: 4Regular price $0.69 USDRegular priceUnit price per
-
31#014-9003-00
1 1/2x 3 Frame Plug
Qty Used: 2Regular price $2.91 USDRegular priceUnit price per
-
52#018-0024-00
M6-1.0 X 16MM HEX BOLT CL 8
Qty Used: 2Regular price $2.69 USDRegular priceUnit price per
-
56#018-0044-00
3/8 x 2 1/2 Carriage Bolt
Qty Used: 4Regular price $2.69 USDRegular priceUnit price per
-
58#018-0050-00
1/2-13 X 3.25 Hex Bolt-Grade 5
Qty Used: 4Regular price $1.19 USDRegular priceUnit price per
-
66#018-2007-00
5/16-18 X 1 GR 5 Hex Bolt Zinc
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
84#018-5044-00
3/8 x 1 Carriage Bolt
Qty Used: 6Regular price $0.69 USDRegular priceUnit price per
-
96#018-8065-00
5/16-18 X 1 Carriage Bolt Zinc
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
106#019-6042-00
.360 ID Plastic Washer
Qty Used: 4Regular price $0.00 USDRegular priceUnit price per
-
109#019-8040-00
1/4 x 3/4 Carriage Bolt
Qty Used: 2Regular price $1.49 USDRegular priceUnit price per
-
132#026-2219-00
2019 Vertical Rigid Rear Cover Side--Orange
Qty Used: 1Regular price $169.99 USDRegular priceUnit price per
-
133#026-2221-00
2019 Vertical Rear Cover Tailgate-Orange
Qty Used: 1Regular price $225.56 USDRegular priceUnit price per
-
142#029-4010-00
Button Bumper
Qty Used: 6Regular price $1.31 USDRegular priceUnit price per
-
-
147#030-3050-00
10 X 1/2 Pan Phil a T/S Zinc
Qty Used: 6Regular price $0.79 USDRegular priceUnit price per
-
149#030-7040-00
1/4 x 1 Hex Head Tek Screw
Qty Used: 2Regular price $1.00 USDRegular priceUnit price per
-
156#032-0001-00
Bumper (Seat)
Qty Used: 2Regular price $21.88 USDRegular priceUnit price per
-
176#039-2156-00
Seat stop--Plated
Qty Used: 1Regular price $13.26 USDRegular priceUnit price per
-
212#067-0020-19
2019 Outlaw EPA Cannister Assembly
Qty Used: 1Regular price $39.95 USDRegular priceUnit price per
-
222#071-2103-00
2021 Rebel Seat
Qty Used: 1Regular price $569.99 USDRegular priceUnit price per
-
228.1#013-0054-00
1/4-20 Cage Nut
Qty Used: 4Regular price $0.69 USDRegular priceUnit price per
-
228.2#018-8052-00
1/4-20 X 3/4 GR 5 Hex Bolts
Qty Used: 4Regular price $0.69 USDRegular priceUnit price per
-
228.3#026-2230-00
Adjustable Foot Plate--Orange
Qty Used: 1Regular price $66.33 USDRegular priceUnit price per
-
228.4#040-6080-00
Ratchet Fastener - Floorboard
Qty Used: 14Regular price $2.91 USDRegular priceUnit price per
-
228.5#079-3155-00
2019 Outlaw Floorboard--Orange
Qty Used: 1Regular price $109.99 USDRegular priceUnit price per
-
228.6#081-0050-00
Mat (Floor)
Qty Used: 1Regular price $72.99 USDRegular priceUnit price per
-
228.7#081-0051-00
Mat (Foot Plate)
Qty Used: 1Regular price $72.99 USDRegular priceUnit price per
-
244#089-0006-00
2019 2x2 R SERIES Outlaw Folding Rops
Qty Used: 1Regular price $436.43 USDRegular priceUnit price per
-
250#091-1101-18
2018 Out/XP/Diesel Brake Decal
Qty Used: 1Regular price $5.49 USDRegular priceUnit price per
-
251#091-1114-00
2018 LH/RH Steering Control Decal Roll
Qty Used: 1Regular price $14.58 USDRegular priceUnit price per
-
253#091-3150-00
Outlaw Warning Decal
Qty Used: 1Regular price $10.20 USDRegular priceUnit price per
-
254#091-4002-22
2022 Powered By Vangaurd Decal
Qty Used: 2Regular price $5.49 USDRegular priceUnit price per
-
255#091-4003-22
2022 Powered by Kawi Decal
Qty Used: 2Regular price $2.49 USDRegular priceUnit price per
-
256#091-4004-22
2022 Powered By Kohler Decal
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
258#091-4007-00
2019 Rebel 852cc Backplate Cluster
Qty Used: 1Regular price $11.66 USDRegular priceUnit price per
-
259#091-4008-00
2019 Rebel 993cc Backplate Cluster
Qty Used: 1Regular price $11.66 USDRegular priceUnit price per
-
260#091-4010-00
2019 Rebel Cooler Cover Decal
Qty Used: 1Regular price $7.28 USDRegular priceUnit price per
-
261#091-4011-00
2019 Rebel 747cc Backplate Cluster
Qty Used: 1Regular price $11.66 USDRegular priceUnit price per
-
262#091-4023-00
2019 Rebel 999cc Backplate Cluster
Qty Used: 1Regular price $13.26 USDRegular priceUnit price per
-
263#091-4034-00
2019 Rebel Pump Belt Route Decal
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
265#091-4037-00
2019 Deck Release Decal
Qty Used: 1Regular price $7.28 USDRegular priceUnit price per
-
266#091-4038-00
Control Adj. Control Rod Decal
Qty Used: 1Regular price $5.49 USDRegular priceUnit price per
-
267#091-4039-00
Control Adj. Control Dampener Decal
Qty Used: 1Regular price $5.49 USDRegular priceUnit price per
-
268#091-4050-00
Heat Shield (Fiberglass Adhesive)
Qty Used: 1Regular price $13.26 USDRegular priceUnit price per
