Covers & Seat

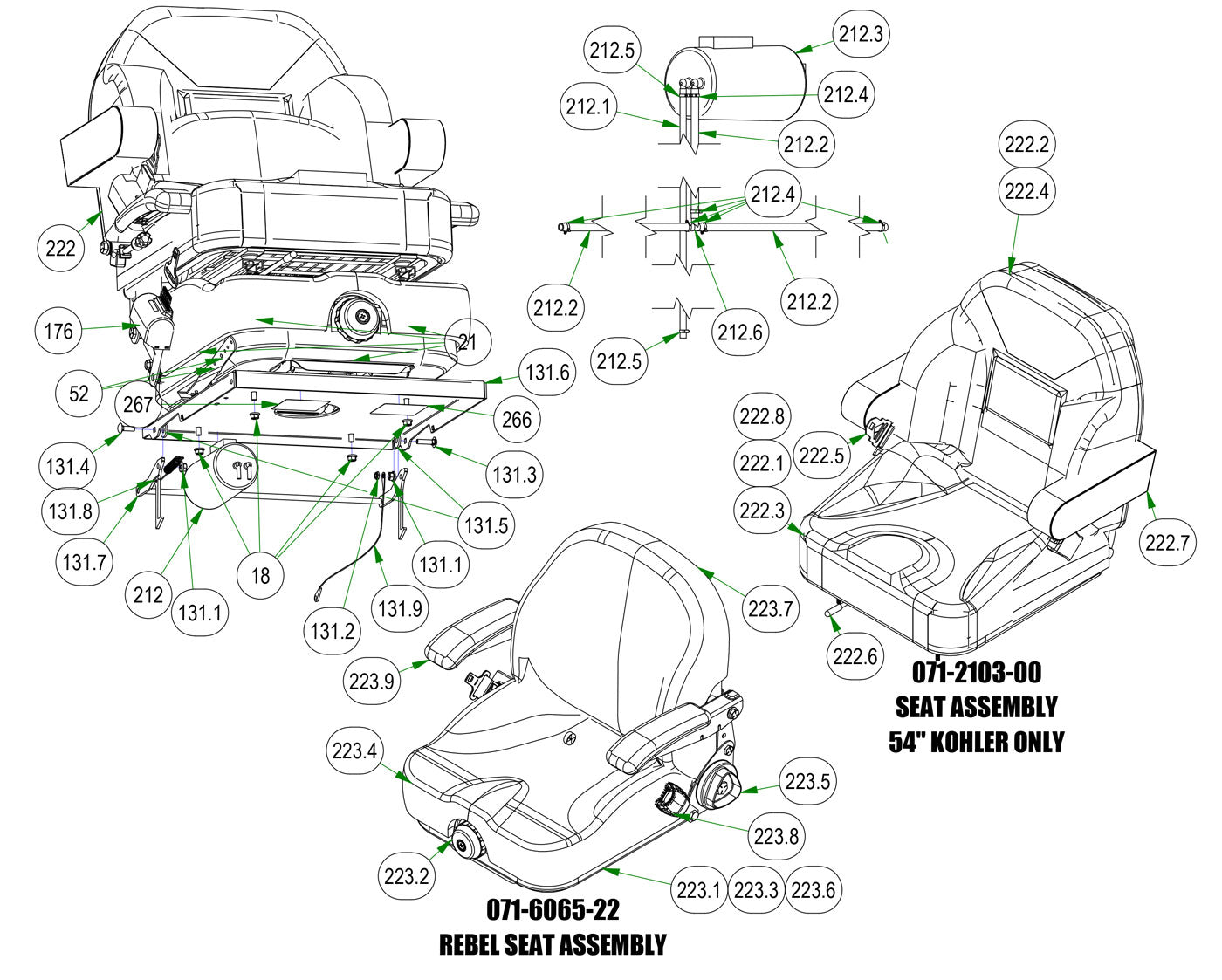

Parts Index
- 18 5/16-18 Nylon Flange Nut (Qty 1)
- 21 5/16-18 Hex Flange Nuts Zinc w (Qty 1)
- 52 M6-1.0 X 16MM HEX BOLT CL 8 (Qty 1)
- 131 R-Series Seat Plate Assembly (Qty 1)
- 131.1 5/16-18 Nylon Flange Nut (Qty 1)
- 131.2 5/16-18 Nylock Jam Nut (Qty 1)
- 131.3 5/16-18 X 1-1/4 Carriage Bolt (Qty 1)
- 131.4 5/16-18 X 1 Carriage Bolt Zinc (Qty 1)
- 131.5 .360 ID Plastic Washer (Qty 1)
- 131.6 Seat Plate--Orange (Qty 1)
- 131.7 Seat Latch Rod (Qty 1)
- 131.8 Brake Spring (Qty 1)
- 131.9 Seat Cable (Qty 1)
- 176 Seat Stop--Plated (Qty 1)
- 212 2019 R-Series EPA Cannister Assembly (Qty 1)
- 212.1 66" 3/16 Vinyl EPA Line (Qty 1)
- 212.2 38" 1/4 Vinyl Tubing (Qty 1)
- 212.3 Carbon Canister ZT,CZT,Outlaw (Qty 1)
- 212.4 MZ Tank Hose Clamp 1/4 Vinyl (Qty 1)
- 212.5 3/16" Vinyl Hose Clamp (Qty 1)
- 212.6 Fuel Line T (Qty 1)
- 222 2021 Rebel Seat (Qty 1)
- 222.1 Seat Cover for 071-2103-00 (Qty 1)
- 222.2 Back Cover for 071-2103-00 (Qty 1)
- 222.3 Foam Molded Seat for the 071-2103-00 (Qty 1)
- 222.4 Foam Molded Back for the 071-2103-00 (Qty 1)
- 222.5 OBSOLETE USE 071-5083-00 (Qty 1)
- 222.6 Seat Rails for Outlaw Seat/2020 ZT Elite/ZTAvenger (Qty 1)
- 222.7 Arm Rest Kit for 071-5060-18/071-2103-00 (Qty 1)
- 222.8 Seat Switch for 071-5060-18/071-2102-22/071-2400-0 (Qty 1)
- 223 2022 Seats Inc Suspension Seat with seatbelt (Qty 1)
- 223.1 SEAT RAILS for 071-6065-00/071-6065-22 (Qty 1)
- 223.2 Weight Adjustment Knob for 071-6065-00/071-6065-22 (Qty 1)
- 223.3 Bellows w/Hardware for 071-6065-22 (Qty 1)
- 223.4 Cushion Cover Kit for I3M - Logo for 071-6065-22 (Qty 1)
- 223.5 Recliner Adjust Knob for 071-6065-00/71-6065-22 (Qty 1)
- 223.6 Seat Switch for 071-6065-00/071-6065-22 (Qty 1)
- 223.7 Back Cover for I3M - Recl - Logos for 071-6065-22 (Qty 1)
- 223.8 OBSOLETE USE 071-6063-00 (Qty 1)
- 223.9 Arm Kit for 071-6065-00/071-6065-22 (Qty 1)
- 266 Control Adj. Control Rod Decal (Qty 1)
- 267 Control Adj. Control Dampener Decal (Qty 1)
