999cc Kawasaki FX1000

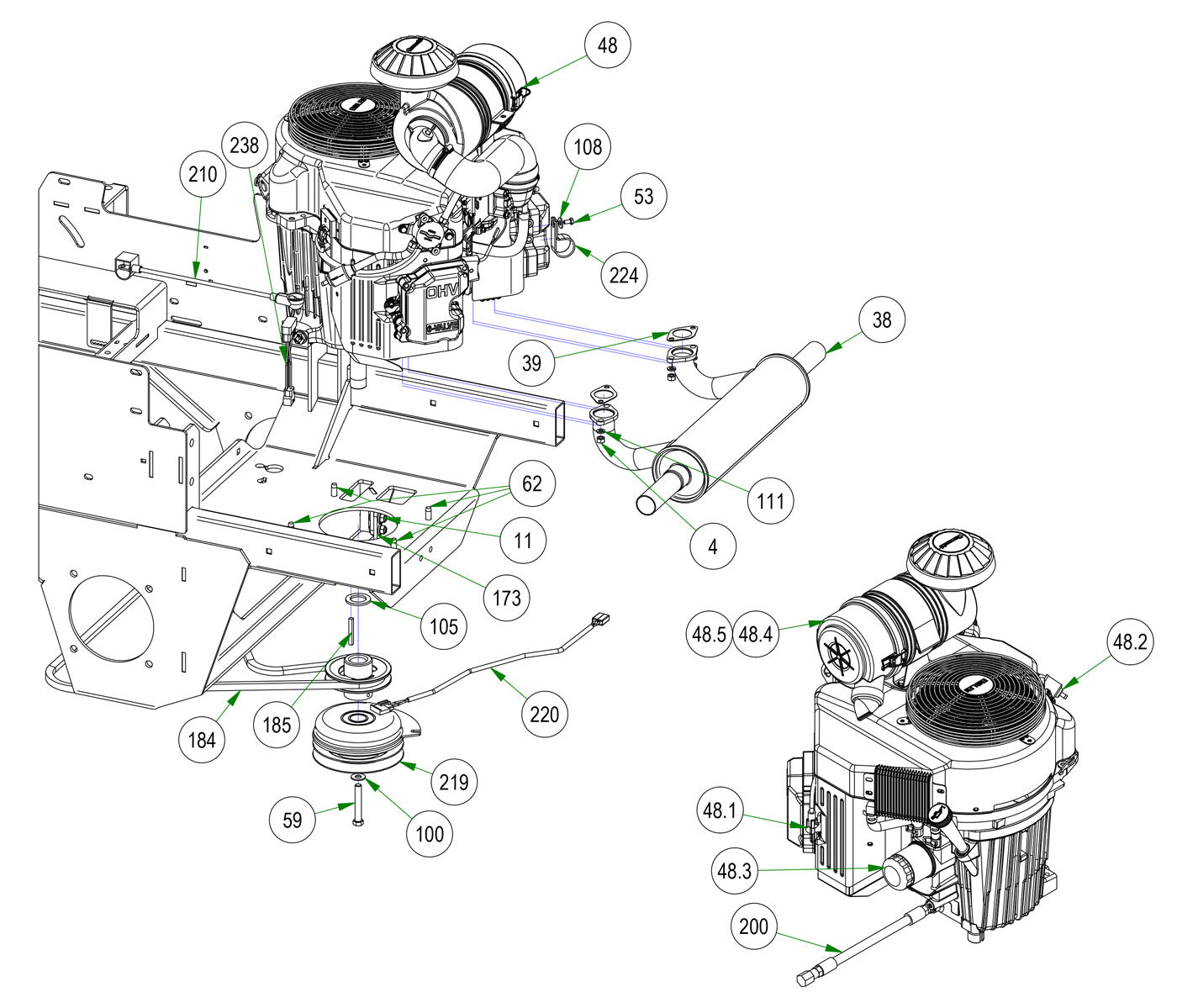

Parts Index
- 4 M8 - 1.25 Stainless Steel Nut (Qty 4)
- 11 3/8 Nylock Flange Nut (Qty 2)
- 38 2019 Rebel/Rogue Kawasaki 1000 Muffler (Qty 1)
- 39 Exhaust Gasket for FX1000V Kawasaki (Qty 2)
- 48 2019 FX1000V Kawasaki Engine (Qty 1)
- 48.1 Spark plug-Kawasaki NGKBPR2ES (Qty 2)
- 48.2 Universal Inline Fuel Filter (Qty 1)
- 48.3 Kawasaki Oil Filter (Qty 1)
- 48.4 Canister Air Fil Outer2010&Old (Qty 1)
- 48.5 Canister Air Filter - Inner (Qty 1)
- 48.6 Exhaust Gasket for FX1000V Kawasaki (Qty 2)
- 53 M6-1.0x12mm Bolt 8.8 (Qty 1)
- 62 3/8 x 1 1/8 Engine Mounting Bolt (Qty 5)
- 84 3/8 x 1 Carriage Bolt (Qty 2)
- 100 3/8 USS Flat Washer Zinc (Qty 1)
- 105 1.140x1.750x .132 Flat Washer (Qty 1)
- 108 1/4 USS Flat Washer Zinc (Qty 1)
- 111 5/16 Lock washer Zinc (Qty 4)
- 159 4 3/4 Motor Pulley (Qty 1)
- 173 Rebel Clutch Stop Tab (Qty 1)
- 184 2019 & up Rebel Pump Belt (Qty 1)
- 185 1/4 X 2 Square Key Stock (Qty 1)
- 200 12" Kawasaki Oil Drain (Qty 1)
- 210 14" Red Battery Cable- Rebel, Raider (Qty 1)
- 219 Revolt, Rogue, Rebel, HD Clutch (Qty 1)
- 220 Clutch Pigtail (Qty 1)
- 224 Diesel Hydraulic Hose Clamp (Qty 1)
- 235 Rebel, Rogue Ground Wire (Qty 1)
- 238 2019 Harness Adaptor-R-Series FX/35KA (Qty 1)
-
4#013-0075-00
M8 - 1.25 Stainless Steel Nut
Qty Used: 4Regular price $2.99 USDRegular priceUnit price per
-
11#013-5202-00
3/8 Nylock Flange Nut
Qty Used: 2Regular price $1.49 USDRegular priceUnit price per
-
38#015-1010-00
2019 Rebel/Rogue Kawasaki 1000 Muffler
Qty Used: 1Regular price $199.00 USDRegular priceUnit price per
-
3948.6#015-1010-01
Exhaust Gasket for FX1000V Kawasaki
Qty Used: 2Regular price $7.99 USDRegular priceUnit price per
-
48#015-9911-00
2019 FX1000V Kawasaki Engine
Qty Used: 1Regular price $2,799.99 USDRegular priceUnit price per
-
48.1#015-8001-00
Spark plug-Kawasaki NGKBPR2ES
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
48.2#063-6000-00
Universal Inline Fuel Filter
Qty Used: 1Regular price $13.26 USDRegular priceUnit price per
-
48.3#063-8017-00
Kawasaki Oil Filter
Qty Used: 1Regular price $19.99 USDRegular priceUnit price per
-
48.4#063-8019-00
Canister Air Fil Outer2010&Old
Qty Used: 1Regular price $33.50 USDRegular priceUnit price per
-
48.5#063-8020-00
Canister Air Filter - Inner
Qty Used: 1Regular price $30.51 USDRegular priceUnit price per
-
53#018-0025-00
M6-1.0x12mm Bolt 8.8
Qty Used: 1Regular price $2.69 USDRegular priceUnit price per
-
62#018-1075-00
3/8 x 1 1/8 Engine Mounting Bolt
Qty Used: 5Regular price $1.39 USDRegular priceUnit price per
-
84#018-5044-00
3/8 x 1 Carriage Bolt
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
100#019-5029-00
3/8 USS Flat Washer Zinc
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
105#019-6029-00
1.140x1.750x .132 Flat Washer
Qty Used: 1Regular price $1.19 USDRegular priceUnit price per
-
108#019-7040-00
1/4 USS Flat Washer Zinc
Qty Used: 1Regular price $0.69 USDRegular priceUnit price per
-
111#019-8051-00
5/16 Lock washer Zinc
Qty Used: 4Regular price $0.79 USDRegular priceUnit price per
-
159#033-5035-00
4 3/4 Motor Pulley
Qty Used: 1Regular price $39.79 USDRegular priceUnit price per
-
173#039-0178-00
Rebel Clutch Stop Tab
Qty Used: 1Regular price $13.99 USDRegular priceUnit price per
-
184#041-8050-00
2019 & up Rebel Pump Belt
Qty Used: 1Regular price $74.99 USDRegular priceUnit price per
-
185#042-5020-00
1/4 X 2 Square Key Stock
Qty Used: 1Regular price $2.92 USDRegular priceUnit price per
-
200#051-5407-00
12" Kawasaki Oil Drain
Qty Used: 1Regular price $39.79 USDRegular priceUnit price per
-
210#064-5301-01
14" Red Battery Cable-Base Outlaw
Qty Used: 1Regular price $12.09 USDRegular priceUnit price per
-
-
220#070-2000-00
Clutch Pigtail
Qty Used: 1Regular price $19.85 USDRegular priceUnit price per
-
224#072-5000-00
Diesel Hydraulic Hose Clamp
Qty Used: 1Regular price $6.62 USDRegular priceUnit price per
-
235#086-0005-00
Starter Cable
Qty Used: 1Regular price $9.28 USDRegular priceUnit price per
-
238#086-9002-19
2019 Harness Adaptor-R-Series FX/35KA
Qty Used: 1Regular price $18.96 USDRegular priceUnit price per
