993cc Vanguard

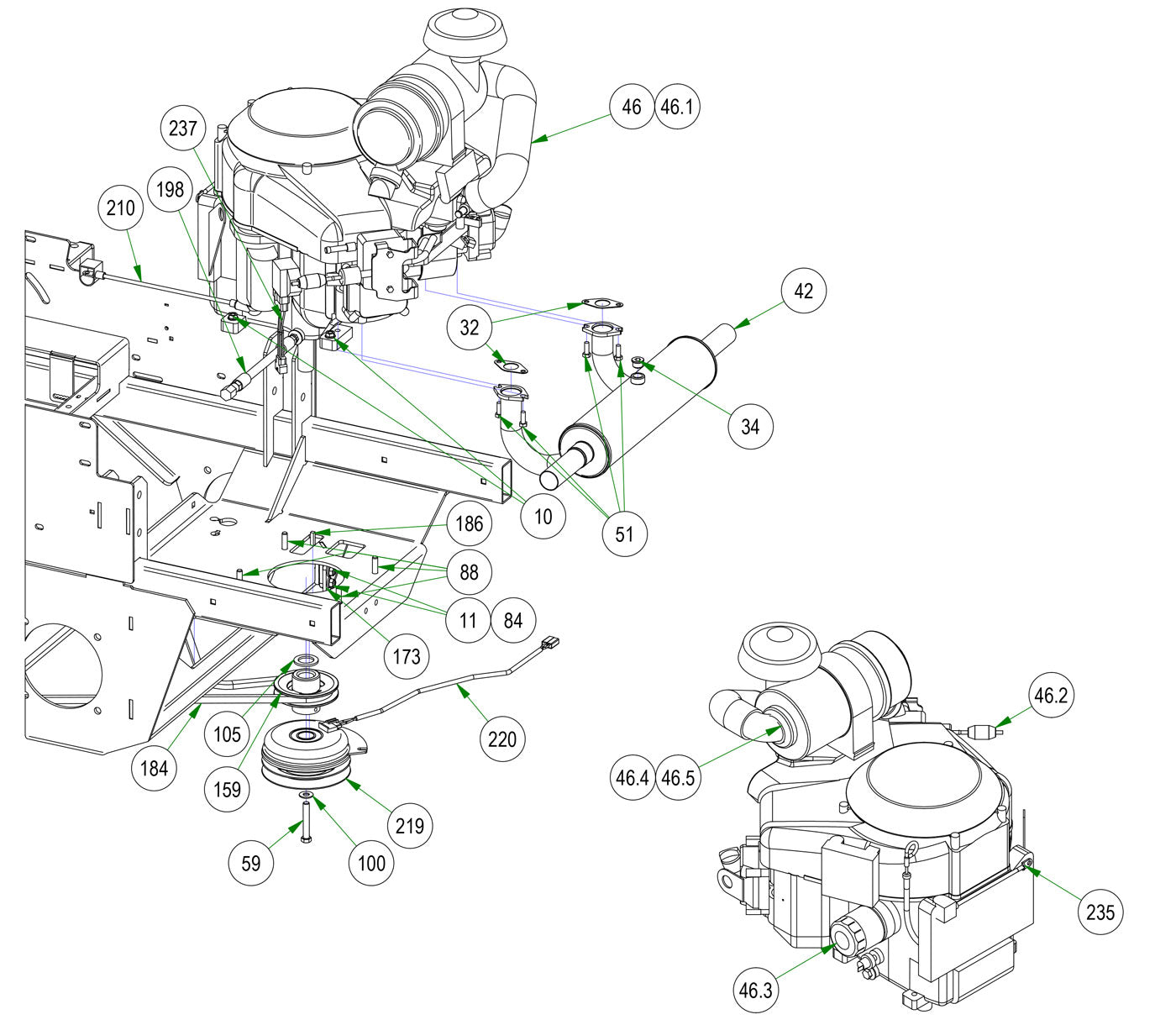

Parts Index
- 10 3/8-16 Hex Flange Nuts Zinc w/ (Qty 4)
- 11 3/8 Nylock Flange Nut (Qty 2)
- 32 Exhaust Gasket for 23 (Qty 2)
- 34 O2 Bung Plug 12mm x 1.25 CS (Qty 1)
- 42 2019 Rebel/Rogue Vanguard 993 Exhaust& 999cc EFI (Qty 1)
- 46 36hp Briggs Vanguard Engine (Qty 1)
- 46.1 Spark Plug-Kohler/Briggs (Qty 2)
- 46.2 Universal Inline Fuel Filter (Qty 1)
- 46.3 Briggs Oil Filter (Qty 1)
- 46.4 Canister Air Fil Outer2010&Old (Qty 1)
- 46.5 Canister Air Filter - Inner (Qty 1)
- 51 Torx Bolt-Exhaust-23hp Vanguard (Qty 4)
- 84 3/8 x 1 Carriage Bolt (Qty 2)
- 88 3/8 x 1 1/2 Bolt (Qty 4)
- 100 3/8 USS Flat Washer Zinc (Qty 1)
- 105 1.140x1.750x .132 Flat Washer (Qty 1)
- 173 Rebel Clutch Stop Tab (Qty 1)
- 159 4 3/4 Motor Pulley (Qty 1)
- 184 2019 & up Rebel Pump Belt (Qty 1)
- 186 1/4 x 1 Square Key (Qty 1)
- 198 14mm Drain Hose-36hp Vanguard (Qty 1)
- 210 14" Red Battery Cable- Rebel, Raider (Qty 1)
- 219 Revolt, Rogue, Rebel, HD Clutch (Qty 1)
- 220 Clutch Pigtail (Qty 1)
- 235 Rebel, Rogue Ground Wire (Qty 1)
- 237 2019 Harness Adaptor-36 Vanguard Carb (Qty 1)
-
10#013-5201-00
3/8-16 Hex Flange Nuts Zinc w/
Qty Used: 4Regular price $1.49 USDRegular priceUnit price per
-
11#013-5202-00
3/8 Nylock Flange Nut
Qty Used: 2Regular price $1.49 USDRegular priceUnit price per
-
32#015-0025-00
Exhaust Gasket for 23
Qty Used: 2Regular price $8.74 USDRegular priceUnit price per
-
34#015-0050-01
O2 Bung Plug 12mm x 1.25 CS
Qty Used: 1Regular price $8.99 USDRegular priceUnit price per
-
42#015-1014-00
2019 Rebel/Rogue Vanguard 993 Exhaust& 999cc EFI
Qty Used: 1Regular price $199.00 USDRegular priceUnit price per
-
46#015-3600-00
36hp Briggs Vanguard Engine
Qty Used: 1Regular price $3,979.44 USDRegular priceUnit price per
-
46.1#015-8000-00
Spark Plug-Kohler/Briggs
Qty Used: 2Regular price $9.99 USDRegular priceUnit price per
-
46.2#063-6000-00
Universal Inline Fuel Filter
Qty Used: 1Regular price $13.26 USDRegular priceUnit price per
-
46.3#063-8018-00
Briggs Oil Filter
Qty Used: 1Regular price $19.99 USDRegular priceUnit price per
-
46.4#063-8019-00
Canister Air Fil Outer2010&Old
Qty Used: 1Regular price $33.50 USDRegular priceUnit price per
-
46.5#063-8020-00
Canister Air Filter - Inner
Qty Used: 1Regular price $30.51 USDRegular priceUnit price per
-
51#018-0017-00
Torx Bolt-Exhaust-23hp Vanguard
Qty Used: 4Regular price $5.29 USDRegular priceUnit price per
-
84#018-5044-00
3/8 x 1 Carriage Bolt
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
88#018-6012-00
3/8 x 1 1/2 Bolt
Qty Used: 4Regular price $0.79 USDRegular priceUnit price per
-
100#019-5029-00
3/8 USS Flat Washer Zinc
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
105#019-6029-00
1.140x1.750x .132 Flat Washer
Qty Used: 1Regular price $1.19 USDRegular priceUnit price per
-
173#039-0178-00
Rebel Clutch Stop Tab
Qty Used: 1Regular price $13.99 USDRegular priceUnit price per
-
159#033-5035-00
4 3/4 Motor Pulley
Qty Used: 1Regular price $39.79 USDRegular priceUnit price per
-
184#041-8050-00
2019 & up Rebel Pump Belt
Qty Used: 1Regular price $74.99 USDRegular priceUnit price per
-
186#042-6030-00
1/4 x 1 Square Key
Qty Used: 1Regular price $4.37 USDRegular priceUnit price per
-
198#051-5402-00
14mm Drain Hose-36hp Vanguard
Qty Used: 1Regular price $29.18 USDRegular priceUnit price per
-
210#064-5301-01
14" Red Battery Cable-Base Outlaw
Qty Used: 1Regular price $12.09 USDRegular priceUnit price per
-
-
220#070-2000-00
Clutch Pigtail
Qty Used: 1Regular price $19.85 USDRegular priceUnit price per
-
235#086-0005-00
Starter Cable
Qty Used: 1Regular price $9.28 USDRegular priceUnit price per
-
237#086-9001-19
2019 Harness Adaptor-36 Vanguard Carb
Qty Used: 1Regular price $49.99 USDRegular priceUnit price per
