747cc Kohler Command

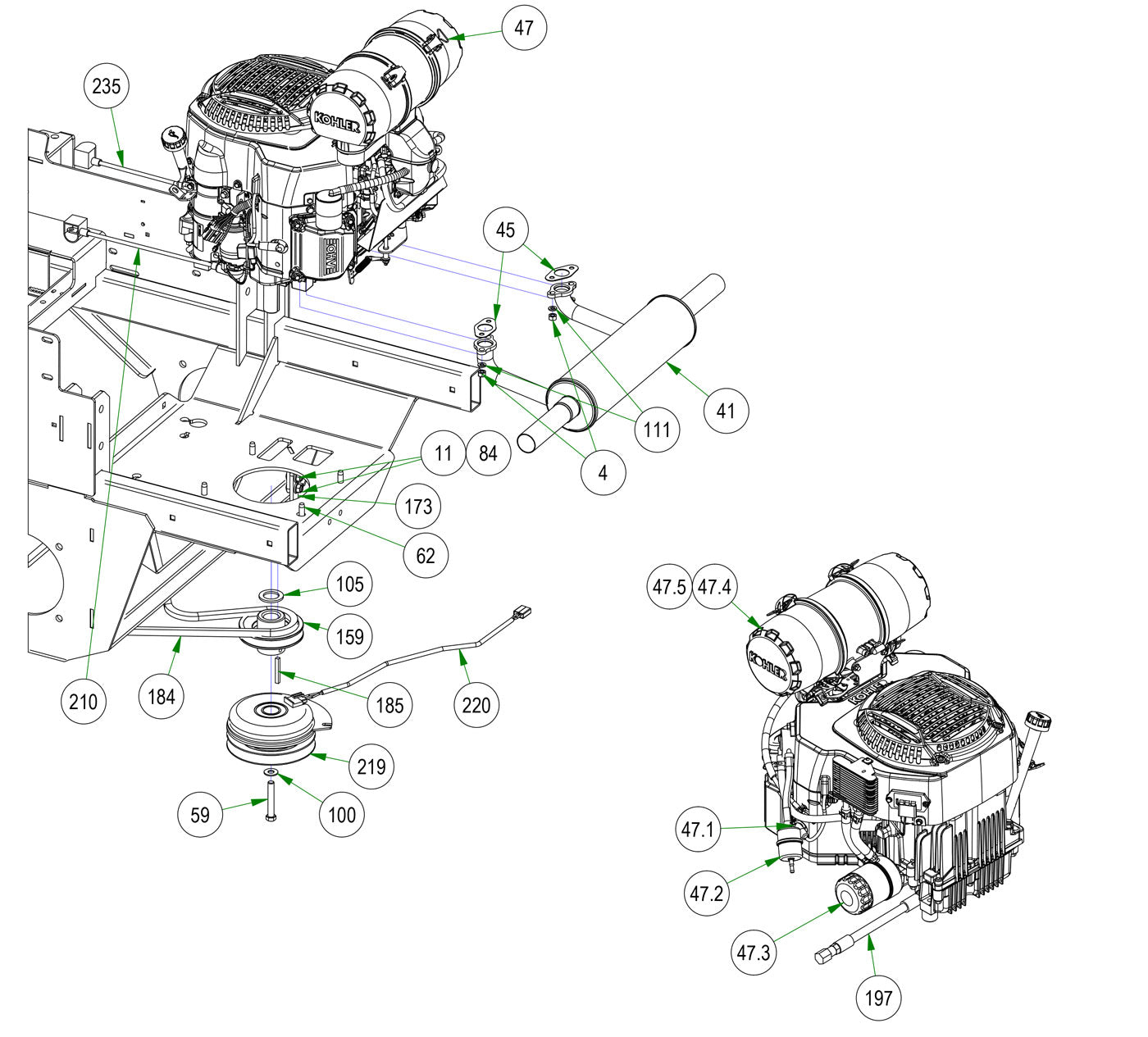

Parts Index
- 4 M8 - 1.25 Stainless Steel Nut (Qty 4)
- 11 3/8 Nylock Flange Nut (Qty 2)
- 41 2019 Rebel Kohler CV752 Muffler (Qty 1)
- 45 Exhaust Gaskets for 27,30 hp (Qty 2)
- 47 2019 Kohler Command 27HP CV752 (Qty 1)
- 47.1 Spark Plug-Kohler/Briggs (Qty 2)
- 47.2 25/26 HP Koh Fuel Filter ZT/MZ (Qty 1)
- 47.3 Oil Filter - 27 & 30 Kohler (Qty 1)
- 47.4 Canister Air Fil Outer2010&Old (Qty 1)
- 47.5 Canister Air Filter - Inner (Qty 1)
- 62 3/8 x 1 1/8 Engine Mounting Bolt (Qty 4)
- 84 3/8 x 1 Carriage Bolt (Qty 2)
- 100 3/8 USS Flat Washer Zinc (Qty 1)
- 105 1.140x1.750x .132 Flat Washer (Qty 1)
- 111 5/16 Lock washer Zinc (Qty 4)
- 159 4 3/4 Motor Pulley (Qty 1)
- 184 2019 & up Rebel Pump Belt (Qty 1)
- 185 1/4 X 2 Square Key Stock (Qty 1)
- 197 Kohler Oil Drain Hose (Qty 1)
- 210 14" Red Battery Cable- Rebel, Raider (Qty 1)
- 219 Revolt, Rogue, Rebel, HD Clutch (Qty 1)
- 220 Clutch Pigtail (Qty 1)
- 235 Rebel, Rogue Ground Wire (Qty 1)
-
4#013-0075-00
M8 - 1.25 Stainless Steel Nut
Qty Used: 4Regular price $2.99 USDRegular priceUnit price per
-
11#013-5202-00
3/8 Nylock Flange Nut
Qty Used: 2Regular price $1.49 USDRegular priceUnit price per
-
41#015-1013-00
2019 Rebel Kohler CV752 Muffler
Qty Used: 1Regular price $199.00 USDRegular priceUnit price per
-
45#015-2751-00
Exhaust Gaskets for 27,30 hp
Qty Used: 2Regular price $5.96 USDRegular priceUnit price per
-
47#015-7520-00
2019 Kohler Command 27HP CV752
Qty Used: 1Regular price $1,999.99 USDRegular priceUnit price per
-
47.1#015-8000-00
Spark Plug-Kohler/Briggs
Qty Used: 2Regular price $9.99 USDRegular priceUnit price per
-
47.2#063-5001-00
25/26 HP Koh Fuel Filter ZT/MZ
Qty Used: 1Regular price $17.99 USDRegular priceUnit price per
-
47.3#063-5400-00
Oil Filter - 27 & 30 Kohler
Qty Used: 1Regular price $18.99 USDRegular priceUnit price per
-
47.4#063-8019-00
Canister Air Fil Outer2010&Old
Qty Used: 1Regular price $33.50 USDRegular priceUnit price per
-
47.5#063-8020-00
Canister Air Filter - Inner
Qty Used: 1Regular price $30.51 USDRegular priceUnit price per
-
62#018-1075-00
3/8 x 1 1/8 Engine Mounting Bolt
Qty Used: 4Regular price $1.39 USDRegular priceUnit price per
-
84#018-5044-00
3/8 x 1 Carriage Bolt
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
100#019-5029-00
3/8 USS Flat Washer Zinc
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
105#019-6029-00
1.140x1.750x .132 Flat Washer
Qty Used: 1Regular price $1.19 USDRegular priceUnit price per
-
111#019-8051-00
5/16 Lock washer Zinc
Qty Used: 4Regular price $0.79 USDRegular priceUnit price per
-
159#033-5035-00
4 3/4 Motor Pulley
Qty Used: 1Regular price $39.79 USDRegular priceUnit price per
-
184#041-8050-00
2019 & up Rebel Pump Belt
Qty Used: 1Regular price $74.99 USDRegular priceUnit price per
-
185#042-5020-00
1/4 X 2 Square Key Stock
Qty Used: 1Regular price $2.92 USDRegular priceUnit price per
-
197#051-5401-00
Kohler Oil Drain Hose
Qty Used: 1Regular price $29.13 USDRegular priceUnit price per
-
210#064-5301-01
14" Red Battery Cable-Base Outlaw
Qty Used: 1Regular price $12.09 USDRegular priceUnit price per
-
-
220#070-2000-00
Clutch Pigtail
Qty Used: 1Regular price $19.85 USDRegular priceUnit price per
-
235#086-0005-00
Starter Cable
Qty Used: 1Regular price $9.28 USDRegular priceUnit price per
